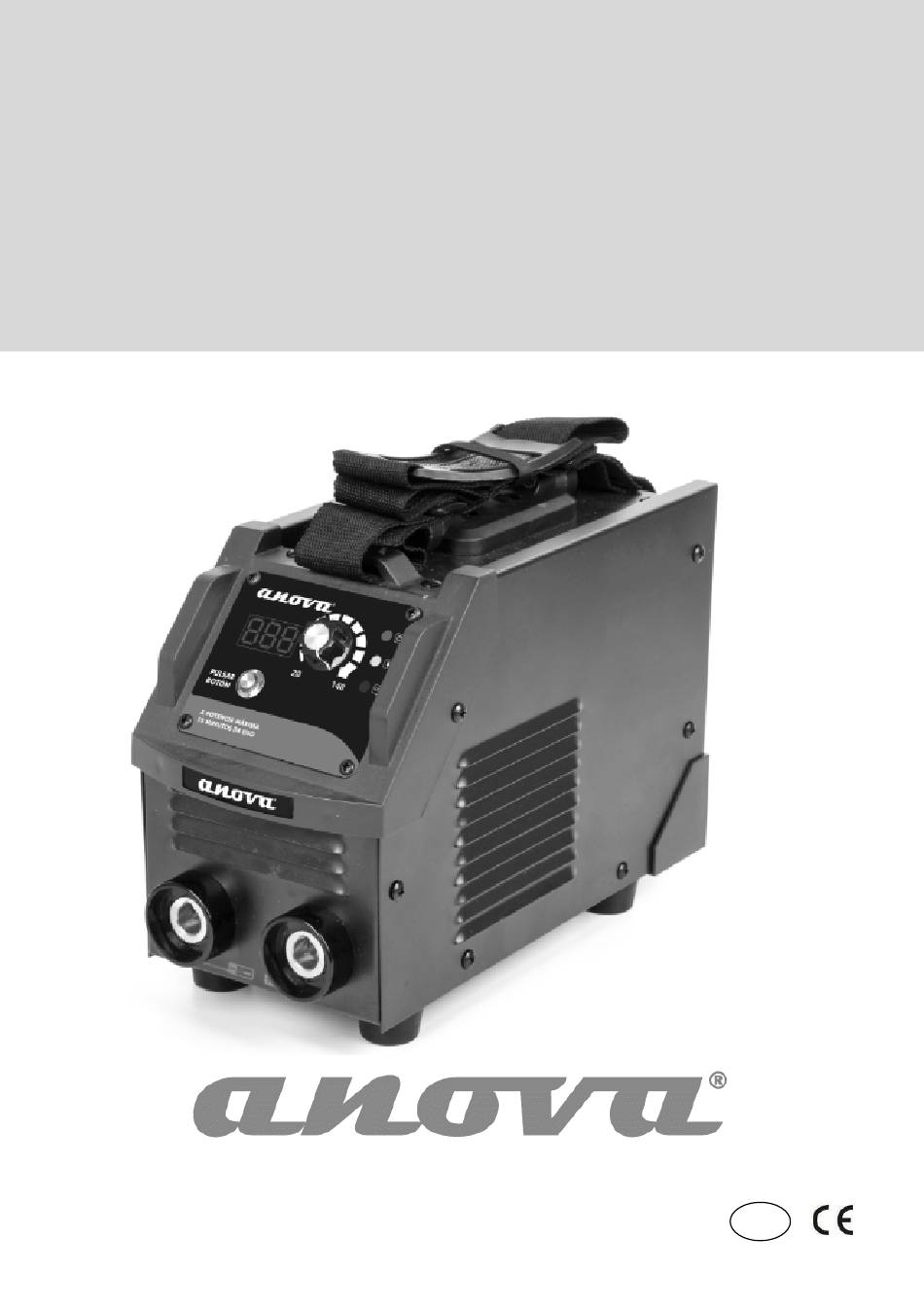

- Page 1 Instructions and user manual SL210 Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña 981 696465 www.millasur.com...
- Page 2 ANOVA wishes to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be of great use if used in accordance with the instructions contained in the user manual.
-
Page 3: Table Of Contents
CONTENTS 1. IMPORTANT SAFETY SYMBOLS AND INDICATIONS 2. GENERIC PRECAUTIONS 3. IDENTIFICATION OF PARTIES 4. TECHNICAL DATA 5. INSTALLATION 6. USE 7. WORK INDICATIONS 8. WARRANTY 9. ENVIRONMENT 10. EXPLODED 11. EC DECLARATION... -
Page 4: Important Safety Symbols And Indications
1. IMPORTANT SAFETY SYMBOLS AND INDICATIONS See the related symbols and instructions below for actions to avoid hazards. Caveat! Watch out! There are potential dangers with this procedure! Possible hazards are shown in the adjacent symbols. Special security message. This group of symbols means Warning! Watch out! Potential ELECTRICAL SHOCK, MOVING PARTS, and HOT PARTS hazards. - Page 5 • Turn off all equipment when not in use. • Do not use frayed, damaged, undersized, or poorly spliced cables. • Do not place cables across your body. • If workpiece grounding is required, ground it directly with a separate cable; do not use work clamp or work cable.•...
- Page 6 and burns. Accidental contact of the electrode with metallic objects can cause sparks, explosions, overheating or fire. Check and make sure area is safe before doing any welding.• Protect yourself and others from sparks and hot metal.• Do not weld where emitted sparks may strike flammable material.•...
- Page 7 • Never place a welding torch on a gas cylinder. • Never allow a welding electrode to touch any cylinder. • Never weld on a pressurized cylinder – an explosion will occur. • Use only gas cylinders, regulators, hoses and accessories. correct protective gear designed for the specific application;...
-
Page 8: Generic Precautions
This ANOVA inverter welding machine adopts advanced IGBT bridge technology. The presence of inverter type arc welding equipment benefits from the emergence of inverter power supply theory and device. -
Page 9: Identification Of Parties
transportation. Place the unit on a clean, solid, horizontal surface. Protect it from rain and bad weather. Make sure that the ventilation air circulates freely. 3. IDENTIFICATION OF PARTIES 1. Digital display2. Current adjustment Quick connector connector: welding machine button3. Power Indicator4. Protection output (+)8. -
Page 10: Technical Data
The fan will continue to run as long as the machine is welding. If the machine does not weld for more than five minutes, the fan will turn off. • Shoulder belt: For easy transport. 4. TECHNICAL DATA SL210 MODEL RATED INPUT VOLTAGE 1 PHASE – 230V AC ±... - Page 11 GRAPHIC SYMBOLS AND INDICATIONS U1: Nominal AV input voltage ( tolerance ± 10%) I1max: maximum rated input current I1eff: Maximum effective input current X: work cycle Ratio between given duration time / full cycle time Note 1: This ratio must be within 0 ~ 1, and can be indicated by percentage.
-
Page 12: Installation
Insulation class Do not dispose of power tools together with household waste. 5. INSTALLATION Caveat! All connections to the machine must be made after ensuring that the main power supply is switched off. This welding machine is equipped with a supply voltage compensation device. When the supply voltage varies in the range of + 5% of the nominal voltage, it will continue to work the same. - Page 13 (approved according to EN 60974-11). Now that you're ready to solder, remember CLAMS. Bringing all these points together in one moment of welding may seem like a lot to think about, but it becomes second nature with practice, so don't get discouraged! Stick welding got its name not because the electrode looks like a stick, but because everyone sticks the stick to the workpiece when learning to weld.
-
Page 14: Use
area, make multiple passes or line passes. When welding vertically, focus on welding the sides of the joint and the center will come up on its own. Pause to allow the far side of the bead to cool and the length of weld to harden and ensure it is securely fastened to the sidewall. - Page 15 according to the size of the electrode used and the welding position. The arc is formed between the electrode tip and the weld piece. The coating of the fusion electrode forms gas and slag, which protects the welding area. Solidified slag on the weld is removed after welding, e.g.
-
Page 16: Work Indications
7. WORK INDICATIONS Welding fumes can be dangerous to your health, make sure there is enough ventilation during welding. Never look at the arc without a face shield made for arc welding! Protect yourself and the surroundings of the arc from slag splashes! It is recommended that you first test the weld and welding current speed on something other than the actual work piece. - Page 17 • Observe the arc through the lens on the face shield and keep the arc length approximately 1 - 1.5 times the diameter of the electrode. Arc length is very important as it influences welding current and welding voltage. • Incorrect current intensity results in poor weld quality and a weak joint. •...
- Page 18 the circuit and components. TYPES OF WELDING SEAM Appearance as a function of current intensity: Arc Too Short – When the arc is too short, irregular masses of weld metal with slag inclusions are produced. Arc Too Long - A long arc causes poor penetration of base metals, bubbles and porosities in molten metal.
-
Page 19: Warranty
- Misuse, negligence, careless operation or lack of maintenance. - Defects caused by incorrect use, damage caused due to manipulations carried out by personnel not authorized by Anova or use of non-original spare parts. 13.4. IN CASE OF INCIDENCE - The guarantee must be correctly completed with all the information requested, and accompanied by the purchase invoice. -
Page 20: Exploded
10.EXPLODED... -
Page 21: Ec Declaration
In the event that the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity. Machine name: MMA WELDING SL210 Model: Recognized and approved standard to which it conforms: Directive 2004/108/EC...
