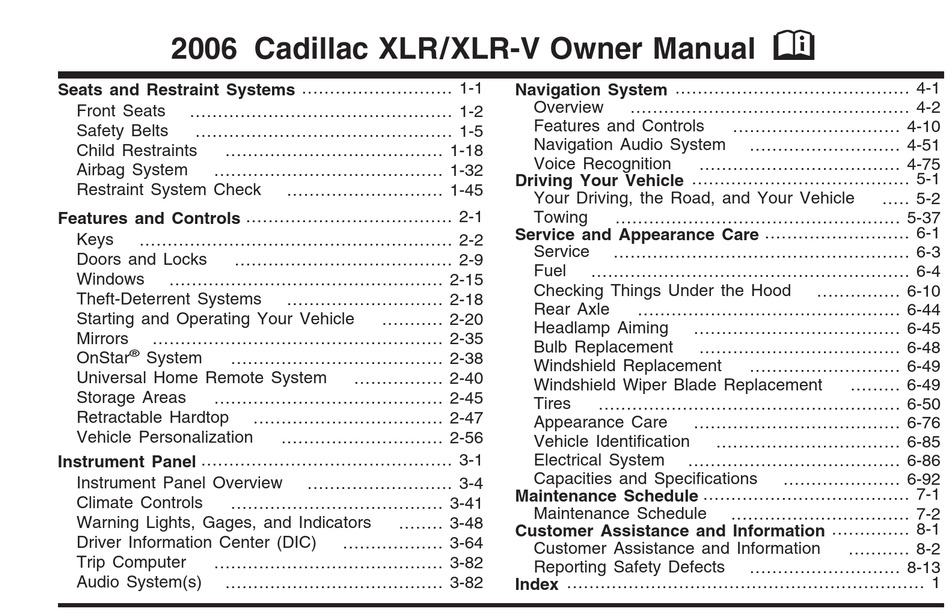

2006 Cadillac XLR/XLR-V Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-2

Safety Belts

.............................................. 1-5

Child Restraints

....................................... 1-18

Airbag System

......................................... 1-32

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-2

Doors and Locks

....................................... 2-9

Windows

................................................. 2-15

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-35

®

OnStar

System

...................................... 2-38

Universal Home Remote System

Storage Areas

......................................... 2-45

Retractable Hardtop

Vehicle Personalization

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-41

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Trip Computer

......................................... 3-82

Audio System(s)

....................................... 3-82

............................ 1-45

............................ 2-18

........... 2-20

................ 2-40

.................................. 2-47

............................. 2-56

.......................... 3-4

........ 3-48

.................. 3-64

Navigation System .......................................... 4-1

Overview

.................................................. 4-2

Features and Controls

Navigation Audio System

Voice Recognition

Driving Your Vehicle ....................................... 5-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 5-37

Service and Appearance Care .......................... 6-1

Service

..................................................... 6-3

Fuel

......................................................... 6-4

Checking Things Under the Hood

Rear Axle

............................................... 6-44

Headlamp Aiming

..................................... 6-45

Bulb Replacement

Windshield Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 6-50

Appearance Care

..................................... 6-76

Vehicle Identiﬁcation

Electrical System

...................................... 6-86

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 7-1

Maintenance Schedule

Customer Assistance and Information .............. 8-1

Customer Assistance and Information

Reporting Safety Defects

Index ................................................................ 1

M

.............................. 4-10

........................... 4-51

.................................... 4-75

............... 6-10

.................................... 6-48

........................... 6-49

......... 6-49

................................. 6-85

..................... 6-92

................................ 7-2

........... 8-2

........................... 8-13

..... 5-2

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the XLR-V 2006 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cadillac XLR-V 2006

Page 1 2006 Cadillac XLR/XLR-V Owner Manual Seats and Restraint Systems ......1-1 Navigation System .......... 4-1 Overview ..........4-2 Front Seats ..........1-2 Features and Controls ......4-10 Safety Belts ..........1-5 Navigation Audio System ......4-51 Child Restraints ........1-18 Voice Recognition ........
Page 2 Helm, Incorporated P.O. Box 07130 GENERAL MOTORS, GM, the GM Emblem, CADILLAC, Detroit, MI 48207 the CADILLAC Crest & Wreath, and the name XLR are registered trademarks of General Motors How to Use This Manual Corporation. This manual includes the latest information at the time Many people read the owner manual from beginning to it was printed.
Page 3 Index In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you do not, A good place to quickly locate information about the you or others could be hurt.
Page 4 Vehicle Damage Warnings Vehicle Symbols Also, in this manual you will ﬁnd these notices: The vehicle has components and labels that use symbols instead of text. Symbols are shown along with Notice: These mean there is something that could the text describing the operation or information damage your vehicle.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7 Section 1 Seats and Restraint Systems Front Seats ............1-2 Lower Anchors and Tethers for Power Seats ..........1-2 Children (LATCH) ........1-27 Power Lumbar ..........1-2 Securing a Child Restraint in the Heated and Cooled Seats ........1-3 Passenger Seat Position ......1-28 Power Reclining Seatback .......1-3 Airbag System ..........1-32 Safety Belts .............1-5 Where Are the Airbags? ........1-34...
Page 8 Front Seats Power Lumbar The driver’s and Power Seats passenger’s seatback lumbar support switches The power seat controls are located on the are located on the outboard outboard sides of sides of both the driver’s the seats. and the passenger’s seats. Use the power seat controls ﬁrst to get the proper •...
Page 9 Heated and Cooled Seats Power Reclining Seatback The buttons for the heated and cooled seats are located on the climate control system. (Heated/Cooled Seat): Press this button to turn the feature on. The button on the left controls the driver’s seat and the button on the right controls the passenger’s seat.
Page 10 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
Page 11 Safety Belts CAUTION: Safety Belts: They Are for Everyone It is extremely dangerous to ride in a cargo area, This part of the manual tells you how to use safety inside or outside of a vehicle. In a collision, belts properly. It also tells you some things you should people riding in these areas are more likely to not do with safety belts.
Page 12 Why Safety Belts Work In most states and all Canadian provinces, the law says to wear safety belts. Here’s why: They work. When you ride in or on anything, you go as fast as it goes. You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one.
Page 13 Put someone on it. Get it up to speed. Then stop the vehicle. The rider doesn’t stop.
Page 14 The person keeps going until stopped by something. or the instrument panel... In a real vehicle, it could be the windshield...
Page 15 Questions and Answers About Safety Belts Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be — whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 16 Driver Position If I’m a good driver, and I never drive far from home, why should I wear safety belts? Lap-Shoulder Belt You may be an excellent driver, but if you’re in an The driver has a lap-shoulder belt. Here is how to wear accident —...
Page 17 The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.
Page 18 What is wrong with this? CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. The shoulder belt is too loose. It will not give nearly as much protection this way.
Page 19 What is wrong with this? CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 20 What is wrong with this? CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones.
Page 21 What is wrong with this? CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 22 Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. To unlatch the belt, just push the button on the buckle. The belt should go back out of the way.
Page 23 Passenger Position Safety Belt Extender To learn how to wear the passenger’s safety belt If the vehicle’s safety belt will fasten around you, properly, see Driver Position on page 1-10. you should use it. The passenger’s safety belt works the same way as But if a safety belt is not long enough, your dealer will the driver’s safety belt —...
Page 24 Child Restraints What is the proper way to wear safety belts? If possible, an older child should wear a Older Children lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 25 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 26 The lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash. Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children.
Page 27 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 28 What are the different types of add-on child restraints? CAUTION: Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic Newborn infants need complete support, types. Selection of a particular restraint should including support for the head and neck. take into consideration not only the child’s weight, This is necessary because a newborn infant’s height and age but also whether or not the...
Page 29 Child Restraint Systems CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 30 A rear-facing infant seat (B) provides restraint with A forward-facing child seat (C-E) provides restraint for the seating surface against the back of the infant. the child’s body with the harness and also sometimes The harness system holds the infant in place and, with surfaces such as T-shaped or shelf-like shields.
Page 31 How Should I Use a Child Restraint? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 32 Securing an Add-on Child Restraint When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on in the Vehicle the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement CAUTION: copy from the manufacturer.
Page 33 Some child restraints with a top tether are designed to be used whether the top tether is anchored or CAUTION: not. Other child restraints require that the top tether be anchored. A national or local law may require that the top tether be anchored. A child can be seriously injured or killed in a crash if the child is not properly secured in the In Canada, the law requires that forward-facing child...
Page 34 Securing a Child Restraint in the CAUTION: Passenger Seat Position Your vehicle has a right front passenger airbag. A child in a rear-facing child restraint can be In addition, your vehicle has the passenger sensing seriously injured or killed if the right front system.
Page 35 If you need to secure a forward-facing child restraint in Secure the child in the child restraint when and as the the passenger’s position, move the seat as far back instructions say. as it will go before securing the forward-facing 1.
Page 36 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-30...
Page 37 7. Push and pull the child restraint in different directions to be sure it is secure. 8. If the airbag is off, the off indicator in the inside rearview mirror will be lit and stay lit when the vehicle is started. If a child restraint has been installed and the on indicator is lit, turn the vehicle off.
Page 38 Airbag System CAUTION: (Continued) Your vehicle has a frontal airbag for the driver, a frontal airbag for the passenger, a side impact airbag for the Frontal airbags for the driver and passenger are driver, and a side impact airbag for the passenger. designed to deploy in moderate to severe Frontal airbags are designed to help reduce the risk frontal and near frontal crashes.
Page 39 CAUTION: CAUTION: Both frontal and side impact airbags inﬂate Anyone who is up against, or very close to, with great force, faster than the blink of an any airbag when it inﬂates can be seriously eye. If you are too close to an inﬂating airbag, injured or killed.
Page 40 Where Are the Airbags? There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-51 for more information.
Page 41 The passenger’s frontal airbag is in the instrument panel The driver’s side impact airbag is in the side of the on the passenger’s side. driver’s seatback closest to the door. 1-35...
Page 42 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other...
Page 43 When Should an Airbag Inﬂate? Frontal airbags may inﬂate at different crash speeds. For example: The driver’s and right front passenger’s frontal airbags • If the vehicle hits a stationary object, the airbags are designed to inﬂate in moderate to severe frontal could inﬂate at a different crash speed than if the or near-frontal crashes.
Page 44 How Does an Airbag Restrain? Vehicles with dual stage airbags are also equipped with seat position sensors which enable the sensing system to monitor the position of the driver’s and In moderate to severe frontal or near frontal collisions, passenger’s seats. The seat position sensor provides even belted occupants can contact the steering wheel information which is used to determine if the airbags or the instrument panel.
Page 45 What Will You See After an CAUTION: (Continued) Airbag Inﬂates? After the airbag inﬂates, it quickly deﬂates, so quickly that cannot get out of the vehicle after an airbag some people may not even realize the airbag inﬂated. inﬂates, then get fresh air by opening a Some components of the airbag module —...
Page 46 Passenger Sensing System The passenger sensing system will turn off the passenger’s frontal airbag and side impact airbag (if equipped) under certain conditions. The driver’s Your vehicle has a passenger sensing system. The frontal airbag and side impact airbag (if equipped) passenger airbag status indicator in the rearview mirror are not part of the passenger sensing system.
Page 47 The passenger sensing system is designed to turn off the passenger’s frontal airbag and side impact airbag CAUTION: (if equipped) if: • the passenger’s seat is unoccupied A child in a rear-facing child restraint can be • the system determines that an infant is present in seriously injured or killed if the passenger’s a rear-facing infant seat airbag inﬂates.
Page 48 If after reinstalling the child restraint and restarting If a person of adult-size is sitting in the passenger’s the vehicle, the on indicator is still lit, check to make seat, but the off indicator is lit, it could be because that sure that the vehicle’s seatback is not pressing the person is not sitting properly in the seat.
Page 49 Aftermarket equipment, such as seat covers, can affect how well the passenger sensing system operates. CAUTION: You may want to consider not using seat covers or other aftermarket equipment if your vehicle has the passenger sensing system. See Adding Equipment If the airbag readiness light in the instrument to Your Airbag-Equipped Vehicle on page 1-44 for panel cluster ever comes on and stays on,...
Page 50 Servicing Your Airbag-Equipped Adding Equipment to Your Vehicle Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places Is there anything I might add to the front around your vehicle. You do not want the system to or sides of the vehicle that could keep the inﬂate while someone is working on your vehicle.
Page 51 Restraint System Check Because I have a disability, I have to get my vehicle modiﬁed. How can I ﬁnd out whether this will affect my airbag system? Checking the Restraint Systems Changing or moving any parts of the front seats, Now and then, make sure the safety belt reminder safety belts, the airbag sensing and diagnostic light and all your belts, buckles, latch plates, retractors...
Page 52 Replacing Restraint System Parts If belts are cut or damaged, replace them. Collision damage also may mean you will need to have safety belt After a Crash or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt was not being used at the time of the collision.
Page 53: Table Of Contents
Section 2 Features and Controls Keys ...............2-2 Parking Over Things That Burn .......2-33 Keyless Access System ........2-4 Engine Exhaust ..........2-34 Keyless Access System Operation ....2-5 Running the Engine While Parked ....2-34 Mirrors ............2-35 Doors and Locks ..........2-9 Automatic Dimming Rearview Mirror with Door Locks ............2-9 ®...
Page 54: Keys
Keys CAUTION: Leaving children unattended in a vehicle is dangerous, but it is even more dangerous if the keyless access transmitter is also left in the vehicle. A child or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move.
Page 55 You may even have to damage your vehicle to get in. Be sure you have a spare transmitter and/or key. In an emergency, contact Cadillac Roadside Assistance. See Roadside Service on page 8-6.
Page 56: Keyless Access System
Keyless Access System If you ever notice a decrease in the keyless access transmitter range, try doing one of the following: Your vehicle has a Keyless Access System that • Check the distance. You may be too far from your operates on a radio frequency subject to Federal vehicle.
Page 57: Keyless Access System Operation
Keyless Access System Operation (Lock): Press this button to lock the doors. The indicator light on the door will ﬂash once. If this Your vehicle has a Keyless Access System that allows button is pressed twice, the doors will lock, the light you to lock and unlock your doors, unlock your trunk lid will ﬂash once and the horn will sound once.
Page 58 Matching Transmitter(s) to 3. Go to the rear of the vehicle and insert the vehicle key into the key cylinder located on the lower Your Vehicle rear fascia on the driver’s side of the vehicle. See Trunk on page 2-12 for more information on Each keyless access transmitter is coded to prevent the key cylinder.
Page 59 The Canadian immobilizer standard requires Canadian 9. The DIC will display OFF-ACC TO LEARN again. owners to see their GM dealer for matching new 10. Press the ACC button. transmitters when a recognized transmitter is not 11. The DIC will read WAIT 10 MINUTES and will available.
Page 60 Battery Replacement Under normal use, the battery in your keyless access transmitter should last about three years. You can tell the battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 61: Doors And Locks
Doors and Locks To lock or unlock your vehicle from the outside, use the keyless access transmitter and press the appropriate lock or unlock button. You may also unlock and open the Door Locks door passively when you squeeze the door handle sensor, as long as you have your transmitter with you.
Page 62 If power to the vehicle or the keyless access transmitter is lost, there are two ways to open the door. If you are outside the vehicle, there is a door release tab in the trunk. The tab is located behind a panel on the driver’s side of the trunk.
Page 63: Power Door Locks
Power Door Locks There is an indicator light on the rear of the door near the window. When the lock portion of the button is pressed and the The power door lock door is closed, a beep will sound and the light will come switches are located on for a few seconds, then turn off.
Page 64: Programmable Automatic Door Unlock
Programmable Automatic Trunk Door Unlock CAUTION: Your vehicle is programmed so that, when the shift lever is moved into PARK (P), both doors will unlock. With the vehicle in PARK (P) and the engine running, It can be dangerous to drive with the trunk lid door unlocking can be programmed through prompts open because carbon monoxide (CO) gas can displayed on the Driver Information Center (DIC).
Page 65 Trunk Lock Release To disable this feature, see “Valet Lockout Switch” under Theft-Deterrent Systems on page 2-18. You may passively enter the trunk when you squeeze CAUTION: the trunk release sensor located on the rear of the trunk lid under the emblem, as long as you have your transmitter with you.
Page 66 • Emergency Trunk Release Handle Press the button with the trunk symbol on the keyless access transmitter. • Press the trunk close button on the underside of the trunk lid. To begin opening the trunk from the stopped position, use any of the methods above, except pressing the trunk close button.
Page 67: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 68: Power Windows
Power Windows Power Window Initialize After a power reconnect such as battery replacement, The power window the express-up and index-up features will not function switches are located until the system is initialized. Once power is restored, on each door near do the following: the armrest.
Page 69 Express-Down Window CAUTION: This feature is on both power windows. Press the down arrow on the switch to the second position to activate the express-down feature. If you want to stop the If express override is activated, the window window as it is lowering, press the switch again. will not reverse automatically.
Page 70: Sun Visors
Window Indexing Theft-Deterrent Systems This feature automatically lowers the window a small Vehicle theft is big business, especially in some cities. amount when the door is opened. Then, when the door Although your vehicle has a number of theft-deterrent is closed, the window will raise to its full up position. features, we know that nothing we put on it can make it impossible to steal.
Page 71 Arming the System Testing the Alarm Use one of the three following items listed here to Do the following to test the system: arm the system: 1. Make sure the trunk lid is latched. • Press the lock button on the keyless access 2.
Page 72: Valet Lockout Switch
Valet Lockout Switch Starting and Operating Your Vehicle The valet lockout switch is located inside the New Vehicle Break-In glove box. Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: •...
Page 73: Ignition Positions
Ignition Positions See Retained Accessory Power (RAP) on page 2-22 for more information. If the shifter is not in PARK (P), the ignition mode will change to ACC (Accessory). Your vehicle has an See Shifting Into Park (P) on page 2-30. electronic keyless ignition with pushbutton start.
Page 74: Retained Accessory Power (Rap)
Retained Accessory Power (RAP) Starting the Engine The following accessories on your vehicle may be used Move your shift lever to PARK (P) or NEUTRAL (N). for up to 10 minutes after the engine is turned off: Your engine will not start in any other position — that is a safety feature.
Page 75 Stopping Your Engine Notice: Holding the button in for longer than 15 seconds at a time will cause the vehicle’s battery Move the shift lever to PARK (P) and press the ACC to be drained much sooner. This can also cause button located on the instrument panel.
Page 76: Engine Coolant Heater
Engine Coolant Heater CAUTION: Your vehicle may be equipped with an engine coolant heater. Plugging the cord into an ungrounded outlet In very cold weather, 0°F (−18°C) or colder, the engine could cause an electrical shock. Also, the coolant heater can help. You will get easier starting and better fuel economy during engine warm-up.
Page 77: Automatic Transmission Operation
Automatic Transmission Operation CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to.
Page 78 You have to fully apply your regular brakes before you can shift from PARK (P) when the vehicle is running. CAUTION: If you cannot shift out of PARK (P), ease pressure on the shift lever and push the shift lever all the way into PARK (P) as you maintain brake application.
Page 79 Driver Shift Control (DSC) The Head-Up Display (HUD) will also display the change in gear, though the actual upshift or downshift The Driver Shift Control (DSC) feature lets you manually may be delayed until the engine speed is correct for that control over the operation of the transmission.
Page 80 The gear displays on the HUD until the next time you For example, if you have been driving in ﬁfth gear range upshift or downshift. and come to a stop without manually downshifting, ﬁfth gear will continue to display in the HUD. The The gear selected and shown in the HUD is one of a transmission will automatically downshift to second gear.
Page 81: Parking Brake
Parking Brake When you move out of PARK (P) or NEUTRAL (N) and the engine is running, the parking brake should release. If the parking brake has not been fully released The parking brake pedal and you try to drive off with the parking brake on, the is located to the left of parking brake indicator light will come on and stay on.
Page 82: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 83 Leaving Your Vehicle With the Torque Lock Engine Running If you are parking on a hill and you do not shift your transmission into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl CAUTION: in the transmission.
Page 84: Shifting Out Of Park (P)
Shifting Out of Park (P) If you ever hold the brake pedal down but still cannot shift out of PARK (P), try this: Your vehicle has an automatic transmission shift lock 1. Press the ACC button twice to place the ignition control system.
Page 85: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. 2-33...
Page 86: Engine Exhaust
Engine Exhaust Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 87: Mirrors
Mirrors CAUTION: Automatic Dimming Rearview Mirror It can be dangerous to get out of your vehicle ® with OnStar if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can Your vehicle has an automatic dimming inside rearview ®...
Page 88: Outside Power Heated Mirrors
Outside Power Heated Mirrors Both mirrors have a heated feature to rid them of snow, ice, or condensation. They will heat when the rear window defogger is turned on. See “Rear Window The controls for the Defogger” under Dual Climate Control System on outside power mirrors are page 3-41.
Page 89: Outside Curb View Assist Mirror
Outside Curb View Assist Mirror Outside Convex Mirror The passenger’s side mirror is also capable of performing the curb view assist feature. This feature CAUTION: will cause the mirror to tilt to a factory programmed position when the vehicle is in REVERSE (R). This feature may be useful in allowing you to view A convex mirror can make things (like other the curb when you are parallel parking.
Page 90: Onstar System
® OnStar System Terms and conditions of the Subscription Service Agreement can be found at www.onstar.com or www.onstar.ca. ® OnStar Services ® The OnStar Directions and Connections Plan is included on new vehicles for the ﬁrst year from the date of purchase.
Page 91 ® ® OnStar Hands-Free Calling OnStar Steering Wheel Controls ® ® OnStar Hands-Free Calling allows OnStar subscribers Your vehicle may be to make and receive calls using voice commands at equipped with a Talk/Mute the touch of a button. Hands-Free Calling is fully button that can be used integrated into the vehicle, and may be used with ®...
Page 92: Universal Home Remote System
Universal Home Remote If your vehicle is equipped with the Universal Home Remote Transmitter, it complies with Part 15 of the System FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 93: Universal Home Remote System Operation
Universal Home Remote System Keep the original hand-held transmitter for use in other vehicles as well as for future Universal Home Remote Operation programming. It is also recommended that upon the sale of the vehicle, the programmed Universal Home Remote Do not use the Universal Home Remote with any buttons should be erased for security purposes.
Page 94 Programming Universal Home Remote 4. The indicator light will ﬂash slowly at ﬁrst and then rapidly after Universal Home Remote successfully Follow these steps to program up to three channels: receives the frequency signal from the hand-held transmitter. Release both buttons. 1.
Page 95 Gate Operator and Canadian 7. Firmly press and release the “Learn” or “Smart” button. The name and color of the button may Programming vary by manufacturer. Canadian radio-frequency laws require transmitter You will have 30 seconds to start Step 8. signals to time out or quit after several seconds of 8.
Page 96 Using Universal Home Remote Reprogramming a Single Universal Home Remote Button Press and hold the appropriate Universal Home Remote button for at least half of a second. The indicator light To program a device to Universal Home Remote using will come on while the signal is being transmitted. a Universal Home Remote button previously trained, follow these steps: Erasing Universal Home Remote...
Page 97: Storage Areas
Storage Areas Floor Mats The driver’s side ﬂoor mat is held in place by two snaps Glove Box and the passenger’s side is held in place by one. To open the glove box, lift up on the lever. The glove Remove and Replace the Floor Mats box has a light inside.
Page 98: Rear Storage Area
Rear Storage Area To install the cargo divider, snap the bottom of the divider onto the snaps (B) located on the ﬂoor of the trunk. Then, swing the divider up and place the pins on each side of the divider into the notches (A) on either side of the trunk.
Page 99 Retractable Hardtop Lowering the Retractable Hardtop The following procedures explain the proper operation Notice: Leaving the retractable hardtop down and of the retractable hardtop. The retractable hardtop exposing the interior of your vehicle to outdoor will not operate if the valet lockout switch is on. conditions may cause damage.
Page 100: Retractable Hardtop
Raising the Retractable Hardtop 5. Push and hold the bottom of the retractable hardtop 1. Park on a level surface. Shift the transmission button located on into PARK (P). the console behind 2. The vehicle’s engine must be on or in ACC. the shifter lever.
Page 101 Manually Raising the Retractable Hardtop 5. Push and hold the top of the retractable If your vehicle has a power loss, such as a dead battery, hardtop button located you can still raise the top manually by doing the following: behind the shift lever.
Page 102 7. Move the rear tonneau rearward and up to the stored 6. Pull both sides of the rear tonneau over-center link position. Pull from the center of the tonneau to keep down to unlock the linkage. pressure even. The rubber bumper on each corner will ﬁt against the underside of the trunk decklid.
Page 103 8. Push both sides of the rear tonneau over-center link 10. Remove the upright center storage compartment. up until they stop to lock the linkage. Use the wrench to remove the four screws holding the storage area in place. 9. Close the hydraulic pump valve by turning it clockwise with your hand until it stops.
Page 104 11. Reach behind the square hole and push the front 12. Manually move the front tonneau to the open tonneau over-center link up. The front tonneau position. Once the front tonneau is open, fold should pull up easily. If it does not, push the the side wings in by gently pressing them in.
Page 105 13. Reach in from the side of the vehicle and under the top to remove the headliner plug. The plug will be located in the center of the top near the front. 14. Insert the wrench into the bolt beneath the plug 15.
Page 106 16. Hold the top in the front and the rear and lift the 17. Place your hands on the top and guide the top top until it is almost closed. Be careful not to into the closed position. pinch your ﬁngers between the rear of the top and the rear window.
Page 107 19. While holding the rear of the top down, insert the wrench into the bolt in the plug opening in the headliner. Turn the wrench counterclockwise until it stops to fully open the latch jaws around the pins. 20. Pull down on the roof with the latch rotated open. Turn the wrench clockwise until it stops to lock the top into position.
Page 108: Vehicle Personalization
Vehicle Personalization In addition to the following features, your vehicle may also have features that can be programmed through the Driver Information Center (DIC). See DIC Vehicle Personalization on page 3-78 for more information. Memory Seat, Mirrors and Steering Wheel 21.
Page 109 Use the following steps to program each button: Two personalized exit positions can be set by ﬁrst recalling the driving position (by pressing 1 or 2), then 1. Adjust the driver’s seat including the seatback positioning the steering wheel and seat in the desired recliner, lumbar and head restraint, both outside exit positions and then pressing and holding the mirrors and the steering wheel to a comfortable...
Page 110 NOTES 2-58...
Page 111 Section 3 Instrument Panel Instrument Panel Overview .......3-4 Entry/Exit Lighting .........3-33 Reading Lamps ..........3-33 Hazard Warning Flashers ........3-6 Battery Run-Down Protection ......3-34 Other Warning Devices ........3-6 Head-Up Display (HUD) .........3-34 Horn .............3-6 Ultrasonic Rear Parking Assist (URPA) ....3-38 Power Tilt Wheel and Telescopic Steering Accessory Power Outlet(s) ......3-40 Column ............3-6 Ashtray(s) and Cigarette Lighter ......3-41...
Page 112 Section 3 Instrument Panel Tire Pressure Light ........3-57 Trip Computer ..........3-82 Malfunction Indicator Lamp ......3-58 Oil Life Indicator ...........3-82 Engine Oil Pressure Gage ......3-61 Audio System(s) ..........3-82 Security Light ..........3-62 Theft-Deterrent Feature ........3-83 Fog Lamp Light ..........3-62 Audio Steering Wheel Controls .......3-84 Lights On Reminder ........3-62 Radio Reception ...........3-84 Highbeam On Light ........3-62...
Page 113 NOTES...
Page 114: Instrument Panel Overview
Instrument Panel Overview...
Page 115 The main components of the instrument panel are the following: A. Head-Up Display (HUD) Controls/Instrument Panel J. Power Tilt Wheel and Telescopic Steering Button. Brightness Controls. See Head-Up Display (HUD) See Power Tilt Wheel and Telescopic Steering on page 3-34 or Instrument Panel Brightness Column on page 3-6.
Page 116: Hazard Warning Flashers
Hazard Warning Flashers Horn Press near or on the horn symbols on your steering Your hazard warning ﬂashers let you warn others. wheel pad to sound the horn. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. Power Tilt Wheel and Telescopic The hazard warning Steering Column...
Page 117: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the multifunction lever all the way up or down.
Page 118: Headlamp High/Low-Beam Changer
Turn Signal on Chime Flash-to-Pass A chime will remind you if you leave the turn signal This feature lets you use the high-beam headlamps to on for more than 3/4 mile (1.2 km) of driving. signal the driver in front of you that you want to pass. Pull and hold the turn signal lever toward you to use.
Page 119: Windshield Wipers
Windshield Wipers (Delay Adjustment): Move the lever to this position to choose a delayed wiping cycle. Turn the intermittent adjust band down for a longer delay or up for a shorter delay. The wiper speed can only be manually adjusted when the lever is in this position. (Off): Move the lever to this position to turn off the windshield wipers.
Page 120: Rainsense™ Wipers
Rainsense™ Wipers The top position is the highest sensitivity setting, level ﬁve. A single wipe will occur each time you turn the delay adjust band to a higher sensitivity level to indicate Your vehicle has Rainsense™ wipers. The moisture that the sensitivity level has been increased. sensor for this feature is mounted on the interior side of the windshield below the rearview mirror and is used to Notice: Going through an automatic car wash with...
Page 121: Windshield Washer
Windshield Washer If the ﬂuid in the windshield washer ﬂuid reservoir is low, the message LOW WASHER FLUID will appear on the Driver Information Center (DIC) display. It will (Washer Fluid): The lever on the right side of the take 60 seconds after the bottle is reﬁlled for this steering column also controls the windshield washer.
Page 122: Cruise Control
Cruise Control Cruise control will not work if your parking brake is set, or if the master cylinder brake ﬂuid level is low. Your vehicle is equipped with cruise control. If you apply your brakes, the cruise control will shut off. (Off): This position turns the system off.
Page 123 Setting Cruise Control Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, CAUTION: disengages the cruise control. But you don’t need to reset it. If you leave your cruise control on when you Once you’re going about 25 mph (40 km/h) or more, are not using cruise, you might hit a button you can move the cruise control switch brieﬂy from...
Page 124 Increasing Speed While Using Passing Another Vehicle While Using Cruise Control Cruise Control There are two ways to go to a higher speed: Use the accelerator pedal to increase your speed. When you take your foot off the pedal, your vehicle will •...
Page 125: Adaptive Cruise Control
Adaptive Cruise Control Adaptive Cruise Control uses radar to detect a vehicle directly ahead in your path, within a distance of 328 ft (100 m), and operates at speeds above If your vehicle has this feature, be sure to read this 25 mph (40 km/h).
Page 126 CAUTION: (Continued) CAUTION: • When weather limits visibility, such as • On winding roads, Adaptive Cruise when in fog, rain, or snow conditions, Control may not detect a vehicle ahead. Adaptive Cruise Control performance is You could crash into a vehicle ahead of limited.
Page 127 (Resume/Increase): Push the switch to this symbol to make the vehicle resume to a previously set speed CAUTION: or to increase the set speed when Adaptive Cruise Control is already active. If you operate Adaptive Cruise Control without (Set/Decrease): Press this button to set the speed your Head-up Display (HUD) on and properly or to decrease the set speed when Adaptive Cruise adjusted, your Adaptive Cruise Control...
Page 128 To set Adaptive Cruise Control, do the following: This symbol will appear on the Head-Up 1. Make sure the Head-Up Display (HUD) is on and Display (HUD) to indicate properly adjusted. See Head-Up Display (HUD) that Adaptive Cruise on page 3-34 for more information. Control is active.
Page 129 Increasing Set Speed While Using Adaptive Decreasing Set Speed While Using Cruise Control Adaptive Cruise Control There are two ways to increase the set speed: Press in the set/decrease button on the end of the lever until you reach the lower speed you want, then •...
Page 130 Selecting the Follow Distance (GAP) The faster the vehicle speed the further back you will follow. Consider traffic and weather conditions when When the system detects a slower moving vehicle, selecting the follow distance. The range of selectable it will adjust your vehicle’s speed and maintain the distances may not be appropriate for all drivers and follow distance (gap) you select.
Page 131 Alerting the Driver See Defensive Driving on page 5-2 for more information. The alert symbol will ﬂash CAUTION: on the HUD and a warning beep will sound when driver action is required. Adaptive Cruise Control has only limited braking ability to slow your vehicle. In some cases, Adaptive Cruise Control may not have time to slow your vehicle enough to avoid a collision.
Page 132 Approaching and Following a Vehicle Adaptive Cruise Control will automatically slow your vehicle down when approaching a slower moving vehicle. It will then adjust your speed to follow the vehicle in front The vehicle ahead symbol at the selected follow distance. Your speed will increase will only appear on the or decrease to follow the vehicle in front of you but will not HUD when a vehicle ahead...
Page 133 Passing a Vehicle CAUTION: If you need to increase speed to pass a vehicle, use the accelerator pedal. While your foot is on the accelerator pedal, the system will not automatically apply the Adaptive Cruise Control may not detect and brakes.
Page 134 Curves in the Road CAUTION: Due to Adaptive Cruise Control limitations in curves, it may respond to a vehicle in another lane, or may not have time to react to a vehicle in your lane. You could crash into a vehicle ahead of you, or lose control of your vehicle.
Page 135 Highway Exit Ramps CAUTION: Adaptive Cruise Control may lose track of the vehicle ahead and accelerate up to your set speed while entering or on highway exit ramps. You could be startled by this acceleration and even lose control of the vehicle.
Page 136 Other Vehicle Lane Changes When going up steep hills, you may want to use the accelerator pedal to maintain your speed. When going downhill, you may have to brake to keep your speed down. Applying the brake disengages the system. You may choose not to use Adaptive Cruise Control on steep hills.
Page 137 Cleaning the System Clean the surface with a 50/50 mixture of isopropyl alcohol and water on a dampened cloth. After cleaning The radar can become blocked by snow, ice or dirt. the fascia lens, try to engage Adaptive Cruise Control. If so, you may need to turn off the engine and clean If this does not ﬁx the problem, you may have to remove the lens.
Page 138: Exterior Lamps
Exterior Lamps The exterior lamp band has four positions: (Off): Turning the band to this position turns off all lamps. AUTO (Automatic): Turning the band to this position sets the exterior lamps in automatic mode. AUTO mode will turn the exterior lamps on and off depending on how much light is available outside the vehicle.
Page 139: Wiper Activated Headlamps
Wiper Activated Headlamps (Parking Lamp): Turning the band to this position turns on the parking lamps together with the following: This feature activates the headlamps and parking • Sidemarker Lamps lamps after the windshield wipers have been in use for approximately six seconds and the multifunction •...
Page 140: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) When it is bright enough outside, the regular lamps will go off, and the front turn signal lamps will take over. If you start your vehicle in a dark garage, the automatic Daytime Running Lamps (DRL) can make it easier headlamp system will come on immediately.
Page 141: Adaptive Forward Lighting System
Adaptive Forward Lighting System Fog Lamps The Adaptive Forward Lighting System (AFS) Use fog lamps for better vision in foggy or misty swivels the headlamps horizontally to provide greater conditions. road illumination while turning. AFS will operate The fog lamps control is located on the multifunction when the vehicle speed is greater than 2 mph (3 km/h).
Page 142: Twilight Sentinel
® Twilight Sentinel You can idle the vehicle with the lamps off, even when it is dark outside. After starting the vehicle, turn the ® exterior lamp control band to off, then release it. Twilight Sentinel can turn your lamps on and off for you. The lamps will remain off until you turn the control band A light sensor on top of the instrument panel makes the ®...
Page 143: Exterior Lighting Battery Saver
Exterior Lighting Battery Saver Courtesy Lamps If the manual parking lamps or headlamps have been When any door or the trunk lid is opened, the interior left on, the exterior lamps will turn off as soon as lamps will go on unless it is bright outside. the ignition is turned off or RAP is active.
Page 144: Battery Run-Down Protection
Battery Run-Down Protection The Head-Up Display (HUD) allows you to see some of the driver information that appears on your instrument panel cluster. Your vehicle has a feature to help prevent you from draining the battery in case the underhood lamp, vanity The information may be displayed in English or metric mirror lamps, cargo lamps, reading lamps, console units and appears as an image focused out toward...
Page 145 The HUD controls are located to the left of the steering wheel. - (Brightness): This button is used to adjust the Be sure to continue scanning your displays, controls brightness of the HUD and the instrument panel cluster. and driving environment just as you would in a vehicle without HUD.
Page 146 To adjust the HUD so you can see it properly, do the To turn off the HUD, press the brightness button down following: until the image disappears. Polarized sunglasses could make the HUD image 1. Adjust the seat to a comfortable driving position. harder to see.
Page 147 If the ignition is on and you cannot see the HUD image, The following Adaptive Cruise Control (ACC) messages check to see if: may appear in the HUD: • Something is covering the HUD unit. CRUISE SPEED LIMITED: This message indicates that your vehicle speed has been reduced below your set •...
Page 148: Ultrasonic Rear Parking Assist (Urpa)
Ultrasonic Rear Parking The URPA display is located inside the vehicle, Assist (URPA) on the center console. It has three color-coded Ultrasonic Rear Parking Assist can help you to lights that can be seen determine how close an object is to your rear bumper through the rearview mirror within a given area, making parking easier.
Page 149 When you shift into REVERSE (R) and an object is It may also ﬂash red if the ultrasonic sensors are not detected, the following will occur in sequence depending kept clean. So be sure to keep your rear bumper free of on the distance from the object: mud, dirt, snow, ice and slush or materials such as paint or the system may not work properly.
Page 150: Accessory Power Outlet(S)
Accessory Power Outlet(s) Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should. The repairs would not The accessory power outlet can be used to connect be covered by your warranty. Do not use equipment electrical equipment such as a cellular phone or exceeding maximum amperage rating.
Page 151: Ashtray(S) And Cigarette Lighter
Ashtray(s) and Cigarette Lighter Climate Controls The ashtray and cigarette lighter are located under a Dual Climate Control System lid in the front console to the right of the shift lever. Press the left side of the lid and it will open With this system you can control the heating, cooling automatically.
Page 152 Automatic Operation 3. Wait for the system to regulate. This may take from 10 to 30 minutes. Then adjust the temperature, AUTO (Automatic): When this button is pressed and if necessary. the temperature is set, the system will automatically You can switch from English to metric units through the control the inside temperature, the air delivery mode, Driver Information Center (DIC).
Page 153 Press the PWR button on the right side of the climate To change the current mode, select one of the following: control panel to turn the passenger’s climate control (Vent): This mode directs air to the instrument system on or off. Press the up or down arrow on the switch to manually increase or decrease the panel outlets.
Page 154 Sensors (Heated/Cooled Seat): Press this button to turn the feature on. The button on the left controls the driver’s There are sensors to measure the temperature and seat and the button on the right controls the passenger’s sun’s effect on passenger comfort. seat.
Page 155 Defogging and Defrosting If the outside temperature goes up, the display temperature will not change until: Fog on the inside of windows is a result of high humidity • The vehicle’s speed is above 10 mph (16 km/h) (moisture) condensing on the cool window glass. for ﬁve minutes.
Page 156 Rear Window Defogger The heated outside rearview mirrors will heat to help clear fog or frost from the surface of the mirrors The rear window defogger uses a warming grid to when the rear window defogger is on. remove fog or frost from the rear window. The rear window defogger and heated mirrors are The rear window defogger will only work when the automatically disabled when the retractable hardtop is...
Page 157: Outlet Adjustment
Outlet Adjustment Passenger Compartment Air Filter Use the thumbwheel to open or close the outlets. The passenger compartment air ﬁlter removes certain odor and particles from the air including pollen and dust Operation Tips particles. Reductions in airﬂow, which may occur more often in dusty areas, indicate that the ﬁlter may need to •...
Page 158: Warning Lights, Gages, And Indicators
Warning Lights, Gages, Gages can indicate when there may be or is a problem with one of your vehicle’s functions. Often gages and Indicators and warning lights work together to let you know when there is a problem with your vehicle. This part describes the warning lights and gages that When one of the warning lights comes on and stays on may be on your vehicle.
Page 159: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster and Driver Information Center (DIC) are designed to let you know at a glance how the vehicle is running. You will know how fast you are going, about how much fuel you have left and many other things you will need to know to drive safely and economically.
Page 160: Speedometer And Odometer
Speedometer and Odometer Tachometer The tachometer displays the engine speed in thousands Your speedometer lets you see your speed in either of revolutions per minute (rpm). miles per hour (mph) or kilometers per hour (km/h). Fuel will shut off at about 6700 rpm. There is only one scale for mph and km/h.
Page 161: Airbag Readiness Light
Airbag Readiness Light CAUTION: There is an airbag readiness light on the instrument panel, which shows a deployed airbag symbol. The system checks the airbag’s electrical system for If the airbag readiness light stays on after you malfunctions. The light tells you if there is an electrical start your vehicle, it means the airbag system problem.
Page 162: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle may have a label on your sun visor that says, “Never put a rear-facing child seat in the front.” Your rearview mirror has a passenger airbag status This is because the risk to the rear-facing child is so great indicator.
Page 163 If the word ON or the on symbol is lit on the passenger If, after several seconds, all status indicator lights airbag status indicator, it means that the passenger’s remain on, or if there are no lights at all, there may frontal airbag and side impact airbag (if equipped) be a problem with the lights or the passenger sensing are enabled (may inﬂate).
Page 164: Voltmeter Gage
Voltmeter Gage Brake System Warning Light Your vehicle’s hydraulic brake system is divided into When the vehicle is in two parts. If one part is not working, the other part can accessory mode, the still work and stop you. For good braking, though, voltmeter shows the you need both parts working well.
Page 165: Anti-Lock Brake System Warning Light
Anti-Lock Brake System If the light comes on while you are driving and you have a LOW BRAKE FLUID message showing on the DIC, Warning Light pull off the road and stop carefully. You may notice that the pedal is harder to push. Or, the pedal may go closer to the ﬂoor.
Page 166 Traction Control System (TCS) You can acknowledge this message by pressing the RESET button. When the SERVICE STABILITRAK Warning Light ® message is displayed, the StabiliTrak system will not assist you in controlling the vehicle. You should have This light should come on the system serviced as soon as possible.
Page 167: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage Tire Pressure Light This light should come on brieﬂy as you start the engine. It will then come on only when a ﬂat or low tire pressure condition exists. See Tire Pressure Monitor System on page 6-59 for more information.
Page 168: Malfunction Indicator Lamp
Malfunction Indicator Lamp Notice: Modiﬁcations made to the engine, transmission, exhaust, intake, or fuel system of your vehicle or the replacement of the original tires Check Engine Light with other than those of the same Tire Performance Criteria (TPC) can affect your vehicle’s emission Your vehicle has a controls and may cause this light to come on.
Page 169 If the Light Is Flashing A loose or missing fuel cap will allow fuel to evaporate into the atmosphere. A few driving trips with the cap The following may prevent more serious damage properly installed should turn the light off. to your vehicle: Did you just drive through a deep puddle of water? •...
Page 170 Emissions Inspection and will be on, but the engine will not start — if you press the bottom of the ACC button only brieﬂy, less than Maintenance Programs ﬁve seconds, the accessory power mode will be turned on, but not the ignition. After the bulb check, be sure Some state/provincial and local governments have or to press and release the ACC button again to turn may begin programs to inspect the emission control...
Page 171: Engine Oil Pressure Gage
Engine Oil Pressure Gage The Driver Information Center (DIC) may display messages regarding the oil condition. See DIC Warnings and Messages on page 3-67 and Engine Oil on page 6-15. CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre.
Page 172: Security Light
Security Light Lights On Reminder For information This light comes regarding this light, on whenever the see Theft-Deterrent headlamps are on. Systems on page 2-18. United States Only Fog Lamp Light Highbeam On Light The fog lamps light will come on when the fog This light will come on lamps are in use.
Page 173: Fuel Gage
Fuel Gage Here are ﬁve things that some owners ask about. All these things are normal and do not indicate that anything is wrong with the fuel gage. Your fuel gage tells • At the gas station, the gas pump shuts off before you about how much fuel you have left when the gage reads the full symbol.
Page 174: Driver Information Center (Dic)
Driver Information Center (DIC) You can use the Driver Information Center (DIC) to display more detailed fuel information. While scrolling through the DIC, you will also ﬁnd: This display gives you the status of many of your vehicle’s systems. The DIC is also used to display driver •...
Page 175 «4ª TRIP B: This feature allows you to record the distance (Information): Press the top or bottom of this traveled during a second trip and functions the same button to scroll through the available features which as TRIP A. include the odometer, trip odometers, fuel range, miles per gallon, average speed, timer, tire pressure, and RANGE xxx MI: This feature shows about how many remaining oil life.
Page 176 AVERAGE SPEED: This feature shows the average FRONT Lxx Rxx PSI: This feature shows the tire speed the vehicle has traveled since the last time pressure for the front left and right tires. the value was reset. To reset the value, press the REAR Lxx Rxx PSI: This feature shows the tire information button to display AVERAGE SPEED, then pressure for the rear left and right tires.
Page 177: Dic Warnings And Messages
DIC Warnings and Messages BATTERY SAVER ACTIVE: This message is displayed when the vehicle has detected that the battery voltage is dropping beyond a reasonable point. The battery These messages will appear if there is a problem saver system will start reducing certain features of the detected in one of your vehicle’s systems.
Page 178 BUCKLE SEAT BELT: This message reminds you to CHECK GAS CAP: This message will appear if the gas buckle the driver’s seat belt. cap has not been fully tightened. You should recheck your gas cap to ensure that it is on properly. This message will display and a chime will sound when the ignition is on, the driver’s seat belt is unbuckled, CLEAN RADAR CRUISE: If your vehicle has this...
Page 179 CRUISE NOT READY: This message indicates that HEADLAMPS SUGGESTED: If it is dark enough ® ACC will not activate due to a temporary condition. outside and the headlamps and Twilight Sentinel Your vehicle does not require service. If this message controls are off, this message will display on the DIC.
Page 180 HOT ENGINE–A/C OFF: This message displays when LOW COOLANT: This message will appear when there the engine coolant becomes hotter than the normal is a low level of engine coolant. Have the cooling operating temperature. To avoid added strain on a hot system serviced by your GM dealer as soon as possible.
Page 181 LOW OIL PRESSURE: If this message appears while To help the generator recharge the battery quickly, the engine is running, stop the engine and do not you can reduce the load on the electrical system by operate it until the cause of low oil pressure is corrected. turning off the accessories.
Page 182 • NO FOB DETECTED: This message is displayed if The vehicle is experiencing Electromagnetic the vehicle does not detect the presence of a keyless Interference (EMI). Some locations, such as access transmitter when you have attempted to start the airports, automatic toll booths, and some gas vehicle or a vehicle door has just closed.
Page 183 NO FOB, OFF OR RUN?: When this message displays, The performance may be reduced the next time the it means that the keyless access transmitter is not vehicle is driven. The vehicle may be driven at a reduced detected inside the vehicle while you are trying to turn speed while this message is on, but acceleration and the ignition off.
Page 184 The Driver Information Center will scroll three messages: SERVICE RADAR CRUISE: If your vehicle has this SERVICE ABS, SERVICE TRACTION SYS and feature, this message indicates that the Adaptive Cruise SERVICE STABILITRAK, and the anti-lock brake system Control (ACC) system is disabled and needs service. and traction control warning lights on the instrument See your GM dealer.
Page 185 SHIFT TO PARK: This message indicates that the STABILITRAK WARMING: When you ﬁrst start your vehicle is not in PARK (P) when the engine is being vehicle and drive away, especially during cold winter turned off. The vehicle will be in accessory mode. Once weather, the STABILITRAK WARMING message may the shifter is moved to PARK (P), the vehicle will turn off.
Page 186 TOP INOP (Inoperative) – VALET ON: This message TRAC (Traction)/STABILITRAK OFF: This message will display when the retractable hardtop button is indicates that both the Traction Control System ® pressed and the valet switch is on. Turn off the valet (TCS) and StabiliTrak are off.
Page 187: Other Messages
Other Messages • LEFT FRONT TIRE FLAT MAX SPD 55, REDUCED HNDLG Here are more messages that you can receive on your • LEFT REAR TIRE FLAT MAX SPD 55, Driver Information Center (DIC). To acknowledge a REDUCED HNDLG message and read another message that may have •...
Page 188: Dic Vehicle Personalization
DIC Vehicle Personalization Also, if the OPTIONS button is pressed, the DIC does not display the menus used to set personalizations, but instead displays OPTIONS UNAVAILABLE for a Your vehicle is equipped with personalization capabilities few seconds. that allows you to program certain features to a preferred setting for up to two drivers.
Page 189 Auto Exit Recall Exit Lights This feature allows the steering column and driver’s This feature activates the parking lamps and front fog seat to automatically move to the current driver’s lamps for 15, 30 or 90 seconds. This will occur when the exit position when one of the following occurs: vehicle is off or in RAP and the headlamps are on due to the automatic headlamp system.
Page 190 Flash at Lock If at least one keyless access transmitter has been removed from the interior of the vehicle, the doors will This feature activates the front and rear turn signals for lock after eight seconds. one long ﬂash when the lock button on the keyless For example, if there are two keyless access access transmitter is pressed.
Page 191 Park Assist If you are parking in a quiet area and do not want the horn to sound when the doors lock, press the lock button This feature tilts the passenger’s side mirror downward on the keyless access transmitter immediately after when the shifter is moved to REVERSE (R).
Page 192: Trip Computer
Trip Computer Audio System(s) Determine which radio your vehicle has and then read the Oil Life Indicator pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer This feature lets you know when to change the engine driving experience.
Page 193: Theft-Deterrent Feature
Keeping your mind on the drive is important for safe Your vehicle has a feature called Retained Accessory driving. For more information, see Defensive Driving Power (RAP). With RAP, the audio system can be on page 5-2. played even after the ignition is turned off. See Retained Accessory Power (RAP) on page 2-22 for more Here are some ways in which you can help avoid information.
Page 194: Audio Steering Wheel Controls
− (Volume): Press this button to increase or to Audio Steering Wheel Controls decrease the volume. + 1-6 − (Preset Stations): Press this button to play stations that are programmed on the radio preset pushbuttons. The radio will only seek preset stations with a strong signal that are in the selected band.
Page 195 XM™ Satellite Radio Service The range for most AM stations is greater than for FM, XM™ Satellite Radio Service gives digital radio especially at night. The longer range can cause station reception from coast-to-coast in the 48 contiguous frequencies to interfere with each other. For better radio United States, and in Canada (if available).
Page 196: Care Of Your Cds
Care of Your CDs Diversity Antenna System Handle CDs carefully. Store them in their original cases The AM-FM antennas are located under the decklid or other protective cases and away from direct surface in the trunk compartment. the antennas sunlight and dust. The CD player scans the bottom are hidden from view and are not accessible.
Page 197 Section 4 Navigation System ® Overview ............4-2 OnStar System ...........4-47 Navigation System Overview ......4-2 Global Positioning System (GPS) ....4-48 Getting Started ..........4-4 Vehicle Positioning ........4-49 Problems with Route Guidance .......4-50 Features and Controls ........4-10 If the System Needs Service ......4-50 Using the Navigation System ......4-10 Ordering Map DVDs ........4-50 Setup Menu ..........4-13...
Page 198: Overview
Overview Navigation System Overview...
Page 199: Navigation System Overview
A. BAND Key. See “Finding a Station” under Navigation G. Navigation System Screen Audio System on page 4-51. H. RPT (Repeat) Key. See “Hard Keys” under Using B. CD Key. See Navigation Audio System on page 4-51 the Navigation System on page 4-10. or CD/DVD Player on page 4-69.
Page 200: Getting Started
Getting Started Entering a destination or alphanumeric text requires many steps, so you can only perform these operations when the vehicle is in PARK (P). You will notice Before you begin to operate the navigation system, read that touch-sensitive screen buttons leading to the this manual thoroughly to become familiar with it and alphanumeric keyboard are dimmed out while driving.
Page 201 The information in the system may not always be complete. Road conditions such as prohibited turns, CAUTION: detours, and construction zones, change frequently. It is important to consider whether you can follow the directions given by the system for the current Looking at the moving map on the navigation conditions.
Page 202 Setting Radio Station Presets Setting the Time To set preset radio stations, do the following: To set the time, do the following: 1. Press the PWR/VOL knob to turn the system on. 1. Press the PWR/VOL knob to turn the system on. 2.
Page 203 Setting the Search Area, Entering an 5. Press the Change screen button. Address and Point of Interest, Storing a 6. Select the appropriate region numbered screen button that contains your ﬁnal destination. Home Destination, and Using Your The system will return to the Destination menu. Home or Previous Destinations See Enter Destination on page 4-27 for more information.
Page 204 Entering a Point of Interest (POI) 6. Press the Street screen button, then enter the street name using the alpha keypad on the To set a destination by entering a Point of Interest (POI), screen. do the following: Do not enter directional information or street type, 1.
Page 205 Storing a Home Destination Using Your Home or Previous Destinations 1. Press the power/volume knob to turn the system on. 2. Insert the DVD map disc. See “Regional Maps” These destinations are available for selection while under Maps on page 4-38 for more information. driving.
Page 206: Features And Controls
Canceling Your Current Route Features and Controls Guidance will be canceled once you arrive at your ﬁnal destination. To cancel the current route prior to Using the Navigation System arrival at the ﬁnal destination, do the following: This section presents basic information you will need to 1.
Page 207 DVD: Press the DVD key to play a DVD. The DVD The map screen can also display the following screen will be displayed. See CD/DVD Player on information: page 4-69. • North or Heading Up symbol. See Symbols on page 4-42. TUNE/SEEK : Press the TUNE/SEEK up or •...
Page 208 Alpha-Numeric Keypad To make your name selections easier, the system will only allow you to select a character which can follow the Letters of the alphabet, symbols, punctuation, and last one entered. For example, if you enter Z, you would numbers, when available to you, will be displayed on not be allowed to follow it with T.
Page 209: Setup Menu
Setup Menu Navigation Settings This menu allows you to change the following options MENU: Press the MENU key located to the right of the for the navigation system. navigation screen to access the SETUP MENU. Restore Default Settings The SETUP MENU allows you to adjust such things as map appearance, navigation settings, and voice This feature will automatically reset the system to the guidance volume.
Page 210 System Conﬁguration 5. When you have set the vehicle to the correct direction, touch Enter. Relocation Complete This feature allows you to reconﬁgure the navigation will be displayed. system. If you begin to drive your vehicle during 6. Touch Return to exit this menu. this procedure, the system will not be able to adjust the position or direction of your vehicle.
Page 211 Quick POI (Point of Interest) Selection 2. Select a Quick POI category from the Quick POI selection menu list. The system will return to the This menu allows you to choose a point of interest (POI), Quick POI selection screen when a POI is selected. such as gas stations, restaurants, hotels, etc.
Page 212 Setting a Destination Using Quick POI Guidance Appearance This feature will allow you to choose a POI as your This menu allows you to set the guidance appearance destination. To set a destination using a POI, do screen options. This screen is displayed on the map the following: while on a planned route.
Page 213 Map Appearance Turn List: Select this feature to have the guidance screen display several upcoming turns. Directional This menu allows you to set the map appearance screen arrows, street name, and distance to the next turn will options. The current setting will appear as light blue. be displayed.
Page 214: Plan Route
Plan Route Set 3D Viewing Angle: This feature allows you to adjust the 3D viewing angle. To do so, do the following: To plan a route, press the ROUTE key. The PLAN 1. Touch 3D on the MAP APPEARANCE menu. ROUTE menu will be displayed.
Page 215: Edit Memory Point
Edit Memory Point A total of 60 locations can be stored. The last 10 destinations entered will be stored under Previous Destination. In addition, one memory point can be stored This feature allows you to store, delete, and edit under the Home category. memory points.
Page 216 Editing Memory Points Name Editing of a Memory Point To modify the name of a stored memory point, do the This feature allows you to edit the contents stored in following: memory. The following options are available: 1. Select the category of the memory point. Icon Editing of a Memory Point 2.
Page 217 Adjusting a Memory Point Deleting Single Memory Points To relocate a memory point’s location, do the following: To delete a single memory point, do the following: 1. Select the category of the memory point. 1. Press the ROUTE key. 2. Select the memory point you want to edit. 2.
Page 218 Edit Category Previous Destination Memory Each time you select Start from the map screen, that To edit the name of a category, do the following: destination will be stored as a memory point under 1. Press the ROUTE key. PREVIOUS DESTINATION. This category will store up 2.
Page 219: Edit Waypoint
Edit Waypoint Adding a Waypoint To add a waypoint to your route, do the following: Waypoints are destinations you can set along the way to your ﬁnal destination. This feature allows you to 1. Touch Add Waypoint. add, edit, and delete waypoints. 2.
Page 220 Delete: Touch Delete to delete a waypoint or the ﬁnal destination. A conﬁrmation window will appear. Touch YES to delete the point or NO to return to the previous screen. Delete All: Touch Delete All to delete all of the waypoints and the ﬁnal destination.
Page 221: Edit Avoid Point/Area
Editing a Waypoint Edit Avoid Point/Area This feature allows you to edit waypoints that have From this menu you can register, edit, and delete an already been set. To edit a waypoint, do the following: area to be avoided while planning a route. These areas can also be saved so the system can automatically 1.
Page 222 Registering an Avoid Point/Area Editing an Avoid Point/Area To store an avoid point/area, do the following: To edit an avoid point/area, do the following: 1. Touch Register Avoid Point/Area. 1. Touch Edit Avoid Point/Area. A list of avoided points will appear. 2.
Page 223: Enter Destination
Enter Destination To enter a destination, choose from one of the destination entry methods following in this section. The DESTINATION menu will give you several ways to After entering a destination, If available, the system plan a route. Touch the Enter Destination screen will display up to three routes in a pop-up window button from the PLAN ROUTE menu to display the indicating the total mileage and time to destination for...
Page 224 Easy Planning Route To use this destination entry method, do the following: 1. Press the MAP key. With this destination entry method, you can select a 2. Touch the map screen twice for the scroll symbol to destination using the scroll symbol on the map screen. See Maps on page 4-38.
Page 225 Address To use this destination entry method, do the following: 1. Enter the street name using the alpha keypad. This destination entry method allows you to input an See “Alpha-Numeric Keypad” under Using the address by providing the system with a house number, Navigation System on page 4-10 for more street name, and city.
Page 226 All Points of Interest You may search for a POI using the following three methods: This destination entry method allows you to choose a • Touch NAME to type in a POI by name using the destination from the point of interest (POI) list. Selecting alpha key pad.
Page 227 Memory Points While inputting a POI or city name, the List option will become available. Touch List to view the list of This destination entry method allows you to set a name choices, or continue to spell the name to further memory point as your destination.
Page 228 To select a destination using this entry method, do the To select a previous destination, do the following: following: 1. Touch the Previous Destination symbol. 1. Touch the Memory Points symbol. 2. Touch the screen button next to the desired 2.
Page 229 Home Set by Map This destination entry method allows you to select a This destination entry method allows you to select a destination that has been previously stored as Home. destination by using the scroll symbol. To choose Home as your destination, do the following: To use this feature, do the following: 1.
Page 230 Freeway Entrance/Exit 3. Touch List to view the list of available name choices or continue to spell the name to further This destination entry method allows you to select either reduce the list of available items. The system will a freeway entrance or an exit as a destination. supply a list of names when the choice is ﬁve or less.
Page 231 Intersection 3. To view a list of choices, touch List or continue to spell the name to further reduce the list of available This destination entry method allows you to select a items. The system will display a list of the destination by inputting the intersecting roads you wish intersecting streets if the number of intersecting to travel to.
Page 232: Route Preference
Route Preference The following options will be available from the ROUTE PREFERENCE menu: To change your planning options, use the following Detour instructions. This feature allows you to choose a distance in miles/kilometers to detour. Select the detour distance desired for residential roads and freeways. 1.
Page 233 Route Setting The following options will be available from the ROUTE SETTING menu: This feature allows you to display and change the Minimize Time/Distance: The system will calculate the planning methods used each time you plan a route. fastest route or shortest route possible. Choose Time With planning method options, you are able to select the for the fastest route or Dist for the shortest route.
Page 234: Maps
Display Whole Route Maps This feature allows you to display your entire planned This section includes basic information you need to route. Total mileage and time to destination for the know about the map database. planned route will be displayed on the map screen. Regional Maps Touch Return to go back to the previous menu.
Page 235 When your vehicle is delivered from the factory, the Notice: Shifting out of PARK (P) with the system’s dealer may have installed the map DVD. If the map DVD faceplate open will cause the faceplate to close was not installed in your vehicle when ﬁrst purchased, automatically.
Page 236 Setting the Search Area To determine or change the system’s search area, do the following: 1. Press the ROUTE key. 2. Touch the Enter Destination screen button. 3. Touch Change under the Search Area heading. The system will display a map with each region represented.
Page 237 Map Adjustments Scrolling the Map The system allows you to adjust the scale of view on Touch anywhere on the the map. The map will scroll automatically based on the map screen twice to direction you are traveling. display the scroll symbol. Map Scales To view a larger or smaller scale of the map, touch...
Page 238: Symbols
Symbols You will see this type of symbol on the map when a waypoint has been The following symbols are the most common that planned. appear on a map screen. Your vehicle is shown as this symbol. It indicates the current position and heading direction of your The waypoint symbol will be numbered from 1 through 5...
Page 239 This symbol indicates the This symbol indicates the distance and estimated map with North up. travel time to your ﬁnal destination. The Estimated Travel Time feature must be on for estimated travel time to be displayed. While in North up mode, North will always be at the top of the map screen regardless of which direction the vehicle is traveling.
Page 240 This symbol will appear This symbol indicates the when the navigation position of the next turn system is unable to receive instruction. the GPS signal. See Global Positioning System (GPS) on page 4-48 for While on a planned route, more information. touch this symbol to display the DEST MAP, When a point of interest...
Page 241 With these options, you can do the following: Whole: This option allows you to view the entire planned route. The distance to destination will be Dest (Destination) Map: This option allows you to view displayed on the map screen. Touch Return when the ﬁnal destination location.
Page 242 The turn list will read from bottom to top. The bottom street name is the street you are currently on. The system automatically updates this screen as you make each turn. You may also touch the scroll up and down arrows providing scroll is available. Touching the down arrow will bring you to your current location.
Page 243: Keyless Access System
Traveling Across Regions If you are traveling in or to Canada and you cross the regional border, the only map scale views available If you plan to drive across several states, you may have are 4 mi, 8 mi, 31 mi, and 128 mi (8 km, 16 km, to change the selected region to represent the area 64 km and 256 km).
Page 244: Global Positioning System (Gps)
Global Positioning System (GPS) This system may not be available or interference may occur if the following happens: The Navigation System determines the position of your • Signal obstructions caused by tall buildings, large vehicle by using satellite signals, various vehicle trucks, tunnels, signals, and map data.
Page 245: Vehicle Positioning
Vehicle Positioning • The vehicle changes directions more than once, or when the vehicle is turning on a turn table in At times, the position of the vehicle on the map may be a parking lot. inaccurate due to one or more of the following •...
Page 246: Problems With Route Guidance
Problems with Route Guidance If the System Needs Service Inappropriate route guidance may occur under one or If your system needs service and you have followed the more of the following conditions: steps listed here and still are experiencing problems, •...
Page 247: Navigation Audio System
Navigation Audio System Main Audio Menu Notice: Before adding any sound equipment to your vehicle, such as an audio system, CD player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer.
Page 248 With this feature on, you can recall your preset radio stations from the map screen. You cannot store preset stations from the map screen. You must do this from the audio screen. See “Preset Station Menu” later in this section for more information on storing presets. Automatic Volume Control (AVC): To use AVC, touch the ON button.
Page 249 Clock Adjust Menu GPS TIME: The current GPS time will be displayed to the right of this screen button. Touch GPS TIME to set the navigation system time to match current GPS time. If the seconds for the present minute are greater than thirty when GPS TIME is selected, the clock will round up to the next minute.
Page 250 Screen Adjust Menu (Brightness): Touch the plus (+) or minus (−) signs to adjust the brightness of the screen. You will see the screen change. Touch SET to conﬁrm the setting. AUTO: This setting automatically adjusts the contrast and brightness of the screen depending on exterior lighting conditions.
Page 251 Language Finding a Station Your vehicle has been set for the English language. If you wish to change the language, you must do so through the Driver Information Center (DIC). See Driver Information Center (DIC) on page 3-64 for more information.
Page 252 Preset Station Menu SCAN: To scan stations, touch SCAN. The radio will go to a station, play for a few seconds, then go on to the Up to 36 stations, 6 AM, 6 FM 1, 6 FM 2, 6 XM 1, next station.
Page 253 Sound Menu To adjust sound settings, do the following: 1. Touch the plus (+) or minus (−) signs to adjust treble, mid-range, and bass. 2. Touch the L for left or R for right to adjust the balance of the speakers. 3.
Page 254 Adjusting the Speakers To adjust the tone for each preset, do the following: 1. Press the BAND key. 2. Touch AM, FM1, FM2, XM1, XM2, or WX, if equipped, to access the desired preset screen. 3. Touch SOUND. 4. Touch the plus (+) or minus (−) signs to adjust treble, mid-range, and bass.
Page 255 Radio Data Systems (RDS) To save DSP settings for your preset stations, use the SOUND menu or touch DSP from the preset station menu to access the DSP menu. See “Sound Menu” listed previously in this section for more information. Touch DSP to change the following options: ON/OFF: Touch ON/OFF to turn DSP on and off.
Page 256 RDS: Touch RDS to use alternate RDS functions located TA (Traffic): Touch TA to receive traffic announcements. in the preset menu. When you touch RDS, you will only The audio system will turn on the TA display. TA will have about ﬁve seconds to choose RDS ON/OFF, TA, appear on the display if the current station broadcasts MSG, PTY, or SEL PTY.
Page 257 MSG (Message): When RDS is on, if the current When the PTY display is on, press TUNE/SEEK and station has a message, MSG will appear on the display. SCAN to ﬁnd radio stations of the PTY selected. The last Touch MSG from the preset menu to view the PTY selected will be used for seek and scan modes.
Page 258 XM™ Satellite Radio Service Once you have stored a PTY for each of your preset stations, you can recall a PTY preset by touching the preset station for less than two seconds. Then use TUNE/SEEK or SCAN to locate a station for that PTY selection.
Page 259 Setting Program Type (PTY) Preset INFO (Information): Touch INFO while in XM™ mode to retrieve various pieces of information related to Stations the current song or channel. By touching INFO, you may retrieve four different categories of information: Artist (Category): Press the arrows to select a Name/Feature, Song/Program Title, Channel Category, category.
Page 260 XM Radio Messages Radio Display Message Condition Action Required XM Updating Updating encryption code The encryption code in your receiver is being updated, and no action is required. This process should take no longer than 30 seconds. No XM Signal Loss of signal Your system is functioning correctly, but you are in a location that is blocking the XM signal.
Page 261 Radio Display Message Condition Action Required No Information No Text/Informational No text or informational messages are available at this time message available on this channel. Your system is working properly. XM Theftlocked Theft lock active The XM receiver in your vehicle may have previously been in another vehicle.
Page 262: Six-Disc Cd Changer
Six-Disc CD Changer With the compact disc changer, you can play up to six normal size discs continuously. When the radio is turned on, the changer will begin checking for discs. This will continue for up to one and a half minutes, depending on the number of discs loaded.
Page 263 The following features are also available from this (Play): Touch this button to begin playing a CD. screen: RANDOM DISC: Touch this button to hear the tracks in • LOAD random, rather than sequential, order on the disc • EJECT selected.
Page 264 RDS (Radio Data Systems): See “Radio Data Systems (Pause): Touch this button to pause CD play. Touch (RDS)” listed previously for information on this button. it again to resume play or touch the play button. SOUND: See “Sound Menu (Tone, DSP, Fade and RANDOM ALL: Touch this button to hear the tracks on Balance)”...
Page 265: Cd/Dvd Player
CD/DVD Player Notice: Shifting out of PARK (P) with the system’s faceplate open will cause the faceplate to close automatically. This could cause damage to a CD, The player that is used for the navigation map DVD can DVD or the system if it is partially loaded. Before also be used as a single music CD player or a video shifting out of PARK (P), make sure that the DVD or DVD player.
Page 266 DVD Player (Play): Touch this button to begin playing a CD. RANDOM: Touch this button to hear the tracks To use the player as a video DVD player, you must ﬁrst in random, rather than sequential, order on the disc. remove the navigation map DVD or music CD.
Page 267 DVD Menu Options Notice: Shifting out of PARK (P) with the system’s faceplate open will cause the faceplate to close To display the menu choices while a DVD is playing, automatically. This could cause damage to a touch anywhere on the screen and the menu will appear. CD, DVD or the system if it is partially loaded.
Page 268 VIEWING ANGLE: Touch this button to adjust the TITLE: Touch this button to display the title of the DVD. viewing angle of the DVD. Some DVDs allow you to Depending on the type of DVD you are using, this change the camera angle. This may not be available on button may or may not be available.
Page 269 SETTING: Touch this button to adjust the following: SEARCH: Touch this button to search to a certain scene on the DVD. Depending on the type of DVD you • LANGUAGE PREFERENCES are using, this button may or may not be available. •...
Page 270: Radio Personalization With Home And Away Feature
Radio Personalization with Home To select HOME and AWAY preset stations, do the following: and Away Feature 1. With the audio system on, touch the Audio hard key and turn the audio system off. With this feature, you can recall the latest audio system settings as adjusted the last time your vehicle was 2.
Page 271: Voice Recognition
Voice Recognition 2. Clearly state one of the commands listed on the following pages. For example, say “FM1”. The navigation system’s voice recognition allows for 3. The system will tell you the command being hands-free operation of navigation and audio system implemented.
Page 272 Voice Recognition Commands Radio Commands The following list shows all of the voice commands Radio: This command will change the audio system to available for the navigation system with a brief the next radio audio source. description of each. To use the voice commands, refer AM: This command will change the audio system to the to the instructions listed previously.
Page 273 Position Commands Seek Up: This command will cause the selected audio source to seek up to the next strongest signal. Current Position, Current Location, Show Current Seek Down: This command will cause the selected Position, Show Current Location: These commands audio source to seek down to the next strongest signal.
Page 274 Guidance Commands North Up, Change to North Up: These commands will cause the system to display the North Up heading Repeat Guidance, Repeat Voice: These commands when on the map screen if the map scale is set will cause the system to repeat the last available to 2 miles (4 km) or less.
Page 275 Close Guidance, Close Guidance Screen, Close Delete Destination, Cancel Destination: These Guide, Close Guide Screen: These commands commands will cancel a destination if one has been set. will cause the system to close the Guidance Appearance Next Waypoint Map: This command will cause the menu if a destination has been set.
Page 276 Point of Interest (POI) Commands Mexican Restaurant, Mexican Food: These commands will cause the system to display Mexican The following commands will cause the system to restaurant POI icons. display icons if they are available on the map screen when the map scale is set to a half mile Seafood Restaurant, Seafood: These commands will (eight-tenths km) or less.
Page 277 Automobile Club, Triple A: These commands will Winery: This command will cause the system to cause the system to display auto club POI icons. display winery POI icons. Auto Service And Maintenance, Auto Service, City Hall: This command will cause the system to Maintenance: These commands will cause the system display city hall POI icons.
Page 278 Train Station: This command will cause the system to Performing Arts: This command will cause the system display train station POI icons. to display performing arts POI icons. Airport: This command will cause the system to Museum: This command will cause the system to display airport POI icons.
Page 279 Section 5 Driving Your Vehicle Your Driving, the Road, and Your Vehicle ..5-2 Driving in Rain and on Wet Roads ....5-20 City Driving ..........5-22 Defensive Driving ...........5-2 Freeway Driving ...........5-23 Drunken Driving ..........5-3 Before Leaving on a Long Trip .......5-24 Control of a Vehicle ........5-6 Highway Hypnosis ........5-25 Braking ............5-6...
Page 280: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and CAUTION: Your Vehicle Defensive driving really means “Be ready for Defensive Driving anything.” On city streets, rural roads, or expressways, it means “Always expect the The best advice anyone can give about driving is: Drive unexpected.”...
Page 281: Drunken Driving
Drunken Driving Many adults — by some estimates, nearly half the adult population — choose never to drink alcohol, so they never drive after drinking. For persons under 21, Death and injury associated with drinking and driving it is against the law in every U.S. state to drink alcohol. is a national tragedy.
Page 282 According to the American Medical Association, a 180 lb It is the amount of alcohol that counts. For example, (82 kg) person who drinks three 12 ounce (355 ml) if the same person drank three double martinis bottles of beer in an hour will end up with a BAC (3 ounces or 90 ml of liquor each) within an hour, the of about 0.06 percent.
Page 283 But the ability to drive is affected well below a BAC of There is something else about drinking and driving that 0.10 percent. Research shows that the driving skills many people do not know. Medical research shows that of many people are impaired at a BAC approaching alcohol in a person’s system can make crash injuries 0.05 percent, and that the effects are worse at night.
Page 284: Control Of A Vehicle
Control of a Vehicle Braking You have three systems that make your vehicle go where See Brake System Warning Light on page 3-54. you want it to go. They are the brakes, the steering, and Braking action involves perception time and the accelerator.
Page 285: Anti-Lock Brake System (Abs)
Anti-Lock Brake System (ABS) Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. Your vehicle has the Anti-Lock Brake System (ABS), This is a mistake. Your brakes may not have time to an advanced electronic braking system that will cool between hard stops.
Page 286 ABS can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you.
Page 287: Braking In Emergencies
Traction Control System (TCS) Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle Your vehicle has a traction control system that limits in front of you, you will not have time to apply your wheel spin.
Page 288 This warning light will To turn the system off, come on to let you know press the front part of if there is a problem the traction control button with your traction located on the center control system. console. See Traction Control System (TCS) Warning Light on The TRACTION SYSTEM-OFF message will display on page 3-56.
Page 289: Magnetic Ride Control
® Magnetic Ride Control StabiliTrak System ® Magnetic Ride Control automatically adjusts the ride The StabiliTrak System is a computer controlled of your vehicle. Automatic ride control is achieved system that helps the driver maintain directional control through a computer used to control and monitor the of the vehicle in difficult driving conditions.
Page 290 The STABILITRAK ACTIVE message will come on The system comes on automatically whenever you start when the system is operating. See DIC Warnings your vehicle. To help maintain directional control of and Messages on page 3-67 for more information. the vehicle, you should always leave the system on. You may also feel or hear the system working.
Page 291: Steering
Steering The traction of the tires against the road surface makes it possible for the vehicle to change its path when you turn the front wheels. If there is no traction, Power Steering inertia will keep the vehicle going in the same direction. If you have ever tried to steer a vehicle on wet ice, If you lose power steering assist because the engine you will understand this.
Page 292 Steering in Emergencies Speed limit signs near curves warn that you should adjust your speed. Of course, the posted speeds There are times when steering can be more effective are based on good weather and road conditions. Under than braking. For example, you come over a hill and less favorable conditions you will want to go slower.
Page 293: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand.
Page 294: Passing
Passing • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, The driver of a vehicle about to pass another on a following too closely reduces your area of vision, two-lane highway waits for just the right moment, especially if you are following a larger vehicle.
Page 295: Loss Of Control
• Loss of Control Check your mirrors, glance over your shoulder, and start your left lane change signal before moving Let us review what driving experts say about what out of the right lane to pass. When you are far happens when the three control systems —...
Page 296: Racing Or Other Competitive Driving (Xlr-V)
Racing or Other Competitive Remember: Any traction control system helps avoid only the acceleration skid. If your traction control system is Driving (XLR-V) off, then an acceleration skid is also best handled by easing your foot off the accelerator pedal. See your warranty book before using your vehicle for If your vehicle starts to slide, ease your foot off the racing or other competitive driving.
Page 297: Driving At Night
Driving at Night What you do in the daytime can also affect your night vision. For example, if you spend the day in bright sunshine you are wise to wear sunglasses. Your eyes Night driving is more dangerous than day driving. will have less trouble adjusting to night.
Page 298: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 299 Hydroplaning CAUTION: Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough Wet brakes can cause accidents. They will not and you are going fast enough. When your vehicle work as well in a quick stop and may cause is hydroplaning, it has little or no contact with the road.
Page 300: City Driving
Driving Through Flowing Water City Driving CAUTION: Flowing or rushing water creates strong forces. If you try to drive through ﬂowing water, as you might at a low water crossing, your vehicle can be carried away. As little as six inches of ﬂowing water can carry away a smaller vehicle.
Page 301: Freeway Driving
Freeway Driving Here are ways to increase your safety in city driving: • Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip.
Page 302: Before Leaving On A Long Trip
The most important advice on freeway driving is: Expect to move slightly slower at night. Keep up with traffic and keep to the right. Drive at the When you want to leave the freeway, move to the same speed most of the other drivers are driving. proper lane well in advance.
Page 303: Highway Hypnosis
Highway Hypnosis Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Is there actually such a condition as highway hypnosis? Are all windows clean inside and outside? Or is it just plain falling asleep at the wheel? Call it •...
Page 304: Hill And Mountain Roads
Hill and Mountain Roads CAUTION: If you do not shift down, your brakes could get so hot that they would not work well. You would then have poor braking or even none going down a hill. You could crash. Shift down to let your engine assist your brakes on a steep downhill slope.
Page 305: Winter Driving
• Winter Driving Know how to go down hills. The most important thing to know is this: let your engine do some of the slowing down. Shift to a lower gear when you go down a steep or long hill. •...
Page 306 Driving On Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation. You will have a lot less traction, or grip, and will need to be very careful.
Page 307 What is the worst time for this? Wet ice. Very cold snow Your Anti-Lock Brake System (ABS) improves your or ice can be slick and hard to drive on. But wet ice vehicle’s stability when you make a hard stop on a can be even more trouble because it may offer the least slippery road.
Page 308 If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: •...
Page 309 Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little CAUTION: faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 310: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
If Your Vehicle is Stuck in Sand, Notice: Spinning your wheels can destroy parts of your vehicle as well as the tires. If you spin the Mud, Ice, or Snow wheels too fast while shifting your transmission back and forth, you can destroy your transmission. In order to free your vehicle when it is stuck, you will For more information about using tire chains on your need to spin the wheels, but you do not want to spin your...
Page 311: Loading Your Vehicle
Loading Your Vehicle Tire and Loading Information Label It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation label.
Page 312 There is also important loading information on the 6. If your vehicle will be towing a trailer, the load vehicle Certiﬁcation label. It tells you the Gross Vehicle from your trailer will be transferred to your Weight Rating (GVWR) and the Gross Axle Weight vehicle.
Page 313 Example 2 Example 3 Item Description Total Item Description Total Vehicle Capacity Weight Vehicle Capacity Weight 400 lbs (181 kg) 400 lbs (181 kg) for Example 2 = for Example 3 = Subtract Subtract Occupant Weight 300 lbs (136 kg) Occupant Weight 400 lbs (181 kg) @ 150 lbs (68 kg) x 2 =...
Page 314 Certiﬁcation Label And, if you do have a heavy load, you should spread it out. Do not carry more than 61 lbs (28 kg) in the rear area of your vehicle. CAUTION: Do not load your vehicle any heavier than the Gross Vehicle Weight Rating (GVWR), or either the maximum front or rear Gross Axle Weight Rating (GAWR).
Page 315: Towing
Towing If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or Towing Your Vehicle turn quickly, or if there is a crash, they will keep going. Consult your dealer or a professional towing service CAUTION: if you need to have your disabled vehicle towed.
Page 316 NOTES 5-38...
Page 317 Section 6 Service and Appearance Care Service ............6-3 Cooling System ..........6-28 Accessories and Modiﬁcations ......6-3 Power Steering Fluid ........6-33 California Proposition 65 Warning .....6-3 Windshield Washer Fluid ........6-34 Doing Your Own Service Work ......6-4 Brakes ............6-35 Adding Equipment to the Outside Battery ............6-38 of Your Vehicle ...........6-4 Jump Starting ..........6-39...
Page 318 Section 6 Service and Appearance Care Tire Chains ..........6-70 Tires ............6-83 Lifting Your Vehicle ........6-70 Sheet Metal Damage ........6-83 If a Tire Goes Flat ........6-75 Finish Damage ..........6-83 Underbody Maintenance ........6-83 Appearance Care ..........6-76 Chemical Paint Spotting .........6-83 Cleaning the Inside of Your Vehicle ....6-76 Vehicle Care/Appearance Materials ....6-84 Fabric/Carpet ..........6-78 Leather ............6-79...
Page 319: Service
Service Accessories and Modiﬁcations When you add non-GM accessories to your vehicle Your dealer knows your vehicle best and wants you to they can affect your vehicle’s performance and safety, be happy with it. We hope you will go to your dealer including such things as, airbags, braking, stability, for all your service needs.
Page 320: Doing Your Own Service Work
Doing Your Own Service Work Your vehicle has an airbag system. Before attempting to do your own service work, see Servicing Your Airbag-Equipped Vehicle on page 1-44. You should keep a record with all parts receipts and CAUTION: list the mileage and the date of any service work you perform.
Page 321: Gasoline Octane
Gasoline Octane Gasoline Speciﬁcations If your vehicle has the 4.6L V8 engine (VIN Code A), At a minimum, gasoline should meet ASTM use premium unleaded gasoline with a posted octane speciﬁcation D 4814 in the United States or rating of 91 or higher. You may also use regular CAN/CGSB-3.5 in Canada.
Page 322: Additives
Additives Some gasolines that are not reformulated for low emissions may contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl To provide cleaner air, all gasolines in the United States (MMT); ask the attendant where you buy gasoline are now required to contain additives that will help whether the fuel contains MMT.
Page 323: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 324 The fuel door release To remove the fuel cap, turn it slowly counterclockwise. button is located on the The fuel cap has a spring in it; if the cap is released left side of the instrument too soon, it will spring back to the right. panel.
Page 325 Be careful not to spill fuel. Do not top off or overﬁll the tank and wait a few seconds after you have CAUTION: ﬁnished pumping before removing the nozzle. Clean fuel from painted surfaces as soon as possible. See Washing Your Vehicle on page 6-80. If a ﬁre starts while you are refueling, do not remove the nozzle.
Page 326: Filling A Portable Fuel Container
Filling a Portable Fuel Container Checking Things Under the Hood CAUTION: CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from An electric fan under the hood can start up the container can ignite the gasoline vapor. and injure you even when the engine is not You can be badly burned and your vehicle running.
Page 327: Hood Release
Hood Release To lift the hood, use the following steps: 1. Pull the lever with this symbol on it. It is located on the lower left side of the instrument panel. 2. Then go to the front of the vehicle and ﬁnd the secondary hood release lever.
Page 328: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 4.6L V8 engine, here is what you will see: 6-12...
Page 329 A. Battery. See Battery on page 6-38. G. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 6-15. B. Passenger Compartment Air Filter. See Passenger Compartment Air Filter on page 3-47. H. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes on page 6-35.
Page 330 When you open the hood on the 4.4L V8 XLR-V engine, here is what you will see: 6-14...
Page 331: Engine Oil
Engine Oil A. Battery. See Battery on page 6-38 Battery. B. Passenger Compartment Air Filter. See Passenger If the LOW OIL LEVEL or LOW OIL PRESSURE Compartment Air Filter on page 3-47 Passenger message on the Driver Information Center appears Compartment Air Filter.
Page 332 When to Add Engine Oil See Engine Compartment Overview on page 6-12 for the location of the engine oil ﬁll cap. If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind.
Page 333 What Kind of Engine Oil to Use Notice: If you use oils that do not have the GM4718M Standard designation, you can cause engine damage not covered by your warranty. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 334: Engine Oil Life System
Your vehicle’s engine is ﬁlled at the factory with a Notice: If your vehicle is an XLR-V model, the ® Mobil 1 synthetic oil, which meets all requirements engine uses a special oil ﬁlter. The use of any other for your vehicle. engine oil ﬁlter could lead to ﬁlter failure and result in severe engine damage.
Page 335 How to Reset the Engine Oil Life What to Do with Used Oil System and the Oil Life Indicator Used engine oil contains certain elements that may be unhealthy for your skin and could even cause cancer. The Engine Oil Life System calculates when to Do not let used oil stay on your skin for very long.
Page 336: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter To inspect or replace the ﬁlters, do the following: See Engine Compartment Overview on page 6-12 for the location of the engine air cleaner/ﬁlters. When to Inspect the Engine Air Cleaner/Filters Inspect the air cleaner/ﬁlters at the Maintenance II intervals and replace them at the ﬁrst oil change after each 50,000 mile (83 000 km) interval.
Page 337: Automatic Transmission Fluid
Automatic Transmission Fluid Follow these steps to reinstall the covers to the engine air cleaner/ﬁlter housings: How to Check Automatic 1. Align the four tabs located on the back of the cover with the three slots on the back of the housing. Transmission Fluid 2.
Page 338: Engine Coolant
® Engine Coolant Notice: Using coolant other than DEX-COOL cause premature engine, heater core, or radiator corrosion. In addition, the engine coolant may The cooling system in your vehicle is ﬁlled with ® require changing sooner, at the ﬁrst maintenance DEX-COOL engine coolant.
Page 339 Notice: If you use an improper coolant mixture, your engine could overheat and be badly damaged. CAUTION: The repair cost would not be covered by your warranty. Too much water in the mixture can freeze and crack the engine, radiator, heater core, and Adding only plain water to your cooling other parts.
Page 340 Checking Coolant CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly. Never turn the surge tank pressure cap — even a little — when the engine and radiator are hot.
Page 341: Coolant Surge Tank Pressure Cap
Adding Coolant Coolant Surge Tank Pressure Cap ® If you need more coolant, add the proper DEX-COOL Notice: If the pressure cap is not tightly installed, coolant mixture at the surge tank, but only when the coolant loss and possible engine damage may engine is cool.
Page 342 If Steam Is Coming From Your Engine Notice: If your engine catches ﬁre because you keep driving with no coolant, your vehicle can be badly damaged. The costly repairs would not be covered by your warranty. See Overheated Engine CAUTION: Protection Operating Mode on page 6-27 for information on driving to a safe place in an emergency.
Page 343: Overheated Engine Protection Operating Mode
Overheated Engine Protection If you get the overheat warning with no sign of steam, try this for a minute or so: Operating Mode 1. In heavy traffic, let the engine idle in NEUTRAL (N) while stopped. If it is safe to do so, pull off the road, This operating mode allows your vehicle to be driven shift to PARK (P) or NEUTRAL (N) and let the to a safe place in an emergency situation.
Page 344: Cooling System
Cooling System CAUTION: When you decide it is safe to lift the hood, here is what you will see: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan.
Page 345 Notice: Engine damage from running your engine without coolant is not covered by your warranty. CAUTION: See Overheated Engine Protection Operating Mode on page 6-27 for information on driving to a safe place in an emergency. Heater and radiator hoses, and other engine parts, can be very hot.
Page 346 How to Add Coolant to the Coolant CAUTION: (Continued) Surge Tank If you have not found a problem yet, check to see if Never turn the cap when the cooling system, coolant is visible in the surge tank. If coolant is visible including the coolant surge tank pressure cap, but the coolant level is not at the FULL COLD mark is hot.
Page 347 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 348 3. Fill the coolant surge tank with the proper mixture 4. With the coolant surge tank pressure cap off, start until the level inside the surge tank stabilizes at the the engine and let it run until you can feel the upper FULL COLD mark on the front of the surge tank.
Page 349: Power Steering Fluid
How to Check Power Steering Fluid If the LOW COOLANT message does not appear on the Driver Information Center (DIC) after two minutes, the To check the power steering ﬂuid, do the following: coolant is at the proper ﬁll level. If a LOW COOLANT message does appear, repeat Steps 1 through 3 1.
Page 350: Windshield Washer Fluid
Windshield Washer Fluid Notice: • When using concentrated washer ﬂuid, What to Use follow the manufacturer’s instructions for adding water. When you need windshield washer ﬂuid, be sure to • Do not mix water with ready-to-use washer ﬂuid. read the manufacturer’s instructions before use. If you Water can cause the solution to freeze and will be operating your vehicle in an area where the damage your washer ﬂuid tank and other parts...
Page 351: Brakes
Brakes So, it is not a good idea to top off your brake ﬂuid. Adding brake ﬂuid will not correct a leak. If you add ﬂuid when your linings are worn, then you will have Brake Fluid too much ﬂuid when you get new brake linings. You should add or remove brake ﬂuid, as necessary, Your brake master cylinder only when work is done on the brake hydraulic system.
Page 352 Checking Brake Fluid CAUTION: You can check the brake ﬂuid without taking off the cap. Look at the brake ﬂuid reservoir. The ﬂuid level should be above the MIN mark on the reservoir. If it is not, have With the wrong kind of ﬂuid in your brake your brake system checked to see if there is a leak.
Page 353 Brake Wear Some driving conditions or climates may cause a brake squeal when the brakes are ﬁrst applied or lightly Your vehicle has four-wheel disc brakes. applied. This does not mean something is wrong with your brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads Brake linings should always be replaced as complete are worn and new pads are needed.
Page 354: Battery
Replacing Brake System Parts Battery The braking system on a vehicle is complex. Its many Your vehicle has a maintenance free battery. When it is parts have to be of top quality and work well together if time for a new battery, get one that has the replacement the vehicle is to have really good braking.
Page 355: Jump Starting
Vehicle Storage Jump Starting If you are not going to drive your vehicle for 25 days If your vehicle’s battery has run down, you may want to or more, remove the black, negative (−) cable from use another vehicle and some jumper cables to start the battery.
Page 356 Notice: If you try to start your vehicle by pushing Notice: If you leave your radio or other accessories or pulling it, you could damage your vehicle. Do not on during the jump starting procedure, they could push or pull your vehicle to start it; instead, use be damaged.
Page 357 CAUTION: CAUTION: Using a match near a battery can cause battery Fans or other moving engine parts can injure gas to explode. People have been hurt doing you badly. Keep your hands away from moving this, and some have been blinded. Use a parts once the engine is running.
Page 358 8. Now connect the black negative (−) cable to the negative (−) terminal of the good battery. Use a remote negative (−) terminal if the vehicle has one. Do not let the other end touch anything until the next step. The other end of the negative (−) cable does not go to the dead battery.
Page 359 Notice: If the jumper cables are connected or To disconnect the jumper cables from both vehicles, removed in the wrong order, electrical shorting may do the following: occur and damage the vehicle. The repairs would 1. Disconnect the black negative (−) cable from the not be covered by your warranty.
Page 360: Rear Axle
Rear Axle To get an accurate reading, the vehicle should be on a level surface. When to Check Lubricant If the level is below the bottom of the ﬁller plug hole, you will need to add some lubricant. Add enough It is not necessary to regularly check rear axle ﬂuid lubricant to raise the level to the bottom of the unless you suspect there is a leak or you hear an...
Page 361: Headlamp Aiming
Headlamp Aiming Notice: To make sure your headlamps are aimed properly, read all the instructions before beginning. Failure to follow these instructions could cause damage to headlamp parts. The vehicle should be properly prepared as follows: • The vehicle should be placed so the headlamps are 25 ft.
Page 362: Headlamp Vertical Aiming
Headlamp Vertical Aiming Headlamp aiming is done with the low-beam headlamps. The high-beam headlamps will be correctly aimed if the low-beam headlamps are aimed properly. The vehicle has a visual optical headlamp aiming system. The aim of the headlamps have been preset at The headlamp aiming the factory and should need no further adjustment.
Page 363 • The vehicle should be fully assembled and all other work stopped while headlamp aiming is being performed. • The vehicle should be normally loaded with a full tank of fuel and one person or 160 lbs (75 kg) sitting on the driver’s seat. •...
Page 364: Bulb Replacement
7. Locate the vertical headlamp aiming screws, which are under the hood near each headlamp assembly. The adjustment screw can be turned with a 6 mm male hex. 8. Turn the vertical aiming screw until the headlamp beam is aimed to the horizontal tape line.
Page 365: Windshield Replacement
Windshield Replacement To replace the wiper blade assembly, do the following: 1. Place the vehicle in accessory mode and turn Keep in mind that your windshield is part of the Head-Up the wipers on. Position the wipers on the Display (HUD) system. If you ever have to get your windshield in the mid-wipe position.
Page 366: Tires
Tires CAUTION: (Continued) Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions • Underinﬂated tires pose the same danger about your tire warranty and where to obtain service, as overloaded tires. The resulting accident see your GM Warranty booklet for details.
Page 367 Low-Proﬁle Tires (XLR-V) Winter tires, in general, are designed for increased traction on snow and ice covered roads. With winter Notice: If your vehicle has P235/45R19 or tires, there may be decreased dry road traction, P255/40R19 size tires, they are classiﬁed as increased road noise, and shorter tread life.
Page 368: Tire Sidewall Labeling
Tire Sidewall Labeling (B) TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed Useful information about a tire is molded into its sidewall. to GM’s speciﬁc tire performance criteria have a The example below shows a typical passenger (p-metric) TPC speciﬁcation code molded onto the sidewall.
Page 369 Tire Size (C) Aspect Ratio: A two-digit number that indicates the tire height-to-width measurements. For example, The following illustration shows an example of a typical if the tire size aspect ratio is 60, as shown in item C of passenger (p-metric) vehicle tire size. the illustration, it would mean that the tire’s sidewall is 60 percent as high as it is wide.
Page 370: Tire Terminology And Definitions
Tire Terminology and Deﬁnitions Curb Weight: This means the weight of a motor vehicle with standard and optional equipment including the maximum capacity of fuel, oil, and coolant, but Air Pressure: The amount of air inside the tire pressing without passengers and cargo. outward on each square inch of the tire.
Page 371 Load Index: An assigned number ranging from 1 to 279 Recommended Inﬂation Pressure: Vehicle that corresponds to the load carrying capacity of a tire. manufacturer’s recommended tire inﬂation pressure and shown on the tire placard. See Inﬂation - Tire Pressure Maximum Inﬂation Pressure: The maximum air on page 6-58 and Loading Your Vehicle on page 5-33.
Page 372: Run-Flat Tires
Run-Flat Tires UTQGS (Uniform Tire Quality Grading Standards): A tire information system that provides consumers with ratings for a tire’s traction, temperature, and Your vehicle, when new, had run-ﬂat tires. There is no treadwear. Ratings are determined by tire manufacturers spare tire, no tire changing equipment, and no place using government testing procedures.
Page 373 Some road hazards can damage a tire beyond repair. The valve stems on your run-ﬂat tires have sensors that This damage could occur even before you have are part of the Tire Pressure Monitor System (TPMS). driven on the tire in a deﬂated condition. When a tire See Tire Pressure Monitor System on page 6-59.
Page 374: Inflation - Tire Pressure
Inﬂation - Tire Pressure A Tire and Loading Information label is attached to the center pillar, below the driver’s door latch. This label shows your vehicle’s original equipment tires and Tires need the correct amount of air pressure to operate the correct inﬂation pressures for your tires when they effectively.
Page 375: Tire Pressure Monitor System
Tire Pressure Monitor System Remove the valve cap from the tire valve stem. Press the tire gage ﬁrmly onto the valve to get a pressure measurement. If the cold tire inﬂation pressure matches The Tire Pressure Monitor System (TPMS) on your the recommended pressure on the Tire and Loading vehicle, uses radio and sensor technology to check tire Information label, no further adjustment is necessary.
Page 376 Each tire, including the spare (if provided), should be Accordingly, when the low tire pressure telltale checked monthly when cold and inﬂated to the inﬂation illuminates, you should stop and check your tires as pressure recommended by the vehicle manufacturer soon as possible, and inﬂate them to the proper on the vehicle placard or tire inﬂation pressure label.
Page 377 Federal Communications Your vehicle’s TPMS can alert you about a low or high tire pressure condition but it does not replace normal Commission (FCC) and Industry tire maintenance. See Tire Inspection and Rotation and Science Canada on page 6-62 The SVC (Service) TIRE MONITOR message is The Tire Pressure Monitor System (TPMS) operates displayed when the TPM system is malfunctioning.
Page 378: Tire Inspection And Rotation
Tire Inspection and Rotation Vehicles that have the Tire Pressure Monitor (TPM) system will need to have the sensors reset after a tire rotation is performed. A special tool is needed to reset the The tires on your vehicle should be inspected regularly sensor identiﬁcation codes.
Page 379: When It Is Time For New Tires
XLR-V Tires You need a new tire if any of the following statements are true: Tire rotation is not recommended if your vehicle • You can see the indicators at three or more places has P235/45R19 size tires on the front axle and around the tire.
Page 380: Buying New Tires
Buying New Tires CAUTION: GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet Mixing tires could cause you to lose control General Motors Tire Performance Criteria Speciﬁcation while driving.
Page 381: Different Size Tires And Wheels
Different Size Tires and Wheels If you must replace your vehicle’s tires with those that do not have a TPC Spec number, make sure they are the same size, load range, speed rating, and If you add wheels or tires that are a different size construction type (radial and bias-belted tires) as your than your original equipment wheels and tires, this vehicle’s original tires.
Page 382: Uniform Tire Quality Grading
Uniform Tire Quality Grading Treadwear The treadwear grade is a comparative rating based on Quality grades can be found where applicable on the the wear rate of the tire when tested under controlled tire sidewall between tread shoulder and maximum conditions on a speciﬁed government test course.
Page 383: Wheel Alignment And Tire Balance
Temperature – A, B, C Wheel Alignment and Tire Balance The temperature grades are A (the highest), B, and C, The tires and wheels on your vehicle were aligned representing the tire’s resistance to the generation and balanced carefully at the factory to give you of heat and its ability to dissipate heat when tested the longest tire life and best overall performance.
Page 384 Each new wheel should have the same load-carrying capacity, diameter, width, offset and be mounted CAUTION: the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts or Rust or dirt on a wheel, or on the parts to wheel nuts, replace them only with new GM original which it is fastened, can make wheel nuts equipment parts.
Page 385 Used Replacement Wheels CAUTION: CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to become Putting a used wheel on your vehicle is loose and even come off. This could lead to a dangerous. You cannot know how it has been crash.
Page 386: Tire Chains
Tire Chains Lifting Your Vehicle CAUTION: CAUTION: Do not use tire chains. There is not enough Lifting a vehicle can cause an injury. The clearance. Tire chains used on a vehicle vehicle can slip off the jack and roll over you without the proper amount of clearance can or other people.
Page 387 Raising your vehicle with the jack improperly positioned can damage the vehicle and even For additional information, see your GM dealer and the Cadillac XLR service manual. make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to place the jack in the proper location before raising the vehicle.
Page 388 Lifting From the Front 1. Locate the front lifting points (A), according to the illustration shown. The front lifting points can be accessed from either side 2. Be sure to place a block or pad between the jack of your vehicle, behind the front tires. and the vehicle.
Page 389 Lifting From the Rear 3. Lift the vehicle with the jack, making sure the jack spans at least two of the crossmember ribs (B). The rear lifting points can be accessed from the rear of the vehicle, on either the driver’s or passenger’s side. 6-73...
Page 390 1. Locate the rear lifting points (A), according to the 3. Lift the vehicle with the jack, making sure the jack illustration shown. spans at least two of the crossmember ribs (B). 2. Be sure to place a block or pad between the jack For more information, see Doing Your Own Service and the vehicle.
Page 391: If A Tire Goes Flat
If a Tire Goes Flat CAUTION: It is unusual for a tire to “blow out” while you are driving, especially if you maintain your tires properly. If air goes out of a tire, it is much more likely to leak When the TIRE FLAT MAX SPD 55, REDUCED out slowly.
Page 392: Appearance Care
Appearance Care CAUTION: Cleaning the Inside of Your Vehicle Special tools and procedures are required Your vehicle’s interior will continue to look its best if it to service a run-ﬂat tire. If these special tools is cleaned often. Although not always visible, dust and procedures are not used you or others and dirt can accumulate on your upholstery.
Page 393 Notice: If you use abrasive cleaners when cleaning Do not clean your vehicle using the following cleaners glass surfaces on your vehicle, you could scratch or techniques: the glass and/or cause damage to the integrated • Never use a knife or any other sharp object to radio antenna and the rear window defogger.
Page 394: Fabric/Carpet
Fabric/Carpet 3. Start on the outside edge of the soil and gently rub toward the center. Continue cleaning, using a clean area of the cloth each time it becomes soiled. Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister 4.
Page 395: Leather
Leather Many commercial cleaners and coatings that are sold to preserve and protect soft plastic surfaces may permanently change the appearance and feel of your A soft cloth dampened with water may be used to interior and are not recommended. Do not use silicone remove dust.
Page 396: Care Of Safety Belts
Care of Safety Belts Washing Your Vehicle Keep belts clean and dry. The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability. The best way to preserve the vehicle’s ﬁnish is to keep it CAUTION: clean by washing it often with lukewarm or cold water.
Page 397: Cleaning Exterior Lamps/Lenses
Cleaning Exterior Lamps/Lenses etc., can damage the vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible. If necessary, use non-abrasive cleaners that are marked Use only lukewarm or cold water, a soft cloth and a safe for painted surfaces to remove foreign matter.
Page 398: Aluminum Or Chrome-Plated Wheels
Aluminum or Chrome-Plated Wheels Notice: Using chrome polish on aluminum wheels could damage the wheels. The repairs would not be covered by your warranty. Use chrome polish Your vehicle may be equipped with either aluminum on chrome wheels only. or chrome-plated wheels. Use chrome polish only on chrome-plated wheels, Keep the wheels clean using a soft clean cloth with mild but avoid any painted surface of the wheel, and buff...
Page 399: Tires
Tires Underbody Maintenance To clean the tires, use a stiff brush with tire cleaner. Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not Notice: Using petroleum-based tire dressing removed, corrosion and rust can develop on the products on your vehicle may damage the paint underbody parts such as fuel lines, frame, ﬂoor pan, ﬁnish and/or tires.
Page 400: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Usage Removes swirl marks, Description Usage ﬁne scratches, and Swirl Remover Polish other light surface Polishing Cloth Interior and exterior contamination. Wax-Treated polishing cloth. Removes light scratches Tar and Road Oil Removes tar, road oil, Cleaner Wax and protects ﬁnish.
Page 401: Vehicle Identification
Vehicle Identiﬁcation Engine Identiﬁcation The eighth character in the VIN is the engine code. This code will help you identify your vehicle’s engine, Vehicle Identiﬁcation Number (VIN) speciﬁcations, and replacement parts. Service Parts Identiﬁcation Label You will ﬁnd this label on your spare tire cover. It is very helpful if you ever need to order parts.
Page 402: Electrical System
Electrical System Power Windows and Other Power Options Add-On Electrical Equipment Circuit breakers protect the power windows and power seats. When the current load is too heavy, the circuit Notice: Don’t add anything electrical to your vehicle breaker opens and closes, protecting the circuit until the unless you check with your dealer ﬁrst.
Page 403: Instrument Panel Fuse Block
Instrument Panel Fuse Block Fuses Usage Spare Fuse The panel fuse block is located on the passenger’s side of the vehicle, under the instrument panel and under Spare Fuse the toe-board. Spare Fuse Remove the carpet and toe-board covering to access Spare Fuse the fuse block by pulling at the top of each corner Fuse Pull...
Page 404 Fuses Usage Fuses Usage ® OnStar Door Controls Adaptive Cruise Control (ACC), Run, Accessory Power Driver Door Switch Not Used Power Tilt Wheel, Telescopic Not Used Steering Column, Memory Seat, Driver Seat Switch, Retractable Rainsense™ Hardtop Switch Steering Wheel Control Ignition Switch, Intrusion Sensor Button Lights Stop Lamp...
Page 405: Underhood Fuse Block
Underhood Fuse Block The underhood fuse block is located next to the engine on the passenger’s side of the vehicle. For more information on location, see Engine Compartment Overview on page 6-12. Fuses Usage Anti-lock Brake System, Electronic Suspension Control To access the fuses, push in the tab located at the end of the fuse block cover.
Page 406 Fuses Usage Fuses Usage Parking Lamps Left High Beam Headlamp Electronic Throttle Control Cooling Fan Fuel Pump Battery 3 Engine Control Module, Anti-lock Brakes Transmission Control Module Climate Controls Odd Injectors Battery 2 Electronic Suspension Control Starter Emission Controls Audio Ampliﬁer Air Conditioning Compressor Not Used Even Injectors...
Page 407 Relays Usage Relays Usage Horn Ignition 1 Air Conditioning Compressor Windshield Wiper On/Off Windshield Washer Headlamp Washer Parking Lamps Low Beam Headlamps Fog Lamps Fuel Pump High Beam Headlamps Diodes Usage Rear Window Defogger § Diode 1 Windshield Wiper High/Low §...
Page 408: Capacities And Specifications
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. Please refer to Recommended Fluids and Lubricants on page 7-11 for more information. Capacities Application English Metric Automatic Transmission (Pan Removal and Replacement) 5-Speed Automatic 9.5 qt 9.0 L 6-Speed Automatic 6.5 qt...
Page 409 Section 7 Maintenance Schedule Maintenance Schedule ........7-2 At Each Fuel Fill ..........7-8 Introduction ...........7-2 At Least Once a Month ........7-8 Maintenance Requirements ......7-2 At Least Once a Year ........7-9 Your Vehicle and the Environment ....7-2 Recommended Fluids and Lubricants ....7-11 Using the Maintenance Schedule ......7-2 Normal Maintenance Replacement Parts ..7-13 Scheduled Maintenance ........7-4...
Page 410: Maintenance Schedule
Maintenance Schedule Your Vehicle and the Environment Proper vehicle maintenance not only helps to keep your Introduction vehicle in good working condition, but also helps the environment. All recommended maintenance is Important: Keep engine oil at the proper level and important.
Page 411 This schedule is for vehicles that: Some maintenance services can be complex. So, unless you are technically qualiﬁed and have the necessary • carry passengers and cargo within recommended ® equipment, you should have your GM Goodwrench limits. You will ﬁnd these limits on the tire and dealer do these jobs.
Page 412: Scheduled Maintenance
Scheduled Maintenance When the CHANGE OIL NOW message appears, certain services, checks, and inspections are required. Required services are described in the following for When the CHANGE OIL NOW message in the Driver “Maintenance I” and “Maintenance II.” Generally, it is Information Center (DIC) comes on, it means that service recommended that your ﬁrst service be Maintenance I, is required for your vehicle.
Page 413 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 6-15. Reset oil • • life system. See Engine Oil Life System on page 6-18. An Emission Control Service. • • Visually check for any leaks or damage. See footnote (a). Inspect engine air cleaner ﬁlter.
Page 414: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Additional Required Services 25,000 50,000 75,000 100,000 125,000 150,000 Service and Miles (Kilometers) (40 000) (80 000) (120 000) (160 000)
Page 415: Maintenance Footnotes
Maintenance Footnotes (e) If you drive regularly under dusty conditions, the ﬁlter may require replacement more often. (a) A ﬂuid loss in any vehicle system could indicate a (f) Change automatic transmission ﬂuid and ﬁlter if the problem. Have the system inspected and repaired vehicle is mainly driven under one or more of these and the ﬂuid level checked.
Page 416: Owner Checks And Services
Owner Checks and Services Engine Coolant Level Check ® Check the engine coolant level and add DEX-COOL These owner checks and services should be performed coolant mixture if necessary. See Engine Coolant at the intervals speciﬁed to help ensure the safety, on page 6-22 for further details.
Page 417: At Least Once A Year
At Least Once a Year Transmission Shift Lock Control System Check Starter Switch Check CAUTION: CAUTION: When you are doing this inspection, the When you are doing this inspection, the vehicle could move suddenly. If the vehicle vehicle could move suddenly. If the vehicle moves, you or others could be injured.
Page 418 Parking Brake and Transmission Park (P) Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular brake, Mechanism Check set the parking brake. • To check the parking brake’s holding ability: With the CAUTION: engine running and transmission in NEUTRAL (N), slowly remove foot pressure from the regular brake...
Page 419: Recommended Fluids And Lubricants
Recommended Fluids and Usage Fluid/Lubricant Lubricants 50/50 mixture of clean, drinkable ® Engine Cooling water and use only DEX-COOL Fluids and lubricants identiﬁed below by name, part System Coolant. See Engine Coolant number, or speciﬁcation may be obtained from on page 6-22. your dealer.
Page 420 Usage Fluid/Lubricant Usage Fluid/Lubricant Multi-Purpose Lubricant, Superlube Hood Latch Trunk Key Lock (GM Part No. U.S. 12346241, in Assembly, Lubriplate Lubricant Aerosol Cylinder Canada 10953474). Secondary (GM Part No. U.S. 12346293, Latch, Pivots, in Canada 992723) or lubricant SAE 75W-90 Synthetic Spring meeting requirements of NLGI #2, Axle Lubricant...
Page 421: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. ® Part GM Part Number ACDelco Part Number Engine Air Cleaner/Filter Elements 4.4 L V8 Engine 10342024 A2945C 4.6 L V8 Engine 25099149 A1208C Engine Oil Filter...
Page 422: Engine Drive Belt Routing (Xlr-V Series Engine)
Engine Drive Belt Routing (XLR-V Series Engine) 4.4L V8 Engine 7-14...
Page 423: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 7-2. Any additional information from Owner Checks and Services on page 7-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 424 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 7-16...
Page 425 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 7-17...
Page 426 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 7-18...
Page 427 Section 8 Customer Assistance and Information Customer Assistance and Information ....8-2 Reporting Safety Defects ........8-13 Customer Satisfaction Procedure ......8-2 Reporting Safety Defects to the Online Owner Center ........8-3 United States Government ......8-13 Customer Assistance for Text Reporting Safety Defects to the Telephone (TTY) Users ........8-4 Canadian Government ........8-14 Customer Assistance Offices ......8-4...
Page 428: Customer Assistance And Information
Your satisfaction and goodwill are important to visible through the windshield. your dealer and to Cadillac. Normally, any concerns with the sales transaction or the operation of your • Dealership name and location.
Page 429: Online Owner Center
Online Owner Center The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or The Owner Center is a resource for your GM ownership the interpretation of the New Vehicle Limited Warranty.
Page 430: Customer Assistance For Text Telephone (Tty) Users
Cadillac encourages customers to call the toll-free Oshawa, Ontario L1H 8P7 number for assistance. However, if a customer wishes 1-888-446-2000 to write or e-mail Cadillac, refer to the addresses below. 1-800-263-3830 (For Text Telephone devices (TTYs)) United States — Customer Assistance Roadside Assistance: 1-800-882-1112...
Page 431: Gm Mobility Reimbursement Program
Overseas — Customer Assistance GM Mobility Reimbursement Program Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 This program, available to qualiﬁed applicants, can...
Page 432: Roadside Service
• Flat Tire Change (Covers change only) covered by the base warranty coverage and at a nominal charge if the Cadillac is no longer covered by • Trip Interruption — If your trip is interrupted due to the base warranty. Roadside Service is available only a warranty failure, incidental expenses may be in the United States and Canada.
Page 433: Courtesy Transportation
Cadillac by dialing from the United States or Canada is safety-related. If it is, please call your dealership, 1-888-889-2438 — daily, 24 hours.
Page 434 Transportation Options Courtesy Rental Vehicle Your dealer may arrange to provide you with a courtesy Warranty service can generally be completed while you rental vehicle or reimburse you for a rental vehicle wait. However, if you are unable to wait, GM helps that you obtain if your vehicle is kept for a warranty to minimize your inconvenience by providing several repair.
Page 435: Vehicle Data Collection And Event Data Recorders
Additional Program Information Vehicle Data Collection and Event Data Recorders Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but Your vehicle, like other modern motor vehicles, has a it is not part of the New Vehicle Limited Warranty. number of sophisticated computer systems that monitor A separate booklet entitled Warranty and Owner and control several aspects of the vehicle’s performance.
Page 436: Collision Damage Repair
Unlike the data recorders on many airplanes, these Others, such as law enforcement, may have access to on-board systems do not record sounds, such as the special equipment that can read the information conversation of vehicle occupants. if they have access to the vehicle or the device that stores the data.
Page 437 Insuring Your Vehicle Recycled original equipment parts may also be used for repair. These parts are typically removed from vehicles Protect your investment in your GM vehicle with that were total losses in prior accidents. In most comprehensive and collision insurance coverage. cases, the parts being recycled are from undamaged There are signiﬁcant differences in the quality of sections of the vehicle.
Page 438 If an Accident Occurs • Gather the important information you will need from the other driver. Things like name, address, phone Here is what to do if you are involved in an accident. number, driver’s license number, vehicle license • Try to relax and then check to make sure you are all plate, vehicle make, model and model year, Vehicle right.
Page 439: Reporting Safety Defects
Managing the Vehicle Damage Reporting Safety Defects Repair Process Reporting Safety Defects to the In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its United States Government repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there.
Page 440: Reporting Safety Defects To The Canadian Government
Reporting Safety Defects to the In Canada, please call us at 1-888-446-2000. Or, write: Canadian Cadillac Customer Communication Canadian Government Centre, 163-005 General Motors of Canada Limited If you live in Canada, and you believe that your vehicle 1908 Colonel Sam Drive...
Page 441 Service Bulletins Current and Past Model Order Forms Service Bulletins give technical service information Service Publications are available for current and needed to knowledgeably service General Motors cars past model GM vehicles. To request an order form, and trucks. Each bulletin contains instructions to please specify year and model name of the vehicle.
Page 442 NOTES 8-16...
Page 443 Anti-Lock Brake, System Warning Light ....3-55 Appearance Care Accessories and Modiﬁcations ......6-3 Aluminum or Chrome-Plated Wheels ....6-82 Accessory Power Outlet(s) ....... 3-40 Care of Safety Belts ........6-80 Adaptive Cruise Control ........3-15 Chemical Paint Spotting ....... 6-83 Adaptive Forward Lighting System .....
Page 444 Audio System(s) (cont.) Understanding Radio Reception ..... 3-84 California Fuel ..........6-5 XM™ Satellite Radio Antenna System .... 3-86 California Proposition 65 Warning ....... 6-3 Automatic Door Lock ........2-11 Canadian Owners ..........ii Automatic Transmission Capacities and Speciﬁcations ......6-92 Fluid ............
Page 445 Cigarette Lighter ..........3-41 Coolant Cleaning Engine Temperature Gage ......3-57 Aluminum or Chrome-Plated Wheels ....6-82 Heater, Engine ..........2-24 Exterior Lamps/Lenses ......... 6-81 Surge Tank Pressure Cap ......6-25 Fabric/Carpet ..........6-78 Cooled Seats ........... 1-3 Finish Care ..........6-81 Cooling System ..........
Page 446 Dual Climate Control System ......3-41 Database Coverage Explanations ...... 4-50 Player ............4-69 Daytime Running Lamps ........3-30 Defensive Driving ..........5-2 Diversity Antenna System ......... 3-86 Doing Your Own Service Work ......6-4 Door Edit Automatic Door Lock ........2-11 Avoid Point/Area ..........
Page 447 Engine (cont.) Fuel ............... 6-4 Oil Life System ........... 6-18 Additives ............6-6 Oil Pressure Gage ........3-61 California Fuel ..........6-5 Overheated Protection Operating Mode ... 6-27 Filling a Portable Fuel Container ....6-10 Overheating ..........6-25 Filling Your Tank ........... 6-7 Starting ............
Page 448 Getting Started Highway Hypnosis ........... 5-25 Getting Started, Navigation ......4-4 Hill and Mountain Roads ........5-26 Global Positioning System (GPS) ...... 4-48 Hood Glove Box ............. 2-45 Checking Things Under ........ 6-10 GM Mobility Reimbursement Program ....8-5 Release ............. 6-11 Horn ...............
Page 449 Light (cont.) Highbeam On ..........3-62 Keyless Access System ......2-4, 4-47 Lights On Reminder ........3-62 Keyless Access System, Operation ...... 2-5 Malfunction Indicator ........3-58 Keys ............... 2-2 Passenger Airbag Status Indicator ....3-52 Safety Belt Reminder ........3-50 Security .............
Page 450 Memory Seat ..........2-56 Memory Steering Wheel Controls ...... 2-56 Magnetic Ride Control ........5-11 Menu Maintenance Schedule Setup ............4-13 Additional Required Services ......7-6 Message At Each Fuel Fill ........... 7-8 DIC Warnings and Messages ......3-67 At Least Once a Month ........7-8 Mirrors At Least Once a Year ........
Page 451 Odometer ............3-50 Paint, Damage ..........6-83 Odometer, Trip ..........3-50 Park Aid ............3-38 Off-Road Recovery .......... 5-15 Park (P) Shifting Into ..........2-30 Engine ............6-15 Shifting Out of ..........2-32 Engine Oil Pressure Gage ......3-61 Parking Life Indicator ..........
Page 452 Pretensioners, Safety Belt ........ 1-17 Rearview Mirror, Automatic Dimming ® Problems with Route Guidance ......4-50 with OnStar ..........2-35 Programmable Automatic Door Unlock ....2-12 Reclining Seatback, Power ......... 1-3 Recommended Fluids and Lubricants ....7-11 Recreational Vehicle Towing ......5-37 Replacement, Windshield .........
Page 453 Service ............6-3 Accessories and Modiﬁcations ......6-3 Safety Belt Adding Equipment to the Outside of Pretensioners ..........1-17 Your Vehicle ..........6-4 Reminder Light ..........3-50 California Proposition 65 Warning ....6-3 Safety Belts Doing Your Own Work ........6-4 Care of ............
Page 454 Storage Areas Tire Center Console Storage Area ......2-45 Pressure Light ..........3-57 Convenience Net ......... 2-46 Tires ............. 6-50 Cupholder(s) ..........2-45 Aluminum or Chrome-Plated Wheels, Glove Box ..........2-45 Cleaning ..........6-82 Map Pocket ..........2-45 Buying New Tires ........6-64 Rear Storage Area ........
Page 455 Traction Control System (TCS) ........5-9 Valet Lockout Switch ........2-20 Control System Warning Light ....... 3-56 Vehicle Limited-Slip Rear Axle ........5-11 Control ............5-6 Magnetic Ride Control ........5-11 ® Damage Warnings ........... iv StabiliTrak System ........5-11 Loading ............
Page 456 Windshield (cont.) Washer ............3-11 Warning Lights, Gages and Indicators ....3-48 Washer Fluid ..........6-34 Warnings Wiper Blade Replacement ......6-49 DIC Warnings and Messages ......3-67 Wiper Blades, Cleaning ........ 6-81 Hazard Warning Flashers ....... 3-6 Wiper Fuses ..........6-86 Other Warning Devices ........

This manual is also suitable for:
