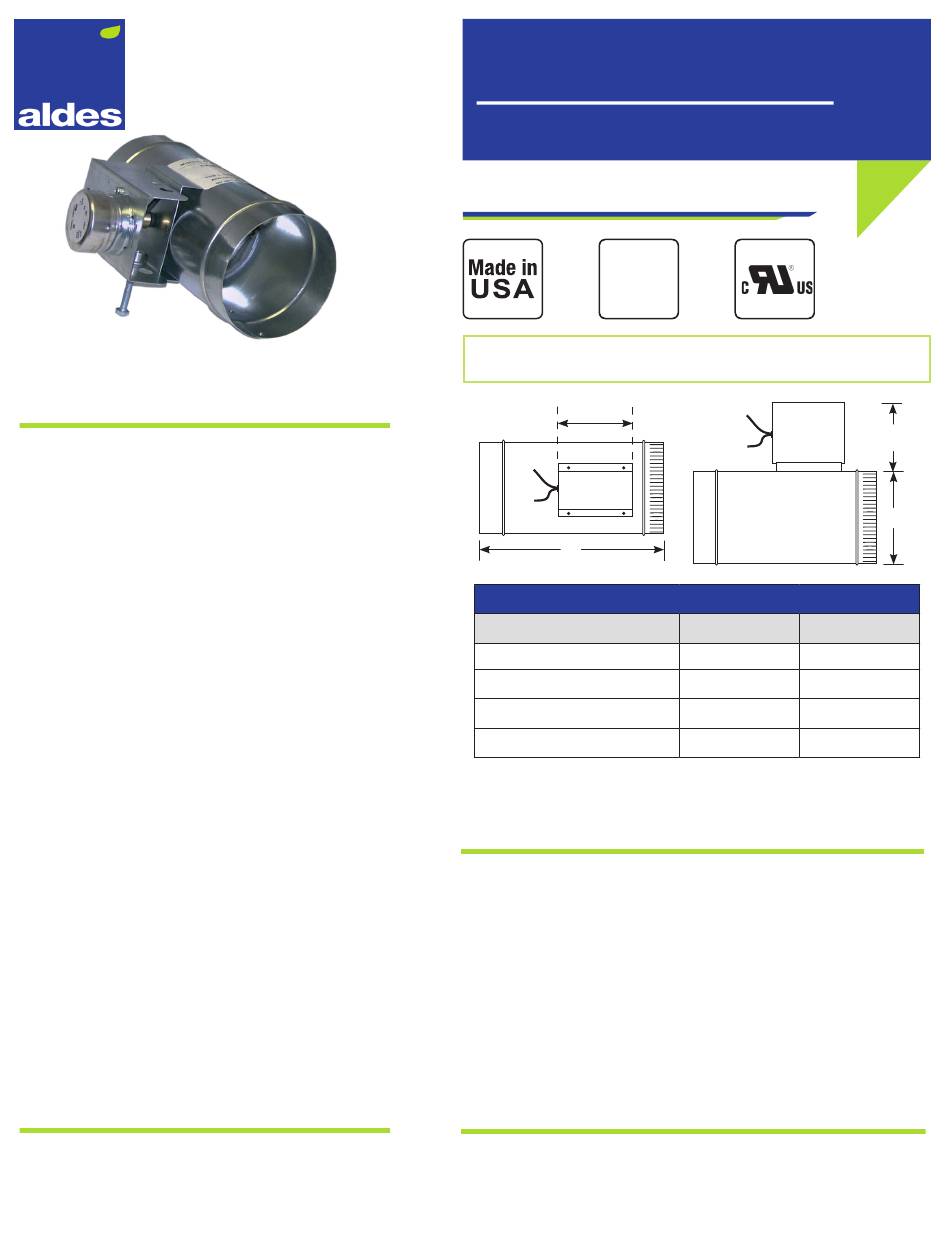

aldes ZRT-SDIL Installation, Operation And Maintenance Instructions
aldes ZRT-SDIL Installation, Operation And Maintenance Instructions

aldes ZRT-SDIL Installation, Operation And Maintenance Instructions

In-line zone terminal, airflow & zone control

Advertisement

Quick Links

Description

ALDES
pending*
In-Line
(ZRT-SDIL)
and
High-Pressure
Terminals (ZRT-SDIL-HP) are designed to introduce
flexibility and dynamic control to central ventilation
systems. Used in both large and small systems, the
ZRT-SDIL/ZRT-SDIL-HP controls ventilation where
it is required without the need for individual fans.
Each ZRT-SDIL/ZRT-SDIL-HP is a combination control
damper and constant airflow regulators. This unique
combination provides the ability to select between
low-flow and high-flow ventilation rates without the
need for expensive pneumatic, electronic, or DDC
control systems.
The ZRT-SDIL/ZRT-SDIL-HP can be used in a supply
or exhaust configuration. For ZRT-SDIL models,
operating range is 0.12 to 1.2 in. w.g. (30 to 300 Pa). For
ZRT-SDIL-HP models, the operating range is 0.4 to 2.8
in. w.g. (100 to 650 Pa).
The ZRT-SDIL/ZRT-SDIL-HP allows for a selection
between a continuous, regulated low airflow rate
(damper closed) or an on-demand, regulated high
airflow rate (damper opened). With a motorized
damper unpowered (closed) a low-continuous
amount of regulated airflow passes through the
low-flow constantc airflow regulator. When power is
applied to a motorized damper, the damper opens,
and air passes through the low-flow constant airflow
regulator as well as the constant airflow regulator in
the powered damper.

Mounting

The ZRT-SDIL/ZRT-SDIL-HP is intended to be installed
in-line in a duct system. The unit should be installed in a
location that provides access to the motorized damper.
*U.S. Pat. No. 9,759,442
Zone
Terminals
In-Line
Zone
ZRT-SDIL / ZRT-SDIL-HP
IN-LINE ZONE TERMINAL
AIRFLOW & ZONE CONTROL
WA R R A N T Y
YEARS
3
READ AND SAVE THESE INSTRUCTIONS
4-5/8"
B
MODEL
ZRT-SDIL-1-4
ZRT-SDIL-1-5
ZRT-SDIL-1-6
ZRT-SDIL-1-8

Wiring

ZRT-SDIL/ZRT-SDIL-HP wiring needs to meet all applicable electrical
and building codes. If the electrical connection to the damper
motor wiring box is not accessible after mounting, there needs to
be enough slack (approximately 24") in the electrical wiring leading
to the wiring box to allow the damper assembly to be removed
through the access opening. This will allow access to the electrical
connections from the access opening.
ZRT-SDIL/ZRT-SDIL-HP models are available with 24 VAC or 120 VAC
motorized dampers (see Figure 1 and 2 on the next page).
Maintenance
All motorized components of the ZRT-PDIL/ZRT-PDIL-HP are accessible
from the outside of the motorized damper.
IOM
DIMENSIONS
ØA
4" (100 mm)
12" (300 mm)
5" (125 mm)
12" (300 mm)
6" (150 mm)
12" (300 mm)
8" (200 mm)
14" (355 mm)
3-1/4"
ØA
B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZRT-SDIL and is the answer not in the manual?

Questions and answers

Summary of Contents for aldes ZRT-SDIL

  • Page 1 ZRT-SDIL/ZRT-SDIL-HP models are available with 24 VAC or 120 VAC the powered damper. motorized dampers (see Figure 1 and 2 on the next page).
  • Page 2 For more information, contact your Aldes sales advisor, visit aldes-na.com, call 1.800.255.7749, or find us on ©2020 American ALDES Ventilation Corporation and ©2020 ALDES Canada. ZRT-SDIL / ZRT-SDIL-HP_IOM_0421. Aldes reserves the right to modify its products at any time to introduce new technologies.
  • Page 3 Installation Operation Maintenance CAR3 Constant Airflow Regulator www.aldes-na.com...
  • Page 4 1. AIRFLOW SETTING ADJUSTMENT DIAL AIRFLOW INDICATOR Airflow rate can be set or adjusted by rotating the dial from either side. The airflow indicator will move to show the selected CFM. The airflow label has multiple defined setpoints, but the unique adjustment mechanism of the CAR3 allows for infinite adjustability between the minimum and maximum limits.
  • Page 5 3. INSTALLATION Regulator must be installed in a metallic air duct as pictured above. D represents the regulators maximum outer diameter. Duct Collar Flex Duct Rigid Duct Flex Duct or Register L ≥ 1.2 D CAR3 L ≥ 1.2 D Duct Collar Duct Collar or Grille...
  • Page 6 ©2020 American ALDES Ventilation Corporation and ©2020 ALDES Canada. Reproduction or distribution, in whole or in part, of this document, in any form or by any means, without the express written consent of American ALDES Ventilation Corporation, is strictly prohibited. The information contained within this document is subject to change without prior written notice.
