Summary of Contents for DUCATIHOME CTH48 2.0

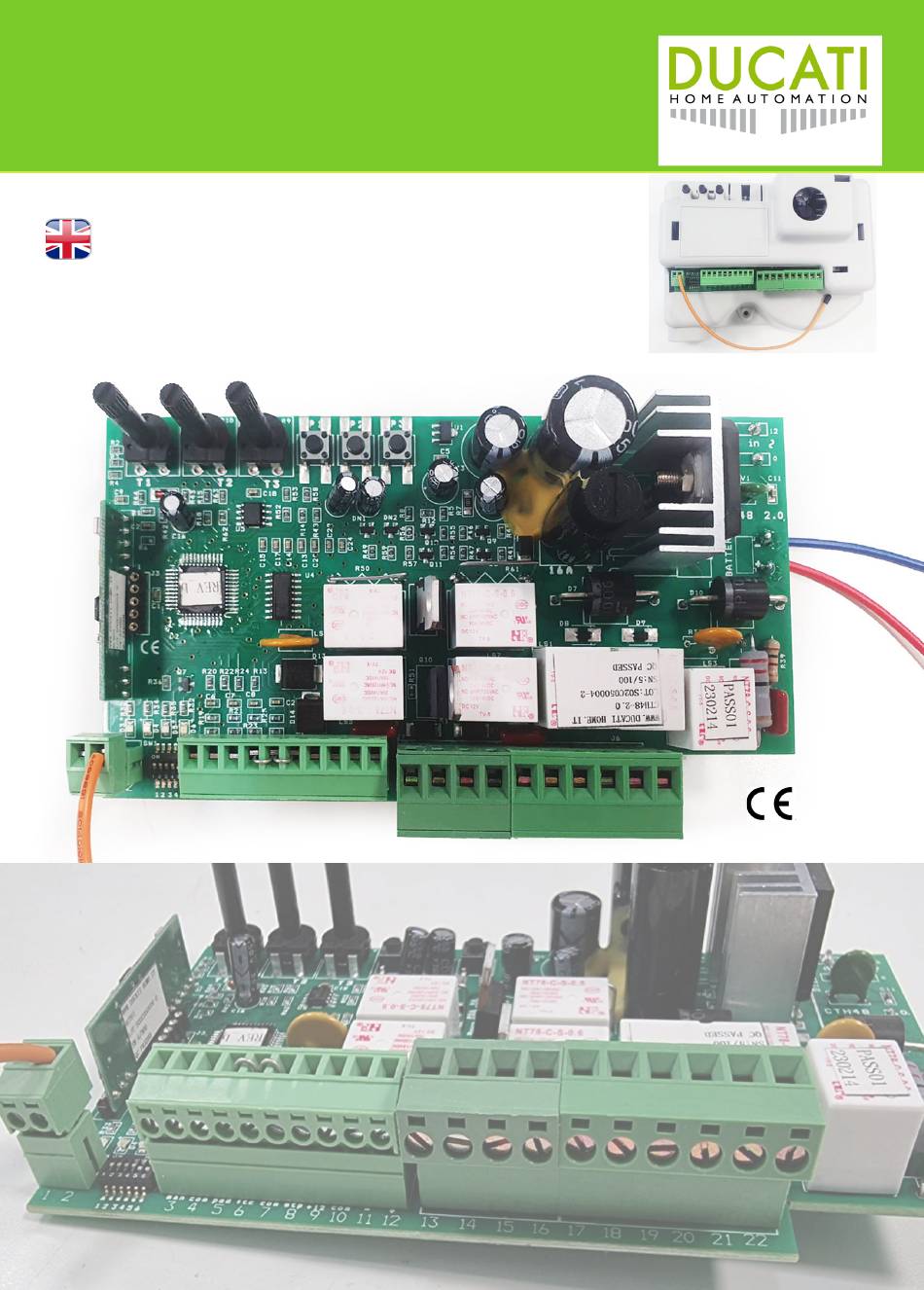

- Page 1 CTH48 2.0 w w w . d u c a t i h o m e . i t Electronic board for 12V dc swinging gate openers Wiring and settings manual...
-
Page 2: Table Of Contents
Electronic board model CTH48 2.0 for swinging gate opener Table of Contents Resume of CTH48 features ........................page 3 Quick stat guide............................page.4-5 Label with resume of wiring diagrams.......................page 5 Important safety instructions........................page 6 CTH48 2.0 Technical data...........................page 7 CONTROL UNIT............................page 8 PREPARATIONS............................page.8... -
Page 3: Resume Of Cth48 Features
Electronic board model CTH48 2.0 for swinging gate opener CTH48 2.0 Feartures: Super Energy Saving System: only 0,007A stand-by consumption 1) Available in 2 versions: 12V or 24V: 12V can manage 12V dc actuators to operate 1 or 2 leaf swinging gates thrust up to 1200N/120W... -
Page 4: Quick Stat Guide
Warning. Use only lead-acid battery 12V min. 7A (12V) 4°-B-2) Wire the battery to the board by the 2 wires (blue /red cables that are welded on CTH48 2.0 electronic board). Warning! Respect battery wiring polarity: red cable= += positive / blue cable= - = negative 4°-B-3) as the board is powered the opener starts closure maneuver until the gate is closed reaching... -
Page 5: Label With Resume Of Wiring Diagrams
Electronic board model CTH48 2.0 for swinging gate opener Label with quick wiring diagram to cutt-out and apply on the back of your control box unit cover... -
Page 6: Important Safety Instructions
• It is recommended to deliver all the user manuals relating to the products that make up the final machine to the end user. • In the event of product malfunction, stop using it and contact customer service at https://www.ducatihome.it or at the... -
Page 7: Cth48 2.0 Technical Data
Electronic board model CTH48 2.0 for swinging gate opener CTH48 2.0 technical data (standard 12V version) CTH48 2.0 (equips the KONTROL 9048 2.0 control unit) Technical data and features made to manage 12V dc actuators to automate a swinging gate with 1 or 2 leaves √... -
Page 8: Control Unit
Mains AC power supply 1-complete control unit with CTH48 2.0 electronic board; 2- electromechanical actuators; 3-flashing light; 4-aereal antenna; 5-key switch or other wired device to command the opener; 6-Ducati Rolling code radioremote control; 7-radio keyboard; 8-Solar panel; 9-safety photocells; 10-battery. -
Page 9: Power Supply: By Ac 230V Or 110V Mains
= 24V ac* CTH48 2.0: for 12V openers: power the board from the toroidal transformer using the black and yellow wires (12V* ac) CTH48 2.0/24V: for 12V openers: power the board from the toroidal transformer using the black and yellow wires (24V* ac) *= nominal values) The power output cables from the transformer must be connected to the special male faston connectors located on the back of the electronic board. -
Page 10: Backup Battery Power Supply
Electronic board model CTH48 2.0 for swinging gate opener Backup battery Power supply (CTH48 2.0 12V) The CTH48 2.0 (12V) board is designed to be powered mains ac power supply + by a12V lead-acid emergency battery to guarantee self-operating maneuver in the event of a power failure red/blue cables /blackout from the AC network. -
Page 11: Solar Panel + Battery Power Supply
Wire the positive pole of the battery to the red wire welded on the CTH48 2.0 electronic board. Wire the negative pole of the battery to the blue wire welded on the CTH48 2.0 electronic board. See drawing n°7 red/blue cables soldered on the board Warning: Respect the wiring polarity. -
Page 12: Solar Panel Installation
Electronic board model CTH48 2.0 for swinging gate opener SOLAR PANEL INSTALLATION The solar panel/s should face SOUTH and in a well-lit place. Avoid shady areas, which significantly reduce the load capacity. Regularly clean the surface of the panel: the accumulation of dust or dirt generally reduces the charge capacity of the panel Position the solar panel at a recommended distance of up to 10 m from the automation control unit. -
Page 13: Cth48 2.8 Wirings Diagram
Electronic board model CTH48 2.0 for swinging gate opener Wiring diagram CTH48 2.0 AC mains power input through transformer 105VA toroidal (faston connectors on the back of the board) 8sec 8sec AC 230V 50-60Hz. AC 110V 50-60Hz. CTH48 TIME POWER SLOW... -
Page 14: Cth48 2.8 Wirings
Electronic board model CTH48 2.0 for swinging gate opener ATTENTION! all adjustments must be made with the gate closed and will take effect in the next cycle. Warning: in the event of a black-out or even a short power failure, the gate will carry out an automatic safety closing maneuver as the mains AC power supply is restored. -
Page 15: Potentiometer: T1 = Time: To Set The Operating Mode
How to recognize if the gate is in the FAST phase or in SOFT STOP approach? While the gate is in SOFT STOP approach the BLUE LED light on your CTH48 2.0 is Steady on. Attention, if the potentiometer T2 is adjusted with too low power level, a hard point of the gate could be detected as an obstacle. -
Page 16: Push Buttons:p1; P2; P3
Electronic board model CTH48 2.0 for swinging gate opener PUSH BUTTONS = top left button, (see also p.18) Used to memorize the radio control keys that you want to use to command a total maneuver cycle. The total maneuver consists of a total opening maneuver of the two leaves (M1+ M2) of a two-leaf gate. -
Page 17: Setting: Adjustment Of The Phase Shift Time Between The 2 Leaves During The Closing Manoeuvre
Electronic board model CTH48 2.0 for swinging gate opener Warning: all adjustments must be made with the gate in the state: gate closed. This means that the motorization and the electronic board must be in the gate closed position: It is not enough to close the gate manually: if the gate is unlocked and closed manually, the electronic card will remain with the last state position in memory (therefore in the open gate position). -
Page 18: Radio Remote Controls
By adding an external Ducati rolling code radio receiver you will also be able to control other gear devices from your Ducati radio control CTH48 2.0 issupplied with a small antenna cable wired on connector n°2. Ducati recommends keeping the supplied antenna cable connected as it is without wiring any external aereal antenna. -
Page 19: Wired Command To Open Your Gate ( Full Opening / Pedestrian Opening)
This means that the electronic board stops the motors in compliance with European regulations on anti-pressure safety. Despite the presence of the anti-pressure safety system compliant with European regulations, the CTH48 2.0 board allows you to command a forced maneuver through a command from a connected device such as: key selector or button that keeps the “START”... -
Page 20: Wired Command To Stop Your Gate ( Emergency Stop)
This could create wiring confusion as model 7120 has a specific and unique wiring diagram. WARNING: VERY IMPORTANT! by wiring photocells on CTH48 2.0 you must set the Switch n° 3 in the “OFF” position - Set to “OFF” (down) if photocells are used and wired to the photocell contact (NC) on terminals 6-7 - Set to “ON”... -
Page 21: Wirings Of Photocells Model Laser100B/Key100B/ Kol450B/750B
Electronic board model CTH48 2.0 for swinging gate opener Wiring diagram for Photocells model LASER 100/ LASER5005/ KOL450/ 750 / Standard reduced consumption universal 12V/24V ac/dc pair of infrared sensors with NC contact + NO contact Unscrew the front cover to fix the photocells on the wall/post. Use an outdoor use a 2 wires 0,3-0,5mmq cable to power the Photocell transmitter (TX). -
Page 22: Wirings Of Photocells Model Laser100B/Key100B/ Kol450B/750B
Electronic board model CTH48 2.0 for swinging gate opener Wiring diagram for Photocells model LASER 100/ LASER5005/ KOL450/ 750 / Standard reduced consumption universal 12V/24V ac/dc pair of infrared sensors with NC contact + NO contact Unscrew the front cover to fix the photocells on the wall/post. Use an outdoor use a 2 wires 0,3-0,5mmq cable to power the Photocell transmitter (TX). -
Page 23: Wirings Of Photocells Model Sw7120 And Laser7120
Electronic board model CTH48 2.0 for swinging gate opener Wiring diagram for Photocells model SW7120 and LASER 7120 Special extra reduced consumption 12V dc pair of infrared sensors with NC contact Unscrew the front cover to fix the photocells on the wall/post. Use an outdoor use a 2 wires 0,3mmq cable to power the Photocell transmitter (TX). -
Page 24: Electric Lock
How it works: before the motors start opening, the CTH48 2.0 electronic board sends an impulse which triggers the electric lock, freeing the door. The motors start opening. -
Page 25: Ce Certificates
Electronic board model CTH48 2.0 for swinging gate opener DUCATI PRODUCTS: A GUARANTEE OF SAFETY RELIABILITY IN FULL COMPLIANCE OF THE EU Norms The installation and motorization of a gate requires the application of a series of standards and laws aimed at guaranteeing safety for the end user. -
Page 26: Manufacturer's Limited Warranty Conditions
Our manager will assist you by identifying the source of the problem. If possible, the technician will guide you to resolve the problem by telephone wi- thout the need to send us the product for inspection. write to info@ducatihome.it or help@ducatihome.it 2nd SEND DEFECTIVE COMPONENT PART FOR CHECK If necessary, it will tell you which component of the product to send to our assistance center for inspection and repair/replacement. -
Page 27: Testing And Commisioning Of The Automation
Electronic board model CTH48 2.0 for swinging gate opener Testing and commissioning of the automation These are the most important phases in the creation of automation to guarantee maximum safety of the system. They must be carried out by qualified and expert personnel who will have to establish the tests necessary to verify the solutions adopted with respect to the risks present and to verify compliance with the provisions of laws, rules and regulations: in particular, all the requirements of the standards EN 12453-2017. - Page 28 Electronic board model CTH48 2.0 for swinging gate opener Ducati Home Automation Automazione Cancelli DDA via Cassani 43036 Fidenza (PR) ITALY Phone +39-0524-527967 mob +39-335-1022019 info@ducatihome.it help@ducatihome.it www.ducatihome.it w a t c h o u r p r o d u c t v i d e o a n d V i d e o M a n u a l s o n Y o u t u b e h t t p s : / / w w w .
