TELESCOPE OPERATORS MANUAL
SVX102T-R PREMIER APO TRIPLET
The mission of Stellarvue is to inspire a healthy interest in science
and astronomy by handcrafting the finest telescopes on the planet.
STELLARVUE
STELLARVUE
SEEING IS BELIEVING
A Division of Auburn Precision Optics
WWW.STELLARVUE.COM
11802 KEMPER ROAD, AUBURN, CA 95603 U. S. A
PHONE (530) 823-7796, FAX (530) 823-8121
Advertisement
Table of Contents
Related Manuals for Stellarvue SVX102T-R PREMIER APO TRIPLET
Summary of Contents for Stellarvue SVX102T-R PREMIER APO TRIPLET

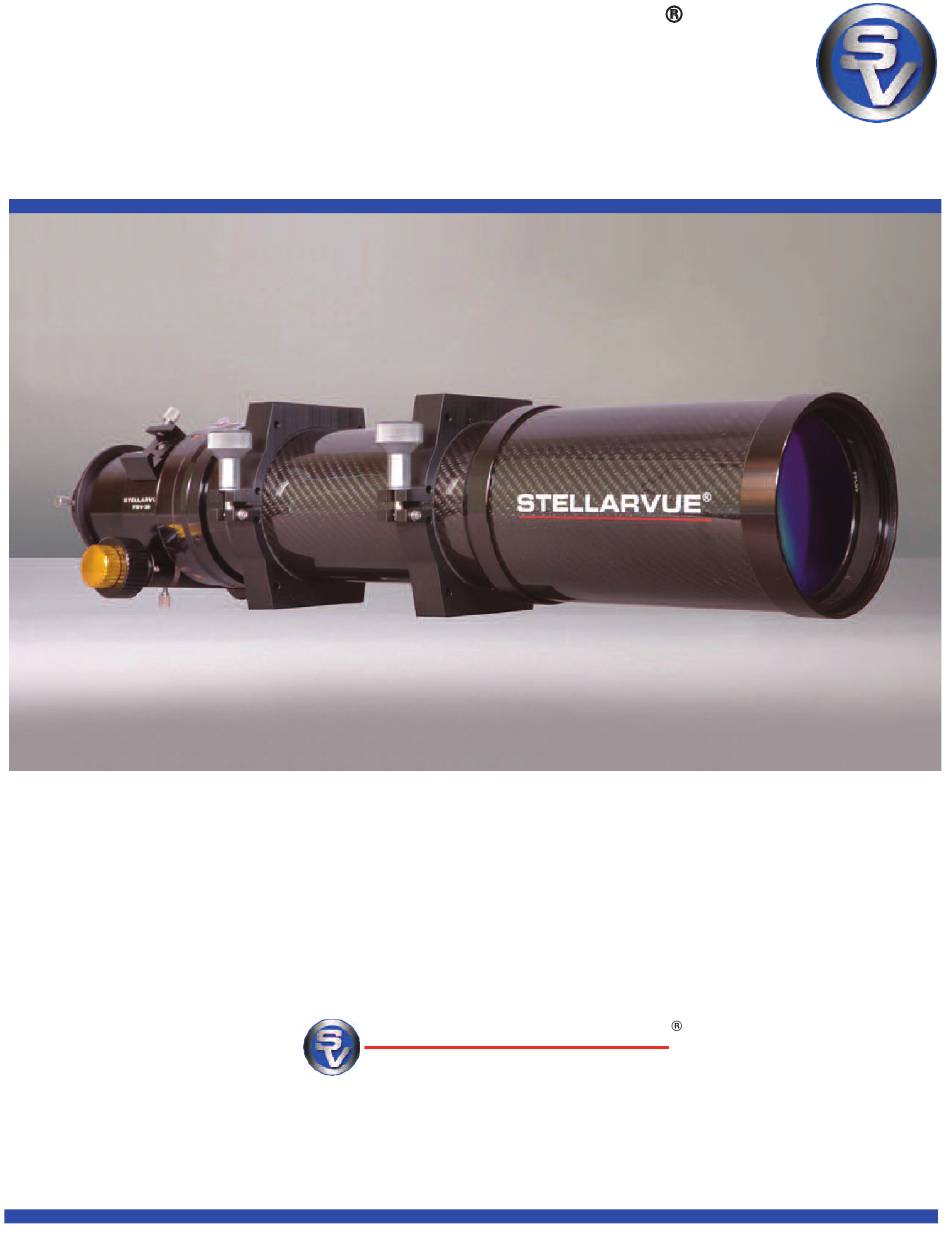

- Page 1 STELLARVUE STELLARVUE TELESCOPE OPERATORS MANUAL SVX102T-R PREMIER APO TRIPLET The mission of Stellarvue is to inspire a healthy interest in science and astronomy by handcrafting the finest telescopes on the planet. STELLARVUE STELLARVUE SEEING IS BELIEVING A Division of Auburn Precision Optics WWW.STELLARVUE.COM...
-
Page 2: Table Of Contents
29” with dewshield extended. Weight: OTA: 11 lbs with 2.5” focuser, 2” adapter and dual hinged rings. Focuser: 2.5” Stellarvue rack and pinion focuser. Focuser drawtube is threaded for field flatteners and comes with 2” and 1.25” compression ring adapters. -
Page 3: A Message From Vic Maris
Learn more here: https://www.stellarvue.com/stellarvue-videos/ Stellarvue telescopes are individually made, and each optic is tested multiple times to ensure perfection. Please store and use it as you would any optical device. If dust accumulates on the lens, you may use a bulb type blower to remove it. -
Page 4: Making World Class Optics
MAKING WORLD-CLASS OPTICS At Stellarvue we believe you ‘get what you pay for,’ and cater to those who are looking for a high-quality product with reliable optics. While making commercial grade mass-produced optics is relatively easy and fast, it results in unreliable products. That’s why we take the time to make each apo-triplet lens as close to perfect as possible. -
Page 5: Whats Inside The Box
UNPACKING Stellarvue telescopes are securely boxed or double boxed in a padded case. Be careful when using a blade to open the shipping box. This will avoid damaging the case inside by your knife. Carefully remove the telescope from the cardboard box, and set it on a secure surface. Unzip the case to reveal the telescope inside. -
Page 6: Attaching The Telescope To The Mount
Mounts using this size rail include the Celestron AVX mount, Vixen mounts and many other Chinese import mounts. Most larger mounts use the larger Losmandy-style rail, which is 4” wide. Mounts using this size rail include the Stellarvue mounts with our TDLV shoes, Paramount, Losmandy, Mathis, Discmounts, and larger Celestron mounts. -
Page 7: Setting Up For Visual Use
The Star Diagonal: The Stellarvue D1040Q diagonal uses a thick and accurate 1/10 wave low dispersion quartz mirror with a 99% dielectric coating. These diag- onals are assembled and tested here at Stellarvue to ensure they maintain your telescope’s performance. Astronomers prefer mirror star diagonals over prisms because they are sharper and provide the highest contrast. -
Page 8: 4.7 Eyepieces
2. Medium-power eyepieces: Boosting the power darkens the sky background and shows more detail in deep sky objects such as nebulae, star clusters and galaxies. We recommend the Stellarvue Optimus 9 and 13.5 eyepieces as the best for medium-power deep sky viewing. -
Page 9: Observing Tips
OBSERVING TIPS Cool down: Optics are affected by temperature changes, so it is not recommended to take a telescope from a warm room to the cold night and immediately observe with it. The objective lens must settle down to the ambi- ent temperature before it performs as it should. -
Page 10: Accessories Chart
ACCESSORIES CHART MOUNTING OPTIONS VISUAL ACCESSORIES Optional 1.25” Filter FA2 1.25” Adapter 1.25” Eyepieces Stellarvue 2” Dielectric Optional 2” Filter Diagonal #D1040Q 2” Eyepieces Optional Quark Solar Filter with UVIR Energy Reduction Filter FA2 1.25” Stellarvue 1.25” Optional Adapter Diagonal #D1030ED 1.25”... - Page 11 FINDERSCOPES FINDERSCOPE RINGS NEEDED (see page 12) 50 mm Optical 80 mm Optical 60 mm Optical Finderscope Finderscope Finderscope (see page 11) Red Dot Finder Deluxe Red Dot Finder NEEDED MOUNTING HARDWARE Telescope mounts using Vixen sized rails Please note: The M002C mount head shown works with either the Vixen or Losmandy style rails.
-
Page 12: Reflex Sights
Reflex sights do not magnify but have an optical window with a red dot or crosshair pattern displayed on it. #F001 Red Dot Finder: The simplest reflex sight to use is the Stellarvue Red Dot Finder #F001. This is an inexpensive, plastic reflex finder that projects a red dot on a glass window. -
Page 13: Optical Finderscopes
2.5” to 3.5” Feather to most Takahashi’s Touch focusers For more information on our finder scopes and rings visit http://www.stellarvue.com/finder. Still not sure? call us at (530) 823-7796 or Email us at mail@stellarvue.com. #R50DA/R80DA for #R50ST/R80ST mounts Stellarvue to most SCT’s dovetail shoes... -
Page 14: Solar Viewing
DO NOT use the old eyepiece solar filters that screw onto the eyepiece. These will be subjected to extreme heat and crack! For more information on solar filters visit: http://www.stellarvue.com/solar-filters/ 2. Hershel Wedge: A good Hershel Wedge is used like a star diagonal. Insert it in the focuser and the eye- piece into it. -
Page 15: Astrophotography
SFF4-102T Field Flattener: This full frame field flattener is made specifically for the aluminum tube SVX102T and the carbon fiber tube SXV102T-R using the Stellarvue FSV3 3" focuser. SFFR .74 Reducer/Flattener: This is the Flattener/Reducer designed for the SVX102T and SVX102T-R using the 3"... - Page 16 Stellarvue produces a variety of spacer rings and extension tubes. Visit our astro-photography accessory page on the web at: http://www.stellarvue.com/astro- photography/...
-
Page 17: Field Flattener
SFF4-102T can then thread onto the focuser. This process is easily accomplished without any tools. USING THE SFFR.74 LARGE REDUCER/FLATTENER WITH SVX102T OR SVX102T-R (3” STELLARVUE FOCUSER) To use the SFFR102T-3SV Reducer/Flattener, un-screw the 1 1/4” and 2” eyepiece adapters from the focuser. -
Page 18: The Focuser
THE FOCUSER Stellarvue focusers are oversized and designed to be accurate, very smooth and stable. They can lift far more weight than is necessary so heavier accessories may be used. The focuser may be rotated 360 degrees so the user can put the focuser knobs in the most convenient position. -
Page 19: Care And Maintenance
• Once the lens is clear of any particles, use Stellarvue lens cleaner on a Kimwipe or optical cleaning cloth to clean the lens, followed by a dry wipe. Never spray directly onto the lens as the liquid could migrate around the lens to the inside. -
Page 20: Warranty
STELLARVUE LIMITED WARRANTy FOR U.S.A. END PURCHASERS ONLy (SV) TELLARVUE WARRANTS THAT EACH BRAND TELESCOPE AND ACCESSORY SHALL BE FREE FROM DEFECTS IN MATE . SV RIALS AND WORKMANSHIP FOR TWO YEARS FROM THE DATE OF PURCHASE WILL REPAIR OR REPLACE SUCH PRODUCT OR...
