Astroflex AstroStart 3006A User Manual

Remote control, engine starter, security system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

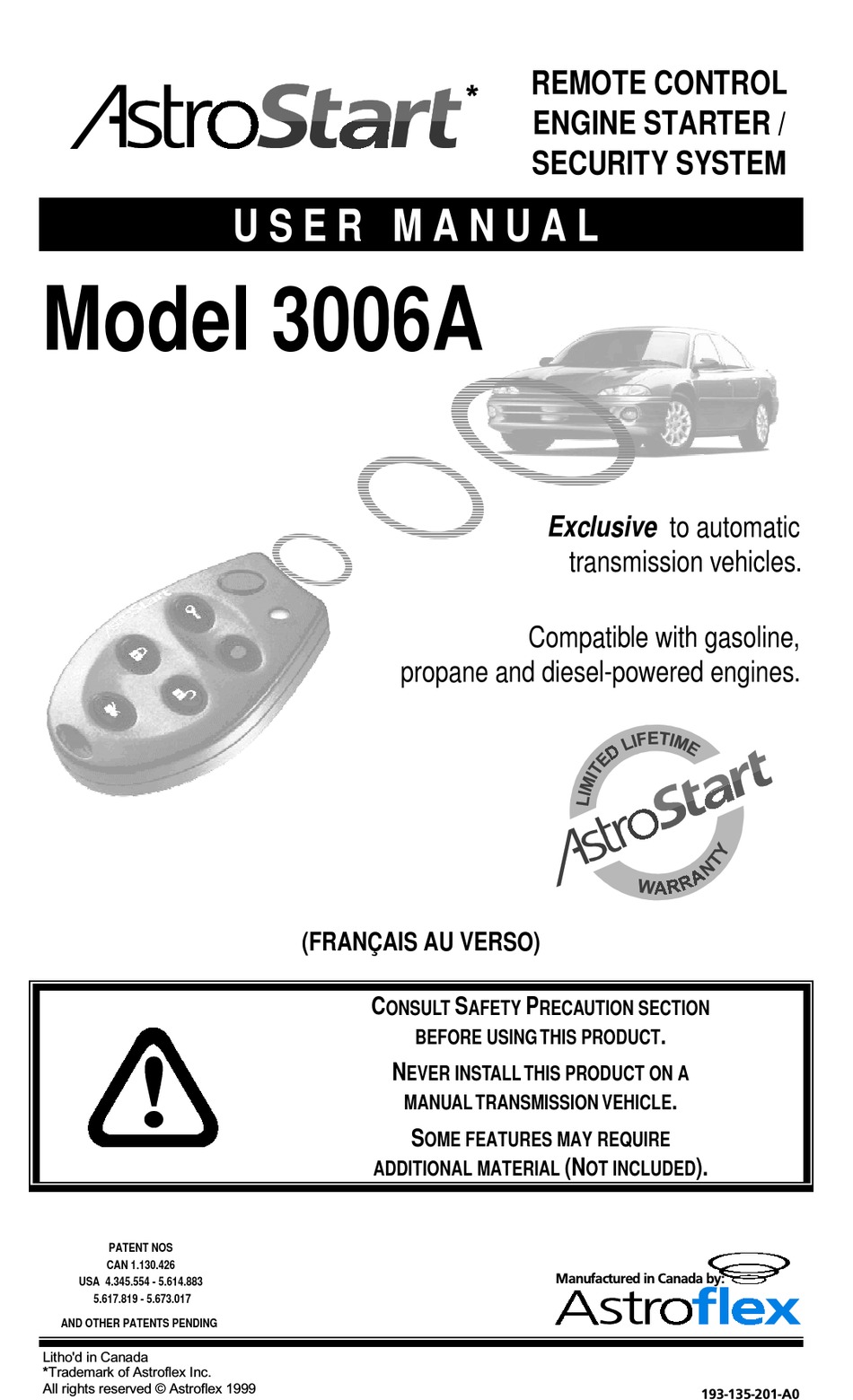

REMOTE CONTROL
ENGINE STARTER /
SECURITY SYSTEM
U S E R M A N U A L
Model 3006A
Exclusive to automatic
transmission vehicles.
Compatible with gasoline,
propane and diesel-powered engines.
(FRANÇAIS AU VERSO)
C
S
P
ONSULT
AFETY
RECAUTION SECTION
.
BEFORE USING THIS PRODUCT
N
EVER INSTALL THIS PRODUCT ON A
.
MANUAL TRANSMISSION VEHICLE
S
OME FEATURES MAY REQUIRE
(N
).
ADDITIONAL MATERIAL
OT INCLUDED
PATENT NOS
CAN 1.130.426
<P]dUPRcdaTSX]2P]PSPQh)
USA 4.345.554 - 5.614.883
5.617.819 - 5.673.017
AND OTHER PATENTS PENDING
/LWKR GLQ&DQDGD
7UDGHPDUNRI$VWURIOH[,QF
$OOULJKWVUHVHUYHG‹$VWURIOH[

("’ "$’! ’0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AstroStart 3006A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Astroflex AstroStart 3006A

Summary of Contents for Astroflex AstroStart 3006A

  • Page 1 REMOTE CONTROL ENGINE STARTER / SECURITY SYSTEM U S E R M A N U A L Model 3006A Exclusive to automatic transmission vehicles. Compatible with gasoline, propane and diesel-powered engines. (FRANÇAIS AU VERSO) ONSULT AFETY RECAUTION SECTION BEFORE USING THIS PRODUCT EVER INSTALL THIS PRODUCT ON A MANUAL TRANSMISSION VEHICLE OME FEATURES MAY REQUIRE...
  • Page 2 Changes or modifications not expressly approved by <manufacturer> could void the user's authority to operate the equipment. 8]R 4 ; 4 2 C A > = 8 2  2 > A ?  %#A^dcT!! $ %0 4[\ BcaTTc Bc’®[XTSz>aU^aS@dÎQTR2P]PSP < P] RWTbcTa= 7 "  91!B D B0 www.astroflex.com info@astroflex.com...

  • Page 3: Table Of Contents

    <>34;"%0 INTRODUCTION Thank you for choosing the Astroflex Remote Starter/Security System. Your System is the result of intensive research by a company specializing in the design of high-quality electronic automotive products. It is designed to provide many years of reliable, trouble-free service.

  • Page 4: Safety Precautions

    <>34;"%0 SAFETY PRECAUTIONS Before using this product, carefully read the following safety precautions. ƒ Immediately report any malfunction to the Astroflex dealer that performed installation. ƒ Under no circumstance can this product or its use be modified. ƒ Always turn off main switch when vehicle is parked in an enclosed, unventilated area or is in for servicing.

  • Page 5: The Remote Control

    <>34;"%0 THE REMOTE CONTROL Your remote control has been designed to fit the natural contours of your hands so that it is easier to use. It is powered by long-life lithium batteries. It can control two vehicles separately. Up to three additional remote controls can be assigned to your vehicle. See your dealer for replacement batteries or additional remote controls.

  • Page 6: Battery Replacement

    <>34;"%0 Legend : This confirmation indicates whether a button was pressed by mistake and also confirms button was pressed correctly. Pressing To transmit on channel 2, you must press button again within half a second for command to be transmitted properly. This confirmation indicates how long a button must be held down for a command to be transmitted properly (one second duration).

  • Page 7: Commands For 3006A

    <>34;"%0 COMMANDS FOR 3006A OMMANDS UTTONS ONFIRMATION ICTOGRAM IGHTS SIREN 30 / 60 30 / 60 . 30 / 60 ANIC TART ONTINUOUS œ 1/3 os  2/4ot NLOCK ISARM RUNK 4/2/3 p CTIVATE EACTIVATE ENTINEL CTIVATE EACTIVATE TILITY CTIVATE EACTIVATE TILITY 1 - 4...

  • Page 8: Start Commands

    <>34;"%0 START COMMANDS STARTING THE ENGINE To start the engine, press button (horn: 0, lights: 1). The system automatically adjusts ignition duration for your type of vehicle; parking lights flash once (duration: four seconds) then stay on all the time engine is running. If more than one command is emitted, each successive start command resets runtime to the beginning, parking lights flash once to confirm command has been received and horn sounds once to let you know engine is already running.
  • Page 9 <>34;"%0 RIGGER INPUT Your remote starter is equipped with a negative trigger (pulse) input. This input (enabled during installation) can be connected to another remote control device or to a timer output. If this input is connected, consult this device's manual or ask your technician which command controls the start/stop function.
  • Page 10 <>34;"%0 LOW TEMPERATURE MODE In Low Temperature (previously called Sentinel) mode, system starts your engine automatically when temperature falls below a preset level. Engine will run for programmed runtime, after which system will wait 2½ hours and then start engine again if temperature is still below preset level.

  • Page 11: Security System

    <>34;"%0 SECURITY SYSTEM SECURITY ZONES Your security system can use up to six different monitoring devices at the same time to protect your vehicle. These devices are connected to the control module on different inputs called security zones. One of these zones can give an audible warning (siren "ON" for 2 seconds) while the other five generate an alarm condition if the system is armed.
  • Page 12 <>34;"%0 OPERATION Your vehicle security system can function in three different modes, namely active, semi-passive rearming and passive arming depending on the initial programming. Consult the section corresponding to the mode in which your system was configured during installation. ACTIVE In active mode, the security system must be armed and disarmed with the remote control.
  • Page 13 <>34;"%0 The following table shows how each zone affects the rearming cycle. Security zone Effect on the rearming cycle Hood Doors These four zones delay the onset of the rearming cycle for as long as they Additional sensor remain in a violation status. Shock sensors Turned ON by the ignition switch: Cancels the rearming cycle...
  • Page 14 <>34;"%0 INDICATOR LIGHT The indicator light indicates the different alarm system conditions. When it is mounted in a place where it is visible from outside the vehicle, it may also act as a deterrent. UPON ARMING - The indicator light displays the codes for the zones in violation (example, a door is open). Only one code is displayed at a time.
  • Page 15 <>34;"%0 ALARM VALET SWITCH The Valet switch is used to activate the Valet mode or cancel an alarm condition when your Remote control is not available (lost, weak batteries, etc). This switch must be located in a hidden location known only to regular users of the vehicle. Ask your installer to show you where it is located.

  • Page 16: Lock/Unlock Commands

    <>34;"%0 ARKING LIGHTS The parking lights flash intermittently (repeated flashes) when there is a warning, pre-alarm or alarm condition. The parking lights also confirm that commands have been received. See the table in the CONFIRMATION section. N VIOLATION “In violation” means the condition required for a security zone to generate an alarm condition; for example, a door is open, etc.

  • Page 17: Other Commands

    <>34;"%0 TRUNK RELEASE Press button (lights: 3). Trunk is released and parking lights flash three times to confirm command has been received. Trunk cannot be released if alarm is armed (if applicable) or if ignition key is in “ON” position. In both these cases, parking lights flash once to confirm that command has been received but trunk could not be released.
  • Page 18 <>34;"%0 O ACCESS VALET MODE carry out “DISARMING“ sequence then, within 20 seconds, place the Valet switch to “ON“ position. If Valet switch is placed in “ON“ position more than 20 seconds following disarming sequence, you will need to turn ignition key to the “OFF“ position and then repeat the sequence from the beginning. Note that the antitheft system will not rearm as long as the Valet mode is not deactivated.
  • Page 19 <>34;"%0 UTILITY COMMANDS Programmable as Active or Inactive during installation. Two additional commands control most of your vehicle’s accessories, depending on which were connected during installation (headlight, defroster, etc.). For details, consult your technician. OMMAND To activate this function, press buttons simultaneously (lights: 1).
  • Page 20 <>34;"%0 START FAIL CODES When a remote start attempt fails, it is possible to determine what caused the failure to start. Press the buttons simultaneously. The number of times the parking lights flash corresponds to the start fail code. The table below lists the various start fail codes. Code Failure to start details Module has received a Stop command (remote or timer).

  • Page 21: Safety Checks

    <>34;"%0 SAFETY CHECKS In order to maintain a high safety standard, proceed with following routine checks every month. HOOD SWITCH ƒ Start your vehicle with Remote Starter. ƒ Open hood. Engine should stop as soon as hood is opened. If engine does not stop immediately, turn main switch to “OFF” position and leave it off until situation has been corrected.

  • Page 22: Limited Lifetime Warranty

    The Product has: (i) a defect or damage due to accident, neglect, fire, misuse, flood, lighting, shipping and handling, or other condition beyond the control of Astroflex, (ii) has been altered in any way, (iii) has been installed or repaired by anyone other than an authorized technician, or (iv) has improperly installed or used.
