- Page 1 Version-E230509 Manual...
- Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
-
Page 3: Table Of Contents
Charging of Power Bank PS-KP ................ 5 Charging from the Mains ..................5 Charging in a Car ....................5 LED- Charging Level Indicator ................5 Charging of Devices with the Power Bank PS-KP ..........6 USB-Output (3) ..................... 6 4.1.1 USB3-Connection ..........................6 4.1.1.1... -
Page 4: General

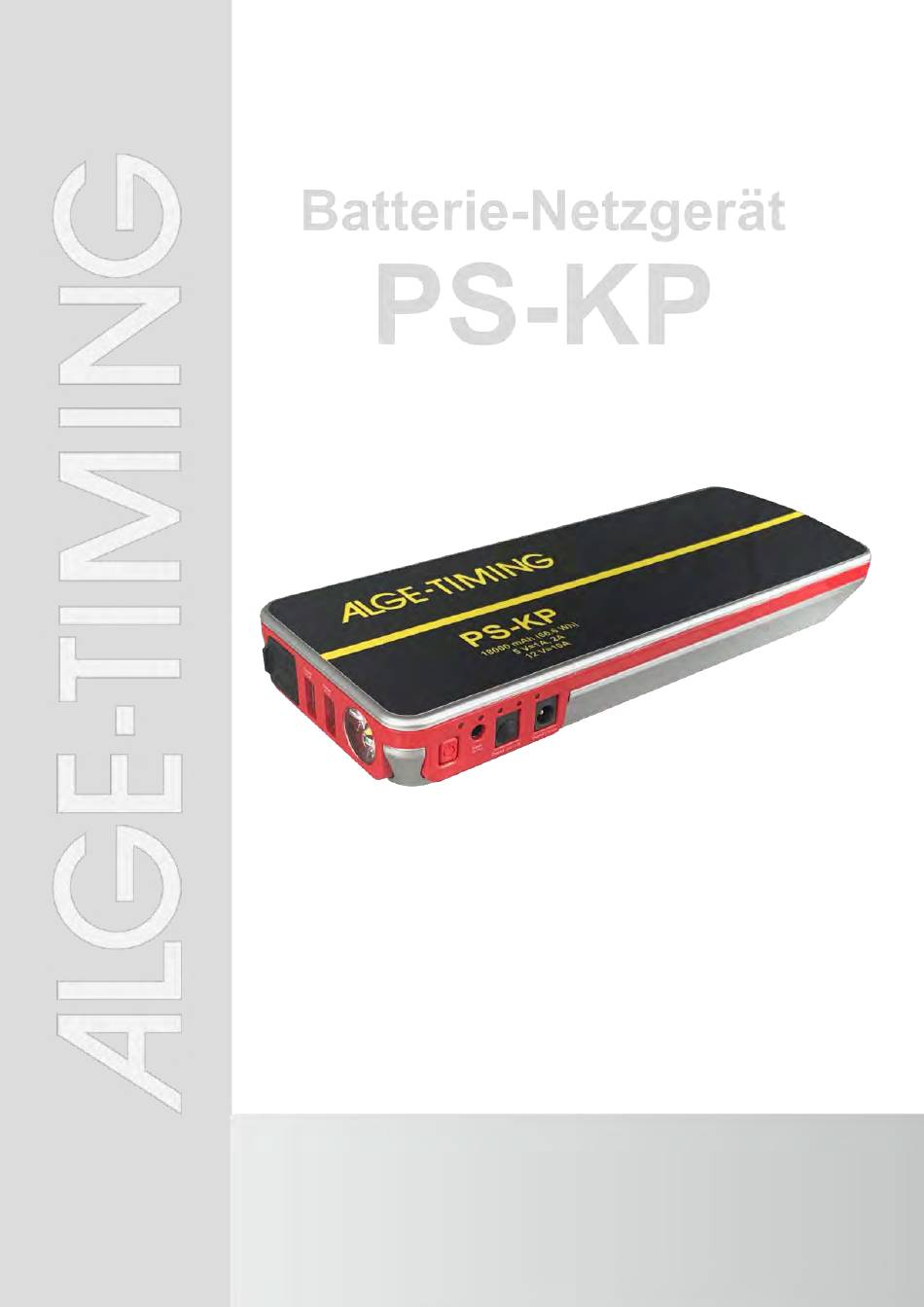

All devices that are operated with the PS12A power supply unit can also be operated with the PS-KP without additional cables. Other ALGE-TIMING devices such as the display boards of the D-LINE series require a special cable which is not included in the PS-KP set. 1 ..charging level indicator 7 ..input: charging socket 14V/1A... -
Page 5: Seope Of Delivery
Charging from the Mains A 100-240 VAC charger is included for charging the PS-KP. Plug the charger into the socket and connect it to the charging socket (7) on the PS-KP. When the LEDs go out, the device is fully charged. -
Page 6: Charging Of Devices With The Power Bank Ps-Kp
As long as power is being drawn, the charge status of the battery is indicated by the blue LED (1). • If the device is charged or if it is separated from the PS-KP, the LED will switch off. • In the event of an overload or short circuit, the PS-KP switches off. -
Page 7: Output 12 V (9)
10 A. If the starting current is exceeded, the safety func- tion of the PS-KP switches the device off. This technical information can be found in the in- structions or requested from the respective manufacturer. -
Page 8: Special Cables For 12 V
Manual Power Bank PS-KP 4.2.2 Special Cables for 12 V These 12 V cables are not included in the set and must be ordered separately. 4.2.2.1 Power Supply for Display Board D-LINE (Cable 323-1.5) 4.2.2.2 Power Supply for Power Supply D-LINE and WTN-DB (Cable 324-1.5) 4.2.2.3... -
Page 9: Power Supply For Photocell Rls3C (Cable 326-1.5)
Notebooks and laptops can be charged via the Output 19V/3.5A (8). All standard adapters are included in the 8-piece adapter set, including the adapter cable. Attention: This socket is sealed with a cover so that a 12V device from ALGE-TIMING will not be charged with 19V volt and accidentally destroyed. -
Page 10: Jump Start For Cars (2)
The PS-KP can also be used to start cars with dead batteries. The jump start process may take a maximum of 10 seconds. Then the PS-KP has to cool down for 30 seconds. If these values are not observed, the device or parts of it can be destroyed. -
Page 11: Maintenance And Care
Disconnect the device from the charging cable or the 230 Volt mains adapter. Occasionally you can wipe the PS-KP with a slightly damp cloth. Do not use solvents or harsh cleaning supplies. With the cable disconnected, clean the pole terminals at the contact points with a brush and lightly grease them. -
Page 12: Technical Data
5V/1A (USB for mobile phone) Output: 5V/2A (USB for MT1, TED2, P6-USB, tablets, smartphones etc.) 12V/10A, max. 120 W (for ALGE-TIMING devices with 12V input) 19V/3.5A, max. 66 W, electronically secured (not in function) 12V-Jumper Cable Outlet...
