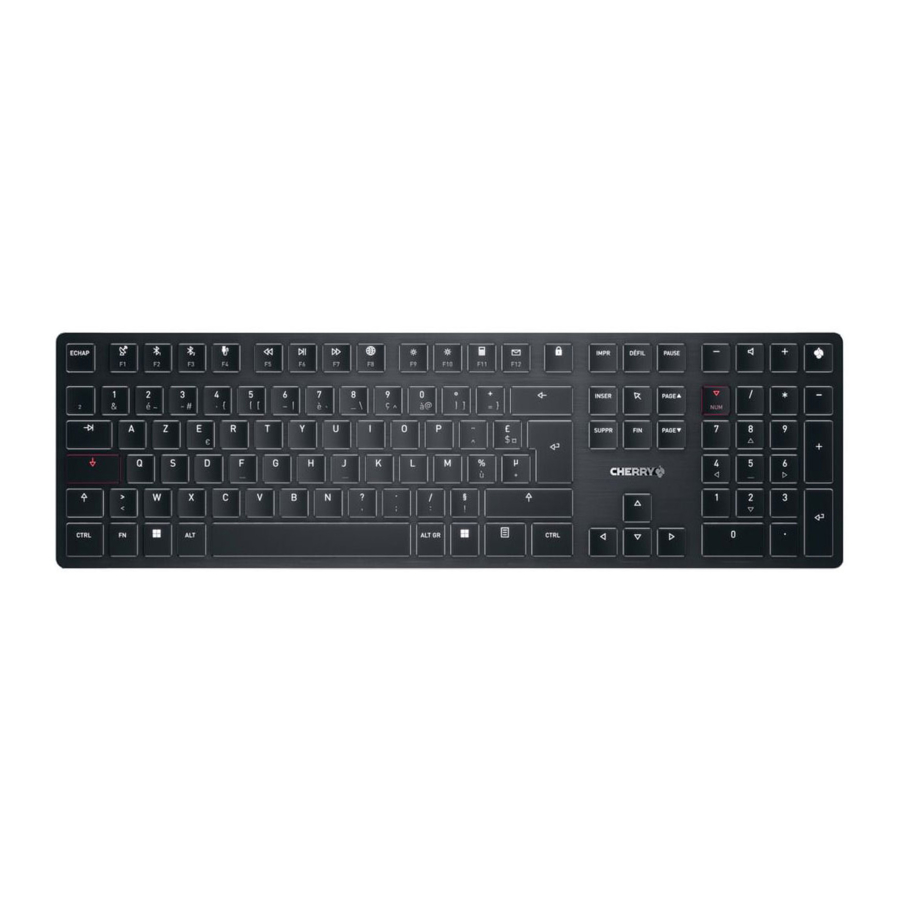

Key Functions

1. Connection via 2.4 GHz radio receiver
2. Connection via Bluetooth channel 1
3. Connection via Bluetooth channel 2
4. Connection via cable
5. Previous title
6. Play/pause
7. Next title
8. Browser, home
9. Illumination darker
10. Illumination brighter
11. Calculator
12. Start e-mail program
13. Blocking the PC
14. Volume down
15. Sound on/off
16. Volume up
17. CHERRY key for battery charge level and to disable Windows keys.

Before you begin

Every device is different!
The operating instructions contain information on effective and reliable use.

• Read the operating instructions carefully.
• Keep the operating instructions and pass them on to other users.

The CHERRY KW X ULP is a keyboard for operating PCs and laptops.
For information on other products, downloads and much more, visit us at www.cherry.de.

For your safety

Risk of choking from swallowing small parts

• Keep the device out of the reach of children under 3 years.

Fire hazard due to permanently installed rechargeable battery

• Do not destroy the keyboard by, for example, dismantling, crushing, heating or burning it.

RSI stands for "Repetitive Strain Injury".
RSI arises due to small movements continuously repeated over a long period of time.

• Set up your workspace ergonomically.
• Select a comfortable inclination of the keyboard using the adjusting the feet on the bottom.
• Take several short breaks, with stretching exercises if necessary.
• Change your posture often.

Avoiding damage

Damage to the keyboard

• Do not remove the key caps.

The magnet can wipe storage media and damage mechanical watches

• Do not bring storage media, such as magnetic cards or external hard drives, or mechanical clocks closer than 10 cm to the receiver on the back of the keyboard.

Switching the device on/off

• Slide the switch on the back of the keyboard to the appropriate position:
  Off = 0
  On = I

After switching on, the keyboard lights up briefly at full brightness and then at the set value. The key with the set connection type ( ) flashes briefly and lights up for 5 seconds if the connection is successful.

To save power, when not in use and in battery mode, the illumination drops to the lowest level after 30 seconds and goes out after one minute. When the cable is connected, the illumination remains on.

When not in use for an extended period of time, the keyboard enters sleep mode where it uses very little power. It switches on again automatically the first time a button is pressed.

Because the keyboard still consumes power in energy-saving mode, switch it off manually before longer periods out of use or for transport.

Connecting the device to the PC/laptop

You can connect the keyboard with receiver to the PC/ laptop via a 2.4 GHz wireless connection, Bluetooth or the USB cable.

Switching between the connection methods is convenient if you want to use the keyboard on multiple devices.

Connecting the unit via the receiver

1. Pull the receiver out of the magnetic socket on the back of the keyboard.
2. Connect the receiver to a USB 2.0 port on your PC/ laptop if possible (this usually has a white or black guide).
3. Switch on the keyboard (set the switch on the back of the keyboard to "I").
4. Press the F1 key ( ).

The F1 key ( ) lights up green for 5 seconds to confirm. The keyboard is connected to your PC/ laptop.

If the F1 key ( ) flashes green rapidly for 5 seconds, the connection has failed.

• Try again.

Connecting the unit via Bluetooth

Bluetooth version
You need a PC/laptop with a Bluetooth receiver that supports at least Bluetooth 4.0.

1. Open the search for Bluetooth devices on your PC/ laptop (for example via Start> Settings> Devices> Bluetooth).
2. Follow the software instructions.
3. Switch on the keyboard (set the switch on the back of the keyboard to "I").
4. Press the F2 key ( ) or the F3 key ( ) for 5 seconds with the Bluetooth channel you want to connect the keyboard to the PC/laptop.
   The key flashes blue slowly. From this point, you can establish a connection within 60 seconds.
   If the key does not flash blue:

• The keyboard is already connected to another PC/laptop. Switch it off or deactivate that connection.

5. Follow the software instructions.

The corresponding Bluetooth key will light up blue for 5 seconds to confirm, and the keyboard is connected to your PC/laptop.
If the key flashes blue rapidly for 5 seconds, the connection has failed.

• Try again.

Connecting the unit via cable

1. Connect the keyboard to the PC/laptop using the cable provided.
2. Switch on the keyboard (set the switch on the back of the keyboard to "I").
3. Press the F4 key ( ).
   If you do not press the F4 key ( ), the keyboard will only be charged via the cable (see "Charging the battery").

The F4 key ( ) lights up green for 5 seconds to confirm. The keyboard is connected to your PC/ laptop.
If the F4 key ( ) flashes green rapidly for 5 seconds, the connection has failed.

• Try again.

Changing the connection type

If you have set up the keyboard with multiple devices using different connection types, you can switch between these devices.

• Press the corresponding key ( ).

If the connection is successful, the corresponding button will light up for 5 seconds. If no connection was established, the button flashes for 5 - 10 seconds.

Stowing the receiver in the unit

The receiver is so small that it can stay in the USB port of a laptop while being transported. If you want to protect it from dirt and loss, remove it and store it in the keyboard.

Charging the battery

When the voltage of the keyboard battery decreases, the CHERRY key ( ) flashes red 10 times, then the signal stops. When the battery level is below 10%, the button flashes every 30 minutes, below 5% every 15 minutes and below 2% every 5 minutes.
A low battery level is indicated directly when you switch on the keyboard, when you work with the keyboard after starting the PC/laptop, or when you wake it up from sleep mode.
Charging the batteries in good time prolongs their service life.

• Connect the charging cable to the socket on the keyboard and a USB port or USB mains adapter.
  Your power source (PC/laptop) must be switched on. You can continue working while charging. The CHERRY key ( ) will light up red when charging starts. When the keyboard is half charged, it will glow yellow and when charging is complete, it will glow green.

The charging circuit prevents overcharging.

Activating additional functions on the function keys

There are symbols on the function keys that allow you to perform additional functions.
When the FN key is lit like the rest of the keys (factory setting):

• For the function of a symbol, press the function key along with the corresponding symbol. Or:
• For the standard function (F1 - F12), press and hold the FN key and press the function key.

Locking/unlocking the FN key

If you use the standard functions (F1 - F12) often, you can lock the FN key (FN lock).

• Press the CTRL key and the FN key simultaneously.

When the FN key is lit red, the standard functions (F1 - F12) of the function keys are executed.
If the FN key is illuminated like the rest of the keys, the functions of the symbols of the function keys are executed.

Disabling/enabling Windows keys

To prevent the Windows keys from being pressed unintentionally, you can deactivate them.

• Press the CHERRY key ( ).

The Windows keys are inactive (light up red) or active (light up like the rest of the keys).

Customizing the device configuration

With the CHERRY KEYS software you can freely assign many of the keys on the keyboard. This means you can access apps, files, individual text modules or macros at the touch of a key.
You can obtain CHERRY KEYS as a free download at www.cherry.de.
Give it a go!

Cleaning the device

1. Switch the keyboard off.

NOTE! Aggressive cleaning agents and liquids can damage the keyboard

• Do not use solvents such as gasoline or alcohol and scouring agents or scouring sponges for cleaning.
• Prevent liquids from entering the keyboard.

2. Clean the keyboard with a slightly damp cloth and some mild cleaning agent (e.g. dishwashing liquid).
3. Dry off the keyboard with a soft, lint-free cloth.

If the unit is not working

• If one of the keys for the connection type ( ) flashes for a prolonged period after a write attempt, this means that this connection type is set and the keyboard cannot establish a connection. Change the connection type (see "Changing the connection type") or establish the connection again (see "Connecting the keyboard to the PC/laptop").
• Switch the keyboard off and on again.
• Check that the appropriate connection type is set (see "Changing the connection type").
• Charge the keyboard via the charging cable (see "Charging the battery").
• Remove any objects causing interference between the keyboard and the PC/laptop. Interference is caused in particular by metallic or electrical objects such as cables, loudspeakers or USB hubs.
• Reduce the distance between the keyboard and the PC/laptop.
• Should any interference be encountered when using USB 3.0 devices right near the receiver: use a port that is further away, an additional cable, or a USB hub for the receiver or USB 3.0 device.
• Reset the keyboard to factory settings by inserting a pen (or paper clip) into the small hole under the center foot of the keyboard. This will also wipe the connection information.

Rectifying a connection fault using the receiver

• Connect the receiver to a USB 2.0 port on your PC/laptop (this usually has a white or black guide). Malfunctions occasionally occur on USB 3.0 ports (blue guide).
• Connect the receiver to another USB 2.0 port on the PC/laptop.
• Reduce the distance between the receiver and the keyboard by connecting the receiver to a USB port that is close to the keyboard.
• Use a USB extension cable to place the receiver as close to the keyboard as possible.

Rectifying a Bluetooth connection fault

• Check whether the internal receiver of your PC/ laptop supports at least Bluetooth standard 4.0. Lower versions are not supported.
• If your PC/laptop is in standby mode, it cannot be woken up using Bluetooth devices. Switch on the PC/laptop manually.
• If the keyboard is already connected to another PC/laptop, you cannot make a parallel connection. Turn off the first PC/laptop or deactivate the connections.

Operation of several Bluetooth devices on a PC/laptop
When too many Bluetooth devices are connected, it may be too much for the Bluetooth receivers in the PC/laptop.

• Turn off any unnecessary Bluetooth devices.
• Remove the connection to the keyboard in the Bluetooth software and add it again as a new device.
• Use an external Bluetooth receiver.
• Connect the keyboard via the receiver or cable.
