KLIM Shift - Wireless Mechanical Keyboard Manual

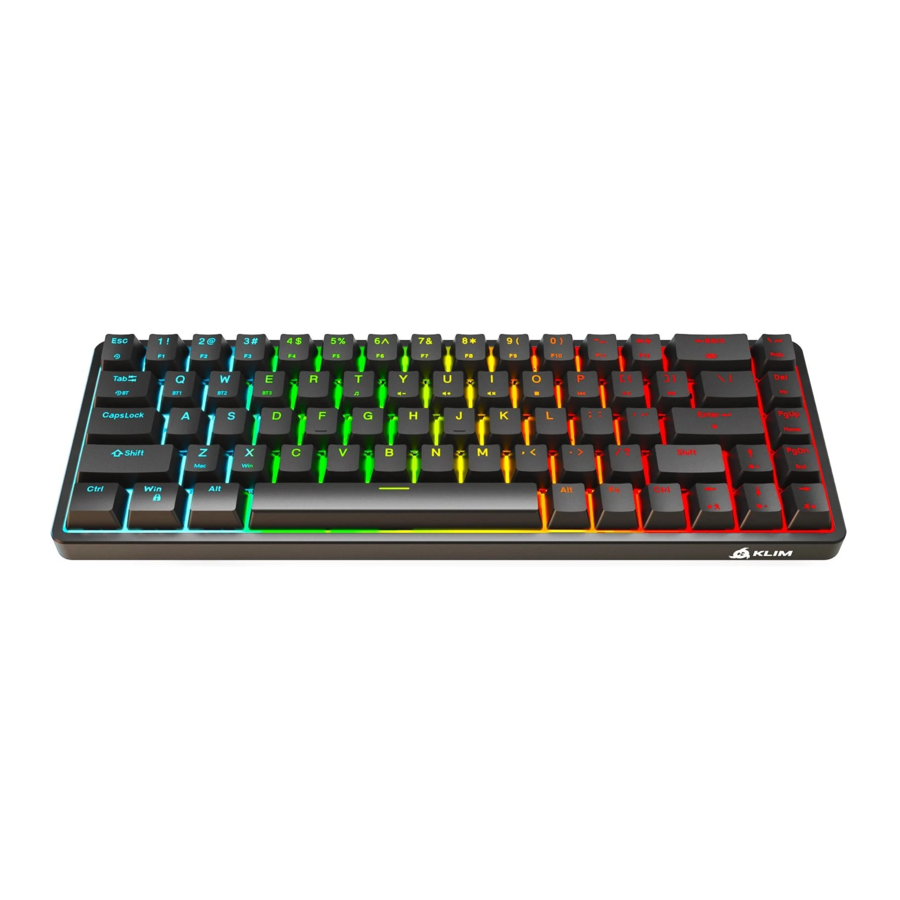

PACKAGE CONTENTS AND PRODUCT DIAGRAM

QUICK START GUIDE

Wired mode

Wired mode: connect the USB cable to the keyboard, and then connect it to your computer. Flick the switch behind the keyboard to the ON position. Press the mode switch underneath the keyboard until it is set to "Wired" (orange light).

Wireless mode (2.4G)

Wireless mode (USB receiver): take the wireless USB receiver from behind the keyboard and connect it to your computer. Flick the switch behind the keyboard to the ON position. Press the mode switch underneath the keyboard until it is set to "2.4G mode" (green light).

Bluetooth mode

Bluetooth mode: Press the mode switch underneath the keyboard until it is set to "Bluetooth" (blue light). Press FN + Q for 3 seconds to look for compatible devices. The light starts blinking to indicate its pairing status. Go to the device you want to pair the keyboard to and select KLIM Shift 5.0 / 3.0 to establish the connection. For detailed Bluetooth instructions and pairing of multiple devices, please check the Bluetooth Connection Mode section on the next page.

on any mode, make sure that the ON/OFF switch is set to ON and that the correct mode is selected underneath the keyboard.

CHARGING THE BATTERY

Battery indicators

The light on the spacebar indicates the status of the battery:
White light: full battery.
Yellow light: charging.
Red light (flashing): low battery.

When the keyboard battery is low, connect the cable to your computer or an external power source (such as a USB charger) to charge your keyboard. You may continue to use it while it charges.

Tip: lowering the brightness or switching off the RGB lighting completely significantly increases the battery life and reduces the frequency of charges.

Power saving function

In order to preserve battery life, the keyboard lights turn off after 7 minutes of inactivity while on a wireless connection (2.4G or Bluetooth). The keyboard enters a stand-by mode after 30 minutes of inactivity. Ending any wireless connection also puts the keyboard on stand-by mode.

BLUETOOTH MODE

Note: for basic pairing instructions, check the Quick Start Guide in the previous page.

You can pair up to 3 devices at the same time, and quickly switch between them, by following the pairing steps detailed in the quick start guide with each of the available keys (Q, W, E).

Each key has a different light indicator (blue, cyan, purple). While pairing mode is active, the light flashes. Once the keyboard has been paired with the device on the selected key (Q, W or E), the light will become still and then turn off. If pairing is not completed within 2 minutes, the pairing process stops and the light turns off.

When multiple devices are paired, simply press FN + Q/W/E to select each one. The corresponding light blinks once and then turns off.

Note: depending on your Operating System, one or two device names may appear (KLIM Shift 3.0 or KLIM Shift 5.0). When available, it is recommended to select 5.0.

KEYBOARD SHORTCUTS & THE FN KEY

This is a compact keyboard which does not have the usual 104/105 keys of a full-sized one. However, fear not! You can still access every key and even multimedia shortcuts thanks to the FN key. Simply press and hold the FN key while you press other keys on the keyboard.

*diagrams correspond to the US layout, some keys vary in the UK layout

The diagram below indicates the location of each set of special function keys:
Red: multimedia
Blue: function keys
Green: backlighting adjustment
Yellow: other

Tip: the small white text / icons indicate the function of that key when pressing it along the FN key.

TROUBLESHOOTING

If the problem persists, contact us at support@klimtechnologies.com. Our team of specialists is at your disposal and will always reply within 24 hours!

Technical specifications
