Gourmia GTF7520 - French Door Digital Air Fryer Oven Manual

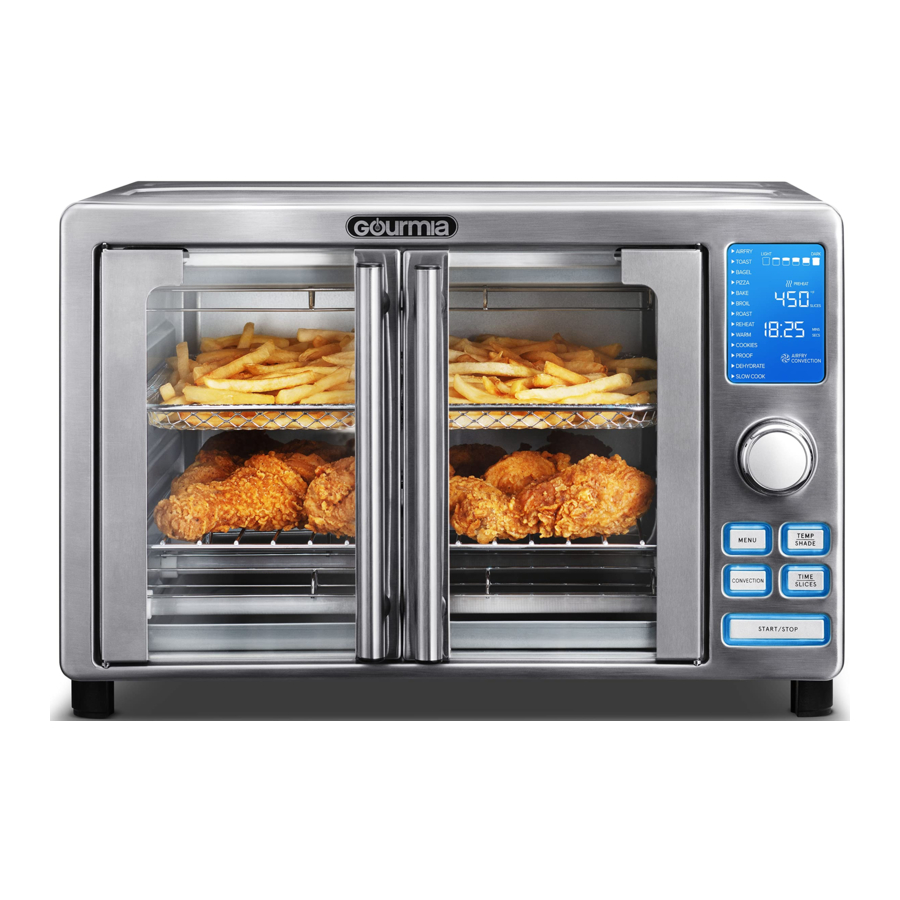

KNOW YOUR AIR FRYER OVEN

ACCESSORIES

NOTE: Always ensure the crumb tray is in the bottom of the air fryer oven during 8 cooking.

DISPLAY AND CONTROL PANEL

NOTE: To toggle between displaying temperature in Fahrenheit and Celsius, press and hold TEMP/SHADE.

BEFORE FIRST USE

1. Remove and discard all packaging material, labels, and tape from the unit.
2. Thoroughly clean air fry basket, oven rack, baking pan, and crumb tray with hot water, dishwashing liquid, and a non-abrasive sponge. Dry all parts before use.
3. Wipe the inside and outside of the unit with a moist cloth.

Do not place the appliance against a wall or against other appliances. Leave at least 4 inches of free space on the back and sides, and 4 inches of free space above the appliance.

Do not place anything on top of the appliance when in use.

Always use CAUTION when opening the doors; hot steam may escape!

The oven, accessories and food will be hot! Do not touch hot surfaces. Use oven mitts when inserting or removing food from the oven.

NOTE: When spraying food for a crispier finish, we recommend using regular cooking oil instead of cooking spray, as the latter may damage the accessories.

Recommended

Oil Mister / Spray Bottle

Not Recommended

Cooking Spray

SET UP YOUR AIR FRYER OVEN

1. Place the air fryer oven on a stable, level, and heat-resistant surface.
2. Place the crumb tray in the bottom of the air fryer oven.
3. Plug the air fryer oven into an outlet.

USING YOUR AIR FRYER OVEN

1. To choose a preset cooking mode, rotate the selector dial. A small arrow will move along the preset names as you turn the dial. Stop when the arrow reaches your desired preset. The preset's default time and temperature will be displayed.
2. To adjust the temperature, press TEMP / SHADE. Rotate the selector dial until desired temperature is displayed.
   In TOAST / BAGEL mode: Press TEMP / SHADE. Rotate the selector dial until your desired shade level is displayed.
3. To adjust the time, press TIME / SLICES. Rotate the selector dial until your desired time is displayed.
   In TOAST / BAGEL mode: Press TIME / SLICES. Rotate the selector dial until your desired number of slices is displayed.
   NOTE: See the PRESET CHART for each presets' settings and which accessory to use.
   For presets without preheat: Place food into the air fryer oven and press START / STOP to begin cooking.
4. Press START / STOP. "Preheat" will appear on the display. Wait until the alarm rings, and "Add Food" appears on the display.
5. Place food into the air fryer oven.

NOTES

• To adjust temperature and time while cooking, follow steps 2 and 3.
• To turn the Convection fan on/off, press CONVECTION. The fan icon will be displayed when the fan is on.

STOP COOKING
To stop cooking, press START / STOP. The unit will beep and display "STOP".
Press again within 3 seconds to resume cooking.

PRESET CHART

*NOTE: For wings and other greasy foods, use the Baking Pan instead of 12 the Air Fry Basket.

CONVECTION TIPS

TIPS ON USING THE CONVECTION SETTING

Because convection cooks foods faster and is hotter, you can reduce the cooking temperature by 25°, and check for doneness three quarters of the way through the cook time.

Foods that are covered benefit from the convection's even heat and will cook faster without any moisture loss.

The high temperature air circulation produces roasted foods that are golden brown on the outside and juicy and tender on the inside.

Even cooking means that you can use more than one rack and you do not have to turn foods or rotate baking trays.

Below are foods that benefit from the convection setting and when to use it:

Convection roast:
Meat, vegetables, whole fish

Convection Bake:
Pies, pastries, cookies, biscuits

Convection Broil:
Meat, fish, for melting cheese, for browning the top of casseroles

Pizza:

• Use the lower rack position and check often so the cheese does not burn.
• Start with no convection and then turn on convection for the last few minutes to brown cheese.

Not recommended for:

Custards and flans, souffles, cakes, quickbreads, breads

Additional tips:

• Make sure air can circulate around food and pans.
• Use trays, roasting pans, and baking pans with lower sides.
• Do not cover the oven shelves with foil.

TROUBLESHOOTING

CLEANING & MAINTENANCE

NEVER immerse cord, plug, or the unit in water or any other liquid.

Before cleaning, turn off the appliance, unplug it, and allow it to cool completely.

Do not use metal kitchen utensils or abrasive cleaning material to clean the unit or the accessories.

• Clean and dry the appliance and accessories after each use.
• Clean the accessories with hot water, mild liquid soap, and a non-abrasive sponge.
• Wipe the inside and outside of the unit with a damp cloth or non-abrasive sponge.
• The air fry basket and oven rack are top rack dishwasher safe.

STORAGE

• Unplug the appliance and let it cool down.
• Make sure all parts are clean and dry.
• Store the appliance in a clean and dry place.

ENVIRONMENT
Do not discard the appliance with normal household waste at the end of its life; instead, hand it in at an official collection point for recycling. Doing so will help to preserve the environment.

GUARANTEE AND SERVICE
If you need service or information or if you have a problem, please visit www.Gourmia.com or contact your distributor

IMPORTANT SAFEGUARDS

CORD AND PLUG SAFETY

• A short power-supply cord is provided to reduce risk of becoming entangled in or tripping over a longer cord.
• Extension cords may be used if care is exercised in their use.
• If an extension cord is used:
  1. The marked electrical rating of the extension cord should be at least equal to the electrical rating of the appliance; and
  2. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

ELECTRICAL POLARIZED PLUG

This unit has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, the plug is intended to be used by inserting it into the electrical outlet only one way. If the plug does not fit securely into the outlet, reverse the plug and re-insert. If it still does not fit, contact a qualified electrician for assistance. Do not modify the plug in any way.
Power: AC120V~60Hz 1700W

Read all instructions before using this electric appliance. The following basic precautions should always be followed:

1. This appliance is not intended for use by children or persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have supervision.
2. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance should not be done by children unless they are older than 8 and supervised.
3. Check if the voltage indicated on the appliance corresponds to the local main voltage before you connect the appliance.
4. Always ensure the appliance is fully assembled before plugging it into a wall outlet and turning it on.
5. Do not use the appliance if the plug, main cord, or appliance itself is damaged or has malfunctioned. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
6. Never connect this appliance to an external remote-control system or timer to avoid a hazardous situation.
7. Do not use an outlet below the countertop's surface. The cord should always be behind and away from the appliance.
8. Do not let the cord hang over the edge of the counter or table, nor let it touch hot surfaces.
9. Do not plug in the appliance or operate the controls with wet hands.
10. Always ensure the plug is inserted into the outlet properly.
11. Do not leave the appliance unattended when plugged in.
12. Place the appliance on a stable, level, and heat-resistant surface at a safe distance from gas or electric burners and heated ovens. Ensure that the area is clean and dry.
13. Do not place the appliance against a wall or against other appliances. Leave at least 4 inches of free space on the back and sides, and 4 inches of free space above the appliance.
14. Do not place anything on top of the appliance when in use.
15. A fire may occur if the air fryer oven is covered or touching flammable material, including curtains, draperies, tablecloths, walls, and the like, when in operation. Do not place the air fryer oven on or near combustible materials.
16. Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
17. Do not use the appliance for any other purpose than described in this manual. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
18. Do not place any of the following materials in the oven: paper (other than parchment paper), cardboard, plastic, and the like. Extreme caution should be exercised when using containers constructed of anything other than metal or glass.
19. Oversized foods or metal utensils must not be inserted into the toaster oven, as they may create a fire or risk of electric shock.
20. During cooking, hot steam is released through the air vents. Keep your hands and face at a safe distance from the steam and from the air vents. Be careful of hot steam when you open the doors of the appliance.
21. Do not touch hot surfaces. Use handles and protective equipment to avoid burns. Use extreme caution when removing accessories or disposing of hot grease.
22. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
23. Immediately unplug the appliance if you see dark smoke coming from the appliance.
24. After using the appliance, avoid contact with the hot metal inside.
25. Turn off the appliance before removing the plug from the outlet. To turn off the appliance, tap the power icon.
26. Unplug from outlet when not in use and before cleaning. Allow the appliance to cool before cleaning.
27. To protect against electric shock, do not immerse the cord, plug, or appliance in water or other liquid.
28. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
29. Do not store any materials other than manufacturer's recommended accessories in this oven when not in use.
30. Do not use outdoors.
31. Do not use in moving vehicles or boats.
32. For household use only.

SAVE THESE INSTRUCTIONS

Get cooking with Gourmia
@gourmia

FOR CUSTOMER SERVICE QUESTIONS OR COMMENTS VISIT WWW.GOURMIA.COM
EMAIL INFO@GOURMIA.COM
OR CALL 888.552.0033
MON-THU 9:00AM TO 6:00PM ET
AND FRI 9:00AM TO 3:00PM ET
