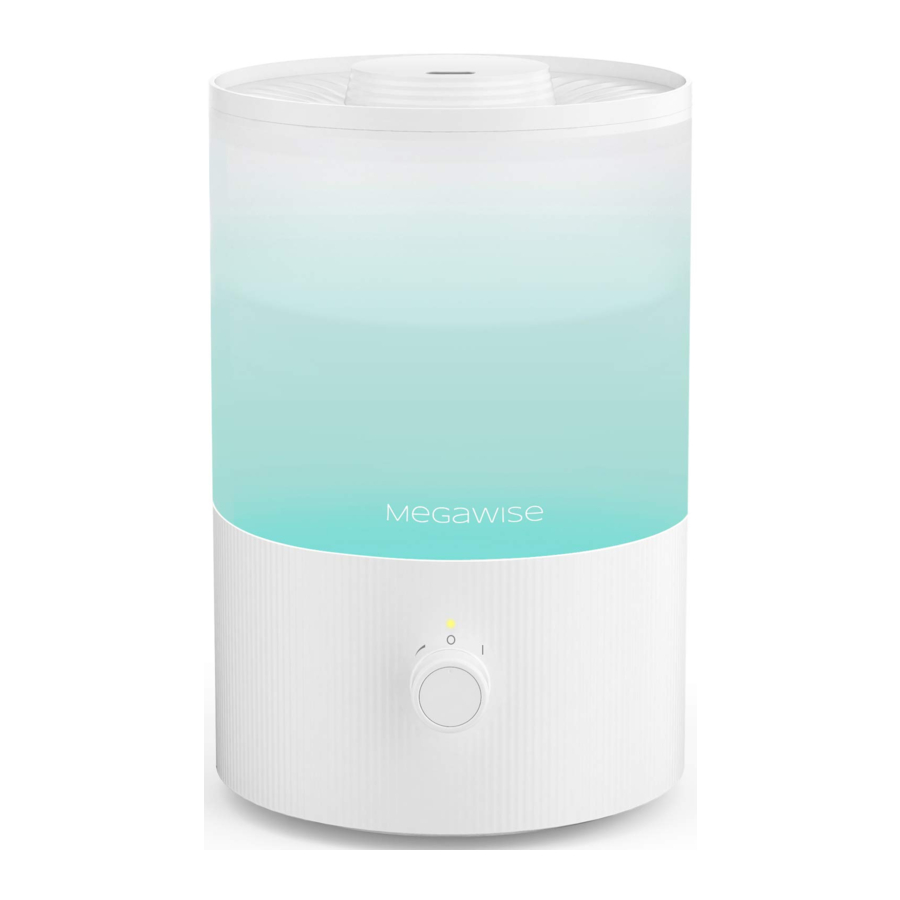

MegaWise APJ-617 - 40hrs Long Vortex Top-fill Design Humidifier Manual

Table of Contents

Contents

1 SAFE TIPS
2 CONFIGURATION ILLUSTRATION
3 SPECIFICATION
4 HOW TO USE IT
5 MAINTENANCE & REPAIR
- 5.1 Replace the filter element
- 5.2 How to obtain a replacement filter element?
6 ATTENTION OPERATION
7 NOTES FOR SAFETY
8 CLEANING AND MAINTENANCE
9 COMMON TROUBLE SHOOTING
- 9.1 Correct Disposal of this product
10 WARRANTY
11 CUSTOMER SERVICE
12 Documents / Resources
- 12.1 References
- 12.2 Download manual

Please read the user manual carefully before using the unit. Products refer to actual item, should have any update information, we will not advise specially

SAFE TIPS

Please read the user manual carefully before using the unit and take order to operate it.
Do not pull the power plug with wet hands.
In case the machine body tilts, shut off the power before going to deal with it.
Not free to decomposition of the body, so as to avoid electric shock accident.
Power lines may not be scratches, damages, excessive bending, reversed, knotting, otherwise can be caused by electric shock, short-circuit and fire.
Do not arbitrarily change the power cord.
Do not let children play with the appliance.
Machine indoor use only.
Machines are prohibited to around flammable, corrosive gases and dust conductive.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Care should be taken when using the appliance due to the emission of hot water vapour
Unplug the appliance during filling and cleaning.
Never submerse the housing in liquid or pour liquid in or on the housing. Doing so may damage the humidifier and cause injuries.
The appliance is only intended for the purpose described in user manual. Do not use appliance or any part of the appliance out of the intended use to avoid risk.
The use of attachments which are not recommended or sold by the appliance manufacturer may cause a risk of injury to persons.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning
Household and Indoor use only.

CONFIGURATION ILLUSTRATION

Nozzle cover
Water tank cover
Humidifier filter
Water tank
Floater
Pedestal
Indicator light
Switch ON/OFF/mist level control
Power cord
Colorful light/night light
Transducer
Air outlet
Colorful light/night light switch

SPECIFICATION

Model No	Voltage	Frequency	Power	Capacity	Mist volume	Noise	Type
GO-2877	100-240V~	S0/60Hz	25W	3.SL	250ml/h	<28dB(A)	Class II

HOW TO USE IT

Locate an appropriate level flat surface near an electrical outlet for placement of your humidifier. When placing on the floor do not place on shag or very high pile carpet or rug. Doing so may create an uneven surface. Be sure to place your humidifier on a water-resistant surface and away from furniture and electronics appliances since water can cause damage to furniture and other possessions. Position your humidifier so that the electrical cord and the humidifier do not become a tripping hazard. To ensure proper ventilation be sure to keep all sides and top of your humidifier at least 72 inches from walls or any objects.
Directly fill the tank with cool water from the top cover (or after removing the cover). For best results use distilled or filtered water. Do not use hot water or additives, essential oil is accepted.
Connect to 700-240V 50/60Hz power supply after the tank injected water into the trough. Switch the knob to turn the unit on or off. Turn the knob to set for different mist output, from low, medium and high.
When the tank is empty and the water reaches a minimum level in the trough, the unit will automatically shut down and stop producing moisture. Turn off and unplug the power cord. Refill the tank with cool water, for best results, use distilled or filtered water. Do not use hot water or chemical additives (essential oil is accepted). Properly replace the tank, plug into an outlet and turn the humidifier ON. Comfortable, soothing, invisible cool mist will be produced immediately.

MAINTENANCE & REPAIR

△PS: The filter element can filter impurities in the water. If the filter element is installed, tap water can be injected directly. If the filter element is not installed, the product can also work normally without filtering function.

Turn off the power and make sure that there is no excess water in the water tank. Turn the filter element counterclockwise to remove it. Turn the replacement filter element clockwise to tighten the filter element.
Replace the filter element

Activate the warranty to receive a free filter element.
Purchase through the website.

ATTENTION OPERATION

Enter clean water below 704"F.
It is not allowed to let water into the base from the air outlet. Please wipe the outside of the humidifier with a dry soft cloth if there is water on the housing.
Please pour out the water from the tank and trough if the ambient temperature below 32"F in case of water freezing and causing any damage.
Never submerse the housing in liquid or pour liquid in or on the housing. Doing so may damage the humidifier and cause injuries.
Be sure to turn off and unplug this unit when not in use.
Never tip or move this appliance while operating or while water is in the base or tank.
Use this unit on a flat, level surface only This unit may not function properly if placed on an uneven surface or to avoid from overflowing from the water flume.
Place this humidifier on a water-resistant surface.
Do not place this humidifier near furnaces, heaters, stoves, or any other source of heat.
Do NOT add water directly into the trough.
DO NOT use anything other than water in this appliance. Do not use additives. (Essential oil is accepted.)
DO NOT pour out the water in the trough without unplug the unit. Otherwise, damage will occur.
Dry the hands before pushing the control button. Otherwise, low-sensitivity may occur because of wet hands.

NOTES FOR SAFETY

Use of this humidifier, the safety measures necessary to comply with the following
Carefully read all the instructions, even if you are very familiar with this product.
Before connected with the power, please check your home used by the voltage and humidifier in the mark in line voltage. If the voltage does not match, please contact the dealer for replacing correct voltage product.
Do not heat near the surface at any place using this machine.
Machinery as far as possible away from furniture and electrical products.
Do not touch water and transducer in the mainframe base when in operation.
Do not turn unit on when water tank is empty.
Do not immerse the mainframe base in water.
Disconnect power supply before cleaning or servicing unit.
Enter tap water below 104"F.
Do not try to pull out plug with a wet hand in case of an electric shock.
When machine body inclines, please disconnect power supply before any adjustment.
After start-up, do not touch transducer, otherwise, you would suffer from a pain.
Do not disassemble the machine at will in case of an electric shock.
Do not replace power line by yourself. If power line is worn, please call in the professional of our company.
Extreme caution is necessary when this unit is used by or near children or invalids whenever the unit is left operating and unattended.

CLEANING AND MAINTENANCE

Power supply must be disconnected and plug pulled out before cleaning.
In cleaning water tank (once every 2-3 weeks), wipe off incrustation with soft cloth and clean it with water.
In cleaning trough (once a week), if there is incrustation in the trough, user can wipe off the incrustation with soft cloth immersed in cleaning agent, and then wash the trough with water.
In cleaning the external body of humidifier, use the wet cloth to wipe off the dirt on the surface.
In cleaning transducer piece, if there is incrustation on the surface, user can wipe off the incrustation with swab and then wash it with clean water to achieve cleaning effect.

CLEANING AND MAINTENANCE

COMMON TROUBLE SHOOTING

Abnormal Phenomenon	Causes	Solutions
Mist volume is small and water column sprays out after machine is turned on	There is incrustation on atomizing piece; or, it is a new machine;	Clean atomizing piece with swab; inject new water.
	Or it has been stored for a longtime.	Change original water.
Mist is smelly	Unclean water inside water tank	Open tank cap and keep the tank open in shade for 72h, and then clean it, and refill it with water.
Atomizing is discontinuous when the machine is turned on	Normal	It will improve after a while.
Atomizing volume cannot be adjusted.	Potentiometer knob goes wrong	Seek for the help of professional maintenance station
Atomizing is insufficient	Air inlet is blocked	Check the air inlet.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARRANTY

Your product is guaranteed by us for 12 months from your original date of purchase. If you want to extend your warranty for one more year, please do not hesitate to contact us.
