BIGBIG WON R100pro - USB Wireless Bluetooth Controller Adapter Manual

Please Note

The adapter is only compatible for the official controllers, and do not support third-party authorized or non-authorized controllers. The adapter only supports PS4 version games on PS5.

Package Contents

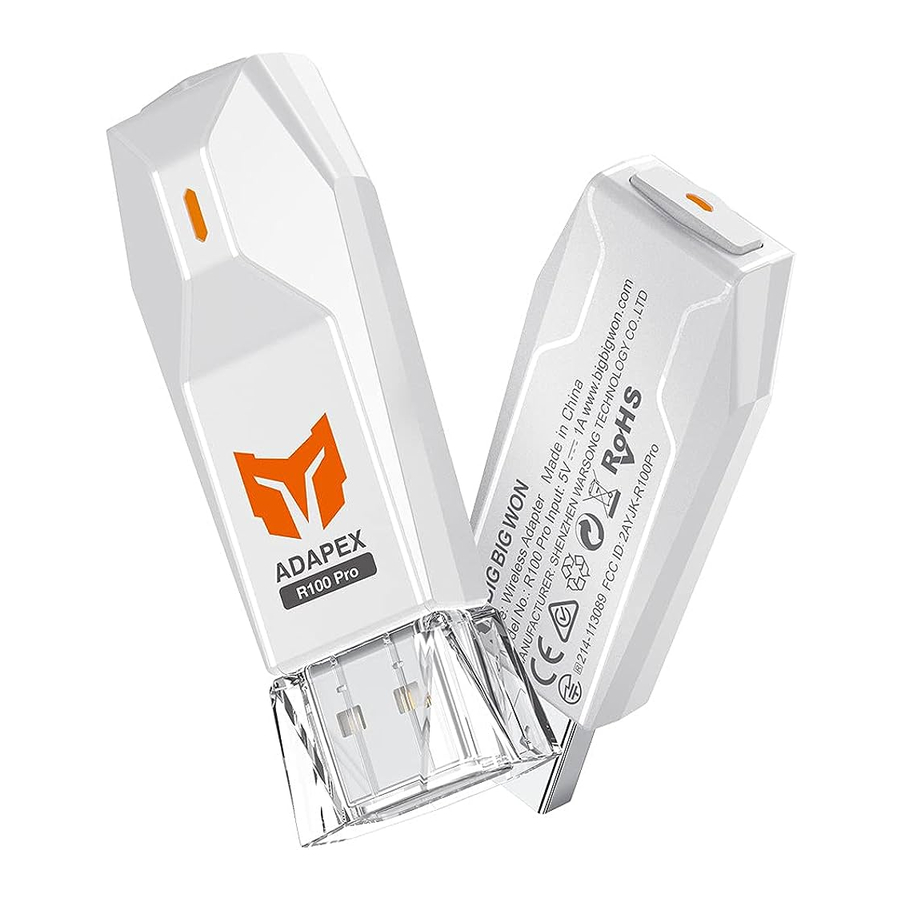

R100 Pro USB Wireless Adapter
User Manual

Supported Console / System

PS5 / PS4 / Switch / Switch Lite / Windows 10
On the PS5 platform, only the PS4 version games are supported, and the PS5 version games are unsupported.
If used on the Switch Lite host, you need to purchase an OTG converter to connect.

Supported Controller

Xbox Series X|S Controller / Xbox One X|S Controller / Xbox Elite Controller Series 2 / DualSense (PS5 Controller) / DualShock (PS4 Controller) / Switch Pro Controller PS: Only compatible for the official controllers, and do not support third-party authorized or non-authorized controllers.

DEVICE LAYOUT

1. PAIR Button
2. Indicator

DualSense (PS5 controller)

When connecting to the Switch console, you need to open "Settings> Controllers and Sensors>Wired Connection of Pro controller".

1. Insert the R100 Pro into the console. When the R100 Pro indicator flashes, indicating that the adapter has entered the pairing mode. And the adapter can be in pairing mode by pressing its button again.
2. Make sure the controller is turned off (Long press the PS button for 10s to turn it off)
3. Pairing mode of the controller: Press and hold the CREATE button first and then press the PS button for 5 seconds. When the controller's indicator double flashes in blue, it has entered the pairing mode.
4. Press the PS button again and if the controller can work normally on the host, the connection is successful.

It is recommended to repeat the above steps for re-pairing connection every time you use it to ensure the best user experience.
After pairing with the R100 Pro, if you want to reconnect to the PS5 console, please refer to the official connection method to reconnect the controller to the console.

DualShock (PS4 controller)

When connecting to the Switch console, you need to open "Settings> Controllers and Sensors>Wired Connection of Pro controller".

1. Insert the R100 Pro into the console. When the R100 Pro indicator flashes, indicating that the adapter has entered the pairing mode. And the adapter can be in pairing mode by pressing its button again.
2. Make sure the controller is turned off (Long press the PS button for 10s to turn it off)
3. Pairing mode of the controller: Long press the SHARE button first and then press the PS button for 3 seconds at the same time. When the controller's indicator double flashes in white, please stop pressing, the controller has entered the pairing mode.
4. Wait for automatic pairing: When the indicator of R100 Pro and the controller is always on, and the controller light bar is in purple, it means that the pairing has been successful. (If the light bar is white, please reconnect till it becomes purple)
5. Press the PS button again and if the controller can work normally on the host, the connection is successful.

It is recommended to repeat the above steps for re-pairing connection every time you use it to ensure the best user experience.
After pairing with the R100 Pro, if you want to reconnect to the PS4 console, please refer to the official connection method to reconnect the controller to the console.

Xbox One X|S / Xbox Series X|S / Xbox Elite Series 2

When connecting to the Switch console, you need to open "Settings> Controllers and Sensors>Wired Connection of Pro controller".

1. Insert the R100 Pro into the console. When the R100 Pro indicator flashes, indicating that the adapter has entered the pairing mode. And the adapter can be in pairing mode by pressing its button again.
2. Long press the HOME button to turn off the controller.
3. Pairing mode of the controller: Long press the HOME button to turn on the controller and the press the PAIR button for 2 seconds. When the controller's indicator flashes quickly, it has entered the pairing mode.
4. Wait for automatic pairing: When the indicator of R100 Pro and the controller is always on, it means that the pairing has been successful.
5. Press the HOME button again and if the controller can work normally on the host, the connection is successful.

It is recommended to repeat the above steps for re-pairing connection every time you use it to ensure the best user experience. The re-pairing speed and success rate of XBOX controllers are higher than the reconnecting operation.
After pairing with the R100 Pro, if you want to reconnect to the Xbox Series X|S / Xbox One console, please refer to the official connection method to reconnect the controller to the console.

Switch Pro controller

When connecting to the Switch console, you need to open "Settings> Controllers and Sensors>Wired Connection of Pro controller".

1. Insert the R100 Pro into the console. When the R100 Pro indicator flashes, indicating that the adapter has entered the pairing mode. And the adapter can be in pairing mode by pressing its button again.
2. Press the PAIR button to turn off the pro controller.
3. Pairing mode of the controller: Press the PAIR button for more than 3 seconds. When the controller's indicator is in fast cycle flashing, it has entered the pairing mode.
4. Wait for automatic pairing: When the indicator of R100 Pro and the controller is always on, and the controller light bar is in blue, it means that the pairing has been successful.
5. Press the HOME button again and if the controller can work normally on the host, the connection is successful.

It is recommended to repeat the above steps for re-pairing connection every time you use it to ensure the best user experience.
After pairing with the R100 Pro, if you want to reconnect to the Switch console, please refer to the official connection method to reconnect the controller to the console.

USE TUTORIAL

GET HELP WITH BIGBIG WON SUPPORT

We are here to assist you with your BIGBIG WON devices. If you have any questions, please feel free to contact us:
BIGBIG WON Official Web: www.bigbigwon.com
Cystomer Service: support@bigbigwon.com
