Lexon TYKHO 3 LA119 - Wireless Bluetooth Speaker and FM Radio Manual

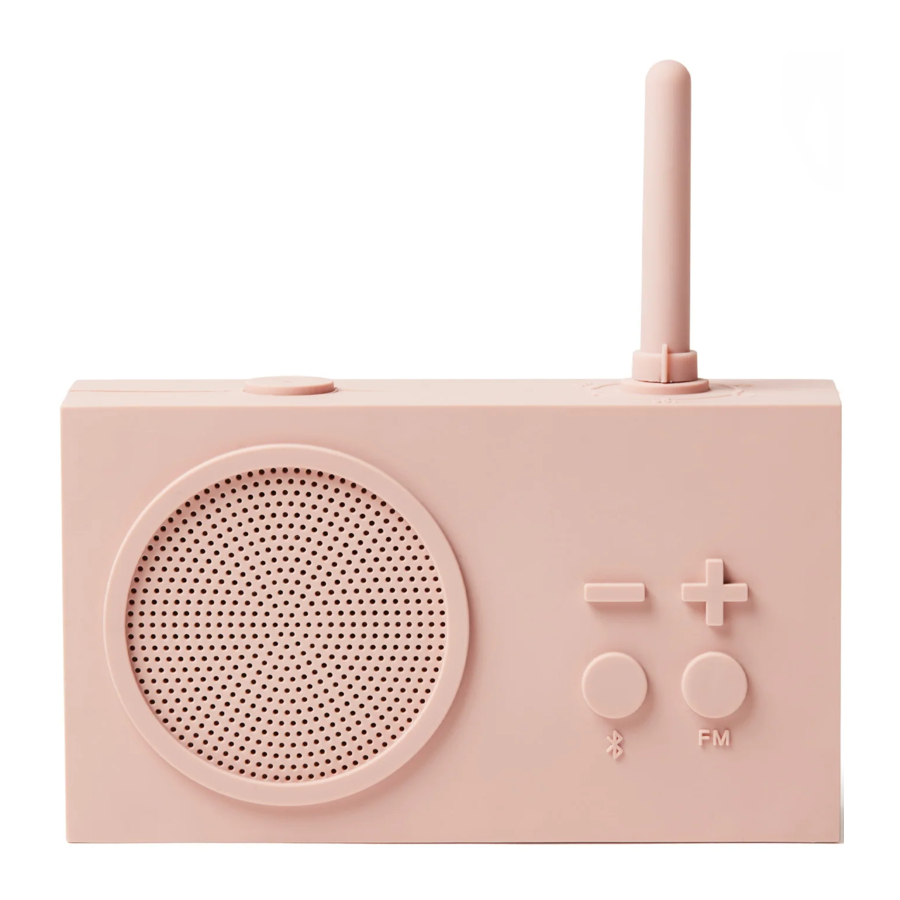

OVERVIEW

1. Tuning control
2. Power switch / light status indicator
3. Volume control
4. BT/FM switch buttons
5. Micro USB port
6. Bluetooth light indicator

Light Status indicator

CHARGING

Connect USB charging cable to a USB charging source, plug the micro USB into (5). The red indicator (2) will be on when charging.
Charging time is about 4 hours. When the battery is fully charged, the red indicator light will go off.

RADIO SEARCHING

1. Push the power switch to turn on the device.
2. Select FM by pushing the FM band button.
3. Turn the antenna clockwise or anti-clockwise until the desired radio is clearly received
4. Adjust the volume by pressing the Volume up (+) or down (-).

BLUETOOTH PAIRING

1. Push the power switch to turn on the device.
2. Select Bluetooth ( ) by pushing the Bluetooth( ) button.
3. To notify you the speaker is in pairing mode, it will emit a sound and the light indicator will begin flashing rapidly.
4. Go in the Bluetooth settings of your smartphone and ensure your Bluetooth is switched on.
5. Scroll to Other or new Devices and look for your new Bluetooth speaker's LEXON TYKHO 3
6. Once it appears, tap it to connect. Your speaker will emit a confirmation sound as soon as it is paired.

Note: Once a Bluetooth speaker is successfully paired to your phone, it should automatically connect each time it's powered on.

How to pair with another phone
To pair your speaker with another phone, please disconnect or forget LEXON TYKHO 3 from your smartphone's Bluetooth settings first.
Then, perform a new pairing procedure with another smartphone.

PRODUCT SPECIFICATIONS

Lithium battery voltage: 3,7 V
Charging voltage: 5V
Lithium battery capacity: 2000 mAh
Battery life: 20 hours
Charging time: 4 hours
FM Frequency: 88-108 Mhz
Bluetooth: BLE 5.0
Speaker Output: 3W x 1
Splash-proof
Material: Silicone / ABS
Input: Micro USB
Unit dimension: 140 x 45 x 140 mm

EUROPEAN UNION CE DIRECTIVE

LEXON hereby declares that the device is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU & 2011/65/EU.
The original EU declaration of conformity may be found at:
https://www.lexon-design.com/assets/certifications-ce-tykho3.pdf

UK Conformity Assessment

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
The original UK declaration of conformity may be found at:
https://www.lexon-design.com/assets/certifications-ukca-tykho3.pdf

CANADIAN COMPLIANCE STATEMENT

This deivce complies with Industry Canada license-exempt RSSs, Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference that may cause undesired operation of the device. This class B digital apparatus complies with Canadian ICES-003.


125, Avenue des Champs-Elysees 75008 Paris - FRANCE
All brands or product names are or may be trademarks or their respective owners.
Pictures and specifications are not contractual. Assembled in China.
lexon-design.com | @lexondesign
