Steren MIX-125 - Mini 2 Channel Bluetooth Mixer Manual


Please read this instruction carefully to avoid any malfunction.

The information is presented only as a reference on the product; Due to updates there may be differences. Check our website www.steren.com for the most recent version of this manual.

CAUTIONS

  • This device is not intended for use by people (including children) whose physical abilities, sensory or mental are different or are reduced, or lacking experience or knowledge.
  • Children should be supervised to make sure that do not use the device as a toy.
  • Do not use or store this equipment in places where there are leaks, humidity or splashes.
  • Clean it with a soft, dry cloth.
  • Do not use the equipment if the power cord is damaged.
  • Do not try to open the equipment; the warranty will be voided.
  • Place it in a place with sufficient ventilation.
  • Before turning on the equipment, make sure that the Volume controls are at the minimum level.

Operation of this equipment is subject to the following two conditions:

  1. this device may not cause harmful interference, and
  2. this device must accept any interference, including interference that may cause undesired operation.

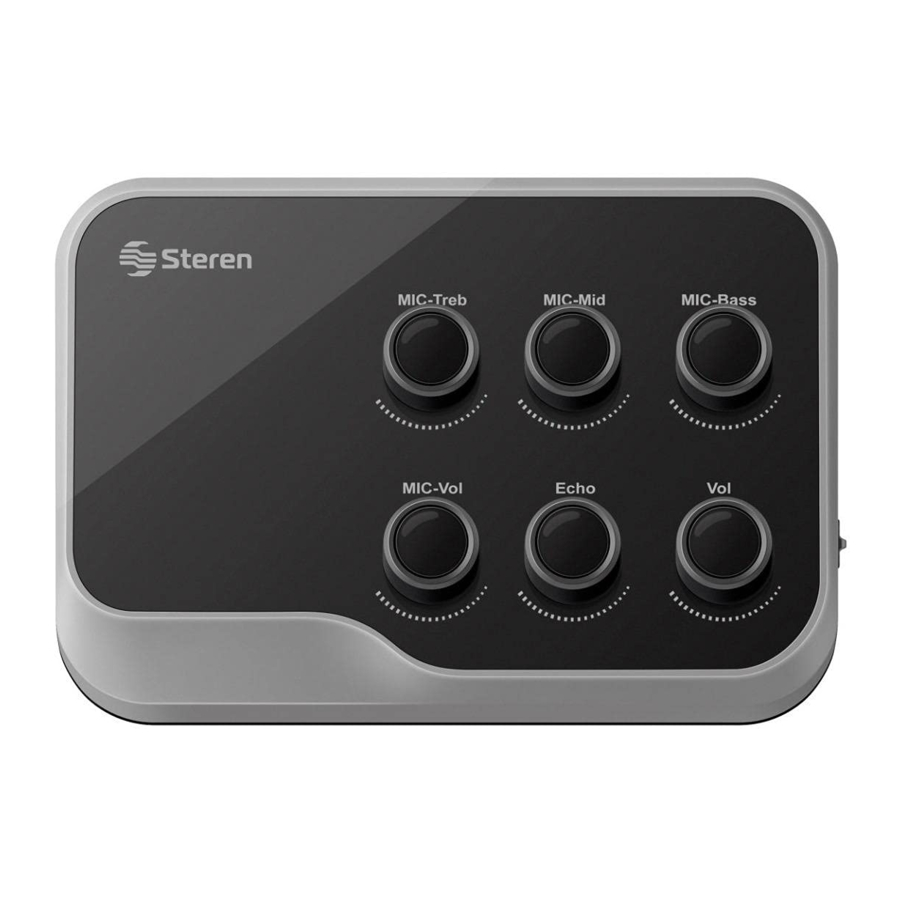

DESCRIPTION

DESCRIPTION

  1. 6.3 mm microphone input
  2. 3.5mm AUX output
  3. 3.5 mm AUX input
  4. Bass adjustment for microphone signal
  5. Adjustment of media for microphone signal
  6. Treble adjustment for microphone signal
  7. Power input, micro USB
  8. Ignition switch (ON)/(OFF)
  9. Volume control for microphone signal
  10. Echo effect for microphone signal
  11. General volume control

HOW TO USE

Bluetooth Connection

  1. Slide the switch to ON. A blue LED indicator (under the cover) will begin to flash.
  2. Activate Bluetooth on your smartphone. Look for the Steren MIX-125 device and select it.
  3. Connect a pair of active speakers to the output of 3.5 mm (LINE OUT).
  4. Play a music track on your smartphone; control the overall volume with the knob Vol.
  5. Insert a wired microphone into the input 6.3 mm; controls and equalizes your signal with the knobs remaining.

Wired connection

  1. Slide the switch to ON. A blue LED indicator (under the cover) will begin to flash.
  2. Connect the Auxiliary cable (plug to 3.5 mm plug) in the AUX (LINE IN) input of the mini-mixer, and the other end to your audio player.
  3. Connect a pair of active speakers to the output of 3.5 mm (LINE OUT).
  4. Play a music track on your player Audio; control the overall volume with the knob Vol.
  5. Insert a wired microphone into the input 6.3 mm; controls and equalizes your signal with the knobs remaining.

Before connecting or disconnecting any equipment from the mini-mixer, turn the Vol knob to the lowest point (to the left).

HOW TO CHARGE THE BATTERY

Connect the mini-mixer to a 5 V 1 A USB power adapter (not included).
HOW TO CHARGE THE BATTERY

Charging the battery takes approximately 2 hours. During this time, a red LED (under the cover) will be on; it will turn off when the load has finished.

SPECIFICATIONS

Input: 5 1 A (x USB)

Battery: 3.7 V 1200 mAh

Specifications may change without prior notice
