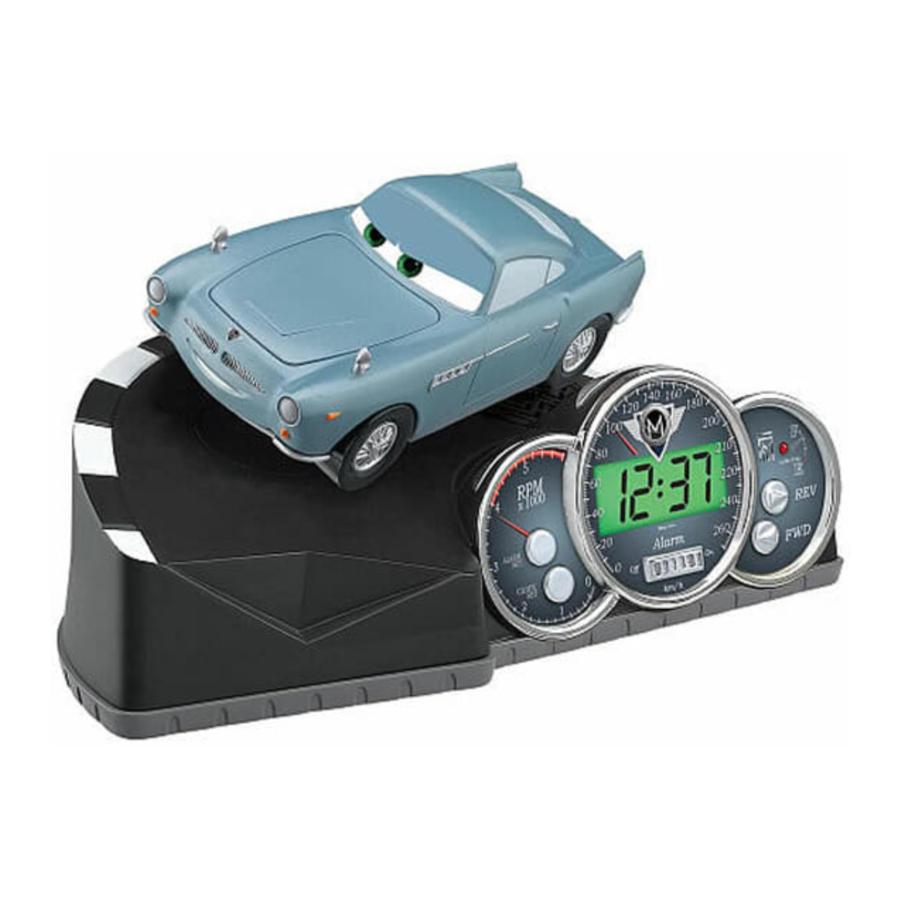

Disney CR-310 - Animated Alarm Clock Manual

Installing the Batteries

The Alarm Clock operates on 4 "AA" (LR6) batteries (included for demo purpose only) or on a DC 6V 0.5A center positive AC adaptor (not included). The included batteries are for demo purposes only, and should be replaced with 4 fresh batteries when you get the unit home.

Low Battery Indicator

When the Low Battery Indicator on the right of the display lights, it is time to replace the AA batteries.

Installing/Replacing Batteries

1. The battery compartment is located on the bottom of the cabinet. Open the battery compartment door with a Phillips screw driver.
2. Install 4 "AA" (LR6) batteries, making sure that the positive and negative (+/–) polarities match up with the diagram inside the battery compartment (see right).

3. Close the battery compartment door with screw driver.
   Do not over-tighten.

Installing/Replacing the Backup Battery

The Alarm Clock comes with a CR2032 battery installed for backup to provide continuous clock settings in the event of a power failure. If the Backup Battery has been installed and a power failure occurs or the AC cord is accidentally disconnected, the display backlight will not remain lit and the alarm will not sound, but current time and alarm time settings will be temporarily maintained. Otherwise, you must reset the time and alarm settings.

1. The backup battery compartment is located on the bottom of the cabinet. Open the backup battery compartment door with a Phillips screw driver.
2. Remove current battery and replace with fresh CR2032 battery, making sure that the + side is facing up (see above).
3. Close the backup battery compartment door with screw driver. Do not over-tighten.

For the Best Possible Performance

• We recommend the use of ALKALINE batteries for longer life.
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with correct polarity.
• Remove exhausted batteries from the unit.
• Do not attempt to recharge non-rechargeable batteries.
• Remove rechargeable batteries from the unit before charging.
• The supply terminals are not to be short-circuited.
• Batteries should be removed if the item is not going to be needed for an extended period of time (approximately 30 days or more) to prevent leakage or damage to the unit.
• Rechargeable batteries are only to be recharged under adult supervision.

Battery Cautions

As with all small batteries, the batteries used with this product should be kept away from small children who still put things in their mouths. If they are swallowed, promptly see a doctor and have the doctor phone (202) 625-3333 collect. If you reside outside the United States, have the doctor call your local poison control center.

Overview

Optional AC Adaptor Connection

NOTE: The AC adaptor should only be connected by an adult.

• Connect a DC 6V 0.5A center positive AC adaptor (not included) into the DC Jack located on the back of the unit, then plug the AC adaptor into a working outlet.
• NOTE: If the AC adaptor is plugged into the back of the unit but not the outlet, the alarm will NOT ring.

Remove Demo Tab

Before using this toy, remove the Demo Tab located on the bottom of the unit by pulling it away from the unit. Make sure to dispose of demo tab properly.

Setting Clock Time and Alarm Time

All of the clock and alarm functions are controlled using the buttons on the front of cabinet (see graphic)

Setting Clock Time

1. Press and hold the Clock Set Button for several seconds until the display flashes. If no time-set buttons are pressed within about ten seconds, the display will stop flashing and return to normal mode.
2. Press the FWD Button or the REV Button to set the time (press and hold for rapid setting). Make sure to set the correct AM or PM time. The PM Indicator is on the lower right of the display; there is no AM indicator.
3. Press the Clock Set Button to confirm clock setting.

Setting Alarm Time

1. Press and hold the Alarm Set Button for several seconds until the display flashes. If no alarm-set buttons are pressed within about ten seconds, the display will stop flashing and return to normal mode.
2. Press the FWD Button or the REV Button repeatedly to set the time (press and hold for rapid setting). Make sure to set the correct AM or PM alarm time. The PM Indicator is on the lower right of the display; there is no AM indicator.
3. Press the Alarm Set Button to confirm alarm setting and return to the regular clock display

Operating the Device

Turning On the Unit

1. After setting the alarm time, set the Alarm ON/OFF Switch to Alarm ON to turn on the alarm. The Alarm ON Indicator Icon will appear on the display, showing that the alarm is active.

Turning Off the Unit

1. After the alarm sounds, press the Alarm Set Button to turn it off and automatically reset it for the same time the following day.
2. To turn off the alarm without setting it for the following day, switch the Alarm ON/OFF Switch to Alarm OFF. The Alarm ON Indicator Icon will disappear.
3. To operate the snooze feature, press the Snooze/Light Button. The alarm will shut off for about nine minutes before sounding again. You may repeat this several times during the one-hour snooze cycle.

Back Light Operation

1. During normal operation (when alarm is not sounding) press the Snooze/Light Button to turn on the display back light for approx. 30 seconds. Press again to turn light off right away.

Playing the Built-in Sound Effects

1. Press either of the Sound Effects Buttons to play the built in sound effects.

Maintenance

• Protect your furniture when placing the clock on natural wood or a lacquered wood finish. A cloth or other protective material should be placed between the unit and the furniture.
• Clean the casing with a soft cloth moistened only with mild soap and water. Stronger cleaning agents may damage the surface of the case.
• If the clock is not to be used for a prolonged period, remove the batteries to prevent possible corrosion. Should the battery compartment become corroded or dirty, clean it thoroughly and replace the batteries.

Questions or Comments

For questions or comments regarding this or other KIDdesigns products, please call our toll-free number: 1-888-TOP-TOYS.
Please also visit our web site: www.kiddesigns.com.
