This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty.
Please read all directions before using the product and retain this guide for reference. This product is intended for household use only.
This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions. See warranty for details.

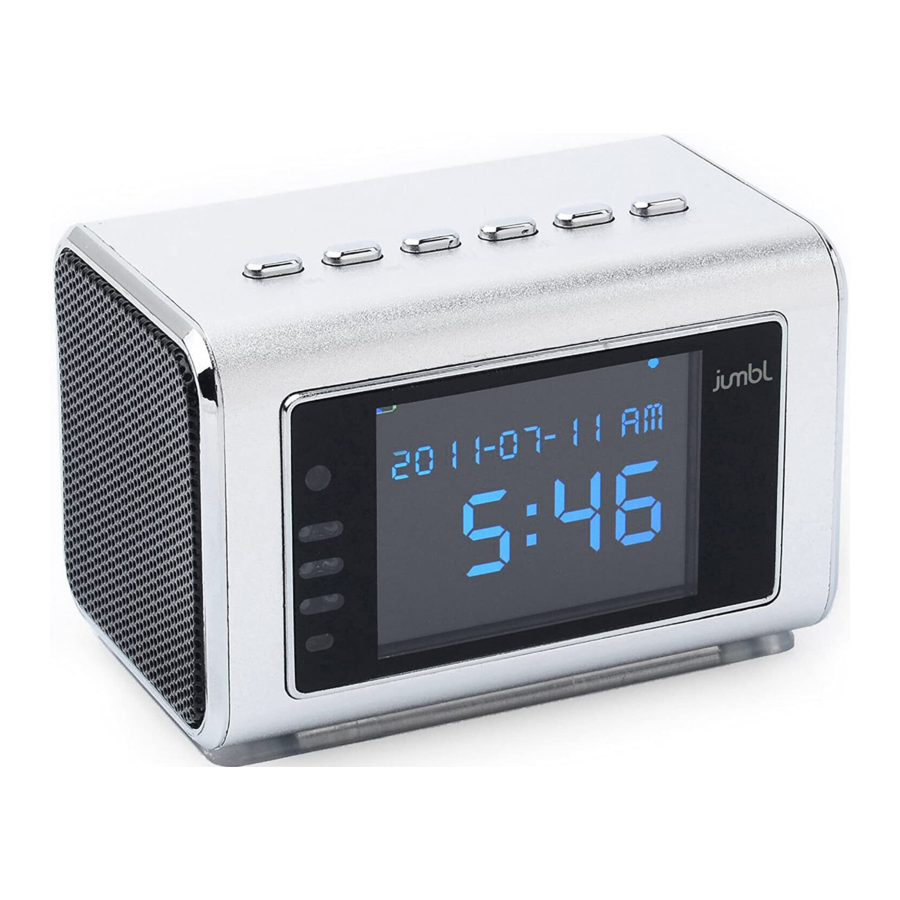

Unpack the Jumbl Spy Camera Clock carefully, removing all packaging materials. Check the contents to ensure that all parts and accessories are present, and are in good condition.
VOL- / : Volume decrease / Previous / Fast backward, etc.
VOL+ / : Volume increase / Next / Fast forward, etc.
MENU: Menu/Mute
MODE: Mode switch
OK: Confirm
ESC: Go back / Turn off the display
* Pressing "VOL- / " and "VOL+ /
" together can initiate a hidden function menu such as video recording etc.
Small size, supports Micro-SD card, portable and easy to set up.
Entertainment functions:
Security monitor functions:
* Only for models with motion detection functionality.
Entertainment functions
Turn unit on to enter the entertainment interface, which includes audio, video player, picture browser, FM radio, and other functions.
Security functions
Functions related to safety security are all "hidden" functions, including video recording, sound recording, photography, web cam and corresponding file playback, etc.
Motion detection
To use this function please set the DV mode to motion detection in the setting menu. When set the motion detection mode and start to record, the camera can catch and record video if the image changes. The time is five (5) minutes for each file.
Entertainment functions
To use this function, set to manual or automatic mode in the setting menu. Automatic recording means that when playing MP3/MP4 (and video playback) while recording video, the video recording will pause until MP3 / MP4 playback is over, then the video recording will begin automatically. However, manual recording means video recording will not continue after the completion of MP3 / MP4 playing.
Infrared light enhancement
The infrared LED will turn on automatically when the environment (room) brightness is low. This function must be set in the security function setting menu.
Night-vision recording
Night vision mode can enhance the video brightness to get clearer video at night. This function must be set in the security function setting menu.
Super long mode
Super long mode can produce a very small video file (1GB) to save 1 day's video. This function must be set in the security function setting menu.
Loop recording
Video files are saved and divided into sections automatically. When the Micro-SD card is full, the oldest one or more files are automatically deleted to provide sufficient space for continued video recording. At the same time, available memory is automatically calculated for the available space on the flash card, if the available space or the effective space is too small, video recording will stop. Considering the convenience of file retrieval, the file name contains recording time information as follows: VidYYMMDD_hhmmss.mp4
Continuous video recording
The external power supply allows this device to continuously record video without being limited to battery capacity.
Hidden recording
This function must be set in the settings menu security function. In Hidden recording mode after 10-seconds video recording, the screen automatically switches to the clock display. Video recording, however, continues and is indicated by a "blue dot" display on the top right corner of the screen.
File directory structure
\\VIDEO | Video directory |
\\MUSIC | Music directory |
\\PICTURE | Image directory |
\\REC\VIDEO | Video record directory |
\\REC\AUDIO | Audio record directory |
\\REC\PICTURE | Photo record directory |
The files should be placed in specific directory. For example, MP3 music files must be in the \\MUSIC directory, otherwise they cannot play.
Video recording function needs more than 512MB on a Micro-SD card and enough effective memory space (the total available space and the space of all existing video files), otherwise, video will not record and a message will display on the screen.
For general operation, please note the screen display, press the VOL- / and VOL+ /
button to select function Press the OK button to confirm and the ESC button to go back. Most of the unit's functions can be accessed this way.
Entering security interface
In the main interface, press the VOL- /and VOL+ /
buttons together for more than three (3) seconds to enter the security interface. You can return to main interface with same action. In the interface of file list (video, music, pictures), press VOL- /
and VOL+ /
buttons together for more than three (3) seconds to enter the hidden file list interface, which includes file list of camera, audio recordings and pictures.
Press the ESC button to exit and return to the common file list interface.
Operation of file list
Enter the music, video, picture browsing function from the main interface to find the related file list, in file list interface.
Press the MENU button to view the popup menu.
Music / video play
Press the MODE button. The indicator on the volume bar turns blue, and it is in second function mode. Press the MODE button again to return to normal mode.
Normal mode:
Second function mode:
General operation:
Radio operation
To start the radio, insert earphones or insert audio line into the LINE IN port and press the MODE button. The indicator on the volume bar turns blue, and it is in second function mode. Press the MODE button again to return to normal mode.
Normal mode:
Second function mode:
Audio input
Insert audio line into the LINE-IN port, and it can be used as external speaker.
Video/ Audio record
After entering the recording mode, press the OK button. A message box will display on screen asking whether or not stop.
Once in recording mode, press the ESC button to enter the clock display interface (recording
has not stopped). In clock display interface, press the VOL- / and VOL+ /
buttons for three (3) seconds to return to video/audio recording interface (recording has not stopped). In clock display interface, press the ESC button to save the recording and exit to the main interface (recording has stopped). When the automatic record mode is set, the system will enter the clock display interface and begin recording automatically if there is no operation in the main interface.
When the hidden record mode is set, the clock will display automatically after starting video/audio recording for 10 seconds.
There will be a "dot" showing on the right corner of the screen indicating that video/ audio is recording.
Web cam operation
The web cam driver should be installed in the PC for the web cam function to activate. When connecting a web cam to the computer with USB cable, web cam function begins automatically. It will return to main interface when USB cable is unconnected.
Connecting to a computer
In main interface, connect to a computer using a USB cable to enter MSDC mode (USB Mode) automatically.
Charge
This product can be charged automatically through the USB port when the charger is connected through a USB cable.
Clock display
How to enter clock display interface:
How to exit time display
Turning off Screen Display
Press the ESC button for three (3) seconds to turn off the LCD display. Press any key again, to turn on screen display.
Key lock
Press the MODE button for three (3) seconds to lock the keys. Press the MODE button for three (3) seconds again to unlock the keys. The key lock function has no effect on the "Screen Display Close" function.
Video decode: | MP4 / 3GP / AVI / ASF |
Audio decode: | MP3 / WMA / WAV / AAC |
Video encode: | MPEG4 |
Video resolution: | 320x240 / 640x464 |
Video frame rate: | Up to 30fps |
Audio encode: | AAC |
Image format: | JPG |
Image resolution: | Up to 2M Pixel |
Speaker power: | 3W |
LCD resolution: | 320x240, TFT |
Storage capacity: | Micro-SD Card, Up to 32GB |
Interface type: | MINI 5 pins USB, USB 1.1/2.0 |
IR LED wavelength: | 940nm |
Battery: | 1000mAH, Compatible with Nokia Li Battery BL-5C |
Charging voltage: | DC-5V |
Working temperature: | -10˚C - 60˚C |
Operating humidity: | 20-80% RH |
Customer Service:
info@itsjumbl.com 866-849-3049
www.ItsJumbl.com
JUMBL is a trademark of C&A IP Holdings, LLC
©2015 All Rights Reserved
Distributed by C&A Marketing, Inc.
2 Bergen Turnpike,
Ridgefield Park, NJ 07660 1-866-849-3049
