Tineco TOASTY ONE Series - Smart Toaster Manual

Important Safety Instructions

Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

1.
   READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
2. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the toaster.
3. Do not touch hot surface. Use power button or touch screen only.
4. To protect against electrical shock, do not immerse cord, plug, or any part of the toaster in water or other liquid.
5. Close attention is necessary when used by or near children, pets or plants.
6. Unplug unit from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
7. Do not operate any appliance with a damaged cord or plug, or in abnormal state. If its main cord is damaged, it must be replaced by the manufacturer, the nearest service agent or a qualified person.
8. Do not let the cord hang over edge of table or counter, or touch hot surface.
9. Do not use the appliance for other than its intended use.
10.
    Oversize food, metal foil packages or utensils must not be inserted in the toaster as they may cause fire or electric shock.
11. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
12. Don't attempt to dislodge food when toaster is in operation.
13. Be sure to take the bread out carefully after toasting so as to avoid injuries.
14. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
15. Keep the appliance and its cord out of reach of children less than 8 years.
16. Warning: if toast of small bread slices less than 85mm length, you must pay attention to the potential risk of burning when taking out the slices.
17. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
18. Don't use the appliance outdoors.
19. The hot surface warning symbol marked on the appliance means that the appliance may be hot during use.
20. To disconnect, turn any control to "off", then remove plug from wall outlet.
21. When heating toaster pastries, always use the lightest toast color setting.
22. Do not operate unattended.
23. A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
24. Do not place on or near a hot gas or electric burner, or in a heated oven.
25. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

Shock Hazard
Your toaster is fitted with a short power supply cord to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised.

If a longer extension cord is used, the marked electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must also be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over, and if the appliance is of the grounded type, the cord set of extension cord should be a grounding-type 3-wire cord.

To avoid electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

Note: This toaster is electronically controlled and should be used with 120-volt power outlet.

ADDITIONAL SAFEGUARD INFORMATION

DO

• Always use toaster in the upright position.
• Before each use, make sure that the crumb tray is in its proper location.
• Regularly remove crumbs from the crumb tray.
• If food jams in the toaster slots while toasting, unplug from the outlet or turn off the power and wait for the toaster to cool before removing the food.
• Unplug the toaster or turn off the power if it shows any working abnormalities.

DO NOT

• Do not leave the toaster unattended during operation.
• Do not immerse toaster in water or run water into the toaster.
• Do not place the toaster in the dishwasher.
• Do not touch hot surfaces of the toaster.
• Do not transport the toaster by grasping the toaster slots.
• Do not put body parts in the toaster slots.
• Do not attempt to toast foods with ingredients that melt or drip in the toaster.
• Do not toast torn slices of bread.
• Do not place buttered bread or wrapped food into the toaster.
• Do not toast small-size breads, mini-baguettes, breadsticks, etc. in this toaster.
• Do not toast foods thicker than one inch in the toasting slots.
• Do not cover this appliance while in use.
• Do not use this appliance as source of heating or drying.
• Do not use this toaster near any flammable materials such as curtains, under shelving or wall cupboards, etc.
• Do not put paper, cardboard or plastic, or cloth in, on or under the toaster.
• Do not operate toaster under or around any flammable materials.
• Do not use the toaster for cooking, grilling or defrosting frozen food other than recommended food products (bread, bagel, waffle, English muffin, toaster pastry).
• Do not unplug appliance by pulling on cord. Instead, grasp plug and pull to disconnect.
• Do not wrap cord around toaster.
• Do not insert non-food objects into the toaster.
• Do not toast food items that are not recommended for this toaster. Recommended food items are bread, bagels, waffles, English muffins and toaster pastries only. Placing other food items in the toaster can cause a fire.

SAVE THESE INSTRUCTIONS

This product has been designed for household use only. Any professional use, inappropriate use or failure to comply with the instructions will void the warranty.

Specifications

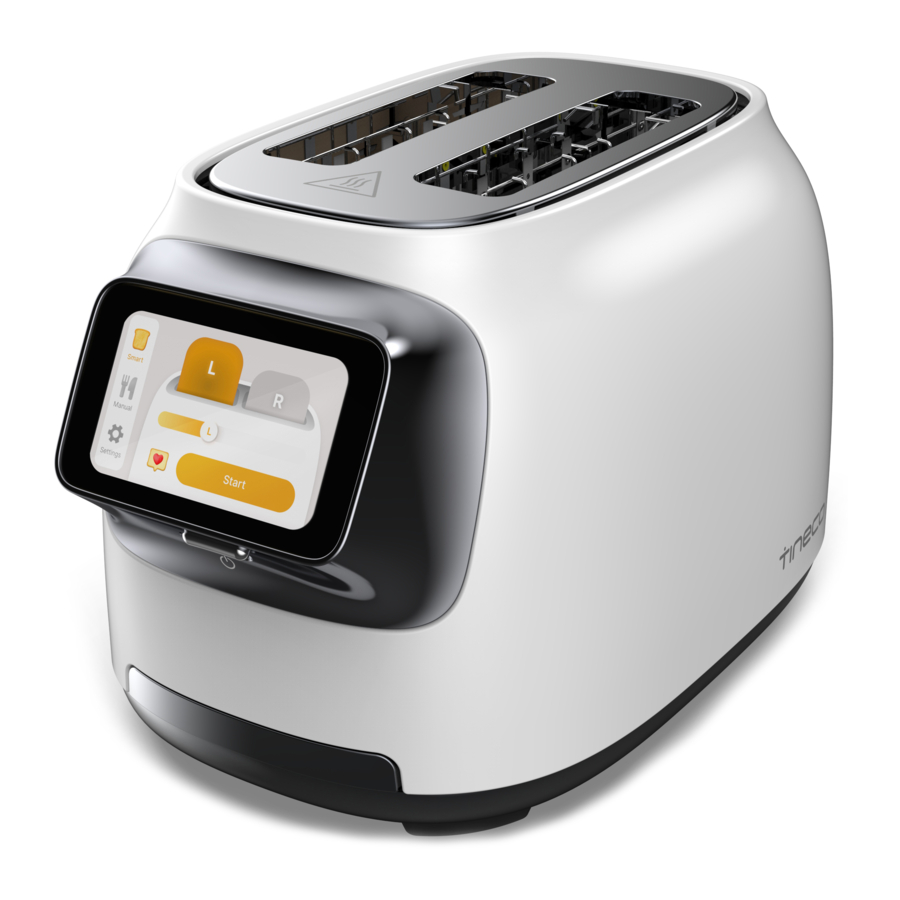

Overview

1. Left toaster slot
2. Housing
3. Plug
4. Power button
5. Removable crumb tray
6. Right toaster slot
7. Touch screen
8. Cleaning tool

Power Button

• Press the button to turn on the appliance.
• Hold the button for 3 seconds to turn off.
• The appliance will lock the screen if no operation in 30 seconds.
• The appliance will shut down if no operation in 10 minutes.

Operation

Preparing for Use

Before first use, remove any packaging material attached to your toaster, including the cardboard on the toaster slots and the adhesive cling on the touchscreen. Place the toaster on a countertop and plug it into a grounded power outlet.

Note:

• The toaster may emit a thin smoke or distinct odor when used for the first time. This is normal and not detrimental to the performance of the toaster and will not occur after several uses.
• It is suggested to operate according to the below steps without bread, then let the toaster cool down and begin toasting the first slice.

Mode Description

• Smart mode
  Only for toasting bread slices. Smart sensor identifies the bread brownness level, the left and right slots control the toasting color and degree, and it can also save personal toasting preference.
• Manual mode
  Recommended for toasting bagels/ waffles/muffins and other types of bread, it has 4 toasting levels with Frozen, Fresh and Reheat modules.

Introduction of Smart Mode

• Insert bread slices (two slices at most each time) into the bread slot. Only regular slices can be inserted.


Note:

1. Make sure the crumb tray is positioned in place before using.
2. Place the toast right in the middle of the slot.

• Choose the slot you want to set.
• Set toast shade control slider to your desired color. From left to right, the color is from light to dark. The bread slice can be toasted to golden color at the middle position.
• When the setup is complete, tap Start to begin toasting.
• The baking progress will be displayed on the screen, once the bread has been toasted to the preset color, the bread will automatically pop up.

• During toasting, you may also observe the toasting color. If it is satisfactory, you can tap Cancel to stop at any time.
• The toaster can save your toasting preferences in Smart Mode, and when you use it next time, you can simply select the Favorites icon to toast the bread slices.


Introduction of Manual Mode

Place your food in the slots, select toasting functions and desired level of toasting.

• Fresh – for fresh foods or foods you keep on the counter or fridge.
• Frozen – for foods you keep in the freezer.
• Reheat – reheating food that has been toasted but cooled down, completed in 30 seconds.

• If toaster starts to smoke, tap Cancel or power off immediately.
• Avoid toasting the food with extremely runny ingredients such as butter.
• The bread slots are only suitable for baking ordinary slices of bread or recommended types of bread.
• Be sure not to damage the internal mechanism or heating elements when removing bread.
• In order to achieve uniform color, we recommend that you wait at least 30s between each toasting so that color control can reset automatically.

How to Personalize Your Device

Two personalization functions: Manage toaster slots and Change language

The left and right slots of the toaster can be controlled independently or together.

There are 5 languages for you to choose, you can also choose your preferred one.

Maintenance

To clean any crumbs from the toaster, remove the crumb tray by pulling it outwards. replace the crumb tray by sliding it inwards until it locks into position. And empty the crumb tray before using the toaster again.
Note: If toaster is used frequently, accumulated bread crumbs should be removed at least once a week.

Use the cleaning tool provided by Tineco to clean any crumbs left in the toaster. Do not use sharp tools that may damage the appliance. Unplug then turn the toaster upside down and shake gently to remove any crumb residue.

Note:

• Do not use abrasive cleansers. Wipe the outside with soft dry cloth, never use metal polish. Simply wipe the exterior with a clean damp cloth and dry thoroughly. Apply any cleansing agent to a cloth, not to the toaster, before cleaning.
• Unplug the toaster from the power outlet and allow the toaster to cool completely before storing. For long-term storage, we recommend returning your toaster to its original packaging.
• Any other servicing should be performed by an authorized service or manufacturer representative. If you are experiencing problems with your toaster, please visit website www.tineco.com for further support.
