Nexa MWMR-2300 - Built-In Relay Manual

INTRODUCTION

Devices that support Smart Mode can save up to 3 different favourite scenarios, and these can be activated easily using a Nexa Smart Mode transmitter.

Built-in receiver for permanent installation. Small, compact size for positioning in a junction box or switchbox. Can be connected to an existing switch with 230 VAC control. The receiver needs both phase and neutral. The receiver is fully compatible with other System Nexa products.

SAFETY

Read through the entire instruction first. Engage a professional if so required. Nexa cannot be held liable if the product is used for any purpose other than the one for which it is designed, or if there is failure to comply with the instruction.

Never connect bulbs or equipment exceeding the receiver's maximum stated load – this may lead to faults, short-circuiting or fire.

Do not attempt to repair the product. The product contains no repairable parts.

INSTALLATION

Make sure that the conductors are powered down by turning off the power in the distribution box.

Connect Phase to L, Charge/Bridgewire to L and Neutral conductor to N – see also the wiring diagram.

LINKING

With X-Link & switch connected to S-input

1. Power up MWMR-2300.
2. Switch the power switch between ON and OFF three times within 1.5 seconds to enable linking mode. The connected light flashes 3 times as confirmation that linking mode is active.
3. Press the "ON" button for the selected channel on a System Nexa remote control/transmitter within 6 seconds.

Without X-Link

1. Power up MWMR-2300.
2. Press the linking button, the LED indicator starts to flash.
3. Press the "ON" button for the selected channel on a System Nexa remote control within 6 seconds.

LINKING CONFIRMATION

The LED indicator on the receiver flashes rapidly.

DELETING A MEMORY SLOT

1. Power up MWMR-2300.
2. Press the learn button, the LED indicator starts to flash.
3. Press the "OFF" button for the selected channel on a System Nexa remote control within 12 seconds.

CONFIRMATION OF DELETION

The LED indicator on the receiver flashes rapidly.

DELETING ALL MEMORY SLOTS

1. Power up MWMR-2300.
2. Press and hold down the learn button for 6 seconds, the LED indicator starts to flash.
3. Release the learn button and then press it again briefly. All storage locations are now deleted.

MEMORY SLOTS

Every MWMR-2300 receiver has 32 storage locations.

When storage location 32 is occupied, location 1 is overwritten during programming.

SHUTDOWN TIMER

MWMR-2300 has a built-in function for automatic shutdown in four different time intervals, this is adjusted using the knob on the front of the receiver.

CONTROL

The receiver can be controlled in a number of ways.

1. With a programmed System Nexa remote control
2. With other programmed System Nexa transmitters
3. With a light switch
4. With a Nexa Bridge

SAFETY AND INFORMATION

Indoor range: up to 30 m (optimal conditions). The range is strongly dependent on local conditions, such as the presence of metals. For example, the thin metal coating in Low-emissivity (Low-E) glass has a negative impact on the range of radio signals.

There may be restrictions on the use of this device outside the EU. If applicable, check whether this device complies with local directives.

Maximum load: Never connect lights or equipment that exceed the maximum load of the receiver, as it can result in defects, a short circuit or fire.

Life-support: Never use Nexa products for life-support systems or other applications in which equipment malfunctions can have lifethreatening consequences.

Interference: All wireless devices may be subject to interference, which could affect performance. The minimum distance between 2 receivers should be at least 50 cm.

Repairing: Do not attempt to repair this product. There are no userserviceable parts inside.

Water-resistance: This product is not water-resistant. Keep it dry. Moisture will corrode the inner electronics and can result in a short circuit, defects and shock hazard.

Cleaning: Use a dry cloth to clean this product. Do not use harsh chemicals, cleaning solvents, or strong detergents.

Environment: Do not expose the product to excessive heat or cold, as it can damage or shorten the life of electronic circuit boards.

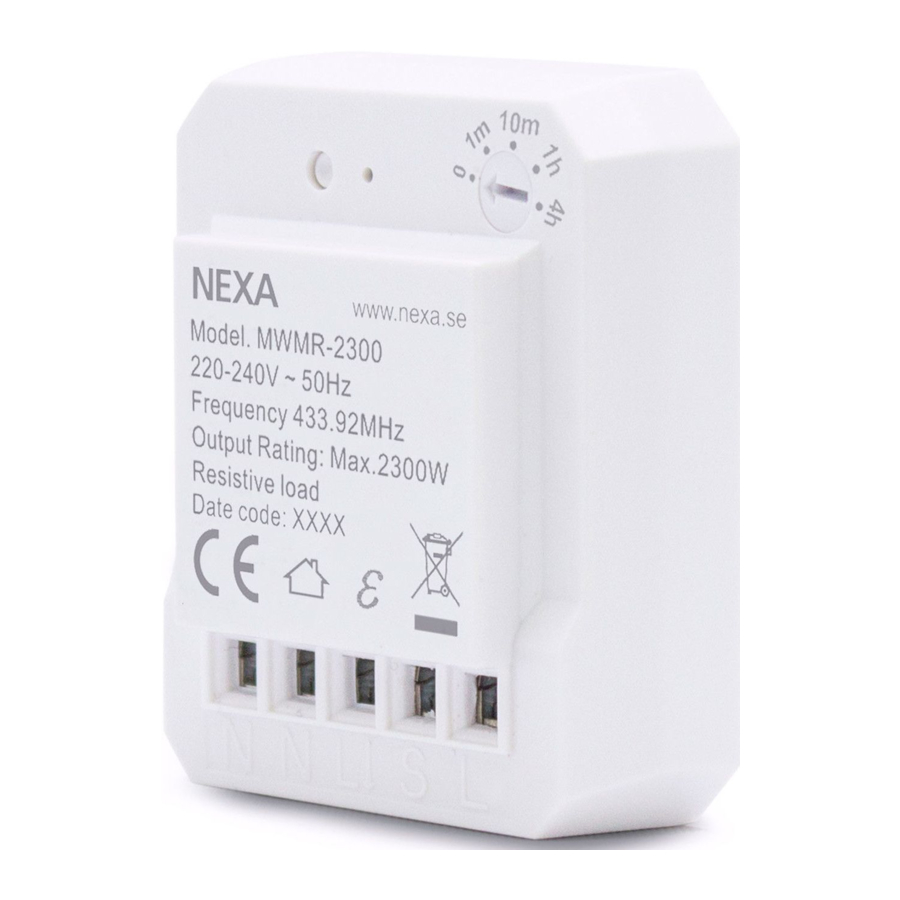

OVERVIEW

N = Neutral
L = Controlled voltage
S = Input for light switch (220-240V)
L = Phase

WIRING DIAGRAM

STAIRCASE WIRING

TECHNICAL DATA

Declaration of conformity is available at www.nexa.se
