Youzhuan YZ-50 - Music Controller Manual

Warmly Tips

1. Apply to AC90V~250V.
2. When wiring, please follows the installation guide, if the wiring is wrong, it will cause some problems.
3. Speaker cable must be connected to the speaker terminal, not others.
4. After confirming the wiring is right, turn on the machine.
5. The machine is high-precision product, do not dismantle by yourself.
6. Don't alter any part of this machine.
7. If this machine has any problem when using, please contact with local distributor or our company.

Installation and Removal

1. Embedded 86mm back box, depth ≥50mm, we suggest that the installation height is the same as the light switch.
2. Cables: power cord, audio cable, speaker cable. About the AVG, please refer to Connection Diagram of Output, please use conduit/slot to laying to ensure the cable's working life and stability.
3. Wiring: when many products, wiring in parallel, you can connect from the cable or distributing box

1. Twist the screws at the bottom

2. Open the machine.

3. After wiring, plug in the wiring terminal.

4. When finished, put it into back box, fix it with screws.

5. Cover the panel as shown.

6. Lock screws.

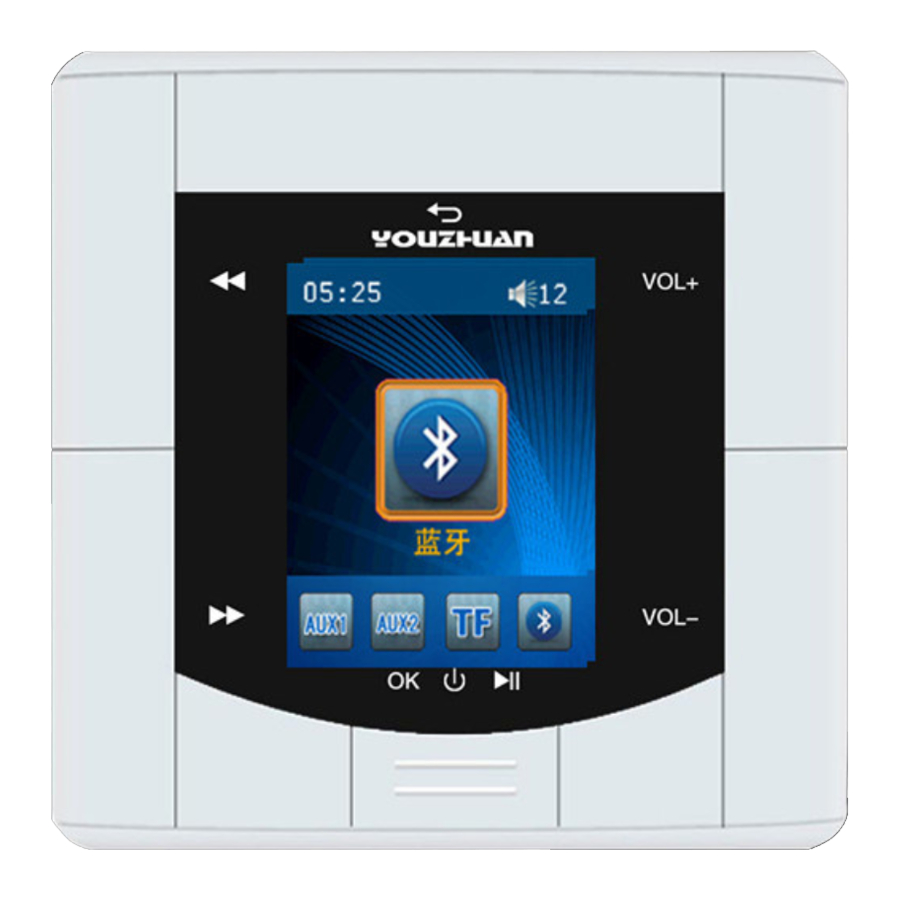

Appearance Description

Features

1. Built-in Philips amplifier.
2. Audio sources: AUX1/AUX2, you can connect your TV, PC, DVD,etc., 3.5mm audio interface, built-in TF card, U disk, FM radio.
3. Timer power-on/off: you can set any time, any volume, any audio source to power on, set any time to power off.
4. With memory function in case of power-down.
5. Installation is very easy, do not need the professional knowledge, DIY music space.

Operation instructions

1. After connecting 220V power supply, push the switch to "ON", five seconds later, it will display "music", press to turn on or turn off.
2. PLAY/PAUSE
   When play music, press to pause, press again to play.
3. FM radio
   Press "FM radio" on the remote control, or on the panel to select the FM radio then press , enter into the FM radio, long press for 3 seconds or shortcut on the remote control to exit.
4. Audio sources select
   In the main interface, press to change audio sources, or operate it on the remote control.
5. Setting time
   In the main interface, press to enter into (settings), select (date/time setting).
6. Volume adjustment
   Press VOL- to reduce the volume, press VOL+ to increase the volume.
7. Time power-on
   On the main interface, press to enter into (settings), select (date/time setting), then press , and select A1
   1. When it is on, press to select ON or OFF.
   2. Set Ringer Tone: press to select the song to start to play when it is power on, then press .
   3. Ring volume: press to adjust volume, then press OK.
   4. Time: press to set time of power on, then press , press , A2 and A3 is the same as A1.
8. Time power-off
   Please refer to the time power-on.
9. Settings
   Press "setup" on the remote control or on the panel to set.
   1. Language Settings: Chinese/English
   2. Reset to Factory Defaults: press into "Reset to Factory Defaults", select Yes or No.
      Display Settings: press into Display Settings, press on the remote control to select, press .
10. Copy or delete files.
    Please use a data line to connect it to the PC (NOTE:when connect to the PC, please shut down switch)
11. After finished all settings, only restart the machine, it will work.

Installation Diagram

Wiring Description

Power supply: AC90V~250V, power cord
Output: speaker cable, RVH2*100 RVH2*200
Input: AUX1/AUX2, RVVP2*0.5 RVVP2*0.75
FM radio antenna: solid wireline

System Diagram

Parameters

More info, please visit: www.youzhuan.net
