Freaks And Geeks PRO DUO CONTROLLERS PACK Manual

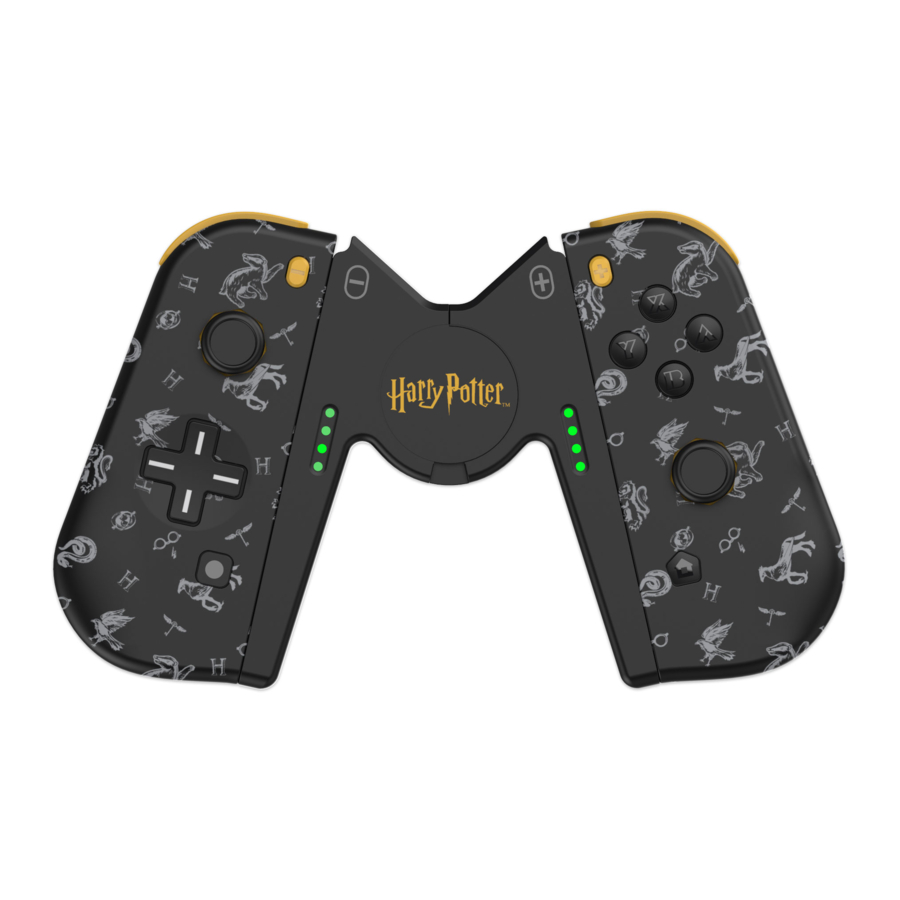

PRODUCT DESCRIPTION

1. Capture Button
2. Directional Buttons
3. Left Stick
4. Button
5. L Button
6. LED player indicators
7. R Button
8. + Button
9. A/B/X/Y Button
10. Right Stick
11. HOME Button
12. ZL Button
13. Release Button
14. Release Button
15. ZR Button
16. SL Button
17. Power-ff Button
18. SR Button
19. SR Button
20. SL Button
21. Charging Port
22. Reset

HOW TO CONNECT

Handheld mode

1. Slide the controller own until it make a sound, ensuring that it is correctly oriented and inserted all the way.
2. The console will detect that the controller has been attached.
3. Your controller is now ready to use


Grip mode

Slide the controller own until it make a sound, ensuring that it is correctly oriented and inserted all the way.

FIRST CONNECTION

1. Turn on the console
2. Click on "Settings" from the menu.
3. Select "System Settings - airplane mode - controller connection, to activate the Bluetooth function.

1. Activate the controllers by pressing on one of the UP / DOWN / LEFT / RIGHT buttons on the left controller and on one of the A/ B / X / Y buttons of the right controller. The LEDs on the controller will start to flash.
2. Press the "mode" button on the controller side (left or right) for 3 seconds, the LEDs flash indicating the pairing.
3. Activate the console and press "CONTROLLERS" in the menu, select "Change handle / Order and the console automatically searches for controllers.
4. press "A" at the end of the connection and close the window.

After the first installation and if the console's Bluetooth connection is active, the controllers connect autonomously when the console is switched on.

HOW TO RECONNECT

ACTIVATION:

1. To activate the controllers press UP / DOWN / LEFT / RIGHT on the left controller and A / B / X / Y on the right controller. The LEDs flash slowly in circular mode.
2. Press the "MODE" button for 3 seconds to access the connection mode and release when the LEDs flash faster. Once connected, the LEDs remain steady.

DISABLING: To deactivate the controllers press and hold the MODE button for 3 seconds.

HOW TO CHARGE THE CONTROLLER

The controllercan be charged in the following ways:

1. Connect the controller to the Switch dock using the USB cable or connect it directly to the Switch AC adapter.

2. Charge through the console. Attach the controller to the Switch console and power it on. In order for the controller to charge, while attached to the Switch console, the console must be connected to the AC adapter and powered on or in Sleep Mode.


* The AC Adapter is not included in the bundle.

STAND-BY

Controllers automatically set to Stand-by mode if they do not detect compatible devices during the connection procedure and if not in use for 5 minutes.

RESET

If abnormal operation is noted, if the gamepad does not respond to commands, automatic crashes and other causes, a Reset can be performed. Use a pointed object and press the button on the side next to the charging socket (22).

SENSOR CALIBRATION

To calibrate the sensors, simultaneously press and hold the SR and MODE buttons. Then press A/ B / X / Y or UP / DOWN / LEFT / RIGHT. The LED1 and LED2 light up. Place the gamepad on a flat surface and press SL to proceed with the calibration.

3D CALIBRATION

Press L3 / R3 (left / right3D) and hold. Then press A/B/X/Y or UP / DOWN / LEFT / RIGHT. The LED3 and LED4 light up. Then press the SL button to activate the calibration, the 4 LEDs light up. Move the stick several times and press the SL button to finish the calibration.

SPECIFICATIONS

LED

When the gamepad is off, press UP / DOWN / LEFT / RIGHT on the left gamepad and A / B / X / Y on the right gamepad to activate.

• Press the "MODE" button for 3 seconds, the 4 LEDs flash quickly. Following the connection, the LEDs remain fixed.
• When the battery is almost flat, the LEDs flash slowly and with a low battery the gamepads turn off automatically.
• If the console's Bluetooth connection is interrupted or if in standby mode, the gamepads automatically turn off.
• The console allows the connection of 7 gamepads simultaneously. Each LED indicates the relative connection channel. LED1 lit indicates connection to the first channel, LED1 + LED2 indicate connection to the second channel, LED1 + LED2 + LED3 indicate the connection to the third channel and LED1 + LED2 + LED3 + LED4 to the fourth channel.
• The usage time is about 10 hours in vibration mode and about 20 hours in inactive vibration mode.

HOW TO TURN OFF CONTROLLERS

1. When controller is connecting with Switch console, by holding down the POWER Button to Power Off the Console, controller will power off as well.
2. When controllers turned on, disconnected with console, by pressing[Power-off Button]at side of controller to turn it off.

• Use only the supplied type-C charging cable to charge this product.- If you hear a suspicious sound, smoke, or a strange smell, stop using this product.
• Do not expose this product or the battery it contains to microwaves, high temperatures, or direct sunlight.
• Do not let this product come in contact with liquids or handle it with wet or greasy hands. If liquid gets inside, stop using this product - Do not subject this product or the battery it contains to excessive force. Do not pull on the cable or bend it sharply.
• Do not touch this product while it is charging during a thunderstorm.- Keep this product and its packaging out of reach of young children. Packaging elements could be ingested. The cable could wrap around children's necks.
• People with injuries or problems with fingers, hands or arms should not use the vibration function
• Do not attempt to disassemble or repair this product or the battery pack. If either is damaged, stop using the product.
• If the product is dirty, wipe it with a soft, dry cloth. Avoid the use of thinner, benzene or alcohol.

SOFTWARE UPDATE

If Nintendo updates the system in future, your controllers should need an update. Go to www.freaksandgeeks.eu and follow instructions. If your controller work well, DO NOT update your controller, which maybe cause controller's system confusion.
