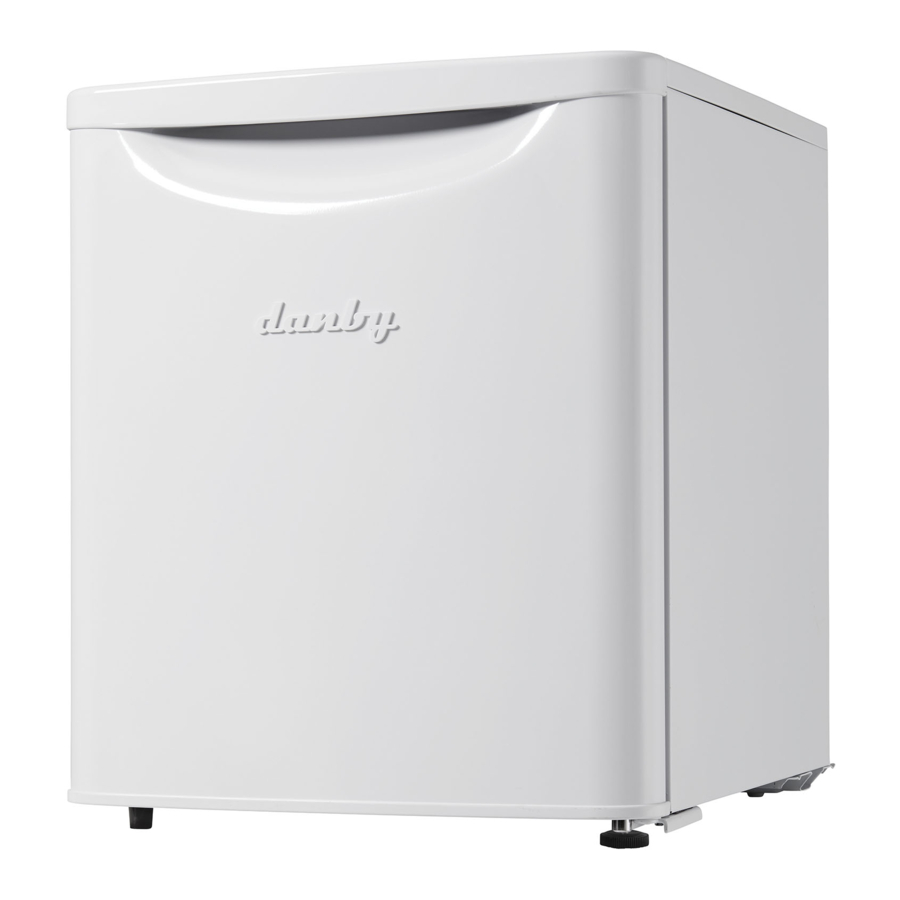

Danby DAR017A3WDB, DAR017A3BDB, DAR017A3BSLDB - 1.7 cu. ft. Fridge Manual

Danby DAR017A3WDB, DAR017A3BDB, DAR017A3BSLDB - 1.7 cu. ft. Fridge Manual

Also See for DAR017A3WDB:

Advertisement

Danby DAR017A3WDB, DAR017A3BDB, DAR017A3BSLDB - 1.7 cu. ft. Fridge Manual

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS


Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

  • Do not use mechanical devices to defrost refrigerator.
  • Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
  • If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
  • Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
  • Dispose of properly in accordance with federal or local regulations.
  • Follow handling instructions carefully.
  • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.


Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.


Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.


Do not damage the refrigerant circuit.


Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.


Children should be supervised to ensure that they do not play with the appliance.


Risk of child entrapment. Before throwing away an old appliance:

  • Remove the door or lid.
  • Leave shelves in place so that children may not easily climb inside.


Do not add a lock to the door or lid. This can cause child entrapment and harm.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

  • Staff kitchen areas in shops, offices and other working environments;
  • Farm houses and by clients in hotels, motels and other residential type environments;
  • Bed and breakfast type environments;
  • Catering and similar non-retail applications.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.


Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

SAVE THESE INSTRUCTIONS!

INSTALLATION INSTRUCTIONS

LOCATION

  • Two people should be used when moving the appliance.
  • Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm, wet cloth.
  • Place the appliance on a floor that is strong enough to support it when it is fully loaded.
  • Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
  • Do not use the appliance near water, for example in a wet basement or near a sink.
  • This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
  • Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
  • This appliance is 44.9 cm (17.7 inches) wide by 51 cm (20.1 inches) high by 50.3 cm (19.8 inches) deep. Make sure that you leave the minimum amount of space between the appliance and all surrounding walls and vents.
  • Allow 12.7 cm (5 inches) of space between the back of the appliance and the wall. Allow 5 cm (2 inches) between the sides and top of the appliance and any walls or counter tops.
  • This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

FEATURES

FEATURES

  • Glass Shelves
  • CANSTOR™ Door Liner: Holds 355ml cans of pop, juice, or beer.
  • Bottle Rack: For tall, small and medium cans or jars.
  • Magnetic Gasket: Tight fitting door seal keeps all the cooling power locked inside.
  • Leveling Leg: Adjust so the unit is level.
  • Defrost Water Outlet (not pictured): Ice that forms inside the appliance will automatically thaw and drain through this outlet.
  • Thermostat Dial (not pictured): Used to control the temperature inside the appliance.
  • Interior Light (not pictured)

OPERATING INSTRUCTIONS

THERMOSTAT DIAL AND INTERIOR LIGHT

The thermostat dial and interior light housing are located on the inner ceiling of the appliance.

TEMPERATURE SELECTION

TEMPERATURE SELECTION
The temperature of the appliance can be adjusted by turning the thermostat dial on the ceiling of the cabinet.

  • The larger, darker dots indicate the coldest setting.
  • The smaller, lighter dots indicate the warmest setting.
  • The "OFF" position will turn off the cooling function.

Internal temperature of the appliance can vary based on ambient temperature, the quantity of items stored and how frequently the door is opened.

INTERIOR LIGHT

INTERIOR LIGHT

The interior LED light will turn on when the door of the appliance is opened and will turn off when the door is closed.

If the interior light burns out, contact a Danby certified service technician to have it replaced.

warning Note: The functionality of the appliance is not affected if the light has burned out.

LEVELING INSTRUCTIONS


There is an adjustable leg on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.

  1. Turn the leveling leg counter-clockwise until the top of the foot is touching the bottom of the cabinet.
  2. Slowly turn the leveling leg clockwise until the appliance is level.

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

  1. Remove the three screws from the back of the worktop. Lift the back of the worktop and pull it toward the front of the appliance to remove it. Remove the worktop hinge hole cover from the left side of the worktop and move it to the hinge hole on the right side of the worktop.
  2. Remove the door spindle cover that covers the hinge on the top left side of the door. Remove the hole cover from the top right side of the door. Removing the hole cover may require a fl at blade screwdriver.
  3. Remove the upper hinge from the top right side of the cabinet. Remove the door from the cabinet.
  4. Remove the lower hinge hole cover from the bottom left side of the door and move it to the bottom right side of the door.
  5. Remove the adjustable foot and the lower hinge from the bottom right side of the cabinet. Remove the solid foot and screws from the bottom left side of the cabinet. Install the solid foot on the bottom right side of the cabinet. Install the lower hinge and the adjustable foot on the lower left side of the cabinet.
  6. Remove the hinge pin from the upper hinge. Flip the upper hinge over and install the hinge pin on the other side.
  7. Install the upper hinge and door onto the cabinet.
  8. Install the door spindle cover to cover the hinge on the top right side of the door. Install the hole cover in the hole on the top left side of the door.
  9. Install the worktop by laying it on top of the appliance and pushing it toward the back until it clicks into place and then reinstall the three screws at the back.

warning Note: When reinstalling the door, ensure that the top of the door is level with the top of the cabinet and that the rubber gasket makes a good seal with the cabinet all the way around.

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

  • To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or some mild detergent.
  • Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
  • Clean the outside with a soft, damp cloth and some mild detergent.
  • It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

warning Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of the appliance if the door is kept closed as much as possible. If the power is going to be off for a longer period of time, take steps to protect the contents.

warning Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

  • Short vacations: Leave the appliance operating during vacations of less than three weeks.
  • Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

  • Make sure the appliance is empty.
  • Secure the shelves inside the appliance with tape.
  • Turn the adjustable leg up to the base to avoid damage.
  • Secure the door with tape.
  • Be sure the appliance stays in the upright position during transportation. Protect the outside of the appliance with a blanket or similar item.
  • If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time Friday 8:30 am - 4:00 pm Eastern Standard Time Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE
No power
  • A fuse may be blown or the circuit breaker tripped
  • Plug not fully inserted into the wall outlet
Internal temperature not cold enough
  • Temperature setting is too warm
  • Door is not shut properly or opened excessively
  • Recently added a large quantity of warm food to the cabinet
  • Close proximity to heat source or direct sunlight
  • Ambient temperature or humidity is very high
Appliance runs continuously
  • Temperature setting is too cold
  • Door not shut properly or opened excessively
  • Recently added a large quantity of warm food to the cabinet
  • Close proximity to heat source or direct sunlight
  • Ambient temperature or humidity is very high

www.Danby.com
