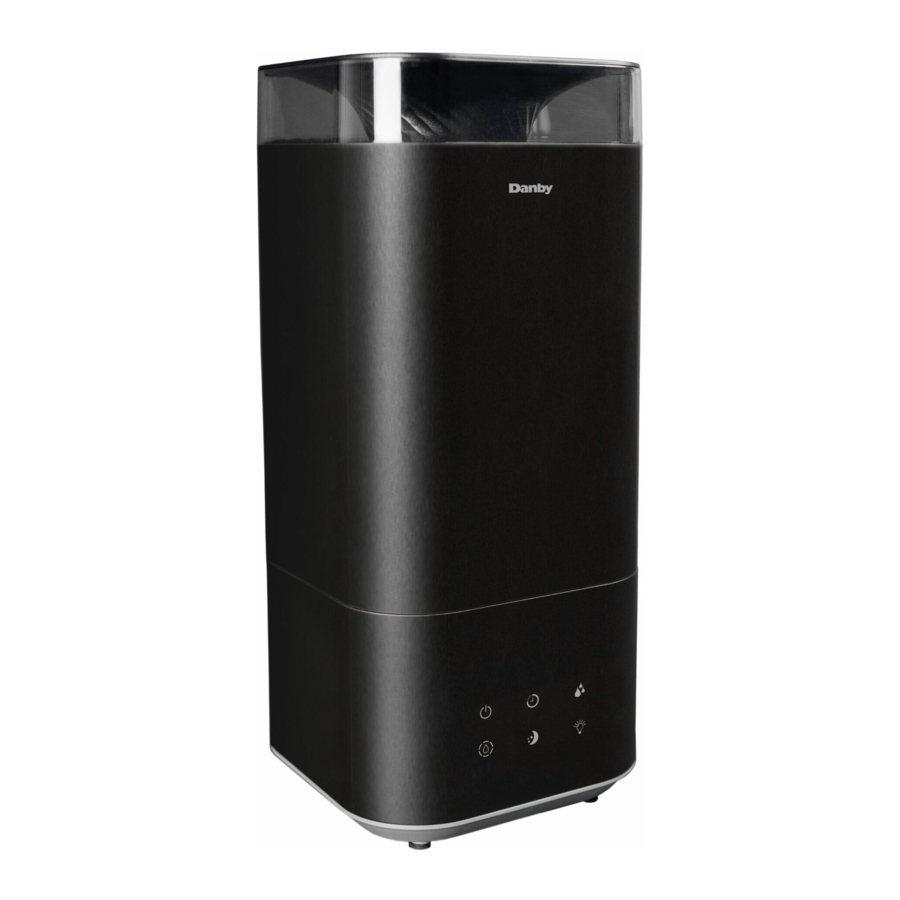

Danby DBHR13211BDD1 - 5L Ultrasonic Top Fill Humidifier Manual

Danby DBHR13211BDD1 - 5L Ultrasonic Top Fill Humidifier Manual

Also See for DBHR13211BDD1:

Advertisement

Danby DBHR13211BDD1 - 5L Ultrasonic Top Fill Humidifier Manual

IMPORTANT SAFETY INFORMATION

warning READ AND SAVE THESE INSTRUCTIONS

  • Read all instructions before using the appliance.
  • The humidifier should always be placed on a firm, flat, waterproof surface at least 4 feet (1.2 m) from the bedside and 12 inches (30 cm) from the wall, out of reach of patients, children and pets.
  • Be sure the humidifier is in a stable position and the power cord is away from heated surfaces.
  • Keep the power cord away from walkways to avoid a tripping hazard.
  • Do not use outdoors; this appliance is intended for indoor use.
  • Plug and unplug the humidifier with dry hands.
  • Be sure to unplug the appliance by pulling on the plug and not the cord.
  • Shut off and unplug the humidifier before moving it. Never tilt, move or attempt to empty the humidifier when it is operating.
  • Empty the water tank and base before moving the humidifier in case of water leakage.
  • Use both hands when carrying the full tank of water.
  • Do not pour water in any openings other than the water tank.
  • Do not drop or insert any object into any openings on the appliance.
  • Do not block intake or output vents.
  • Do not add any additives, medications, inhalants, scented products or essential oils into the water tank or base.
  • Do not operate the humidifier without water.
  • Unplug the humidifier when not in operation or when cleaning.
  • To avoid bacterial breeding, the humidifier requires regular cleaning. Refer to cleaning and maintenance.
  • Never pour water on the base and do not immerse it in liquids.
  • Unplug the humidifier and clean the water tank when the appliance will not be in operation for more than 3 days.
  • Do not operate the humidifier when the cord or plug has been damaged.
  • If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid hazard.
  • Do not attempt to repair or adjust any electrical or mechanical functions of this appliance. Doing so will void the warranty.
  • Please use distilled or demineralized water, below 104°F (40°C), to maintain best indoor air quality.
  • Children shall not play with the appliance.
  • Cleaning and user maintenance shall not be made by children without supervision.
  • Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
  • Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes or tablecloths to become damp.
  • Never leave water in the reservoir when the appliance is not in use.
  • Empty and clean the humidifier before storage. Clean the humidifier before next use if it has been in storage.

  • Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown into the air causing very serious health risks when the water is not renewed and the tank is not properly cleaned every 3 days.
  • Empty the tank and refill it every third day. Before refilling, clean it with fresh tap water and a mild cleaner. Remove any scale, deposits or film that has formed on the sides of the tank or interior surfaces and wipe all surfaces dry.

OPERATING INSTRUCTIONS

FEATURES

FEATURES

  1. Atomization outlet
  2. Upper cover
  3. Mist duct
  4. Water tank
  5. Water tray
  6. Base
  7. Control panel
  8. Aromatherapy box and filters (on bottom, not pictured)

CONTROL PANEL

Buttons Description
Humidity display
The current ambient humidity will show on the display.
Power button
Press to turn the appliance on or off.
Atomization button
The atomization level will set the size of the water droplets created by the appliance. Press this button repeatedly to set the atomization level: small, medium or large.
Light button
Press to turn the light on or off.
Timer button
The timer can be used to set the appliance to automatically turn off after 1, 2, 4 or 8 hours. Press this button repeatedly to set the timer.
Humidity level button
The humidity level can be set between 40 - 60% relative humidity. Press this button repeatedly to set the humidity level. At 60%, press this button again to display F, which indicates the appliance has been set to continuous humidification. Press this button again to return to 40%.
Sleep button
Press to set sleep mode. This will set the appliance to run with the light and display turned off. Press this button again to return to normal functioning.

INSTRUCTIONS FOR USE

  • Be sure to unplug the power cord before filling with water.
  • Do not overfill the water tank.
  • Do not add water through the atomization outlet.
  • Do not add essential oils, perfumes or other additives to the water.
  • Use purified water below 104°F (40°C).

ATOMIZER DIRECTION ADJUSTMENT


The atomization outlet can be rotated 360°. Turn the atomizer in the desired direction to direct the flow of atomized water vapour.

AROMATHERAPY BOX


The aromatherapy box is located on the bottom of the base. Aromatherapy liquids can be added to the round filter and the smell will be circulated with the water vapour.

The square air filter is also found in the aromatherapy box and the flow of air can be impacted if it becomes dirty. The filter can be cleaned by rinsing with warm water.

FILLING THE WATER TANK

There are 3 different ways to fill the water tank.

  1. Fill the water tank directly through the water inlet.
  2. Remove the upper cover and fill the water tank.
  3. Remove the upper cover. Hold the water tank with both hands and lift upwards to remove it from the base. Place the tank under a water tap to fill it with water. When reinstalling the tank on the base, ensure the logo side of the water tank faces toward the same side as the control panel.
    FILLING THE WATER TANK

CLEANING AND MAINTENANCE

AIR FILTER

The square air filter is found in the aromatherapy box on the bottom of the humidifier. The aromatherapy box also includes the round aromatherapy filter.

The flow of air can be impacted if either of these filters becomes dirty. Clean the aromatherapy box and filters by rinsing them with warm water.

CLEANING

  • Unplug the power cord before cleaning.
  • Remove scale and debris from the humidifier tank regularly.
  • Clean the water tank every 3 days.
  • Wipe the water tank with a soft, wet cloth to clean it.
  • The water tray and atomizer can be cleaned with mild detergent. Rinse thoroughly after cleaning.
  • The humidification amount will vary, depending on the temperature and humidity in the room.

This equipment has been tested and found to comply with the limits for Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  1. Reorient or relocate the receiving antenna.
  2. Increase the separation between the equipment and receiver.
  3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  4. Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not approved by the party responsible for FCC and Industry Canada compliance could void the user's authority to operate the equipment.

This device complies with Canadian CAN ICES-1 / NMB-1.

TROUBLESHOOTING

Appliance will not operate

  • Plug is not fully inserted into the wall outlet
  • Blown fuse or circuit breaker
  • The water tank is not properly installed
  • The water tank is empty

Atomized water has an unpleasant smell

  • The water or tank is dirty and needs to be cleaned

Noise

  • The water tank is not properly installed
  • The humidifier is uneven or tilted

Not humidifying enough

  • The air filter is dirty and needs to be cleaned; the air filter is the square found in the aromatherapy box on the bottom of the appliance
  • The water tank is empty

Not humidifying with water in the tank

  • Excessive tilting of the appliance can cause it to show that the water level is low when it is actually full; ensure the appliance is on a flat, level surface

Display shows --

  • This symbol will display if the appliance has recently been plugged in and is starting up; once the start up is complete, this symbol will disappear

Display shows P1

  • The water tank is empty or requires more water; if the humidifier is not on a level surface, the water tank float might be too low and the appliance will display this error. If the humidifier is full of water and showing this error, ensure that it is on a flat, level surface. The humidifier requires enough water to cover the float.

www.Danby.com

DANBY PRODUCTS LIMITED, ONTARIO, CANADA N1H 6Z9
DANBY PRODUCTS INC., FINDLAY, OHIO, USA 45840
