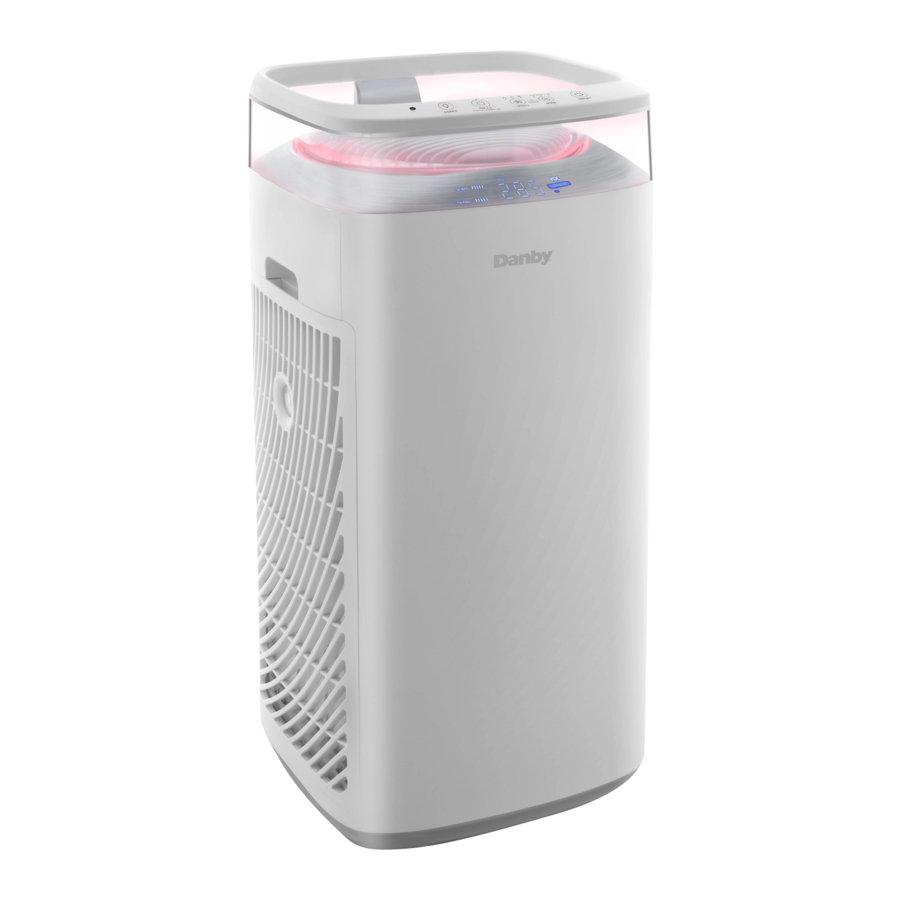

Danby DAP290BAW - Air Purifier up to 450 sq. ft. Manual

Danby DAP290BAW - Air Purifier up to 450 sq. ft. Manual

Also See for DAP290BAW:

Advertisement

Danby DAP290BAW - Air Purifier up to 450 sq. ft. Manual

IMPORTANT SAFETY INFORMATION

warning READ AND FOLLOW ALL SAFETY INSTRUCTIONS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not store or use combustible materials such as gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

Do not insert fingers or other objects into grilles or openings in the appliance.

Do not cover or block the intake and exhaust openings.

Do not operate the appliance without the filter installed.

Do not operate the appliance near heat sources.

This appliance is intended for indoor, residential applications only. Do not use this appliance outdoors. Do not use this appliance for commercial or industrial applications.

burn hazardburn hazard
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

Do not connect the appliance to extension cords, adapters or together with another appliance in the same wall outlet.

Do not splice the power cord. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

shock hazard To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a licensed electrician to install the proper outlet. Do not alter the plug in any way.

shock hazard To avoid risk of electric shock, do not operate this appliance in an area that is likely to accumulate standing water. If this condition develops, disconnect the power supply before stepping into the water.

This appliance complies with the maximum allowable concentration of ozone of 0.05 parts per million by volume in a 24 hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on an average of 8 hours, is 0.02 ppmv or less when tested in a sealed, controlled room approximately 30 m3.

SAVE THESE INSTRUCTIONS!

INSTALLATION INSTRUCTIONS

FILTER INSTALLATION
Ensure that the filter is properly installed before using the appliance. Ensure that the air purifier is unplugged when installing the filter.

  1. Remove the air inlet grille.
  2. Remove the pre-filter by pressing the U-shaped buckle and pulling outward.
  3. Remove the true HEPA filter.
  4. Remove the packaging from the filter.
  5. Install the filter.
  6. Replace the pre-filter by aligning the bottom and pressing the top inward until it clicks.
  7. Replace the air inlet grille by aligning the bottom and pressing the top inward until it clicks.
  8. Repeat this process on both sides of the air purifier for both true HEPA filters.

OPERATING INSTRUCTIONS

FEATURES

FEATURES

  1. PM2.5 sensor
  2. VOC sensor
  3. Air outlet grille
  4. Operation panel
  5. Display screen
  6. Handle
  7. True HEPA filter
  8. Pre-filter
  9. Air inlet grille

Note: Filters are replicated on both sides of the air purifier. They are installed the same way on both sides.

ON FIRST USE

When the air purifier is plugged in for the first time it will go through a start up sequence that will take approximately 1 - 2 minutes. During this time the display panel and indicator lights will flash as the appliance activates.

LIGHT SETTING

The control panel has three brightness settings, normal, dim and off. Press the light button repeatedly to cycle through the options. If it looks like the air purifier is turned off but the fan is still running very quietly, check the light setting. You may have them set to off, which can make the unit look like it is turned off.

OPERATING MODES

This air purifier has three modes: auto, sleep and turbo. The mode indicator light will show which mode is currently active. Pressing the mode button will cycle through the options: auto, sleep and turbo.

AUTO
The air purifier will default to running in auto mode. In auto mode, the air purifier will run the fan at very low speed so that it is able to take readings from the air while remaining extremely quiet.

SLEEP
Press the mode button to activate sleep mode. This mode will turn off the lights and indicators on the control panel except for the sleep light and will run the fan at very low speed to ensure the air purifier is as quiet as possible during sleeping hours.

TURBO
Press the mode button to activate turbo mode. This mode will run the fan at very high speed to purify a large amount of air in a short period of time.

FAN

The fan can be manually set to low, medium or high. Press the fan button to set the desired fan speed. The fan indicator light will show the current speed setting.

CHILD LOCK

Press and hold the fan speed button and the mode button at the same time for 3 seconds to engage the child lock. The unit will chime and a lock icon will illuminate on the control panel next to the prefilter check light. The buttons on the control panel will not function when the child lock is engaged. If any buttons are pressed, the lock icon will flash. Press and hold the fan button and the mode button at the same time for 3 seconds to disengage the child lock.

CONTROL PANEL

CONTROL PANEL

  1. Light button: Press to set the desired light brightness.
  2. PM2.5 button:
    • Press once to display PM2.5 level.
    • Press twice to display VOC level.
  3. Fan button: Press to set the fan speed.
  4. Mode button: Press to set the desired mode: auto, sleep or turbo.
  5. Power button: Press to turn the air purifier on or off.

DISPLAY PANEL

DISPLAY PANEL

  1. True HEPA filter life progress bar
  2. Pre-filter life progress bar
  3. Child lock indicator
  4. PM2.5 number display
  5. PM2.5 level display
  6. VOC level display

PM2.5 MOLECULES

PM2.5 refers to particulate matter molecules that are less than 2.5 microns in size that can reduce visibility and cause the air to appear hazy such as air pollution from cars or smoke from cooking grease.

  • The PM2.5 level display will show clean, fair or poor.
  • The PM2.5 number displayed in is units of μg/m³, which means 'micrograms per cubic meter'. A reading of 1 μg/m³ means that one cubic meter of air contains 1 microgram of pollutant.

Press the PM2.5 button and the current PM2.5 level will flash. The air purifier will continually measure the particles in the air and display the current level. The ranges provided below are approximate, ambient conditions may vary.

  • 65 or lower means that the air quality is clean.
  • 65 - 140 means the air quality is fair.
  • 140 or higher means that the air quality is poor.

VOLATILE ORGANIC COMPOUNDS

Volatile organic compounds are a large group of chemicals found in many consumer products such as paint, varnishes, cooking oils, air fresheners, etc. These can be released into the air and can pose health risks.

  • The VOC level display will show clean, fair or poor.

Press the PM2.5 button twice and the current VOC level will flash. The air purifier will continually measure the VOCs in the air and display the current level.

CARE & MAINTENANCE

AIR INLET GRILLE

Ensure the air purifier is unplugged during any cleaning or maintenance.

CARE & MAINTENANCE - Cleaning the AIR INLET GRILLE
The air inlet grille can be cleaned with a vacuum cleaner and wiped with a cloth.

AIR OUTLET GRILLE

CARE & MAINTENANCE - Cleaning an AIR OUTLET GRILLE
The air outlet grille can be cleaned with a vacuum cleaner and wiped with a cloth.

PRE-FILTER

Ensure the air purifier is unplugged during any cleaning or maintenance.

When the pre-filter progress bar turns red, the pre-filter should be cleaned.

CARE & MAINTENANCE - Cleaning the PRE-FILTER
Remove the filter from the air purifier and clean it with a vacuum cleaner or a damp cloth. If the filter is very dirty, it can be soaked in warm water and a mild detergent for ten minutes.

Ensure the pre-filter is completely dry before replacing it in the air purifier. Once replaced, press and hold the PM2.5 detection button for 3 seconds to reset the pre-filter progress bar.

CLEANING

  • Unplug the appliance before cleaning or servicing.
  • Clean the cabinet with a lukewarm damp cloth and neutral detergent. Dry the cabinet with a lint-free dry cloth.
  • Do not use gasoline, paint thinner or other chemicals to clean the appliance.
  • Do not wash the appliance directly under a tap or using a hose. It may cause electrical damage.

TRUE HEPA FILTER

True HEPA filter model number: DAP290-F

Two are included with the air purifier. When the True HEPA filter progress bar turns red, the filters should be replaced. Once replaced, press and hold the PM2.5 detection button for 3 seconds to reset the filter progress bar.

Replacement filters can be purchased through one of the following methods:

NOTE: Replacement filters are not covered under warranty and must be purchased separately.

TROUBLESHOOTING

Appliance will not operate

  • Plug is not fully inserted into the wall outlet
  • Blown fuse or circuit breaker
  • The filter may not be correctly installed

Insufficient air purification

  • Air filter is dirty or needs to be replaced
  • Blocked air flow
  • Appliance size is too small for application
  • Ensure that all packaging has been removed from the filter

Appliance will not resume functioning after cleaning the filter

  • Press and hold the PM2.5 button for 3 seconds to reset the filter

Odors

  • Replace the air filter

ERROR CODES

E1 - filter installation error; check that all air filters are correctly installed
E0 - hardware fault
Eu - sensor fault
E3 - fan speed fault

If the codes E0, Eu or E3 appear on the display, unplug the air purifier and allow it to sit undisturbed for 5 minutes. If the error code persists when the air purifier is plugged in, please contact a local service depot.

DISPOSAL

This appliance should not be treated as regular household waste. Check for local regulatory compliance regarding the approved and safe disposal of this appliance.

WARRANTY

Please write down your serial number and date of purchase. You must keep the original proof of purchase receipt to receive warranty services.

Register your new appliance online and fill out a product survey to receive a FREE 2 MONTH WARRANTY EXTENSION at www.danby.com/support/product-registration/

Visit www.Danby.com to access self-service tools, FAQs and much more.

For Customer Service, please fill out the web form at www.danby.com/support, or call 1-800-263-2629.

Danby Products Ltd, Guelph, Ontatrio, Canada N1H 6Z9
Danby Products Inc, Findlay, Ohio, USA 45840
*Trademark of Danby Products
