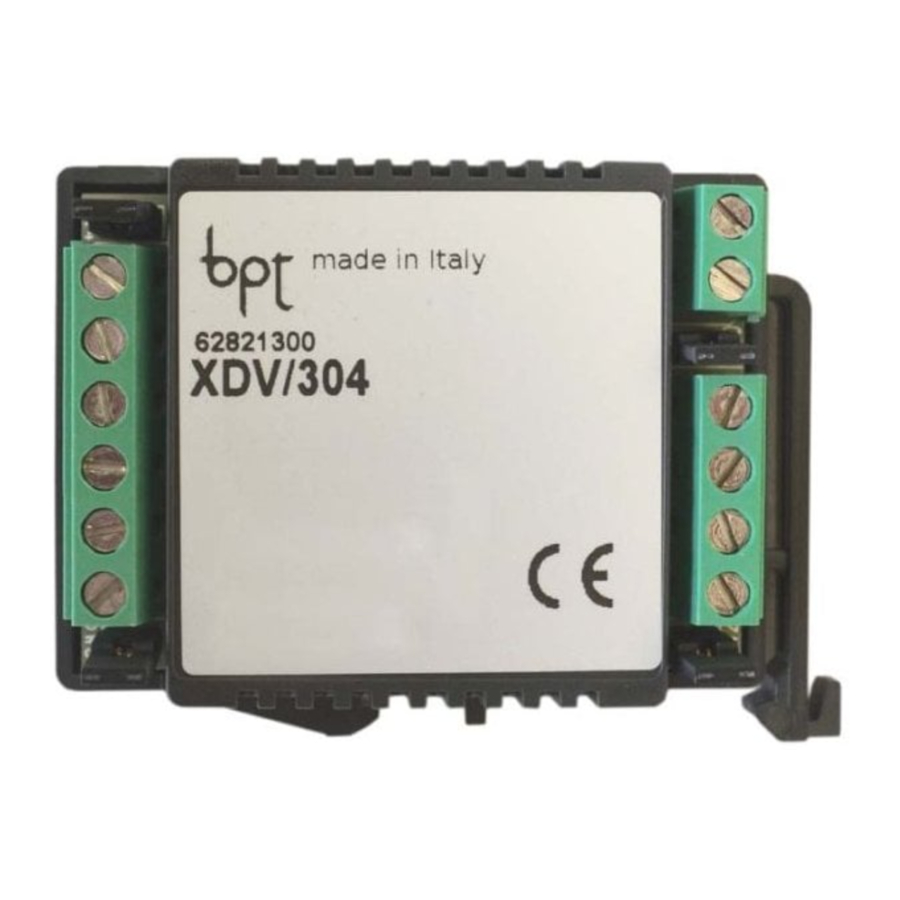

VIDEO DISTRIBUTOR XDV/304

Unit for the distribution of the modulated video signal over 4 lines via twisted pair. No power supply required.

It features 4 line closing impedance jumpers. Jumpers SW2, SW3 and SW4 affect lines 2, 3 and 4 respectively; jumper SWO affects the main OUT line (fig. 1).
Jumpers
Fig. 1

Line n° 1 does not feature any jumpers, and must, therefore, always be used for the connection of a video handset.

The jumpers, which are normally inserted, must be removed when the relative outlet for connection of a video handset is used.

When the video distributor outputs 2, 3, 4 are used to connect a receiver, jumpers SW2, SW3 and SW4 must be left inserted.

Owing to its small size, the unit can be inserted in a regular connector box (90x90x40 mm), or can be installed installed on a DIN guide (EN 50022) (fig. 3).
Installation
Fig. 3

Function of each terminal (fig. 1)

Function of each terminal

Technical features

  • Power supply: no power supply required.
  • Pass-video loss: 0.6 dB input/ output.
  • Video outputs attenuation: 20 dB per output.
  • Distributors which can be connected to the main line: maximum 10 (where more than 10 distributors are required, add an XDV/300A amplifier).
  • Maximum number of units which can be connected to each output: 5.
  • Working temperature range: from 0°C to +35°C.
  • Dimensions: 60x44x16 mm (fig. 2).
    Dimensions
    Fig. 2

DISPOSAL

Do not litter the environment with packing material: make sure it is disposed of according to the regulations in force in the country where the product is used.

When the equipment reaches the end of its life cycle, take measures to ensure it is not discarded in the environment.

The equipment must be disposed of in compliance with the regulations in force, recycling its component parts wherever possible.

Components that qualify as recyclable waste feature the relevant symbol and the material's abbreviation.
