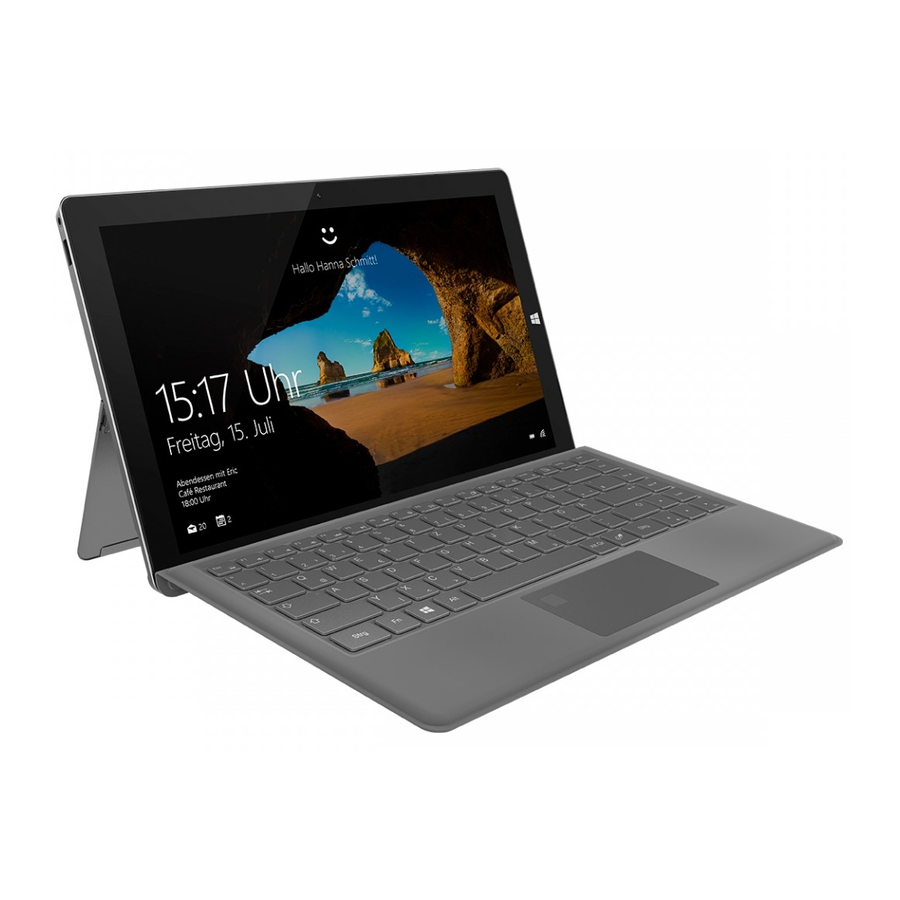

TrekStor PRIMETAB T13B - Laptop Quick Guide

Package contents

• TREKSTOR PRIMETAB T13B
• Power adapter (100 V - 240 V)
• Cleaning cloth
• Quick guide
• Important safety and legal information
• PRIMECOVER*/PRIMECOVER+*

Remove all components from the packaging and remove the packaging material, including the protective film. Check to ensure that the delivery is complete.
If you find that there are missing or damaged components, contact customer service immediately.

Technical specifications

* Feature option depending on model

Operation and storage

Temperatures: between 5°C to 30°C
Relative humidity: of 30% to 70 %
Refer to the detailed operating instructions for technical specifications on the power adapter and battery. The battery in this product cannot be easily replaced by users themselves.

Quick guide

Charging the Primetab

Please charge your Primetab fully before using it for the first time.

• ➜ Connect the DC plug on the supplied power adapter to the charging socket (DC IN) on the Primetab.
• ➜ Then plug the power adapter into a socket.
  The charging LED lights up while the device is charging.
• ➜ Only leave the power adapter connected to the socket until the battery of the Primetab is fully charged. In addition, always disconnect the power adapter from the Primetab when you are not charging the Primetab.

Use the keyboard and the kickstand

Place the tablet on the keyboard and open the kickstand by putting both hands in the laterally attached notches of the tablet and pull the kickstand from the tablet.

Turning on the Primetab for the first time

1. Press the on/off switch for about 3 seconds to switch on the Primetab. The setup assistant will then appear on the screen.
2. Follow the setup assistant instructions to set up your Primetab.
   • ➜ During the startup, the wizard prompts you to register for your Microsoft account. If you do not yet have a Microsoft account, please set one up here.

After completion of the startup, your Primetab is configured. This may take several minutes to complete. Do not turn the Primetab off during this time!

Unlocking the display

As soon as the device has been set up (and every time it is subsequently switched on and booted up), the lock screen appears. Press any key on the keyboard to unlock the screen.

• ➜ If your Primetab is password-protected, you must then enter the password.
• ➜ Alternatively, you can also log into your Primebook via Windows Hello. To activate and set up this feature, select "Settings" ➜ "Accounts" ➜ "Sign-in options" ➜ "Windows Hello".

Start menu

To display the start menu, click the Windows icon in the bottom left of the display or press the Windows button on the keyboard.
Press the icon a second time to hide the Start menu.
The Start menu consists of the classic navigation list (A) and a useful app area (B) to the right of the navigation list.

Among other things, the navigation list includes a link to open Settings (cog wheel icon). In the app area, you can pin apps and favourites in the form of live tiles and organise them.

• ➜ There is an alphabetically ordered list of all the apps installed underneath the navigation bar (A).
  To access this, scroll the navigation bar upwards.

The Action Center

The Info Center is a bar with quick links to some important Primetab functions, which you can either display or hide.
To access the Info Center click the memo symbol in the bottom right-hand corner.

Activating WiFi and opening the browser

1. Call up Settings (see "Start menu").
2. In the settings, click "Network & Internet".
3. Click "Wi-Fi" on the left in the next screen.
4. Click the slider or the word "Off". The word "On" now appears next to the slider.
   • ➜ The Primetab searches for all available wireless networks nearby and then displays them as a list ("Show available networks").
5. Click the network that you wish to connect to.
6. Enter the network key (password) if necessary.
7. Click "Connect". The Primetab connects to the selected network.
   • ➜ The button for launching the Internet browser can be found on the task bar at the bottom of the display. Click the little blue "e" to launch the browser. To enter an Internet address (URL), click the search bar displayed centrally at the top of the window.

Reset

If the Primetab "freezes" and no longer responds, you can reset it. Press and hold down the on/off switch for at least 10 seconds until the Primetab switches off. Wait for about 20 seconds and then turn the Primetab on normally.

• ➜ Any files that have not been saved will be lost when the Primetab is reset.

Switching off the Primetab

Standby
Briefly press the on/off switch on the device to activate the standby mode. Press it again quickly to take the Primetab out of standby mode.

Shutting down
Open the Start menu. Click "" in the bottom area of the Start menu and then tap "Shut down". The Primetab shuts down.

Saving energy

• Deactivate the WiFi function when it is not in use.
• Only leave the power adapter connected to the socket until the Primetab's battery is fully charged. In addition, always disconnect the power adapter from the Primetab when you are not charging the Primetab.
• Reduce the display brightness under "System" ➜ "Display" in the settings.
• Activate standby mode or turn off the Primetab completely if you are not using the Primetab.

Controls & Ports

1. Memory card slot
2. Volume control
3. On/Off switch
4. Audio port
5. USB socket 3.1 Gen 1
6. M.2 SSD extension slot
7. Kickstand
8. Kickstand notches
9. Dual microphone
10. Charging LED
11. DC IN
12. Micro-HDMI® socket
13. USB socket 3.1 Gen 1
14. USB-Type™-C connector
15. Camera
16. Display
17. Stereo speaker
18. Tablet dock
19. Status LED Caps Lock*
20. Touchpad
21. Fingerprint sensor*
22. Status LED touchpad*
23. Keyboard dock

* Feature option depending on model
