NABI Karaoke Box - Bluetooth Speaker & Microphones Karaoke System Manual

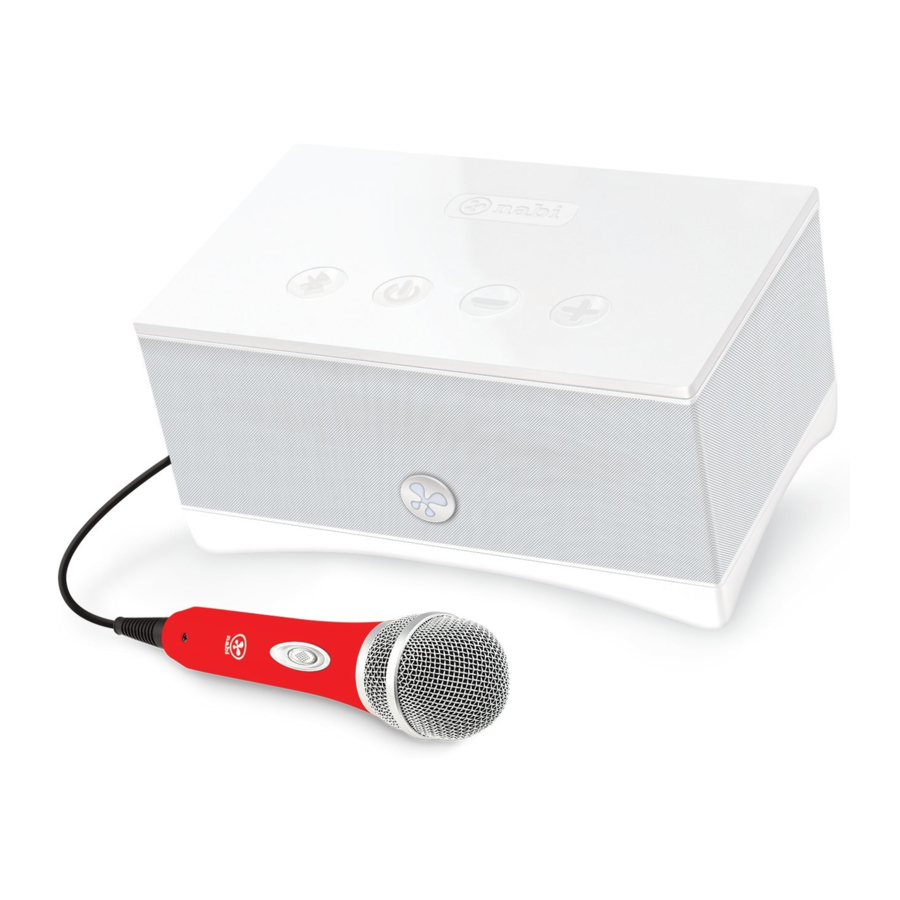

AT A GLANCE

nabi Microphone

1. On/Off switch
2. 13ft - cable

nabi Karaoke Box

3. Silicone bumper
4. nabi Stand* dock with silicone cap (for stand dock)
5. Y - cable (USB/Audio to nabi Connector)
6. Power adapter

*nabi Stand sold separately.

Front Panel

7. LED indicator

Top Panel

8. Bluetooth pairing
9. Power
10. Volume down
11. Volume up

nabi Karaoke Box back panel

Back Panel

12. Microphone A volume control
13. Microphone A input
14. Microphone B input
15. Microphone B volume control
16. USB power output
17. Echo time control
18. Auxiliary input port
19. 18V power input

GETTING STARTED

1. Insert power adapter into 18V power input port and plug power adapter into wall outlet.
2. Press the Power button to turn on. ()
   *You should hear music once it's turned on.
3. Plug nabi Microphone into MIC A or MIC B Input.

POWER SAVING MODE

nabi Karaoke Box will automatically power off and go into sleep mode after it has been idle for 5 minutes. You will need to press the power button to wake up nabi Karaoke Box from sleep mode.

MICROPHONE INPUTS

There are two microphone inputs (MIC A, MIC B) and two microphone volume control knobs (MIC A Volume, MIC B Volume). Each volume control knob can be used to adjust the volume of the corresponding microphone input.
Plug nabi Microphone into MIC A or MIC B and adjust the corresponding volume control knob to a suitable volume level before using the microphone.
To control the microphone echo length, adjust the echo time control knob.

BLUETOOTH MODE

Bluetooth is the default input audio source. In order to use Bluetooth, please make sure there are no cables plugged into the AUX port. To reset the Paired Device List (PDL), hold down on the Bluetooth pairing button and follow the instructions below.

USING THE Y - CABLE

For Charging:
Plug the nabi Connector into your nabi tablet and the USB cable into your nabi Karaoke Box.
*In order to charge your nabi tablet, nabi Karaoke Box must be plugged into a wall outlet.

For Audio:
Plug the nabi Connector into your nabi tablet and the 3.5mm audio cable into the AUX port on your nabi Karaoke Box.

HOW TO PAIR YOUR NABI TABLET USING BLUETOOTH

1. Power on nabi Karaoke Box. ()
2. Press the Bluetooth pairing button. ()
3. On your nabi Tablet, activate Bluetooth and search for nearby Bluetooth devices. *In order to use Bluetooth, please make sure there are no cables plugged into the AUX port.
4. Select the Bluetooth device name "nabi Karaoke".
   *You will hear a beep when Bluetooth pairing is complete.
5. Start playing music from your nabi Tablet.
   *The nabi logo will glow blue when your nabi tablet is connected. ()

HOW TO PAIR OTHER DEVICES USING BLUETOOTH

1. Power on nabi Karaoke Box. ()
2. Press the Bluetooth pairing button. ()
3. On your mobile, tablet PC or other Bluetooth-enabled device, follow your device's instructions to activate Bluetooth and to search for nearby Bluetooth devices.
4. Select the Bluetooth device name "nabi Karaoke".
   *You will hear a beep when Bluetooth pairing is complete.
5. Start playing music from your Bluetooth device.
   *The nabi logo will glow blue when you Bluetooth-enabled device is connected. ()

HOW TO CONNECT AN AUDIO SOURCE NOT USING BLUETOOTH

1. Power on nabi Karaoke Box. ()
2. Plug the 3.5mm cable from your audio source into the AUX port located on the back of the nabi Karaoke Box.
3. Start playing music from your audio source.
   *The nabi logo will glow white when the AUX port is being used. ()

www.nabi.com
