Kidde RemoteLync - Remote Notification Device Manual

Introduction

Thank you for purchasing the Kidde RemoteLync Remote Notification Device (monitor). This monitor has a one-year limited warranty. Please take a few minutes to thoroughly read this user guide, and save for future reference. See www.kidde.com/RemoteLync for further information, including updates to the user guide. Teach children that they should never play with the monitor. Your monitor was designed to detect alarm signals from most UL-approved Smoke, Carbon Monoxide (CO), or Heat alarms in a residential environment. It is not designed for use in a recreational vehicle (RV) or boat. If you have any questions about the operation or installation of your monitor, please call our toll free Product Support Line at 1-800-880-6788.

NOTE: This monitor is designed to operate in partnership with UL-listed Smoke, CO, and Heat alarms. Some alarms listed by other agencies may not work in conjunction with this monitor. Please review your alarm user guides for smoke and CO safety information, and follow the applicable location and installation recommendations for maximum home monitoring:

This is a remote notification device. It is not a life safety device, and should not be relied upon for notification to present occupants. This device is only as reliable as your home's Wi-Fi network, and is not a substitute for a third party monitoring service.

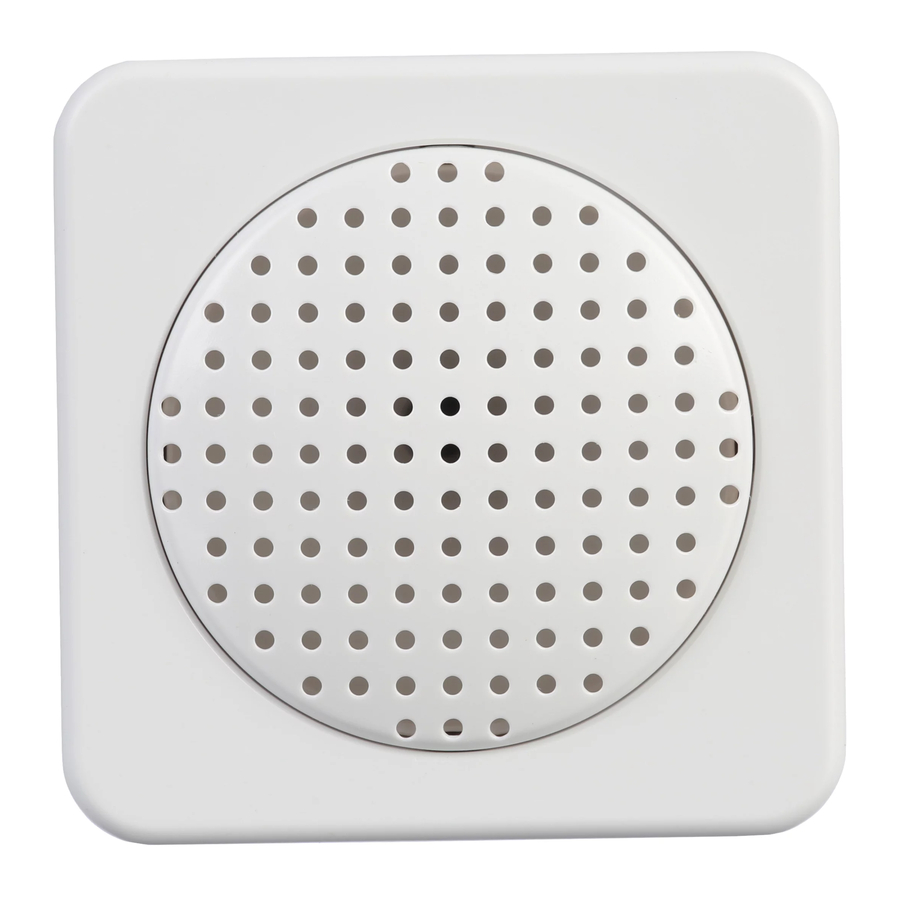

FRONT, TOP & BOTTOM VIEWS

Features

• The RemoteLync monitor listens for smoke and carbon mon-oxide alarm events, and can notify you via your mobile app on your smart device while you are outside of your home.
• Voice prompts will guide you through the set up and testing process of your monitor.
• Hush feature allows you to stop notifications while you deal with a known alarm situation.
• Green, Red, and Amber LEDs indicate status of the monitor.
• Powered by 120V AC (60 Hz, 20mA max)

The RemoteLync monitor is not an alarm. Your RemoteLync monitor will recognize alarm signals from most UL-approved smoke and CO alarms manufactured after 1999.

Location Guide

THIS MONITOR MUST BE PLUGGED INTO A STANDARD 120VAC, 60Hz OUTLET, LOCATED IN A CENTRAL LOCATION WITH CLEARANCE AROUND IT TO ALLOW ALARM SOUNDS TO REACH THE MONITOR.

Avoid these locations:

• Dirty, dusty places, such as garages, furnace rooms, near windows or external doors
• Areas of direct sunlight
• Humid areas such as bathrooms, or any area above 95% relative humidity (RH).
• Any areas colder than 40F (4.4C) or hotter than 100F (37.8C). Extreme temperatures may affect the performance of the RemoteLync.
• Avoid locations where sound waves might be blocked from reaching the monitor, such as behind drapes or other objects.

Setup Guide

NOTE: For this monitor to work properly, you must use it in conjunction with modern UL-approved smoke, CO, combination, or heat alarms, and you must have an active residential wi-fi system.

• Download and install the appropriate app for your mobile device by visiting www.kidde.com/RemoteLync, and clicking on the appropriate link.
  • Additional links and instructions can be found on the website.
• Open app and create account.

• Sign into account
• Select "Connect monitor to Wi-Fi network"
• Plug monitor into an outlet that is not controlled by a switch (see location selection from above).
  • All three color LEDs will flash and monitor will announce "setup starting".
  • For iOS devices, exit app and go to settings>Wi-Fi.
• Select monitor from list of networks, It will start with Kidde- followed by several letters and numbers
  • For iOS devices, You will then be returned to the app to select your home network, select continue.
• Enter the passcode for your network and press connect.
• Tap "OK" on the app
• Press the setup button on the monitor after instruction plays on monitor.

• Select "Enroll my monitor" on app

Note: If an error occurs at this point, verify device is on same network.

• Once registration is complete, test the alarm furthest from your RemoteLync as instructed by the monitor. Please note that when you put your alarm into test mode that it will sound, this is normal – do not remove batteries or cover unit during this test.

Due to the loudness (85 decibels) of smoke,! CO, and heat alarms, always stand an arm's length away from alarms when testing.

• Monitor will announce when a smoke or carbon monoxide alarm is detected.
• Your RemoteLync will announce "Now Monitoring" once both smoke and carbon monoxide alarm patterns are recognized or the setup button is pressed to skip one or the other type.
• To add a person to notify in case of an alarm select "edit" then "add" to view a list of all contacts available on your device. Choose the desired contact, verify their information, and finalize using "add".
• As desired, enable SMS or email notification from the monitor page by pressing the icon next to each contact.
• Once all contacts are added select "done".

Congratulations, your Kidde RemoteLync is now actively monitoring for smoke and/or carbon monoxide alarm signals, and ready to notify you on your mobile device.

Testing the Monitor After Enrollment

Due to the loudness (85 decibels) of smoke, ! CO, and heat alarms, always stand an arm's length away from alarms when testing.

• Initiate monitor test through the app, or pressing test button on the monitor. Wait while the system conducts a self-test.

• Once self-test is complete, you will hear a voice message to "test the alarm farthest from this device".
  • If the self-test is unsuccessful, your monitor will enter fault mode and you will receive a notification on your device. Validate your network connection, attempt test again, and then contact customer service if necessary.
• Test the alarm farthest from the monitor. To test a smoke, CO, Combination, or Heat alarm, push the test button and confirm that at least two T-3 patterns (3 long beeps followed by a pause) are produced for smoke and heat alarms, or two T-4 patterns (4 quick beeps followed by a pause) are produced for CO alarms. For combination alarms you should hear two of each type of pattern.
• If the monitor detects a CO or smoke alarm pattern, you will hear the voice message "CO alarm detected" or "Smoke alarm detected," followed by the message "Test successful."and app will show alarm detected.
• If the monitor does not detect an alarm pattern within 2 minutes, you will hear the message "Alarm not heard, now monitoring". Attempt to test the alarm again, and if the error persists, redo setup for your alarms by activating the Alarm Monitoring Setup your app menu. If this does not resolve your issue, consider relocating the monitor, and activate "Alarm Monitoring Setup" again. See previous section for setting up alarms.

RemoteLync LED Indicator Operation

Weekly testing is recommended. If at any time the monitor does not perform as described, please verify that it is correctly inserted into the wall outlet, and is connected to your home network. If the monitor still does not appear to be operating properly, call Product Support as shown at the end of the user guide.

Reset Function

The reset function can be used to return the monitor to its factory settings and re-start the setup and enrollment processes. Using a small pin or paper clip, press and hold the reset button on the side of the monitor for 5 seconds (until LEDs start flashing). Then unplug and reinsert the monitor into the power outlet to re-start the setup process.

Maintenance Information

To keep your RemoteLync Monitor in good working order, please follow these simple steps:

• Verify the operation of the monitor's voices and LED lights by conducting a test once a week.
• Once a month, clean the monitor by using a soft brush at-tachment, vacuum the front vents to remove dust and dirt. After cleaning conduct a test to verify operation.
• Never use detergents or other solvents to clean the unit.
• Avoid spraying air fresheners, hair spray, or other aerosols near the monitor.

Do not paint the monitor. Paint will seal the vents and interfere with the sensor's ability to detect alarm signals. Never attempt to disassemble the unit or clean inside. This action will void your warranty.

YOUR ACOUSTIC MONITOR IS SEALED AND THE COVER IS NOT REMOVABLE!
