Green Bike KT-LCD8H - EBike Display Manual

Functions and Display

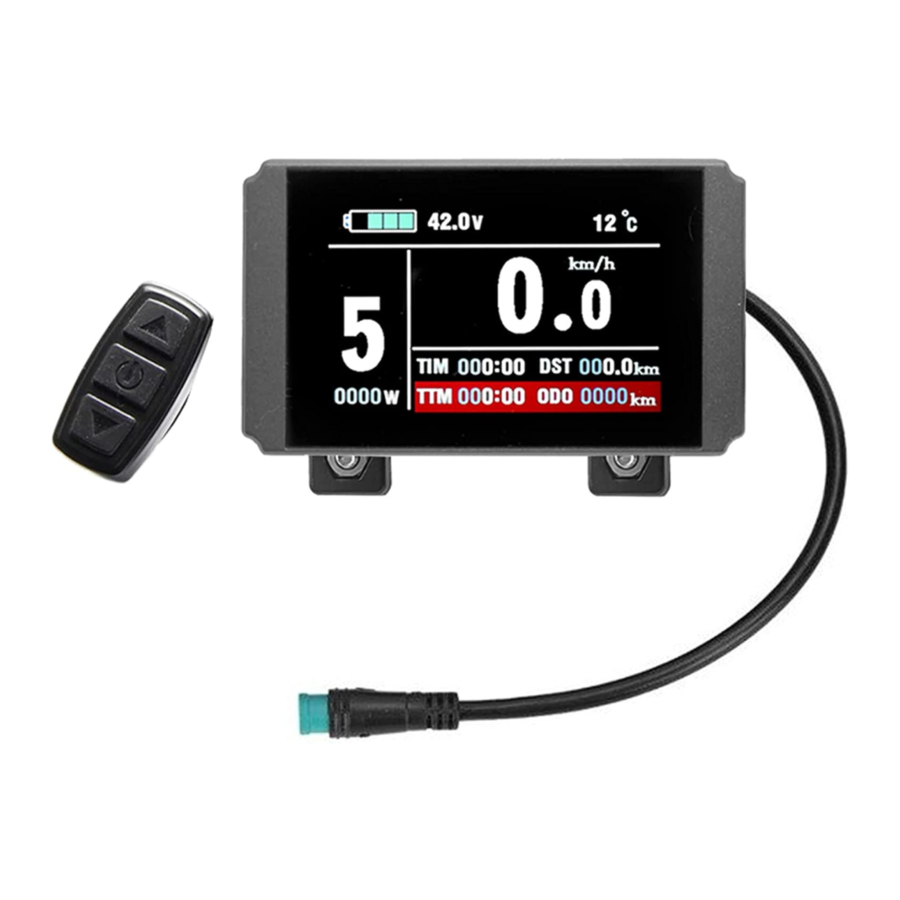

Instruments using the structure form of instrument body portion and the operation buttons are designed separately.

1		UP Button	10		Backlight and headlights
2		SW Button	11	℃	Environment temperature
3		DOWN Button		℉	Environment fahrenheit
4	MOTOR W	Power display	12	Km/H	Riding speed(metric)
5	ASSIST	Pas level	13	AVS	Average speed
		6Km/H push power assist		MXS	MAX speed
6	THROTTLE	Run sign	14	DST	Trip distance
7		Battery capacity indicator		ODO	Total distance
8	VOL	Battery voltage	15	TIM	Single trip time
9		The brake display		TTM	Total trip time

Operation

1. ON/OFF
   Hold button long to turn on the power, and hold long for a second time to turn off the power. When the motor stops driving and when the e-bike is not used for a consecutive 5 minutes, it will automatically shut down and turn off the motor power supply.
2. Display 1

   Hold button to start up and enter display.
   1. Turn on backlight and headlights

      Hold long to turn on backlight and headlights (the controller should have headlight drive output function); hold long again to turn off the backlight and headlights.
   2. Assist ratio gear (ASSIST) switch

      Hold shortly to switch 1-5 file gear. Gear 1 is for the minimum power, gear 5 is for the highest power. Eachstartup will automatically restore the gear shutdown last time (the user can set randomly). Gear 0 is without booster function.
   3. 6Km/H assist promotion function

      Hold and flashes, the vehicle drives at the speed not more than 6Km /h. Release button, the function isinvalid.
   4. Display and delete of single data

      After power on for 5 seconds, hold and at the same time, single trip riding time (TM) and single trip distance (DST) flash, hold button shortly, the content of both is cleared. If failed holding the button within 5 seconds, it will automatically return the display interface after 5 seconds, original content is preserved.

3. Display 2

   Hold button shortly in display 1 to enter display 2. In the riding mode after 5 seconds, display 2 automatically returns to display 1, and the original motor power (MOTOR W) display is replaced with motor operating temperature display (MOTOR ℃) display (the internal motor should be equipped with the temperature sensor and the output of temperature detection signal).
4. Display 3

   Hold button shortly in display 2 to enter display 3. In the riding condition, five seconds later, a single maximum speed (MXS) display automatically returns to the real riding speed (Km/H). button shortly (SW),and the display will re-enter display1.

6. Hold button to turn off the display and the power supply of controller.
7. Automatically prompt interface

The fault is excluded and the fault code display interface is automatically exited.

General Project Setting

1. Set maximum riding speed

   After power on for 5 seconds, hold and at the same time, maximum riding speed Km/H and MXS flash, hold or shortly to set the maximum riding speed (default 25Km/H). Hold button shortly and go to the next parameter settings.
2. Wheel diameter setting

   The wheel diameter will be set after finishing setting the maximum riding speed, wheel diameter specifications flashes. Hold and shortly to set the specifications of wheel diameter. Select the range 6,8,10,12,14,16,18,20,22,24,26,700c, 28and 29 inches. Hold button shortly and go to the next parameter settings.

2. Set the metric units

   The metric units will be set after finishing setting wheel diameter, Km/H and Km flash. Hold shortly and select the three metric units of speed, mileage, and ambient temperature in synchronization.

4. Km/H and Km stop flash after metric unit setting is completed. Hold button shortly again to re-enter the maximum riding speed setting interface; or hold button long to exit from setting environment of routine projects and save the setting values, returning to display 1.

5. Exit from routine project setting
   All three routine project settings can exit from the setting environment and return to the display if hold button long after each setting is completed, meanwhile the setting values aresaved.

Under each setting interface, if the button failed holding for more than 1 minute, it will automatically return to display 1, and the setting value is invalid.

Outline Drawings and Dimensions

1. Dimensions of main instrument body

2. Mounting dimensions of double brackets

3. Dimensions of button box

4. Wiring diagram
