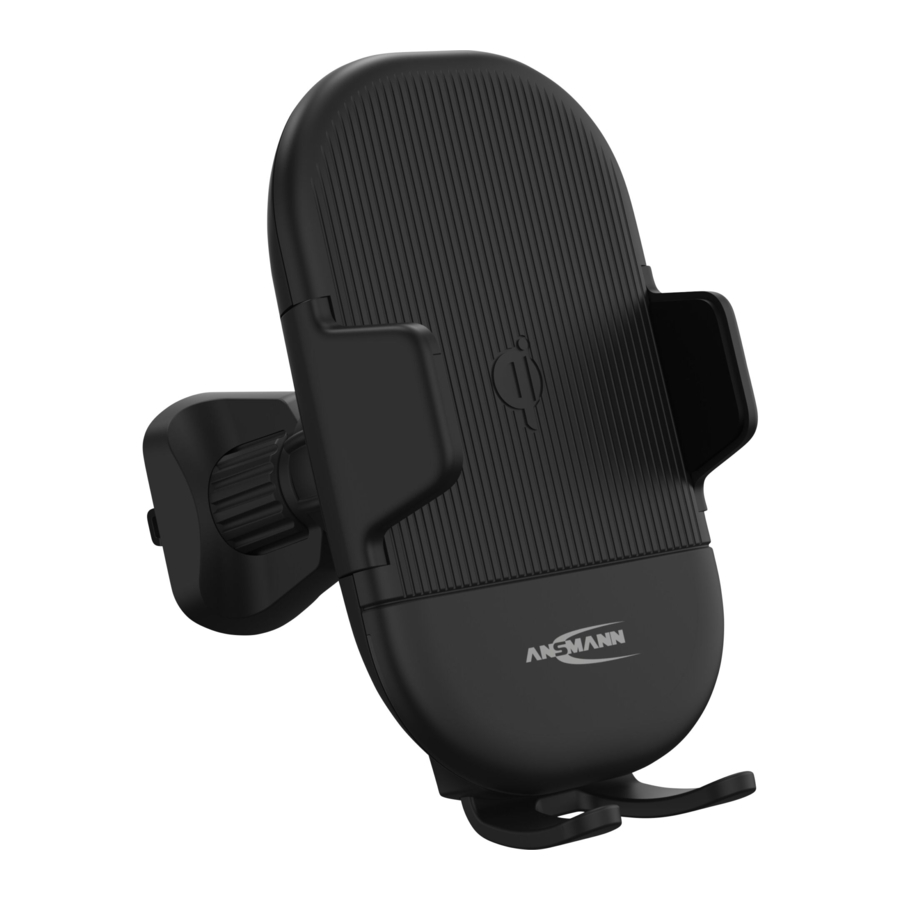

ANSMANN WILINE WCC15 - Wireless Car Charger Manual

Introduction

Please unpack all parts and check that everything is present and undamaged. Do not use the product if damaged. In this case, contact your local authorised specialist or the service address of the manufacturer.
These operating instructions contain important information for the first use and normal operation of this product.
Read through the complete operating instructions carefully before using the product for the first time. Read the operating instructions for other devices which are to be operated with this product or which are to be connected to this product. Keep these operating instructions for future use or for future users' reference.
Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards (injuries) for the operator and other persons.
The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

EXPLANATION OF NOTES

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging:

= Information | Useful additional information

= Note | The note warns you of possible damage to all kinds

=
Attention -
May result in serious injury or death

PROPER INTENDED USE

The product is intended exclusively for private household use and not for commercial use. Use outside that stipulated in the information is improper use and this can result in damage to property or personal injury. We accept no liability for damage caused by incorrect or improper use. The Qi inductive charger enables wireless charging of Qi-enabled smartphones with 5-15 watts output power.

GENERAL INFORMATION

Do not throw or drop
Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.

The product complies with the requirements from the EU directives.

MOUNTING ON THE VENTILATION GRILLE

Turn the hook rail completely out by turning the adjusting wheel behind the ball joint. If necessary, remove the protective film on the rubber coating of the support surface. Position the bracket at the desired location on the ventilation grille and hook the rail behind the slat. Tighten the hook rail with the adjusting wheel until the bracket is securely fastened. When tightening, make sure that the slats are vertical and do not jam or twist to avoid damage. The mount is compatible with most car models with straight louvre slots.

CHARGING DEVICES

To charge a device, such as a smartphone for example, please use the enclosed USB cable and a suitable USB charger with at least 5 V / 1.5 A power. For the maximum wireless output power of 15W, you need a fast-charging USB charger with max. 12 V / 2.0 A.
Align your device on the wireless charger with the adjustment screw such that it is positioned with the internal charging coil as central as possible. The charging process starts automatically.
The speed of the charging is dependent on different factors such as input (current and voltage) and the end-device. The charger may heat up a little depending on the output power required. It is important that all end-devices to be charged with the wireless technology, are suitable for the Qi protocol.

LED display:

Lights up blue - charging
Flashes red/blue - error detected
Lights up red - standby

Protective covers with metal parts and magnets must be removed during the charging process.
Do not place any foreign objects between the charger and the end-device (no coins, paper clips, metal objects, door keys, NFC cards, etc.).
Do not use PC / USB-A output ports or a USB mains adapter with too low a power rating to charge the end-device with the WiLine 15 as this will make the charge process too slow or prevent it.

LIABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling/use or through disregard of the information contained within these operating instructions.

Technical Data

GENERAL SAFETY INSTRUCTIONS

This product may be used by children from the age of 8 and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they have been instructed on the safe use of the product and are aware of the hazards.

Children are not permitted to play with the product. Children are not permitted to carry out cleaning or care without supervision. Do not leave the device unattended whilst operating. Do not expose to potentially explosive environments where there are flammable liquids, dusts or gases. Use the product exclusively with the accessories included with it.

The product may only be charged in closed, dry and spacious rooms, away.
