Seehot SBS-030C - Bluetooth Stereo Headset Manual

Specifications

*May vary due to user's operation mode and device settings.

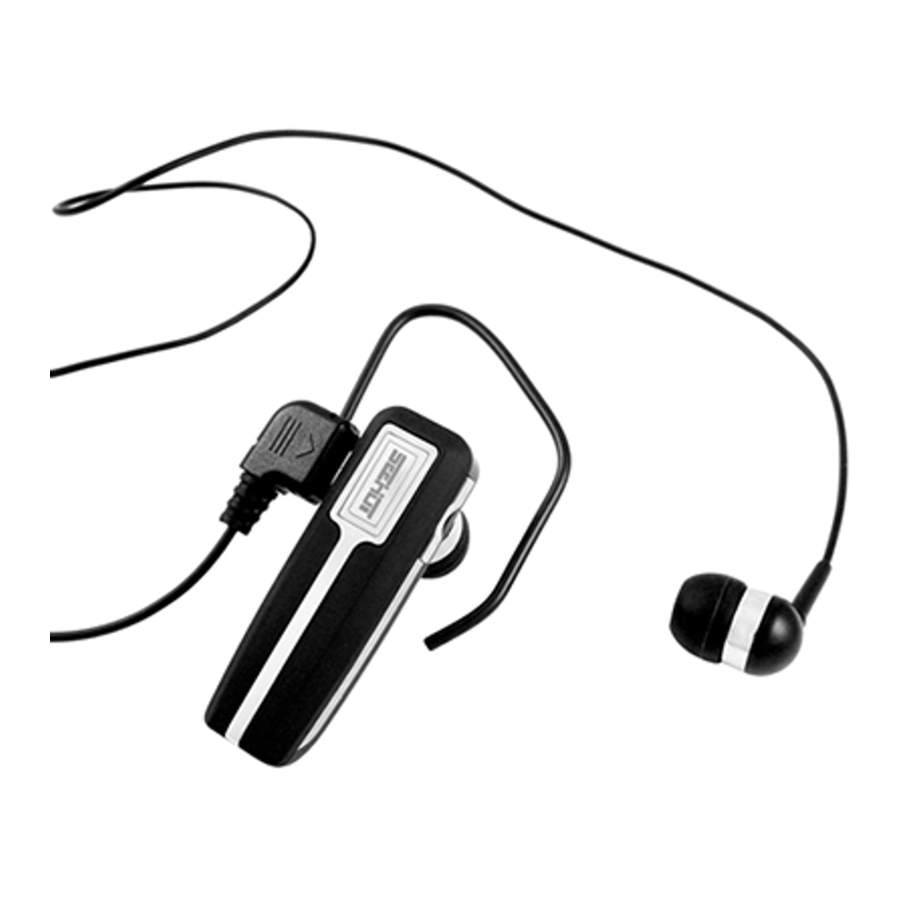

Structure Sketch

1. Microphone
2. Audio Jack/Charging Socket
3. Earhook
4. Multifunction Button (MFB)
5. Volume Key+(V+)
6. Volume Key-(V-)
7. Earpiece

Basic Operations

Charging Your Device

• Prior to use the headset for the first time or has not been used for a long time, please fully charge the headset.
• Approximately 2 hours are required to fully charge the headset.
• The indicator light turns red while being charged, and will turn blue automatically after being fully charged.
• When the headset is running out of battery, the indicator light will flash red (the headset will switch off automatically when the battery is drained). Please charge the headset as above steps in time to prolong the battery's using life (Charging indication will be delayed for a few minutes if the headset has not been used for a long time or the battery is drained).

Note:

• Please check if the charging device whether suitable for the headset or not before charging
• Please use the supplied battery and charging device, if you use other accessories, it may go against the approval or warranty terms of the product, and could be dangerous.
• There have built-in and non-removable Lithium Battery, please do not attempt to force open the battery as this could damage the headset.
• If left unused, a fully charged headset will lose its power automatically. It is recommended to charge the headset every three months.
• Do not leave the headset in a too hot or too cold condition (best between -10℃ and 50℃) which may affect the headset's operations.
• Do not dispose of the headset into a fire and water.

Turning On The Unit

In OFF MODE, press and hold MFB for 5 seconds until you hear "Power on", and the indicator light flashes blue for 3 times, then the headset will enter into ON MODE.

Turning Off The Unit

In ON MODE, press and hold MFB for 4 seconds until you hear "Power off", and the indicator light flashes red for 3 times, then the headset will enter into OFF MODE.

Pairing Your Device With A Bluetooth Mobile Phone

• Ensure the headset is off, and the distance between your headset and phone is within 1 meter.
• Press and hold MFB for about 8 seconds until you hear "Pairing", the indicator light flashes blue and red alternately, then the headset will enter into PAIRING MODE.
• Activate the Bluetooth function on the phone, search Bluetooth devices (See the user guide of your phone for instructions).
• Select headset "SBS-030C" from the found devices list of the phone.
• Enter the passkey "0000", confirm to pair the headset with your phone. If successfully paired, you with your phone. If successfully paired, you will hear "Connected", and the indicator light will flash blue every 8 seconds. The headset enters into the STANDBY MODE.(If the pairing cannot be completed within 5 minutes after the PAIRING MODE has been activated, the headset will enter into the STANDBY MODE. Repeat above steps to do the pairing again).
• Ensure the distance between your headset and phone is within 10 meters, and without any obstacles. You can use the headset freely.
• If the headset has paired with your phone but disconnected, it will pair automatically again when turns on within operation range.

Answering/Ending A Call

Press MFB once.

Rejecting A Call

Press and hold MFB for one second.

Voice Dialing

In STANDBY MODE, press MFB twice and say the voice tag as soon as you hear the short beep(ensure your phone supports voice dialing function, and you have recorded the voice tag into your phone. See the user guide of your phone for instructions)

Last Number Redialing

Press and hold MFB for one second.

Adjusting Volume

Press V+ or V- to adjust the volume to meet your need.

Power Saving

The headset will turn off automatically if it can not be paired or disconnected with any devices within 20 minutes.

Audio Remote-control Functions

Play/Pause
Press MFB once for music playing or press again to pause.

Backward
Press and hold V+ to backward the last song.

Forward
Press and hold V- to forward the next song.

Note: Ensure your paired devices support AVRCP Bluetooth Profile to realize remote-control use.

Two-link Function

Note: The two Phones mentioned below will be called Phone A and B.

Two-link function:
This function means 2 Bluetooth mobile Phones connected with Bluetooth headset "SBS-030C" at the same time.
When the Phone A & Phone B are neither paired, the two link operation as below:

Pairing with Phone A

In off mode, press and hold MFB until indicator light flashes red and blue alternately, use phone A to search the Bluetooth headset "SBS-030C", enter the pin code"0000" and confirm on the phones A, to pair and connect with phone A, and the headset will enter into standby mode.

Turn off the Bluetooth function of phone A or turn off the phone A, the headset will back to unconnected mode.

Pairing with Phone B

Press and hold MFB until indicator light flashes red and blue alternately, use phone B to search the Bluetooth headset "SBS-030C", enter the pin code"0000" and confirm on the phones B, to pair and connect with phone B, and the headset will enter into standby mode.

Connecting the Phone A&B at the same time

Method 1: Activate the Bluetooth function of Phone A, select the Bluetooth device "SBS-030C" on the Phone A, and connect with the "SBS-030C", at that time the 2 Phones are connected with the headset already.

Method 2: Turn on the Bluetooth function on the phone A/B, or turn on the phone A/B, and restart the headset, the headset will automatically connect with the two mobile phones within one minute.

Note:

1. For the difference in technology of Phones, it doesn't guarantee compatibility of all functions on every Bluetooth enabled device.
2. Redial the last phone number after connected with two Phones, the headset will choose the Phone which is connected first(not the one pairing first) to call. The other phone does not respond for calling.
3. For voice dialing after connected with two Phones, the headset will choose the Phone which is connected first(not the one pairing first) to call. The other phone does not respond for calling.

Switching Between Two Calls

• Connected with one phone and operate with two calls

1. When answering the call A, there is a call B coming, you could press the MFB shortly to answer the call B, the call A is under the status of waiting. Re-press the MFB shortly, you could switch the two calls each other.
2. When answering the call A, there is a call B coming, you can press and hold MFB for 2 seconds to end the call A, and answer the call B.

• After two-link functions switching between two calls
  If phone A is answering the call, there have a call coming from phone B; Press MFB shortly to answer the call on phone B.

Disconnecting

To disconnect the paired headset from your phone, please turn off the headset or disconnect the headset from the Bluetooth menu of your phone.

Care and Maintenance

• Do not use abrasive cleaning solvents to clean the headset.
• Do not allow the headset to touch with any sharp objects since this will cause scratching and damage.
• Be sure to store the headset in a dry place, free from extreme temperatures, humidity and dust in normal use.

Additional Statements

• The headset is unable to pair with the non-smart phones.
• The headset is compliant with the specified Bluetooth version. It does not guarantee compatibility of all functions on every Bluetooth enabled device. Please check your device's user manual for compatibility and functionality.
• Charge the headset under any status to a reset. The headset will turn off automatically if it can not be paired with any devices within 20 minutes.
• The headset will beep when operates successfully but this maybe too low to hear, and all belong to normal phenomenon.
• The above operations may vary due to different devices.
• Manufacturer reserves the rights to final explanation of all the above statements.
