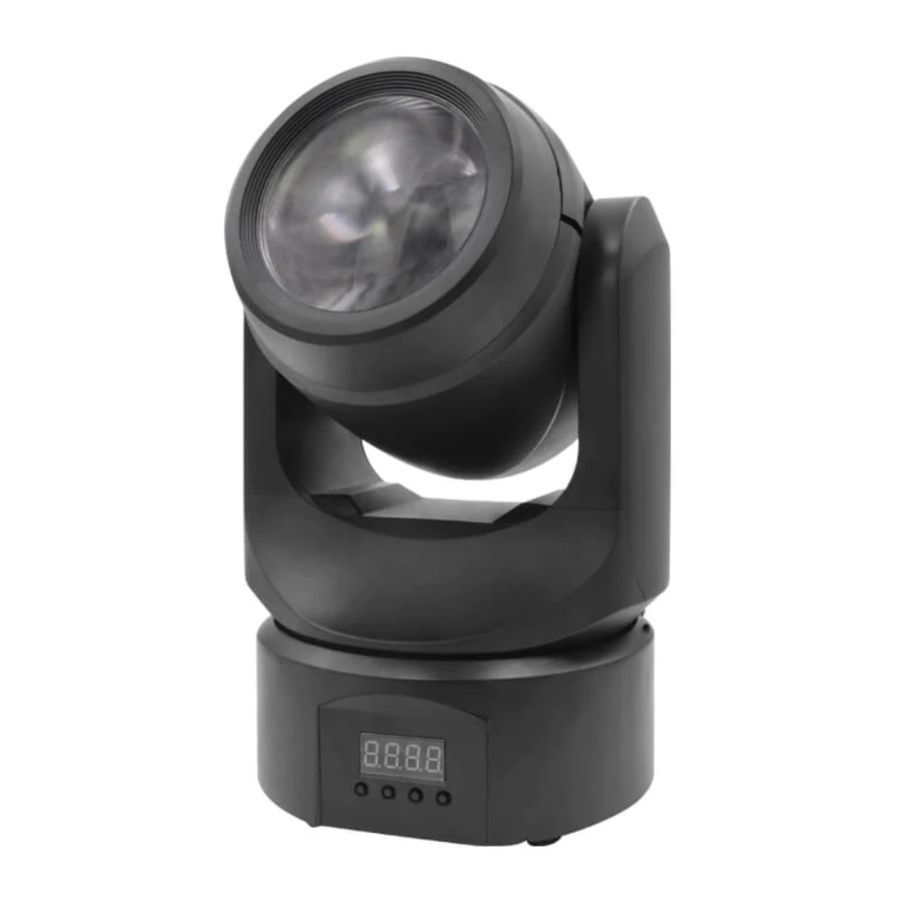

BETOPPER Beam Moving Head Light LB30 - 3 Prism LED 30W Gobo Effect Disco Stage Moving Head Lights Manual

Warnings

This product is only suitable for professional use, and does not apply to security for other purposes. After you got the lights, please check the package whether have any damage caused by transportation. If there is any damage, do not use this fixture, and please contact the dealer or manufacturer as soon as possible.

burn hazardshock hazard
This product is only suitable for indoor, IP20 protection class. Lamps should be kept dry to avoid Moisture, overheating or dusty environment. Prevent lamps come into contact with water or any other liquid. The use of this product should pay attention to: fire, heat, electric shock, ultraviolet radiation, the lamp to explode or Shedding caused serious or fatal injury.

Need to read the instructions before use energized or installing. Follow through the operation of security methods and pay attention to the warning signs on the specification and equipment.

Please don't choose the item "factory default", or all the data will be missing, and the machine can use only by resetting.

Inspection

In order to use the product securely and properly, please read the manual before using and follow the instructions strictly to prevent personal safety trouble and product damage caused by misuse.
Take care of the product, check the possibility of the product damage caused by transportation and check all the listed items are present upon receipt of the product:
Beam Moving Head 1
Use Manual 1
Power cable 1
Handle: 2

Installation

  1. Make sure there is no flammable or explosive subjects within min 1.5 meter nearby the installation.
  2. Before installation, please check and make sure the power supply voltage meet request of the system.
  3. Please check ventilation and fans or exhaust passages are cleared.
  4. The equipment should be fixed firmly.
  5. For security reasons, the appliance must be earthed.

Buttons Operation Instruction

Buttons Operation

" ", " ": Similar functions
To return to the previous interface.
" ", " " Button:
To select, edit.

"OK" Button:
Operating function, go to edit, exit editing mode.

How to modify DMX Address

  1. Press " " button one or several times to go back to previous or main page.
  2. Press " "/" " button to highlight "Setting" button.
  3. Press "OK" button to modify "Setting".
  4. Press " "/" " button to highlight "DMX address".
  5. Press "OK" button to go into "DMX address".
  6. Press " "/" " button to modify "DMX address".
  7. Press "OK" button to exit "DMX address" editing mode.

Touch screen

Touch screen

  • The 2 buttons on top right corner used for Chinese/English Language shift and Screen Rotation button.
  • 4 buttons at the bottom of screen: Setting, Information, Manual control button, Advanced button.

Settings Button

Option Description
Running mode DMX Slave status: Receive DMX Singal from control or master
Auto1 Auto2
Auto3
Auto 4
Up 8
Before painting to 0
Forward vertical
Forward sleep
Random
Sound- Control 		Master Status: Operate automatically and send out DMX signal to slaves
Note: If the lamp is extinguished before, does not lighted automatically. If you need to observe the light effects, please light bulb first, then go into automatic status.
DMX address 1~512 Press "OK" button to go into edit mode. Then press the button, the channel value is incremented by the 1-512, press the key channel value is decremented by the 512-1. Press "OK" button to exit edit mode.
Channel mode Standard 16CH From 17-Channel to 20-Channel invalid
Extended 20CH From 17-Channel to 20-Channel valid
X inverse Off
On
Y inverse Off
On
XY inverse Off
On Exchange function of X & Y (fine adjustment include)
XY decoder On Rectify location by optical couple
Off No rectification
No DMX Signal Maintain Runs by default status
Clear to Zero Motor reset. stops running
Screen saver On Backlight turns off in 330 seconds
Off Backlight always on
Auto on Off Lights are off
On Automatically lights on
Linear change color wheel On
Off
Default Setings Press "OK" button to see the confirmation box, press "OK" button again to restore default settings.

Manual Control Button

This function is for lamp control. There is no DMX signal in or out.

Option Description
Color wheel 0~255 Press "OK" button to enter the edit mode. Then press the button, the channel value is incremented by the 0-255, press the key channel value is decremented by the 255-0.
...... 0~255
Cut strobe light 0~255
Dimming 0~255
0~255
Gobo wheel speed 0~255
Prism 0~255
Prism rotation 0~255
Prism Focus 0~255
Atomization 0~255
Focusing 0~255
X-axis 0~255
X-axis fine-tuning 0~255
Y-axis 0~255
Y-axis fine-tuning 0~255
Marco Function 0~255
Reset Pressing "OK" button, will bring up the confirmation page. Press "OK" button again, to reset motor.
Lamp controlling On
Off

System interface

Option Description
Software version Present version
DMX channel value monitoring Display DMX value on screen
System error records If red ERR indicator light is on. That means there is an error. Go to sub-menu to check error. After checking. Press "OK" button to delete the error log.
4 Total service time Accumulate service time
Present service time Accumulate present service time
Total bright bubble time The total time recorded several light bulbs
The bright bubble time Time recording this bright bulb

Channel mode

Channel Channel Model
16 20
1 Colour Wheel Colour Wheel
2 Stop/Strobe Stop/Strobe
3 Dimmer Dimmer
4 Static Gobo Change Static Gobo Change
5 Prism Insertion Prism Insertion
6 Prism Rotation Prism Rotation
7 Effects Movement(Unused) Effects Movement(Unused)
8 Frost Frost
9 Focus Focus
10 Pan Pan
11 Pan Fine Pan Fine
12 Tilt Tilt
13 Tilt Fine Tilt Fine
14 Marco Function Marco Function
15 Reset Reset
16 Lamp Control Lamp Control
17 Pan-Tilt-Time
18 Colour Time
19 Dimmer – Prism-Frost time
20 Gobo Time

Color Wheel - channel 1

Channel mode - Color Wheel

Bit Effect Remarks
255 Fast Rotation The color digits are always a multiple of 5.
The color scale can be adjusted, for example: If digit is 5: 50% white, 50% red; if digit is 4: 60% white and 40% red; If digit is 6: 40% white, 60% red.
...... ......
150 Slow Rotation
145 Amaranth +White
140 Amaranth
135 Light Yellow + Amaranth
130 Light Yellow
125 Clay Bank + Light Yellow
120 Clay Bank
115 Blue Green + Clay Bank
110 Blue Green
105 Fluorescence + Blue Green
100 Fluorescence
95 Dark Yellow + Fluorescence
90 Dark Yellow
85 Brown + Dark Yellow
80 Brown
75 Light Blue Purple + Brown
70 Light Blue Purple
65 Gold Color + Light Blue Purple
60 Gold Color
55 Blue + Gold Color
50 Blue
45 Green + Blue
40 Green
35 Rose Red + Green
30 Rose Red
25 Yellow + Rose Red
20 Yellow
15 Red + Yellow
10 Red
5 White+ Red
0 White

Stop/Strobe – channel 2

Bit Effect Remarks
252-255 Open Light Controlled by the dimmer channel
213-251 Random Strobe(Gradually Fast)
208-212 Open Light Controlled by the dimmer channel
4-207 Strobe(Gradually Fast)
0-3 Close Light

Dimmer - channel 3

Bit Effect Remarks
255 100%
...... ......
0 0%

Static Gobo Change - channel 4

Channel mode - Static Gobo Change

Bit Effect Remarks
255 Gobo 17 Shake, Fast Speed 5 figures correspond to a pattern
....... ......
251 Gobo 17 Shake, Slow Speed
250 Gobo 16 Shake, Fast Speed
...... ......
246 Gobo 16 Shake, Slow Speed
....... ......
180 Gobo 2 Shake, Fast Speed
...... ......
176 Gobo 2Shake, Slow Speed
175 Gobo 1 Shake, Fast Speed
...... ......
171 Gobo 1 Shake, Slow Speed
170 Fast Rotation
...... ......
135 Slow Rotation
130-134 Stop
129 Slow Rotation
...... ......
90 Fast Rotation
85 Gobo 17 Number is always multiples of 5
80 Gobo 16
75 Gobo 15
70 Gobo 14
65 Gobo 13
60 Gobo 12
55 Gobo 11
50 Gobo 10
45 Gobo 9
40 Gobo 8
35 Gobo 7
30 Gobo 6
25 Gobo 5
20 Gobo 4
15 Gobo 3
10 Gobo 2
5 Gobo 1
0 White

Prism Insertion - channel 5

Bit Effect Remarks
128-255 Prism Insertion
0-127 Prism Excluded

Prism Rotation - channel 6

Bit Effect Remarks
191-255 Prism Jitter(Gradually Fast)
130-190 Countra Rotation (Gradually Fast)
64-129 Postive Rotation(Gradually Slow)
0-63 Angle Adjust

Effects Movement - channel 7

No used

Frost – channel 8

Bit Effect Remarks
128-255 Frost Inserted
0-127 Frost Excluded

Focus – channel 9

BIT Effect Remarks
255 Dimmer 100%
...... ......
0 Dimmer 0%

Pan - channel 10

Pan Fine - channel 11

Tilt - channel 12

Tilt Fine - channel 13

Macro function - channel 14

Can choose the pattern, repeat operation mode to self-propelled self-propelled 1- 4

Reset - channel 15

Bit Effect Remarks
128-255 Complete Reset Reset is activated when it is in unused range for 5 seconds.
77-127 Pan/Tilt Reset
26-76 Effects Reset
0-25 Unused Range

Lamp Control - channel 16

Bit Effect Remarks
101-255 Lamp On Lamp switches on when it is in unused range for 5 seconds.
10-100 Lamp Off
0-9 Unused Range

Extended Speed Channel

Channel Timing Channel Channel function Remarks
Channel 17 Pan-Tilt time Pan-Tilt-(Pan fine-Tilt fine)

255... Slow Speed

0... Fast Speed
Channel 18 Colour time Colour wheel
Channel 19 Beam time Dimmer-Prism-Frost
Channel 20 Gobo time Static Gobo

Technical parameters

Model
Parameters Model A Model B Model C Model D
Power
Power supply 100-240V/50-60HZ
Power consumption 400W
Light Source
Lamp 230W 200W
Color temperature 8000K
Average Lifespan 2000 hour
Color/Pattern
Color 14 color + blank color
Gobo 17 fixed gobo + blank gobo
Prism rotation 8-face prism, Bilateral rotation
Lens high precision optical lens, with zoom
Focus linear adjustment
Dimmer 0-100% linear dimmer
Scanning Angle
PAN 540°
TILT 270°
Operation
Control Mode Auto / Sound/ DMX / Master-slave
DMX 16/20CH
Security & Package
Work environment Indoor: 0°C-40°C
Macro functions Reset/ lamp on or off can be controlled by controller; Thermal shutdown circuit; Over-current Protection Circuit; excellent ventilation and cooling effect by vertical axis fan; Fixture and lamp usage time display; Built-in analyzer for easy fault finding, error messages
Product Size 480*405*550MM
N.W./G.W. 21/22.6KG
In the box Power cord: x1
Handle: x2

Maintenance

Optical components should be cleaned gently, Do not use disruptive solvent, otherwise it will damage the plastic or coated surface.

  1. After the power if off, cooled completely, then open the case.
  2. Blowing machine with a vacuum cleaner or pressure blower, gently blow away dust and floating objects.
  3. Use odorless paper or cotton cloth soaked with water or distilled water to wipe particulate, do not rub surfaces, blow any floating object with a pressurized gas.
  4. Dip cotton of the alcohol or unscented tissue paper to remove dust and residues, glass cleaner may also be used, but residues must be removed with distilled water, to the circle on each side, wipe from the Center, and then wiped dry with a soft cotton cloth.
  5. Using a soft brush, cotton paper, air cleaners or stress on stomatal and hair dryers that the dust from the fan out. Excessive dust, smoke and damage caused by non-normal use, out of the scope of warranty.
