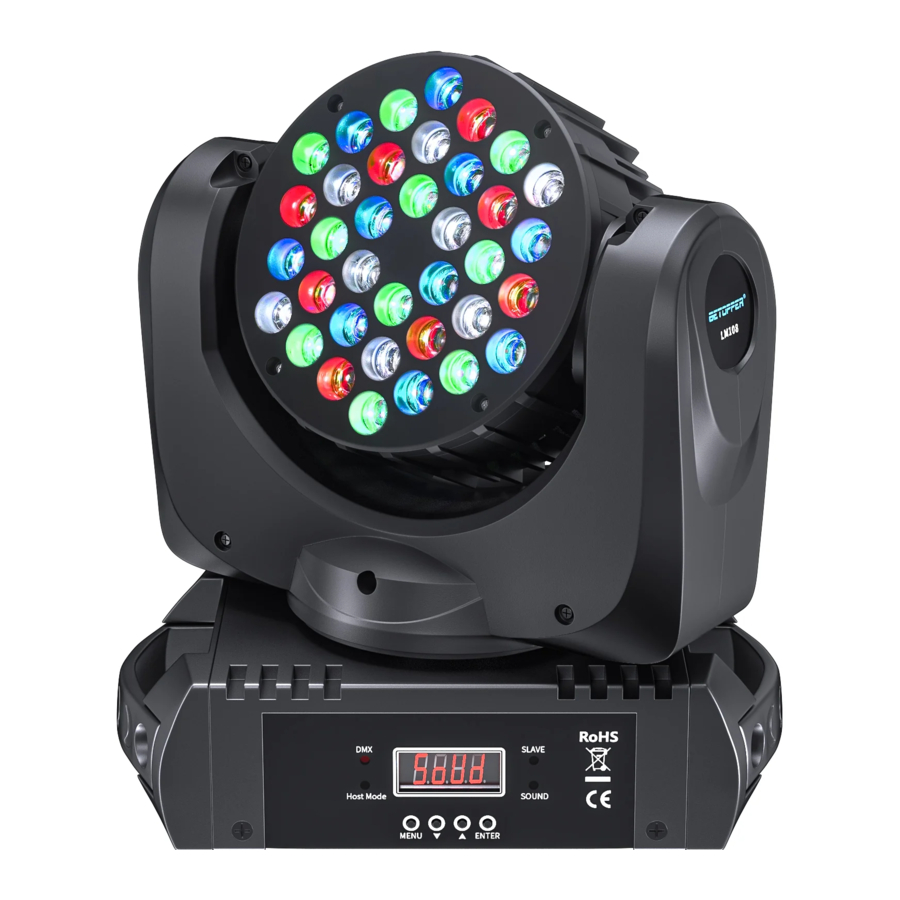

BETOPPER LED Moving Beam Wash Light LM108 - 36x3W RGBW Moving Head Lights DMX512 Manual

Technical Specification

Control Panel Instruction

[MODE/ESC] Used to initially access the control panel system, and also navigate to the previous higher-level menu item.
[UP] Scrolls through menu items and numbers in ascending order.
[DOWN] Scrolls through menu items and numbers in descending order.
[ENTER] Used to select and confirm/store the current selection.

Button operation - Display Instruction

1. For first use, should be restored to factory settings: Sound Sensitivity: 80; Color Maximum(Red: 200, Green: 255, Blue: 255,White: 255); DMX Address: 1; 16 CH;Default Mode: DMX
2. Current Menu is "Show Mode", "Sound Sense" etc. primary menu, press "UP"/ "DOWN" for shift, now the function of "MODE" Button equals "UP"function. For other conditions, "MODE" is for return to previous menu.
3. The system is in DMX mode and DMX signal is available, the DMX indicator can flash.
4. After the system starts or resumes from stand-by state. (when blank screen, press any key), will display the current menu mode, may be one of "DmxMode","FastMode", "SlowMode"and "SondMode", it depends on what the current mode is.

16-Channel Mode

5. Press "ENTER" to confirm. For the other colors setting, please refer to above.

9-Channel Mode

Operation Instruction

Operation Mode Setup

Mode Settings

1. Press "MODE" button, shift to "Show Mode"
2. Press "ENTER" to enter into submenu
3. Press "UP" or "DOWN" to shift among all the modes. "DmxMode" indicates DMX mode; "FastMode" indicates fast running mode; "SlowMode" indicates slow running mode; "SondMode" indicates running by sound mode.
4. Shifting until to your wanted mode, then press "ENTER" button to confirm.

Sound Sensitivity Settings

1. Press "MODE" button until to "Sound Sense" menu.
2. Press "ENTER" to submenu.
3. Press "UP" or "DOWN" button to plus or minus the digit.
4. Press "enter" to confirm.

Factory Default Settings

1. Press "MODE" button until to "Defaults Confirm" menu.
2. Press "ENTER" into submenu "Yes".
3. Press "ENTER" to confirm.

System Reset

1. Press "MODE" button until to "Fixture Rest" menu.
2. Press "ENTER" into the submenu "Yes".
3. Press "ENTER" to confirm.

Remark: When the operation mode is chosen, press the Enter button to run.

DMX Channel Settings

1. Press "MODE" button until to "Channel Set" menu.
2. Press "ENTER" button to enter into submenu.
3. Press "UP" or "DOWN" button, to choose 9CH or 16CH.
4. Press "ENTER" to confirm.

DMX Address Settings

1. Press "MODE" button until to "DMX Set Address" menu.
2. Press "ENTER" button into submenu.
3. Press "UP" or "DOWN" button for plus or minus the DMX number.
4. Press "ENTER" button to confirm above.

Motor Positive & Negative Rotation Settings

1. Press "MODE" button until to "Pan Inverse" menu (If for the Y-Motor setting, will be "Tile Inverse" menu).
2. Press "ENTER" button into the submemu.
3. Shift "UP" and "DOWN" button to set positive rotation or negative rotation.
4. Press "ENTER" to confirm.

Color Maximum Settings

1. Press "MODE" button until to "White Balance" menu.
2. Press the "ENTER" button into submenu "Red".
3. Press "ENTER" again into "Red 200" menu to set the color maximum.
4. Press "UP" or "DOWN" to plus or minus the maximum of Red.
