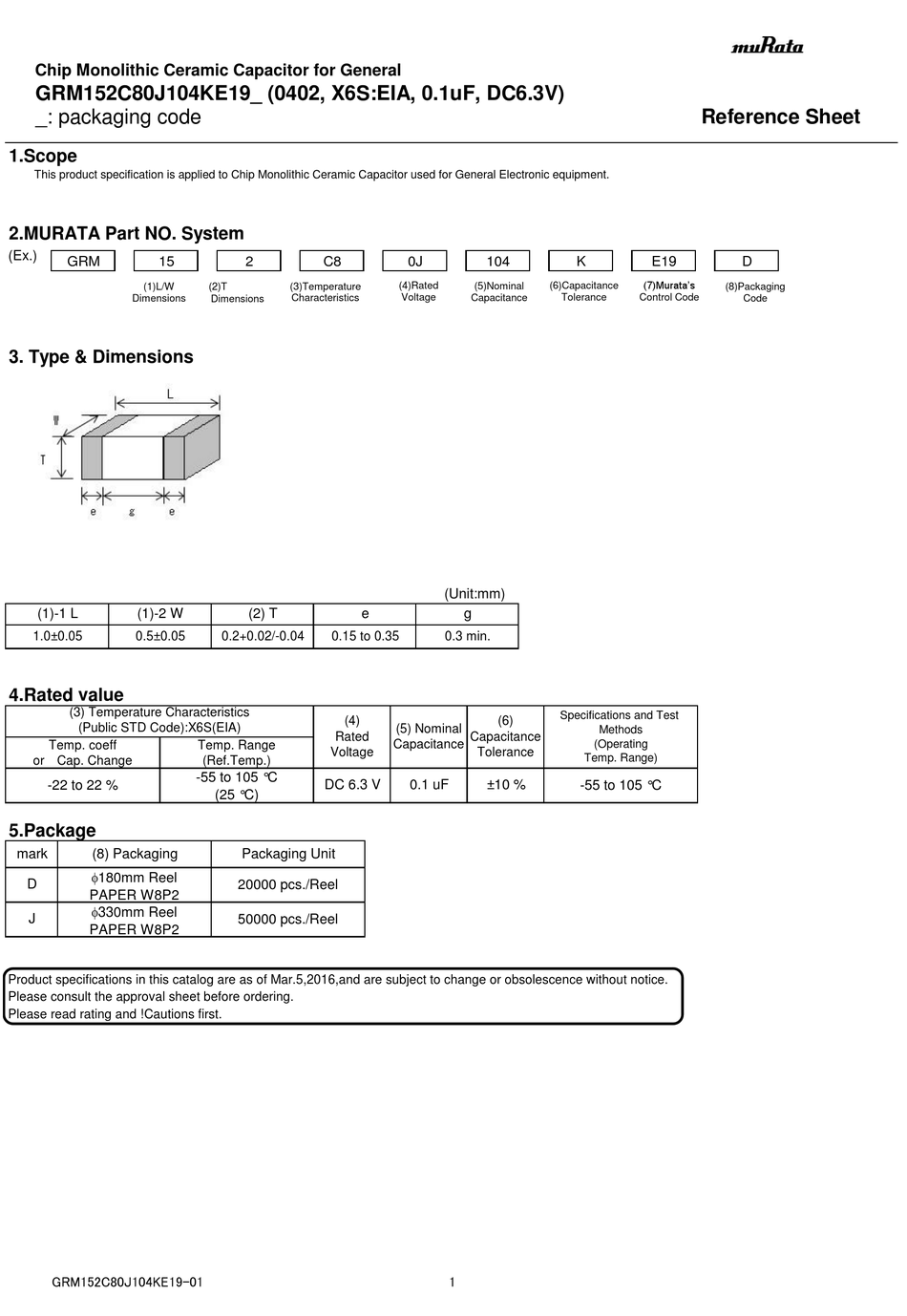

Murata GRM152C80J104KE19 Series Reference Sheet

Chip Monolithic Ceramic Capacitor for General
GRM152C80J104KE19_ (0402, X6S:EIA, 0.1uF, DC6.3V)
_: packaging code
1.Scope
This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.
2.MURATA Part NO. System
(Ex.)
GRM 15
(1)L/W
Dimensions
3. Type & Dimensions
(1)-1 L (1)-2 W
1.0±0.05 0.5±0.05
4.Rated value
(3) Temperature Characteristics
(Public STD Code):X6S(EIA)
Temp. coeff
or Cap. Change
-22 to 22 %
5.Package
mark (8) Packaging
f180mm Reel
D
PAPER W8P2
f330mm Reel
J
PAPER W8P2
Product specifications in this catalog are as of Mar.5,2016,and are subject to change or obsolescence without notice.
Please consult the approval sheet before ordering.
Please read rating and !Cautions first.
GRM152C80J104KE19-01
2 C8
(2)T (3)Temperature
Characteristics
Dimensions
(2) T e
0.2+0.02/-0.04 0.15 to 0.35
(4)
Rated
Temp. Range
Voltage
(Ref.Temp.)
-55 to 105 °C
DC 6.3 V
(25 °C)
Packaging Unit
20000 pcs./Reel
50000 pcs./Reel
0J 104
(4)Rated (6)Capacitance
(5)Nominal
Voltage Tolerance
Capacitance
(Unit:mm)
g
0.3 min.
Specifications and Test
(6)
(5) Nominal
Capacitance
Capacitance
Tolerance
0.1 uF ±10 %
1
Reference Sheet
K E19 D
(7)Murata's
(8)Packaging
Control Code
Code
Methods
(Operating
Temp. Range)
-55 to 105 °C
