FP-3900T Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

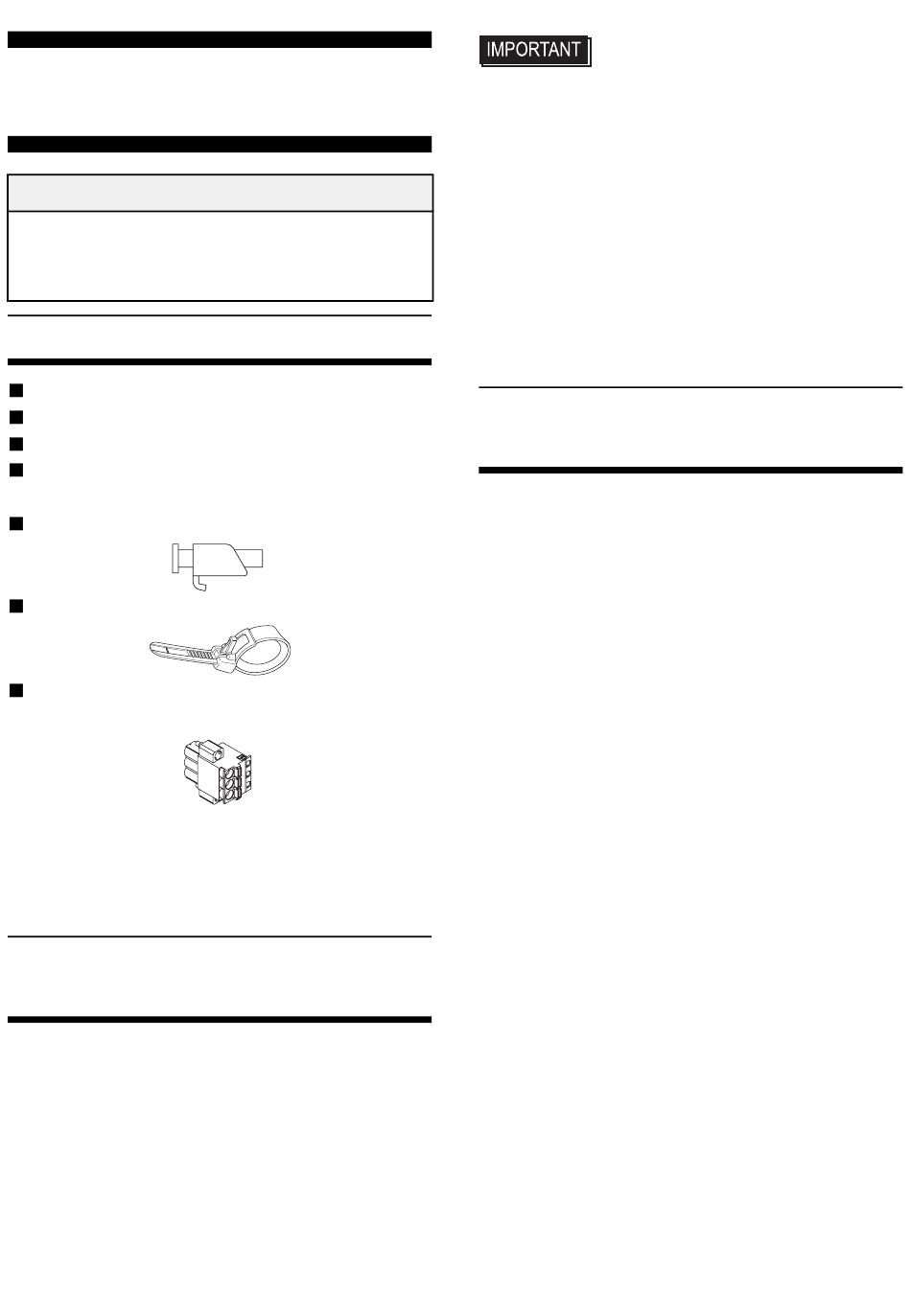

Package Contents
FP unit (1)
Installation Guide (1) (this manual)
Warning/Caution Information (1)
Installation Gasket (1) (attached to the FP
unit)
Installation Fasteners (4/set, 3sets)
USB Cable Clamp (1)
AC Power Connector (1) (attached to the
FP unit)
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing, please
contact your local FP distributor immediately.
Required software/Reference
manual
The FP-3900T unit needs the following
software for operation. As FP user manual,
provided by PDF media, describes its details,
download the manual below and get the further
information. Visit Pro-face website below and
get both software and reference manual.
(URL:http://www.pro-face.com/otasuke/)
• Software
: Mouse Emulation Software
• Manual
: FP3000 Series User Manual
• Before you begin to use the touch
panel, you need to adjust (calibrate) it.
• For use of USB for sending touch data,
the number of the calibration point of
mouse emulation software should be
9. (The initial setting is 4.)
If you do not change the setting values,
the touch position may not be accu-
rate, a little off the point.
• If the touch panel coordinates slip, it is
recommended to make calibration
again.
UL/c-UL/CSA Application
Notes
<Cautions>
Be aware of the following items when
building the FP into an end-use product:
• The rear face of the FP unit is not a part of
an enclosure. This unit must be used as a
built-in component of an end-use product
that forms a UL/c-UL-compliant enclosure.
• For indoor use only.
• This unit should be installed in the front
face of a metal panel.
• If this unit is installed so as to cool itself
naturally, be sure to install it in a vertical
panel. Also, be sure that the FP unit is
mounted at least 100 mm away from any
adjacent structures or equipment. If these
requirements are not met, the heat gener-
ated by the FP unit's internal components
may cause the unit to fail to meet UL/c-UL
standard.
• For use on a flat surface of a Type 4X
(Indoor Use Only) and/or Type 12 Enclo-
sure.
• Type 4X (Indoor Use Only) and/or 12
Enclosure, when the hatch for Front USB
Port is secured by screw.
Type 1 Enclosure, when the hatch for Front
USB Port is open.(FP3900-T41-U only)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP-3900T Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Electronics Corporation FP-3900T Series

  • Page 1 FP-3900T Series • Before you begin to use the touch Installation Guide panel, you need to adjust (calibrate) it. • For use of USB for sending touch data, the number of the calibration point of mouse emulation software should be Caution 9.

  • Page 2: Ce Marking Notes

    USB I/F located on the FP unit's front modules used in Class I, Division 2 Groups The FP-3900T Series is a CE marked product A, B, C, and D hazardous locations (from that conforms to EMC directives and Low Doc No.

  • Page 3: Part Names

    Part Names A: TFT Color LCD Front View Acts as a display monitor for your host. B: Touch Panel Allows you to switch screens or write data to the host. C: Power Connector (Socket) Provides the input and ground terminals for a power cable.
  • Page 4 Dimensions 419[16.50] Unit: mm [in] 77.7 Top View [3.06] [0.14] 12.7 460[18.11] [0.50] center of display area center of unit Side View Front View Dip Switches and Slide Switch The Dip Switches and Slide Switch are located in the bottom of the FP unit. Loosen the screws of the cover with a Phillips head screwdriver and then remove the cover.
  • Page 5 Interfaces Analog RGB Interface Input signal type Analog RGB Image signal : analog RGB Input signal Synchronous signal :TTL level, negative true or positive true characteristic Scanning type : non-interlace •CONTRAST •BRIGHTNESS •H-POSITION •V-POSITION Setting by OSD •H-size •PHASE (On Screen Display) •DIMMER(BACKLIGHT) •SHARPNESS •ALL RESET (DEFAULT)
  • Page 6 FP unit’s operation. DVI-D Interface Input signal type DVI-D •CONTRAST •BRIGHTNESS Setting by OSD •DIMMER(BACKLIGHT) •SHARPNESS (On Screen Display) •ALL RESET (DEFAULT) Display Area (FP-3900T Series) Screen Resolution H Sync. V Sync. Dot Clock Display Size Expansion (kHz) (Hz) (MHz)
  • Page 7 FP unit’s operation. • Only when the FP-3900T series is connected with PS-2000B or PL- 3000B (Revision B or more), FP-DV01-100 can be used. • Please turn on PS-2000B's internal dipswitch 4 when use FP- DV01-100 with PS-2000B.
  • Page 8 Pin Assignments and Signal Names for Serial Interface Pin No. Signal Name Condition Pin Location Carrier Detect Receive Data (FP-> Host) Send Data (FP<-Host) Data Terminal Ready Ground Data Set Ready Request to Send (FP<- Host) Clear to Send (FP-> Host) (Used internally) *1 The CD, DTR, and DSR are connected together inside of the FP.

  • Page 9: Installation

    Installation (1) According to the Panel Cut size, make installation holes on the panel. Also, determine the panel thickness according to the panel thickness range with due consideration of panel strength. Unit: mm [in] Panel +0.04 419.5 [16.52 r ≤ 3[0.12] Panel thickness 1.6[0.06] to 10[0.39] (2) Check that FP has installation fasteners.
  • Page 10 Wiring • To avoid an electric shock, when connecting the FP’s power cord terminals to the power ter- minal block, confirm that the FP’s power supply is completely turned OFF, via a breaker, or similar unit. • To avoid the dangers of fire, electric hazards and equipment damage, be sure to use only the specified voltage when operating the FP.
  • Page 11 If the Conductor s end (individual) (3) Insert each pin terminal into its each ’ wires are not twisted correctly, the hole. Release the Opening button to end wires may either short clamp the pin place. against each other, or against an Opening Button electrode.

  • Page 12: Power Supply Cautions

    USB Cable Clamp Removal Fea- Input/Output Signal Line Cau- ture tions (1) Push in the cable clamp’s stopper until the cable clamp is unlocked, then remove the clamp. • All FP Input and Output signal lines must (2) Disconnect the USB cable. be separated from all operating circuit (power) cables.
  • Page 13 Item Function Color Settings Adjusts the contrast and the brightness. Screen Settings Adjusts the display position of the screen. Custom Display Adjusts Sharpness and the backlight brightness. System Settings Changes settings such as activating the click sound. All Reset Resets the current OSD value to the default value. Input Source Switches Analog RGB and DVI-D.
  • Page 14 • In the OSD, pressing the button applies the set value and enables the setting. The set value won’t be canceled unless the power is turned OFF or the value is reset. If the power is turned OFF without saving the set value, that data will disappear.
  • Page 15 System Settings Adjustment button Selection of the change item Enables/disables the click sound. With this parameter, Click Tone the sound level can also be adjusted. (Default value: OFF <Click sound disabled>) When an input data resolution of 720 x 400 is used in the 720x400 Mode VGA text mode, set this parameter to ON.
  • Page 16 Osaka 559-0031, Japan claims for damages or losses resulting from the use of this product. URL:http://www.pro-face.com/ The information in this document is subject to change without notice. PFX105491L .FP3900-MT03E-BTH 2010.10. JM/C ©2009 Digital Electronics Corporation...
  • Page 17 PHA99478 Addendum Anexo Annexe 08/2018 California Proposition 65 Warning—Lead and Lead Compounds Advertencia de la Proposición 65 de California—Plomo y compuestos de plomo Avertissement concernant la Proposition 65 de Californie— Plomb et composés de plomb WARNING: This product can ADVERTENCIA: Este producto puede AVERTISSEMENT: Ce produit peut expose you to chemicals exponerle a químicos incluyendo...
