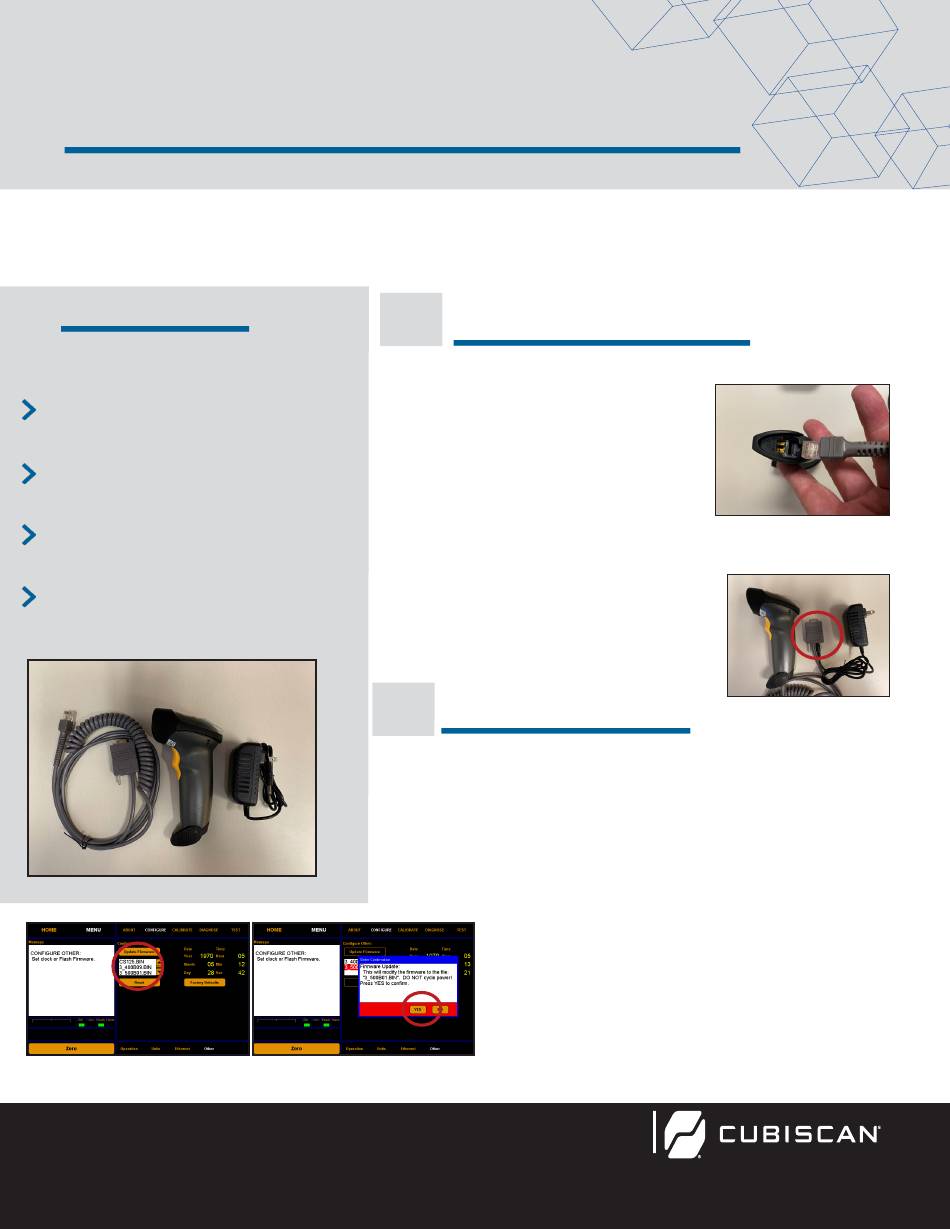

CubiScan 12215 Quick Reference Manual

CUBISCAN BARCODE SCANNER KIT
QUICK REFERENCE GUIDE
This quick reference guide provides an overview and instructions for setting up and using the Cubiscan bar-
code scanner kit. The barcode scanner kit works with the Cubiscan 25, Cubiscan 125, and Cubiscan 325.
In the box
Upon opening the box, you'll
find the following items:
Handheld barcode scanner
(Part 12215)
USB to RS-232 cable assembly
(Part 16057)
Power supply, 5V AC/DC
(Part 16058)
Barcode Scanner Kit
Quick Reference Guide
(Part 16059)
2.2-Select 3_500B01.BIN.
1
Cable assembly set up
To set up the Cubiscan barcode scanner kit for use, complete the
following steps.
1 Plug the RJ45 end of the cable
assembly into the barcode
scanner.
2
Plug the DC power cable into
the back of the RS-232 head
shell of the cable assembly.
3 Plug the RS-232 end of the
cable assemply into the serial
port of the Cubiscan.
2
Check firmware
You may need to update the Cubiscan's firmware
if it is lower than 3_500B01.BIN. To see which version
your Cubiscan is running, tap Menu, tap About, tap Version.
If your Cubiscan's firmware needs updating, follow the steps below.
2.3-Select Yes.
1
On the Cubiscan, tap Menu. Tap Configure. Tap
Other.
2
Select 3_500B01.BIN or higher from the firmware
menu and tap Update Firmware.
3
A confirmation window will appear. Select Yes.
801.451.7000
cubiscan.com
1.1-Plug RJ45 into
barcode scanner
1.2-Power cable
plugged into RS-232
head shell.
