Quick Start Guide: BlueBoard-LPC11U24/37
BlueBoard-LPC11U24/37
User Manuals for BlueBoard-LPC11U24/37:
For KEIL MDK-ARM with ULINK2:
For LPC-Xpresso with NXP-LPC-Link:
Sample projects for BlueBoard-LPC11U24:
For KEIL MDK-ARM:
For LPC-Xpresso:
Click here
Sample projects for BlueBoard-LPC11U37:
For KEIL MDK-ARM:
For LPC-Xpresso:
Click here
Schematic for BlueBoard-LPC11U24:
Click here to download
Schematic for BlueBoard-LPC11U37:
Click here to download
1

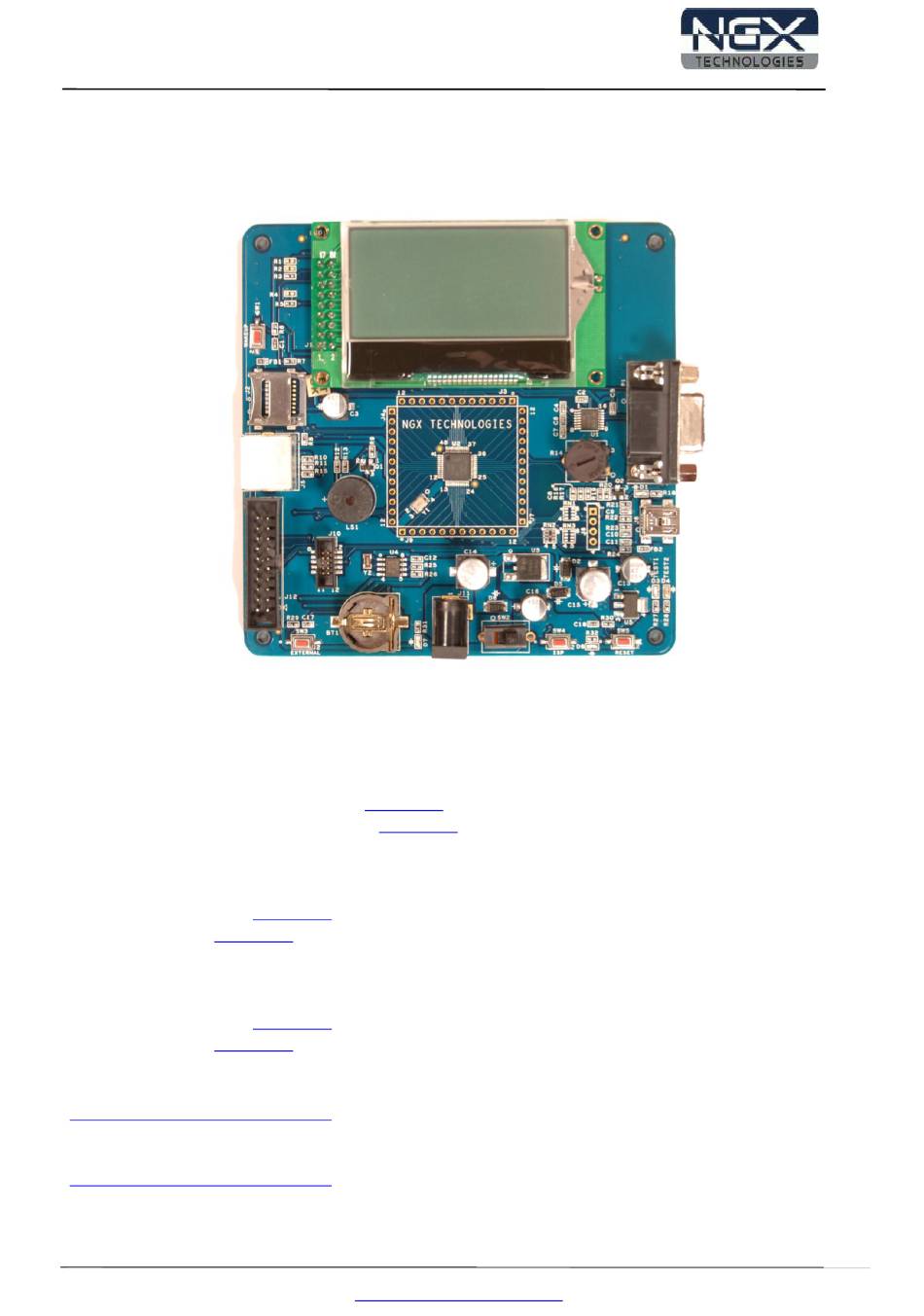

Fig. 1
Click here
Click here
Click here
Click here
Schematic.
Schematic.
www.ngxtechnologies.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for NGX Technologies BlueBoard-LPC11U24
- Page 1 Quick Start Guide: BlueBoard-LPC11U24/37 BlueBoard-LPC11U24/37 Fig. 1 User Manuals for BlueBoard-LPC11U24/37: For KEIL MDK-ARM with ULINK2: Click here For LPC-Xpresso with NXP-LPC-Link: Click here Sample projects for BlueBoard-LPC11U24: For KEIL MDK-ARM: Click here For LPC-Xpresso: Click here Sample projects for BlueBoard-LPC11U37:...
- Page 2 Quick Start Guide: BlueBoard-LPC11U24/37 About NGX Technologies NGX Technologies is a premier supplier of development tools for the ARM7, ARM Cortex M0, M3 and M4 series of microcontrollers. NGX provides innovative and cost effective design solutions for embedded systems. We specialize in ARM MCU portfolio, which includes ARM7, Cortex-M3, M0 &...
-
Page 3: Table Of Contents
2.2 Board Features ........................... 7 2.3 Block Diagram ..........................8 2.4 MCU Features ........................... 8 3.0 BLUEBOARD-LPC11U24/37 Hardware Description ............... 10 3.1 Introduction ............................. 10 3.2 Board Image with pointer to each peripheral & connectors ............10 4.0 BLUEBOARD-LPC11U24/37 hardware verification ................. 11 4.1 Board connections ........................... -
Page 4: Introduction
Quick Start Guide: BlueBoard-LPC11U24/37 1.0 INTRODUCTION This document is the Quick Start Guide for the BLUEBOARD-LPC11U24/37, a low cost ARM Cortex- M0 based board by NGX Technologies. This document reflects its contents which include MCU features, board features and hardware verification and possible debuggers and IDEs that can be used with this board. -
Page 5: Nxp-Lpclink And Lpcxpresso
NXP LPC-Link. The hardware setup is now ready for programing a BLUEBOARD- LPC11U24/37 board with NXP LPC-Link and LPCXpresso. Note: 10 pin cable is not a part of BLUEBOARD-LPC11U24/37 package, user need to buy separately. 1.4 NGX CoLinkEx and Coocox CoIDE The 10pin cable is a part of the NGX CoLinkEx package, NGX CoLinkEx is not a part of the BLUEBOARD-LPC11U24/37 package, user need to buy NGX CoLinkEx separately. - Page 6 Quick Start Guide: BlueBoard-LPC11U24/37 The BLUEBOARD-LPC11U24/37 board has on board Cortex SWD/JTAG 10-pin box, the one end of the 10-pin cable is connected to NGX CoLinkEx and the other end is connected to BLUEBOARD- LPC11U24/37 as shown in the below image.
-
Page 7: Blueboard-Lpc11U24/37 Overview
High accuracy external RTC connected on I2C bus RTC battery holder 10K pot for ADC Note: The BLUEBOARD-LPC11U24/37 has support for both 20 pin and 10 pin debug header. You don't need to buy a 20pin to 10pin converter (board which costs 10-15 USD). www.ngxtechnologies.com... -
Page 8: Block Diagram
Quick Start Guide: BlueBoard-LPC11U24/37 2.3 Block Diagram Fig. 6 2.4 MCU Features ARM Cortex-M0 processor, running at frequencies of up to 50 MHz ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC) Non-Maskable Interrupt (NMI) input selectable from several input sources ... - Page 9 Quick Start Guide: BlueBoard-LPC11U24/37 ROM-based USB drivers. Flash updates via USB supported ROM-based 32-bit integer division routines Standard JTAG (Joint Test Action Group) test interface Serial Wire Debug 40 General-Purpose I/O (GPIO) pins Up to 8 GPIO pins can be selected as edge and level sensitive interrupt sources ...
-
Page 10: Blueboard-Lpc11U24/37 Hardware Description
BLUEBOARD-LPC11U24/37 microcontroller is factory-programmed with a quick start demo program. The quick start program resides in the BLUEBOARD-LPC11U24/37 on-chip Flash memory and runs each time power is applied, unless the quick start has been replaced with a user program. -
Page 11: Blueboard-Lpc11U24/37 Hardware Verification
Quick Start Guide: BlueBoard-LPC11U24/37 4.0 BLUEBOARD-LPC11U24/37 hardware verification NGX's Blueboard evaluation platforms ship with a factory-programmed test firmware that verifies the Blueboard peripherals. It is highly recommended that you verify the board, before you start programming. Also this exercise helps you get acclimatized with the board quickly. -
Page 12: Powering The Board
Quick Start Guide: BlueBoard-LPC11U24/37 VBUS UART External Interrupt Switch EXT_SW Wakeup Switch WAKEUP SWD (Serial Wire Debug) NRST SWDIO SWDCLK In system Programming switch Power supply Connecting this will provide 3.3V supply to board Table.1 4.2 Powering the Board The Blueboard requires DC supply of 6.5V or 7.5 V, 1A rating to power it up. Alternatively the board could be powered through USB connector. -
Page 13: Buzzer
4.3.3 Graphics LCD (GLCD) Test setup and verification: After the LEDs blink and buzzer test the next interface that the firmware validates is the GLCD. A message “NGX TECHNOLOGIES” should be displayed on the GLCD Fig 8 4.3.4 RTC Test setup and verification: Next, the firmware validates the external RTC connected over I2C bus. -
Page 14: Adc
Quick Start Guide: BlueBoard-LPC11U24/37 4.3.6 ADC Test setup and verification: The ADC pin is connected to a potentiometer. To test the ADC rotate the wheel of the potentiometer, as the position varies the ADC value sensed is displayed on the GLCD. -
Page 15: Uart
Quick Start Guide: BlueBoard-LPC11U24/37 4.3.9 UART Test setup and verification: Open the hyper terminal as shown in the below image. To test the UART open the hyper terminal with settings 115200 bps 8N1, i.e. Baud Rate: 115200 bps Bits: 8... -
Page 16: External Interrupt Switch & Wakeup Switch
Quick Start Guide: BlueBoard-LPC11U24/37 Fig. 11 Fig. 12 Next a ‘Hyper Terminal’ window opens as shown Fig. 13 Make sure the board is powered and the serial port is connected to the board. The key that are typed on the keyboard are echoed back to the hyper terminal. -
Page 17: Change History
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies NGX Technologies from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all appropriate precautions with regard to electrostatic discharge. - Page 18 This notice contains important safety information about temperatures and voltages. No license is granted under any patent right or other intellectual property right of NGX Technologies covering or relating to any machine, process, or combination in which such NGX Technologies products or services might be or are used.
