- Page 1 Quick Installation Guide TK-408K...
-
Page 2: Table Of Contents
Table of Contents English ... 1. Before You Start 2. How to Connect ... 3. Using the KVM Switch ... Specifications ... Troubleshooting ... Version 05.04.06... -
Page 3: English

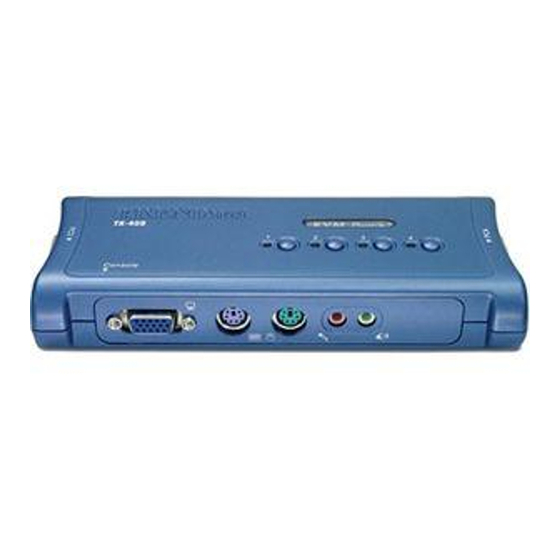

Cables LCD Monitor Keyboard Mouse Package Content TK-408 Quick Installation Guide 4 x 3-in-1 Combo KVM Cable 4 x Audio/Mic Cable PC 2 PC 3 Cables Cables 4-Port PS/2 Audio KVM Switch Kit (TK-408K) English PC 4 Cables Microphone Speakers... -
Page 4: How To Connect
2. How to Connect Important: Power OFF all computers before making connections to the KVM Switch. Note: The included cables and KVM Switch connections are color coded for your convenience. 1. Connect the shared Monitor, Keyboard, Mouse, Microphone, and Speakers to the Console Port of KVM Switch. -
Page 5: Using The Kvm Switch
3. Using the KVM Switch To alternate between computers, you can use the Push Buttons on the KVM Switch or the Hot-key commands via keyboard. Hot-Key Commands A keyboard hot-key command consists of three keystrokes: Hot-Key command = ScrLk + ScrLk + Command key(s) After pressing the ScrLk key, you have 2 seconds to press the ScrLk key again. - Page 6 Quick Reference Sheet for TK-408K Hot-Keys Command ScrLk ScrLk Select PC x = 1 ~ 2 for PC channel number ScrLk Select Audio/Mic Channel (Fx is a function key) FX=F1 ~ F4 Bind PC & Audio/Mic ScrLk Switching UnBind PC & Audio/...
-
Page 7: Specifications
Specifications Computer Connections: KVM Cable: KVM Cable Connectors (all male): Console Port Connectors (all female): Port Selection: Auto-Scan Intervals: Keyboard State: Power Type: Dimensions: Weight: Operating Temperature: Storage Temperature: Humidity: Certifications: 4 sets of 1.8 M (6ft) KVM Cables To KVM: 1 x VGA/SVGA HDB 15-pin To PC: •... -
Page 8: Troubleshooting
Troubleshooting Where is the power supply? I did not find one in the box. The TK-408K does not require a power adapter. It draws power from your computer's PS/2 connections. As long as your KVM Switch is connected to the PS/2 port, it will receive the necessary power to function. - Page 9 TK-408K - 2 Year Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
- Page 10 PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDnet'S PRODUCTS. TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY...
- Page 11 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 3135 Kashiwa Street Torrance, CA 90505 Copyright ©2006. All Rights Reserved. TRENDnet.
