Chroma 51101-1 User Manual

Thermal/muiti-function data logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Thermal/Multi-function Data Logger
51101-1
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 51101-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chroma 51101-1

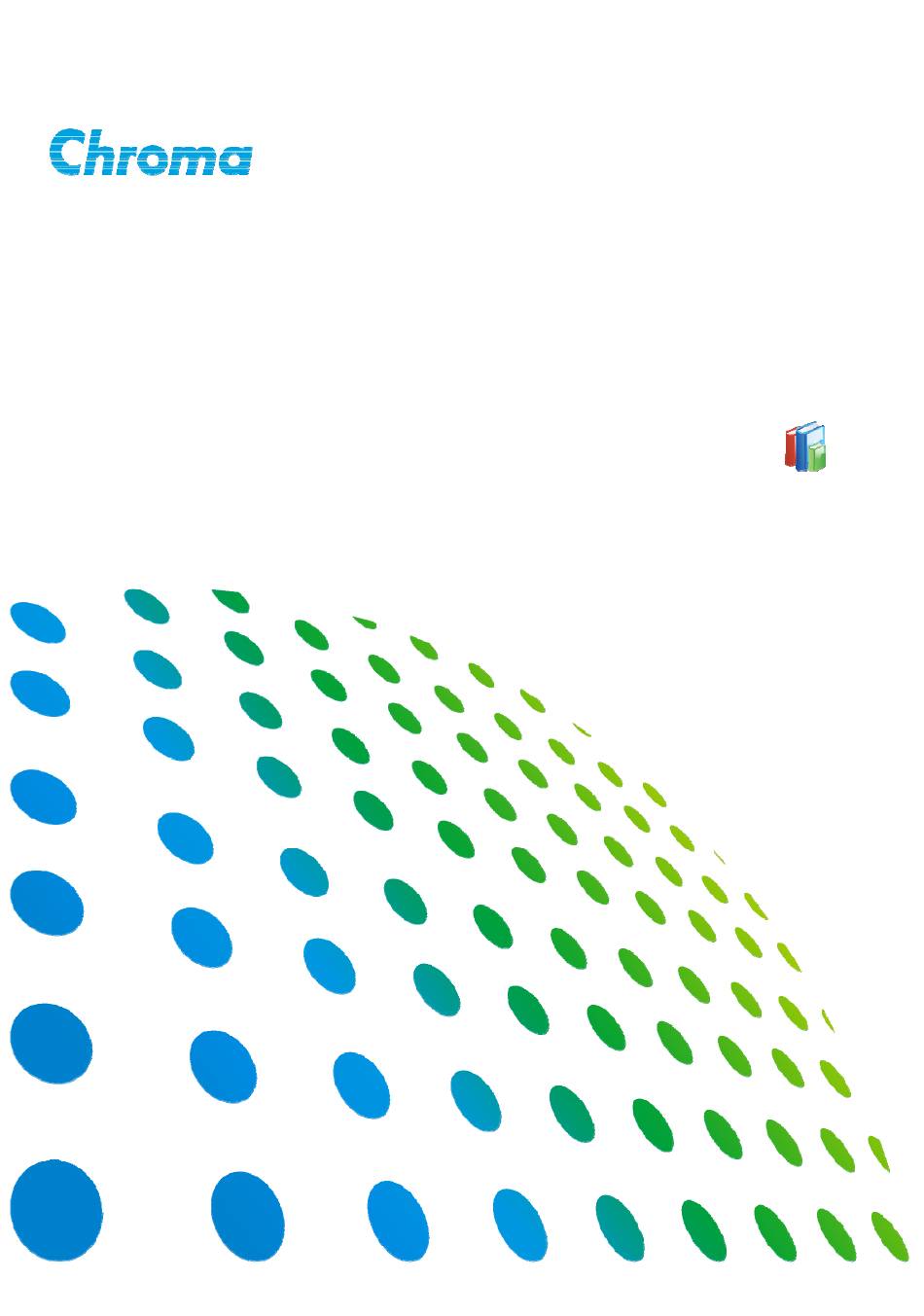

  • Page 1 Thermal/Multi-function Data Logger 51101-1 User’s Manual...
  • Page 3 Thermal/Multi-function Data Logger 51101-1 User’s Manual Version 1.0 June 2012...
  • Page 4 The information in this document is subject to change without notice. Chroma ATE INC. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
  • Page 5 All Chroma instruments are warranted against defects in material and workmanship for a period of one year after date of shipment. Chroma agrees to repair or replace any assembly or component found to be defective, under normal use during this period. Chroma’s obligation under this warranty is limited solely to repairing any such instrument, which in Chroma’s sole opinion proves to be defective within the scope of the warranty when returned...
  • Page 6 Material Contents Declaration The recycling label shown on the product indicates the Hazardous Substances contained in the product as the table listed below. : See <Table 1>. : See <Table 2>. <Table 1> Hazardous Substances Lead Mercury Cadmium Hexavalent Polybrominated Polybromodiphenyl Part Name Chromium...
  • Page 7 “ ” indicates that the level of the specified chemical substance exceeds the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC. Chroma is not fully transitioned to lead-free solder assembly at this moment; however, most of the components used are RoHS compliant.
  • Page 9 Failure to comply with these precautions or specific WARNINGS given elsewhere in this manual will violate safety standards of design, manufacture, and intended use of the instrument. Chroma assumes no liability for the customer’s failure to comply with these requirements.
  • Page 10 Safety Symbols DANGER – High voltage. Explanation: To avoid injury, death of personnel, or damage to the instrument, the operator must refer to an explanation in the instruction manual. High temperature: This symbol indicates the temperature is now higher than the acceptable range of human. Do not touch it to avoid any personal injury.
  • Page 11 Chroma without prior approval. Standard Package Standard Equipment User’s Manual CD-ROM Main unit Standard Equipment (Cable) ■ Voltage adapter ■ Thermocouple VA-480 x 1 wire K type 1 m x 1 When additional item is required, just inform Chroma the item name. Note...
  • Page 12 Storage, Freight & Maintenance Storage When don’t use the device, please pack it properly and store under a good environment. (The packing is no needed when the device under appropriate environment.) Freight Please use the original packing material when move the device. If the packing material is missing, please use the equivalent buffer material to pack and mark it fragile and waterproof etc to avoid the device damage during movement.
  • Page 13 Revision History The following lists the additions, deletions and modifications in this manual at each revision. Date Version Revised Sections Jun. 2012 Complete this manual.

  • Page 15: Table Of Contents

    Thermal/Multi-function Data Logger 51101-1 User’s Manual Table of Contents 1. Installation ........................1-1 Basic Structure ......................1-1 Temperature, Voltage and Current Measurement ..........1-3 LED Display......................1-4 Initial Inspection.....................1-4 2. Program Operation......................2-1 Installing Program....................2-1 Executing Program ....................2-2 Communication Setup ...................2-2 Data Display ......................2-4 File Selection ......................2-7 Setting Selection....................2-10...

  • Page 17: Installation

    Installation Installation Chroma 51101-1 Thermal/Multi-function Data Logger (It is called eLogger for short. The manual adopts this name for instructing and reading conveniently.) is an efficient instrument for measuring temperature, DC voltage and DC current which equipped with compact size and carry convenience.
  • Page 18 Figure 1-2 Use eLogger single point measurement structure Figure 1-3 Use eLogger multiple points (coordinate with Chroma_eLV program, 4 points at most) measurement structure The similar products on the market, only Chroma eLogger product can CAUTION contact the measured device with high voltage directly, still keep accurate and reliable measurement result due to high voltage isolation protection circuit inside it.

  • Page 19: Temperature, Voltage And Current Measurement

    Installation Figure 1-4 Only Chroma eLogger is with high voltage isolation protection circuit. It can get safety accuracy measured function under high external voltage environment. Temperature, Voltage and Current Measurement Chroma 51101-8 is for measuring temperature and DC voltage, among them temperature measurement use various thermocouples of mini type connector which includes ITS-90 standard defined thermocouple of B, E, J, K, N, R, S or T type as Figure 1-5 shown.

  • Page 20: Led Display

    Thermal/Multi-function Data Logger 51101-1 User’s Manual Figure 1-6 When measuring voltage/current, it is necessary to use dedicated Chroma VA-480/IA-3 voltage/current adapter When operating Chroma eLogger to process voltage and current CAUTION measurements, please use dedicated voltage adapter VA-480 and current adapter IA-3. Other adapters which unapproved by Chroma or...

  • Page 21: Program Operation

    Program Operation Program Operation Installing Program Chroma 51101-1 eLogger is a measurement instrument via computer connection operation and gets measurement result via computer operation interface. Therefore, one eLogger measurement program (Chroma eLogger Viewer program, Chroma_eLV) will be attached to eLogger. Please be sure the computer using Microsoft Windows operating system, insert CD with the good and CD content will be executed automatically as Figure 2-1 shown.

  • Page 22: Executing Program

    Thermal/Multi-function Data Logger 51101-1 User’s Manual Executing Program Before executing the program, please connect eLogger to idle USB port of computer firstly and then start Chroma_eLV program. First of all, the program main screen will be appeared as Figure 2-2. The program can support 4 eLoggers’ measurement at most and difference calculation of 2 among them.
  • Page 23 Program Operation Figure 2-3 Data display (a) before completing communication setup and (b) after completing communication setup When using several eLoggers foe measuring, COM ports of each eLogger are different. There is no fixed location relationship between COM port and USB port, it is difficult to infer the program displayed eL1~eL4 to correspond to which location of actual USB port.

  • Page 24: Data Display

    Thermal/Multi-function Data Logger 51101-1 User’s Manual Data Display In each data display area, there are various settings except for data display as Figure 2-5 shown. Figure 2-5 Various settings of data display area COM Port Selection: The details of COM Port selection are described in 2.3.
  • Page 25 English letter. The measurement of voltage/current need to use Chroma dedicated VA-480/IA-3 Note adapter. It is only for measuring DC voltage/current but can’t measure AC voltage/current.
  • Page 26 Thermal/Multi-function Data Logger 51101-1 User’s Manual location may be not the location that users desire to measure temperature point as Figure 2-8 (a) shown. Thus, thermocouple read temperature (T_TC) and measurement point temperature (T_sample) to be gotten will have difference. For reducing this difference as possible, users can test temperature difference between these two points (T_sample-T_TC=Offset) i.e.

  • Page 27: File Selection

    Program Operation File Selection File selection is located at the upper left corner of main screen which includes User Name, Save Configuration, Load Configuration, Data Recording and File Identification as Figure 2-10 shown. Figure 2-10 File selection detail User Name Users can input user name or code here.
  • Page 28 Thermal/Multi-function Data Logger 51101-1 User’s Manual Figure 2-11 Save file name and directory window Figure 2-12 Data recording setting window It is necessary to set save directory and file name firstly. The program provides two file formats of text file (.txt format) or Microsoft Excel file (.cvs format) for saving data. File...
  • Page 29 Program Operation Due to long time record file may be significant even over the general software, ex. Excel file size can be processed. To avoid file too large and can’t be processed thus Max. File Size is for limiting file size. If this selection is checked thus add 000, 001, 002…….. serial number after setting file as actual file name.

  • Page 30: Setting Selection

    Thermal/Multi-function Data Logger 51101-1 User’s Manual Recording Interval Here we set how much time to save a record, the shortest time is 0.2 second. Please key decimal in second place directly such as 0.2 if setting is less than 1.

  • Page 31: Unit Selection

    It can select temperature displayed unit °C, °F or °K as Figure 2-14 shown. Figure 2-14 Temperature unit selection About Selection It checks eLogger firmware version, program version and Chroma information. Graph Record Draw the record value to graph which is helpful to analysis as Figure 2-15 shown. In the...
  • Page 32 Thermal/Multi-function Data Logger 51101-1 User’s Manual selections of temperature, voltage, current or user define. There are four corresponding input boxes at upper and lower side of window, key in range value of vertical axis directly. When displayed time, temperature or other range values are changed, click Clear Chart plot again and changed range value will be valid.
  • Page 33 Program Operation be scrolled to move the left side from plotting window piecewise and the right side adds plotting window. If it isn’t checked thus clear entire window and plotting from the left side. Hide Plot Click here for hiding plot window and just display the value at the left side. Click again then can restore plot window.
  • Page 34 Thermal/Multi-function Data Logger 51101-1 User’s Manual Figure 2-17 Cropping enlarged histogram according to Figure 2-16 Double left click, a marker will be generated. The marker attribute will be produced firstly to define the marker as Temperature Marker (expressed by Tn, n indicates integer), Voltage Marker (expressed by Vn), Current Marker (expressed by In) or User Define Marker (expressed by Un).
  • Page 35 Program Operation Figure 2-18 Marker(a) produced and marker(b) differential calculation The produced marker in plotting area of main window or cropping CAUTION enlarged figure will be appeared automatically on corresponding position. Even the corresponding position isn’t in plotting time or vertical axis range that can’t be displayed on plot area, its marker value still can be memorized and be computed.

  • Page 36: Measurement Selection

    Thermal/Multi-function Data Logger 51101-1 User’s Manual Figure 2-19 (a) Original produced cropping histogram and (b) Re-plot cropping histogram of changed time/temperature/voltage/current/physical range 2.10 Measurement Selection Except for measuring/recording temperature, eLogger also can measure/record DC voltage, current and user define as Figure 2-6 shown. The details are described as follows.
  • Page 37 Program Operation A. Temperature: The thermocouple wire used in measurement selection which is one kind among 8 thermocouples of T, K, B, E, J, N, R and S. The displayed numerals are measured temperature. B. Voltage: Select Voltage in measurement selection and use VA-480 voltage measurement adapter.

  • Page 39: Communication Protocol

    For eLogger, we provide communication protocol between personal computers to let users developing their own program or integrate eLogger into complicated test system. Please contact Chroma if further assistance and service of program development or system integration is required. Chroma eLogger communication protocol formats are as the following.
  • Page 40 Thermal/Multi-function Data Logger 51101-1 User’s Manual Write packet format, send it out from computer. “W” Info. Code (ID0, ID1, ID2) CRLF Write Command (1 byte) Info. Code (1 byte) Info. Data (0~N bytes) CRLF (ASCII=0x0D0A) (2 byte) Response write packet format, send it out from eLogger.

  • Page 41: Information Code & Definition

    ID0= Code Number “E” Error Code “0”= Normal “0”= Normal Others: Reserved for future PC->Device: Device “” Model “N” No Device<->PC: “Chroma 51101-1” ID0~15= Model Name Name String PC->Device: Device “” “M” Model No Device<->PC: “51101-1” Number ID0~15= Model Number...

  • Page 42: Example

    Thermal/Multi-function Data Logger 51101-1 User’s Manual PC->Device: “” Firmware “V” No Device->PC: Ex: “V1.0.0.0” Version ID0~6=FW Version String Number “0.0.0.0” ~ “9.9.9.9” PC->Device: LED flashing action follows Table 1-1 LED indication. . ID0: Enable/Disable “0”: Disable. “1”: Enable.. “L” Yes Device->PC:...

  • Page 43: Dynamic Link Library

    Communication Protocol WriteResponse /SensorType/K-Type (eLogger “wTK”+CRLF Write/SensorType/Voltage (PC eLogger) “WTV”+CRLF WriteResponse/SensorType/Voltage (eLogger “wTV”+CRLF Set average: Command Meaning Read/FilterSelection (PC eLogger) “RF”+CRLF ReadResponse/FilterSelection/MV_02 (eLogger “rF1”+CRLF Write/FilterSelection/MV_08 (PC eLogger) “WF3”+CRLF WriteResponse/FilterSelection/MV_08 (eLogger “wF3”+CRLF Set line frequency filter: Command Meaning Read/LineFreqRej (PC eLogger) “RL”+CRLF ReadResponse/LineFreqRej/60Hz (eLogger “rL1”+CRLF...
  • Page 44 Thermal/Multi-function Data Logger 51101-1 User’s Manual 2. Find Chroma1TDL.dll in DLL folder of attached eLogger CD. 3. When Chroma1TDL.dll to be added to Reference, the related sub-program can be recalled in Visual Basic program afterward.
  • Page 45 Communication Protocol...
  • Page 46 Thermal/Multi-function Data Logger 51101-1 User’s Manual 4. Program flow example:...

  • Page 47: Tdl Recall Method

    Communication Protocol TDL Recall Method TDL(Thermal Data Logger) DLL driver is developed by Microsoft Visual Basic 2005, recall method in the following is also based on the program language. If users edit program by other program language, please follow the language used to do related modification. CloseDevice() It closes logger and corresponding COM Port, before ending the program please recall this item.
  • Page 48 Users should get readings of various channels (ex:CurrentSensorData() ) after the sub-program is recalled. Parameter CurrDT transmits the current date and time for polling speed control. Chroma temperature recorder fastest sampling rate is 0.2 second/all channels thus users recall the sub-program speed shouldn’t faster than this rate, otherwise it may affect recorder operation efficiency and...
  • Page 49 Communication Protocol ModelNumber() ModelNumberEnum It reads logger model number. PollingSpeed() As ULong It reads or sets data polling speed, we don’t recommend to change it arbitrarily. SensorType() SensorTypeEnum It reads input thermocouple type, voltage or current file, the definitions are as the following.

  • Page 51: Dimension

    Appendix A Appendix A A.1 Dimension unit: mm A.2 Product Specification Absolute Maximum Specification Item Symbol Value Unit Dongle Power Supply Voltage Dongle Power Supply Current 0.08 Thermocouple Differential Input ±2.5 Voltage °C Operating Temperature 0~50 °C Storage Temperature -20~60 Storage Humidity Specifications Specification Item...
  • Page 52 Thermal/Multi-function Data Logger 51101-1 User’s Manual Sample Maximum Sample Rate /Sec Galvanic Isolation 1000 Input Resistance Ω Thermocouple break detection tc_open current Voltage Reading Specifications Voltage Input Type Chroma VA-480 Voltage Adapter Voltage Resolution Voltage Input Range +/- 480 Voltage Reading Accuracy ±[0.1% of reading +1mV]...

  • Page 53: Measurement Range And Accuracy

    (1) It needs to be coordinated with Chroma VA-480 voltage adapter. (2) It needs to be coordinated with Chroma IA-3 current adapter (optional accessory). (3) Accuracy definition is based on operating temperature is 20°C ∼ 30°C and up to thermal balance.
  • Page 54 Kuei-shan Hwaya Technology Park Taoyuan County 33383, Taiwan 33383 台灣桃園縣龜山鄉 華亞科技園區華亞一路 66 號 T +886-3-327-9999 F +886-3-327-8898 Mail: info@chromaate.com http://www.chromaate.com Copyright by CHROMA ATE INC. All Rights Reserved. All other trade names referenced are the properties of their respective companies.
