ReptiZoo SH133 Instruction Manual

Wireless 3-Channel Thermo-Hygrometer
Instruction Manual
Thank you for choosing our company's products. In order to use
this product correctly and ensure its service life, please read this
instruction manual carefully before using it.

Product Overview

This product is a wireless warning thermometer that can monitor three different areas
at the same time. It can set three groups of upper and lower limits of temperature
and humidity value, when the temperature and humidity in the area exceed the preset
value, flashing warning will be given. Consumers can more intuitively observe the
living environment of their pets.
Thank you for choosing REPTIZOO products. Before using this product, please read
the manual carefully and follow the instructions.

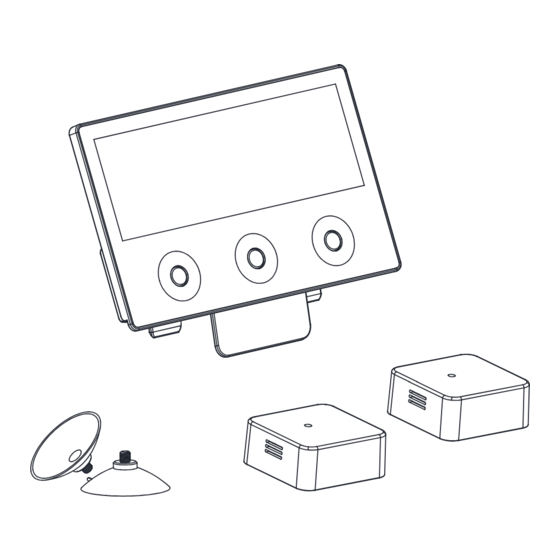

Product List

1. Master thermo-hygrometer: 1pc
2. A Transmitter：1pc
3. B transmitter：1pc
4. Bracket：1pc
5. Battery (CR2450): 2 pcs
6. Instruction manual: 1 pc

Product Feature

1. Large-size LCD display, which can directly display its working status.
2. Equipped with two wireless probes, combined with the master thermo-hygrometer
to form a three-way control, with flexible and changeable use methods.
3. Setting parameter in multi-segment touch mode, simple and intuitive.
4. The master thermo-hygrometer can be placed on the desktop or on the top frame
of the Reptizoo Knock-Down terrarium.

Technical Parameter

1. Parameter
Master thermo-hygrometer: DC 3V (AAA batteries*2 pcs)
Transmitter: DC 3V (CR2450 battery)
2. Size: 135*25*85mm

Setting Method

1. Display description of master thermo-hygrometer:
Temperature unit
Temperature
Master thermo-hygrometer
high/low status
temperature/humidity value
B probe symbol
A probe symbol
Temperature
value
Humidity value
Receive signal
symbol
low electricity
symbol
Dry/Wet status

2. Signal matching operation

Probe A: Double-press the A button, the receiving signal symbol of the master thermo-
hygrometer will keep flashing. At this time, press and hold the signal matching button
of A transmitter for 3 seconds to start signal matching, until the receiving signal symbol
is no longer flashes. To complete the signal matching.
Probe B: Same matching method as probe A above
Flash
A button
Example: The screen completes the
signal matching of A Transmitter

3. Adjustment Parameter Description

Probe A temperature/humidity upper and lower limiting value setting: press and hold
the button A , the low symbol will display, and the temperature value will flash. At this
Signal matching button
time, touch and rotate clockwise/counterclockwise to adjust the temperature lower
limiting value. After setting, click the button A and combine with touch rotation to set
A
temperature upper limiting value(HIGH), humidity lower limiting value(DRY) and
humidity upper limiting value(HUMID).
Probe A
Indicator
light
B
Probe B
Fahrenheit/Celsius switching button
The setting of the temperature/humidity upper and lower limiting value of the probe
B: Same matching method as probe A above
Signal matching button
A
A Transmitter
Indicator
light
B
B Transmitter
B button
Example: The screen completes
the signal matching of B Transmitter
A
B
