DALI transformer 35 – 105 W
DALI transformer 35 – 105 W
Art.-No.: D SNT 105
Operationsmanual

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the load or
power supply. At the same time, take into account all circuit breakers that supply
dangerous voltage to the device or load.
These instructions are an integral part of the product, and must remain with the end
customer.

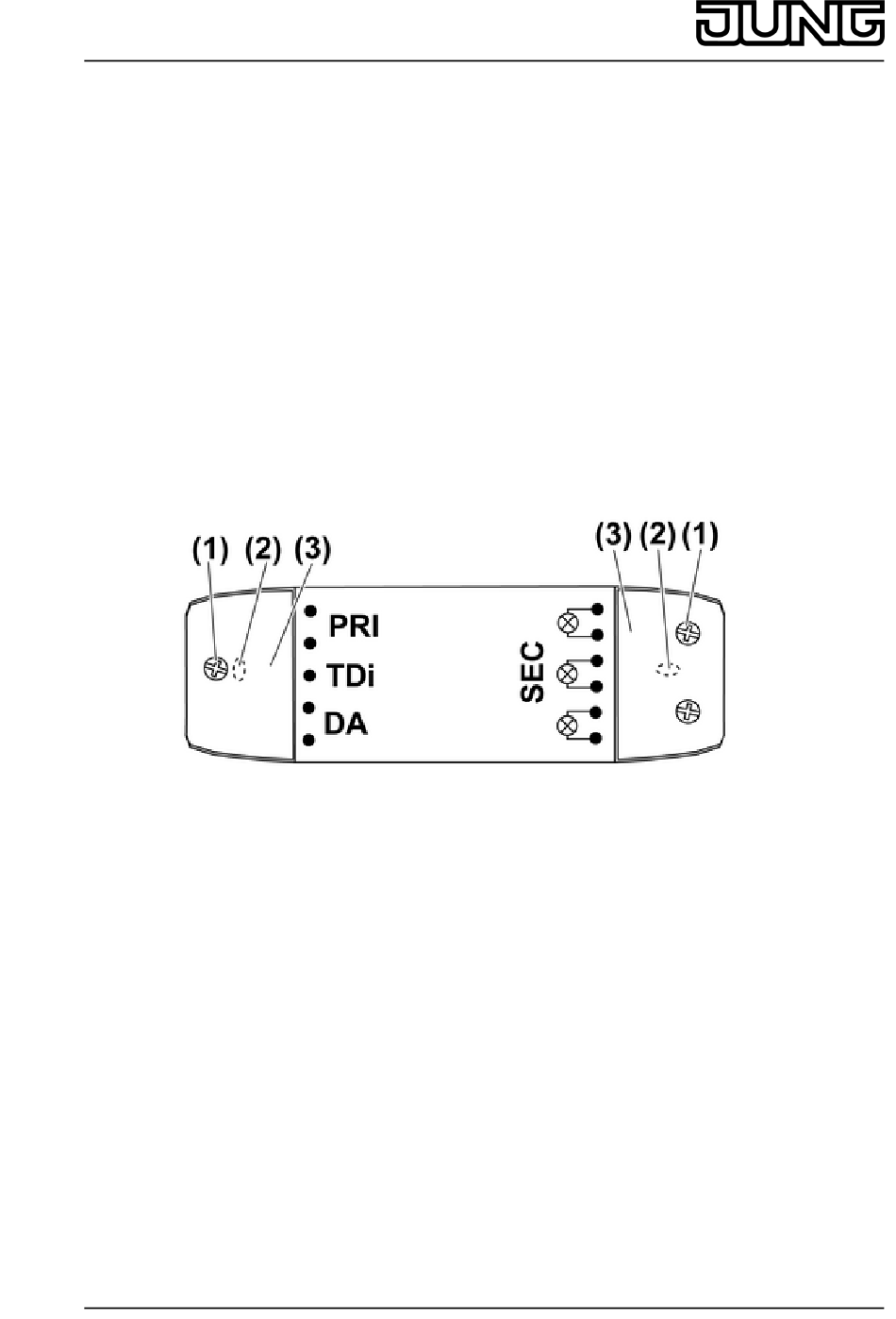

2 Device components

(1) Fastening screws for terminal cover
(2) Mounting holes
(3) Terminal covers

3 Function

Intended use
-
Power supply for LV halogen lamps
-
Switching and brightness adjustment is performed with DALI control units or installation
buttons
-
Installation in false ceilings or surface mounting
Product characteristics
-
No-load proof
-
Electronic short circuit protection
-
Electronic overload protection
-
Electronic over-temperature protection
-
Suitable for emergency current installation
82575903
J:0082575903
picture 1
1/7
19.04.2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D SNT 105 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jung D SNT 105

  • Page 1 DALI transformer 35 – 105 W DALI transformer 35 – 105 W Art.-No.: D SNT 105 Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
  • Page 2 DALI transformer 35 – 105 W i Flickering of the connected lamps is possible if the load is below the specified minimum. This does not represent any defect in the device. Behaviour after mains voltage failure in operation with DALI control unit The behaviour is dependent on the DALI control unit.
  • Page 3 DALI transformer 35 – 105 W All transformers switch off. Make a long press on the installation button. All transformers switch on to minimum brightness. i If the installation button is still pressed, the light becomes brighter up to maximum brightness.
  • Page 4 DALI transformer 35 – 105 W Cable recommendations for reliable strain relief Primary side Secondary side H03VV-F 2×0.50mm H03VV-F 2×0.75mm H03VV-F 2×0.75mm H05VVH2-F 2×0.75mm H03VVH2-F 2×0.75mm H05VV-F 2×1.5mm H05VVH2-F 2×0.75mm H05VV-F 2×2.5mm NYM-J 3×1.5mm NYM-J 3×1.5mm NYM-O 2×1.5mm NYM-O 2×1.5mm NYM-J 3×2.5mm picture 3: Stripping lengths Strip connecting cables according to specifications (picture 3).
  • Page 5 DALI transformer 35 – 105 W Connecting transformer with DALI control unit picture 4: Connection diagram with DALI control unit Connect transformer (5) and DALI control unit (4) according to connection diagram (picture 4). i The connected transformers and the DALI control unit may be operated on different outer conductors.
  • Page 6 DALI transformer 35 – 105 W 5.2 Commissioning Commissioning with DALI control unit Commissioning depends on the control unit being used. The system is fitted and connected. Switch on mains voltage. Transformer switches to maximum brightness. Perform commissioning (see instructions for control unit) Commissioning with installation button The system is fitted and connected.
  • Page 7 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
