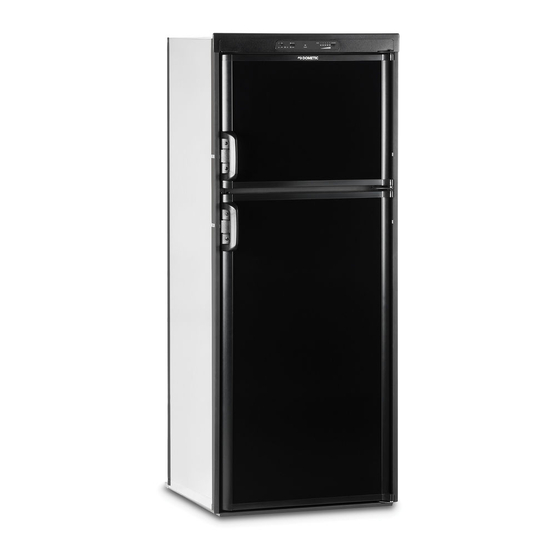

REFRIGERATOR FOR LP-GAS AND ELECTRIC OPERATION
RM2652 RM2852
RM 2652
RM 2852
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Refer to this
manual. For assistance or additional
information consult a qualified
installer, service agency or the gas
supplier.
USA
Service Office
Dometic Corporation
509 South Poplar Street
LaGrange, IN 46761
Phone: 260-463-4858
822701206
822 70 12-06
INSTALLATION AND
®
OPERATING INSTRUCTIONS
Corporate Office
2320 Industrial Parkway Elkhart, IN 46515
For Service Center Assistance
Call: 800-544-4881
Contents:
Installation
Operating Instructions
Maintenance & Service
Pour votre sécurité
Si vous sentez une odeur de gaz:
1. Ouvrez les fenêtres.
2. Ne touchez à aucun interrupteur.
3. Éteignez toute flamme nue.
4. Avertissez immédiatement votre fournis-
seur de gaz.
Pour votre sécurité
Ne pas entreposer ni utiliser de l'essence ni
d'autres vapeurs ou liquides inflammables à
proximité de cet appareil ou de tout autre
appareil.
Avertissement: Une installation, un réglage,
une modification, une réparation ou un
entretien non conforme aux normes peut
entraîner des blessures ou des dommages
matériels. Lisez attentivement le mode d'em-
ploi fourni avec l'appareil. Pour obtenir de
l'aide ou des renseignements supplémentai-
res, consultez un installateur ou un service
d'entretien qualifié ou le fournisseur de gaz.
®
Page
4
8
12
CANADA
Dometic Distribution Inc.
866 Langs Drive
Cambridge, Ontario
N3H 2N7 Canada
Phone: 519-653-4390
Advertisement
Related Manuals for Dometic RM 2652
Summary of Contents for Dometic RM 2652
- Page 1 INSTALLATION AND ® OPERATING INSTRUCTIONS REFRIGERATOR FOR LP-GAS AND ELECTRIC OPERATION RM2652 RM2852 RM 2652 RM 2852 Contents: Page Installation Operating Instructions Maintenance & Service FOR YOUR SAFETY Pour votre sécurité Si vous sentez une odeur de gaz: If you smell gas: 1.
- Page 3 Heater Cover, Reigniter Flue baffle Power module cover Protection cover 12V DC Screw for protection cover 12 volt Terminal block FIG. 1 Burner jet Drain water hose Manual gas Flexible cord shutoff valve Inlet fitting Refrigerator control panel AUTO CHECK AUTOMATIC REFRIGERATOR TEMPERATURE CONTROL LEGEND 1.
- Page 4 The lower side vent is fitted with a panel, which provides INSTALLATION an adequate access opening for ready serviceability of the burner and control manifold of the refrigerator. This GENERAL INSTRUCTION should be centered on the back of the refrigerator. This appliance is designed for storage of foods and GAS CONNECTION storage of frozen foods and making ice.
- Page 5 12 Volts DC Connection This refrigerator model is not designed for 12 volt DC operation of the cooling system; however, a continuous 12 volt DC must be supplied to the refrigerator to oper- ate the controls. Use a minimum of a 14 gauge wire between the battery and refrigerator to supply the con- trol voltage.
- Page 6 Hole for drain water hose FIG. 8 FIG. 6 Any space between the counter, storage area or ceiling 2. Once the lower front strip is slipped under the and top of the refrigerator greater than 1-1/2 inches hinge, the part is possible to swing into place as should be blocked.
- Page 7 For ven- tilation height, see table VENTILATION HEIGHTS. See Figures 9 and 10. Installation with roof Minimum ventilation vent and lower side vent heights in: Refrigerator Inches RM 2652 57-3/4 1465 RM 2852 63-3/4 1620...
- Page 8 Width Depth Height Width Depth inch 54-21/32 24-7/8 26-1/32 53-3/4 23-11/16 RM 2652 1388 1365 inch 60-51/64 24-7/8 26-1/32 59-15/16 23-11/16 RM 2852 1544 1522 This method of installation and these clearances will give you adequate space for service and proper installation.
- Page 9 Refrigerator control panel AUTO CHECK AUTOMATIC REFRIGERATOR TEMPERATURE CONTROL START UP INSTRUCTIONS GAS MODE A. A continuous 12 volt DC supply must be available 1. Move the AUTO/GAS mode selector button (2) to the for the electronic control to function. UP position.
- Page 10 Refrigerator control panel AUTO CHECK AUTOMATIC REFRIGERATOR TEMPERATURE CONTROL DESCRIPTION OF OPERATING MODES LIMP MODE OF OPERATION This control system contains a feature where it will con- AUTO MODE tinue to operate the cooling system in event of a failure When operating in the AUTO mode, the AUTO mode of a major operating component.
- Page 11 Refrigerator volume. humidity, the metal frame between the freezer and fresh Total refrigerated volume is 6 cu.ft. for the model RM 2652. food compartments may have water droplets forming. Total refrigerated volume is 8 cu.ft. for the model RM 2852.
- Page 12 9. Reset the insulation and close the lid of the boiler. 2. PERIODIC MAINTENANCE FUSES To keep your Dometic refrigerator operating efficiently These models are equipped with 2 fuses, one for the and safely, periodic inspection and cleaning of several refrigerator control system, and one for the AC cartridge components once or twice a year is recommended.
- Page 13 B. Check all connections in the LP gas system (at the ! WARNING back of the refrigerator) for gas leaks. The LP gas supply must be turned on. Apply a non-corrosive DO NOT use a wire or pin when cleaning the burner bubble solution to all LP gas connections.
- Page 14 Contact The following list is a list of commonly used parts, which service point or distributor service dept. for assistance. should be available, if required, from your Dometic Ser- vice Center. CHANGING DOOR HINGES FROM ONE SIDE TO THE OTHER A = RM 2652;...
- Page 15 CERTIFIED VENT SYSTEM KITS REFRIGERATOR MODEL COMPONENTS PART NO. RM 2652 Roof Base 3103633.XXX* RM 2852 Roof Cover 3103634.XXX* Lower Side Vent 3109350.XXX* * Fill in “XXX” with color code numbers. For color codes, contact your supplier. For further information contact your dealer or distributor.
- Page 16 Positioning of shelves Put a screwdriver into the slot of the shelf lock. Insert the ends of the wire shelf on the left-hand Turn the screwdriver counterclockwise. side at the desired position. Remove the shelf locks from the wire shelf. Slide the wire shelf to the left.
- Page 17 RM 2652, RM 2852...
