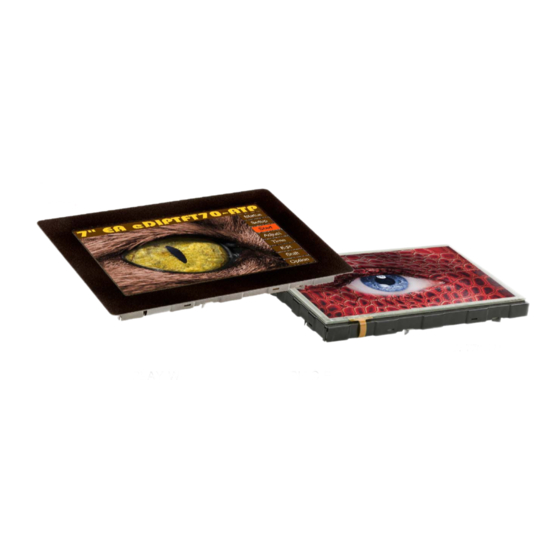

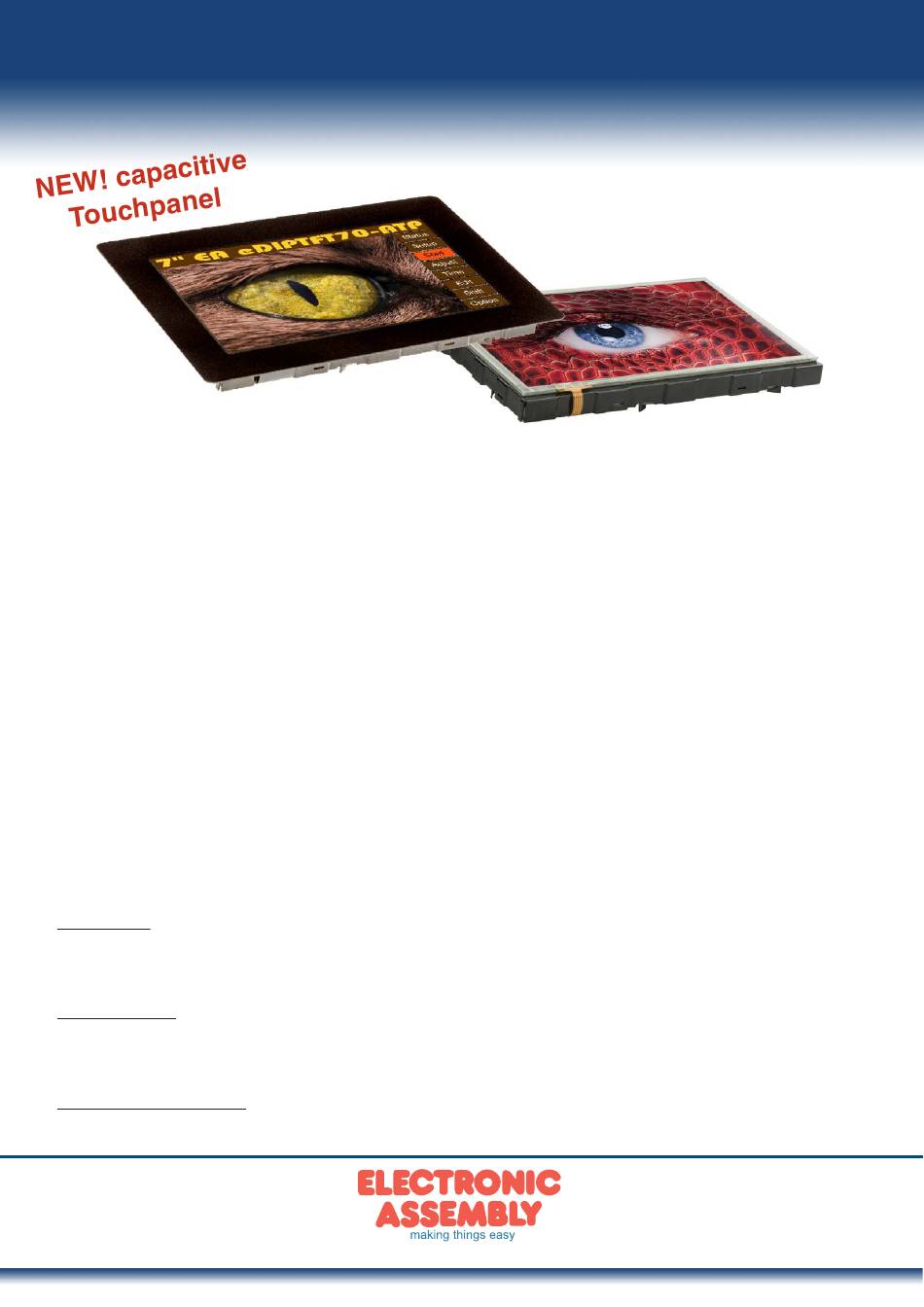

embedded 7.0" TFT-DISPLAY
800x480 BUILT-IN INTELLIGENCE
TECHNICAL DATA
* TFT-GRAPHIC DISPLAY WITH BUILT-IN GRAPHIC FUNCTIONS
* 800x480 DOTS, 16-BIT COLOR (65.536 COLORS) WITH LED-BACKLIGHT
* 8MB ON BOARD FLASH FOR FONTS, PICTURES, ANIMATIONS AND MACROS
* SIMPLE SUPPLY POWER +5V / 700mA
* 8 PRE-DEFINED FONTS, CAN BE EXPANDED
* TRUETYPE-FONTS IMPORTABLE, TURNABLE IN 90° STEPS
* 3 DIFFERENT INTERFACES ON BOARD: RS-232, I²C-BUS OR SPI-BUS
* DRAW LINE, PLACE A DOT, AREA, BARGRAPH... ACCURATE TO THE PIXEL
* ROTARY AND POINTER INSTRUMENTS
* MIX TEXT, GRAPHIC, PICTURES AND ANIMATIONS
* LUXOURIOUS KEYBOARD FUNCTIONS
* MULTI-LINGUAL WITH MACRO PAGES AND STRINGTABLES
* BACKLIGHT BRIGHTNESS BY SOFTWARE
* TOUCH PANEL: VARIABLE GRID; RESISTIVE OR CAPACITIVE
* FREE DEFINABLE KEY AND SWITCH
* 8 DIGITAL IN- AND 8 DIGITAL OUTPUTS
* 2 ANALOGUE INPUTS, COMFORTABLE TO USE
* 80 DIFFERENT SMALL JINGLES AS AUDIO FEEDBACK
ORDERING CODES
DISPLAYS
TFT 800x480 DOTS, WHITE LED BACKLIGHT
AS ABOVE, BUT WITH TOUCH PANEL
AS ABOVE, BUT WITH CAPACITIVE TOUCH PANEL
STARTERKIT
INCLUDES EA eDIPTFT70-ATP AND EVALUATION BOARD WITH USB
FOR DIRECT CONNECTION TO PC AND INTERFACE BOARDS FOR
CONNECTION WITH YOUR HOST SYSTEM
ADDTIOTNAL PARTS
MOUNTING BEZEL (ALUMINIUM), BLACK ANODIZED
SOCKET 1x24, 7.1mm HIGH (1 piece)
Zeppelinstr. 19 · D-82205 Gilching · Phone +49-(0)8105-778090 · Fax +49-(0)8105-7780 99 · www.lcd-module.de · info@lcd-module.de
EA eDIPTFT70-ATC
Issue 01.2015
Dimension:
170x112x13.9mm
EA eDIPTFT70-ATP
EA eDIPTFT70-A
EA eDIPTFT70-ATP
EA eDIPTFT70-ATC
EA EVALeDIPTFT70
EA 0FP801-70SW
EA B-24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for ELECTRONIC ASSEMBLY EA eDIPTFT70-A
- Page 1 * 2 ANALOGUE INPUTS, COMFORTABLE TO USE * 80 DIFFERENT SMALL JINGLES AS AUDIO FEEDBACK ORDERING CODES DISPLAYS TFT 800x480 DOTS, WHITE LED BACKLIGHT EA eDIPTFT70-A AS ABOVE, BUT WITH TOUCH PANEL EA eDIPTFT70-ATP AS ABOVE, BUT WITH CAPACITIVE TOUCH PANEL EA eDIPTFT70-ATC...
-
Page 2: Table Of Contents
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 2 Documentation of revision Date Type Reason / Description May, 2011 preliminary version June, 2012 corrected application schematic, RS232, RS485, USB... -
Page 3: General
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 3 GENERAL The EA eDIP series of displays are the world’s first displays with integrated intelligence. In addition to a variety of integrated fonts that can be used with pixel accuracy, they offer a whole range of sophisticated graphics functions. - Page 4 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 4 RS-232 INTERFACE Pinout eDIPTFT70-A: RS-232/RS-485 mode Pin Symbol In/Out Function Symbol In/Out Function If the display is wired as shown below,...
-
Page 5: Rs-485, Usb
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 5 APPLICATION EXAMPLE „REAL“ RS-232 INTERFACE The eDIP fits for direct connection to a RS-232 interface with CMOS level (5V). If you have an interface with ±12V level, an... -
Page 6: Spi
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 6 SPI INTERFACE Pinout eDIPTFT70-A: SPI mode Pin Symbol In/Out Function Symbol In/Out Function If the display is wired as Ground Potential for logic (0V) -
Page 7: I²C
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 7 I²C-BUS INTERFACE Pinout eDIPTFT70-A: I2C mode Pin Symbol In/Out Function Symbol In/Out Function If the display is wired as shown... -
Page 8: Analogue / Digital In- And Output
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 8 ANALOGUE INPUT AIN1 AND AIN2 (PIN 31+32) For analogue measurement 2 inputs with a range of 0..+5V are available. Each input is grounded (GND) and DC impedance is 1MΩ. -
Page 9: Matrix Keypad
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 9 EXTERNAL KEYBOARD A keyboard (anything from individual keys to a 8x8 matrix keyboard) can be connected to the I/O- ports. -
Page 10: Software Protocol
The protocol has an identical structure for all 3 interface types: RS-232, SPI and I²C. Each data transfer is embedded in a fixed frame with a checksum (protocol package). The EA eDIPTFT70-A acknowledges this package with the character <ACK> (=$06) on successful receipt or <NAK> (=$15) in the event of an incorrect checksum or receive buffer overflow. - Page 11 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 11 Request for buffer information This command queries whether user data is > <DC2> ready to be picked up an how full the display's <...
-
Page 12: Terminal Mode, Command Transfer
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 12 TERMINAL MODE When you switch the unit on, the cursor flashes in the first line, indicating that the display is ready for operation. -
Page 13: Commands / Functions In Tabular Format
Terminal display is switched off; outputs are rejected Terminal on Terminal display is switched on; Output version The version no. is output in the terminal e.g. "EA eDIPTFT70-A V1.0 Rev.A" Output projectname The macrofile-projectname is output in the terminal e.g. "init / delivery state" Output interface The used interface is output in the terminal e.g "RS232,115200 baud,ADR: $07"... - Page 14 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 14 EA eDIPTFT70-A: Bitmap / Animation commands after reset Command Codes Remarks Bitmap image commands Set bitmap colors painting color for monchrome bitmaps fg=foreground color; bg=background color Image zoom factor n1 = X-zoom factor (1x to 8x);...
- Page 15 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 15 EA eDIPTFT70-A: Instrument commands after reset Command Codes Remarks Define, use instruments Define instrument n1=1..4 and xx1,yy1 (=left top edge);...
- Page 16 All macro processes and animations are stopped with n1=0 and restarted with n1=1 in order, Stop macro processes for example, to execute settings and outputs via the interface undisturbed EA eDIPTFT70-A: Analogue input AIN1, AIN2 commands after reset Command...
- Page 17 Assign bar no=1..20 for changing brightness of the backlight Asign instrument with Brightness is connected to instrument 1..4. backlight Save parameter Save the actual brightness and changetime for poweron to EEPROM EA eDIPTFT70-A: I/O port commands after reset Command Codes Remarks...
- Page 18 (pin 16), indicating they have been touched. The predefined return code of the “key” is transmitted via the interface, or an internal touch macro with the number of the return code is started instead. EA eDIPTFT70-A: Commands for the touch panel after reset...
- Page 19 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 19 EA eDIPTFT70-A: Commands for the touch panel after reset Command Codes Remarks Global settings Touch query on/off Touch query is deactivated (n1=0) or activated (n1=1) Automatic inversion when touch key touched: n1=0=OFF;...
- Page 20 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 20 EA eDIPTFT70: Edit box commands after Command Codes Remerks reset Setting for edit box Set the frame colors 1..32 (0=transparent) for edit box:...
-
Page 21: Responses Of The Control Panel
Page 21 RESPONSE OF THE EA EDIPTFT70-A VIA SERIAL INTERFACE The table below contains all response codes. Some response data will come automatically some others on request. In addition to that with command 'ESC SB ...' user is able to transmit individual data packages. - Page 22 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 22 PRELOADED FONTS As standard, there are 3 monospaced, 3 proportional character sets and 2 large digit fonts integrated. The proportional character sets (which have a narrow “I” and a wide “W”, for example) look better and take up less space on the screen.
- Page 23 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 23 Font 6: Swiss30 Bold proportional Font 5: CHICAGO14 proportional Font 7: big numbers BigZif50 Font 8: big numbers BigZif100 This hard copy shows all the fonts with...
-
Page 24: Colors
- G16: internal eDIPTFT format (with this format it is possible to user color fonts) 65,536 COLORS EA eDIPTFT70-A is able to work with 65,536 colors for true-color pictures/icons and animations. For an easy use there exists a color palette with 32 entries (16 colors are predefined after PowerOn). -
Page 25: Frames, Key Style, Bargraph And Pattern
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 25 BORDERS, KEY STYLES AND BARGRAPH The eDIP is shipped with 20 predefined border (no:1..20) for the commands draw box frame and draw touchkeys.There are also three... -
Page 26: Instruments
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 26 DEFINE OWN BORDER With the LCD-tools it is possible to define new borders (Compileroption "Border:"). Each of these new border is a bitmap with exactly 24x24 dots (9 segments with 8x8 dots: 4x edge, 4x middle part, 1x filling). - Page 27 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 27 Some examples of instruments: BUTTONS AS KEYS Apart from the border types, which are infinitely scalable, it is also possible to use bitmaps as touch keys or touch switches (Compilerotion "Button:").
-
Page 28: Programming Fonts, Pictures, Animations
You can send the created macrofile *.DF with any other system to the EA eDIPTFT70-A. All programming commands are inside this file, so you only need to send the content of the *.df file (via RS232, SPI or I2C with smallprotocol in packets) to the EA eDIPTFT70-A. KIT-EDITOR HELP (ELECTRONIC ASSEMBLY LCD TOOLS) At bottom from the KitEditor window in the statusline you can see a short description for the current command and the parameters. -
Page 29: Bitmaps As Buttons
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 29 IMAGES To save transfer time via serial interface, it is possible to store up to 256 bitmaps á 16 pages into internal dataflash (Compileroption "Picture:"). -
Page 30: Macros, Multi-Lingual, Macro
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 30 MACROS Single or multiple command sequences can be grouped together in macros and stored in the data flash memory. You can then start them by using the Run macro commands. There are different types of... - Page 31 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 31 Power-on-macro PowerOnMacro: Started after power-on. You can switch off the cursor Achtung: Wird im PowerOn-, Reset-, and define an opening screen, for example.
-
Page 32: Sounds
Page 32 SOUNDS The EA eDIPTFT70-A(TP) has a sound-module. There are two groups of sounds, notes and jingles. Notes: The command #YT “notenstr“ plays notes, to play individual startmelodies or alerts. Tone (C'-H') f (Hz) Tone (C''-H'') f (Hz) 261.6... -
Page 33: Keyboard
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 33 KEYBOARD AND EDIT-BOXES The EA eDIPTFT70-ATP is able to handle the input of strings itself. You can show a keyboard, which displays the user’s input data in an edit box. -
Page 34: Electrical Characteristics
ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and typographical errors reserved. Page 34 SPEZIFICATION AND CHARACTERISTICS Characteristics Value Condition min. typ. max. Unit Operating Temperature °C Storage Temperature °C Storage Humidity < 40°C... -
Page 35: Dimension, Mounting Panel
Page 35 MOUNTING BEZEL EA 0FP801-70SW As accessory we deliver an optional black anodized mounting bezel. The mounting clips are included in the supplied EA eDIPTFT70-A(TP). 190,00 mm all dimensions are in mm 153,50 mm 8x M3 180,00 mm... - Page 36 ELECTRONIC ASSEMBLY reserves EA eDIPTFT70-A the right to change specifications without prior notice. Printing and Page 36 typographical errors reserved. DIMENSIONS ATTENTION handling precautions! all dimensions are in mm Note: LC displays are generally not suited to wave or reflow soldering.
