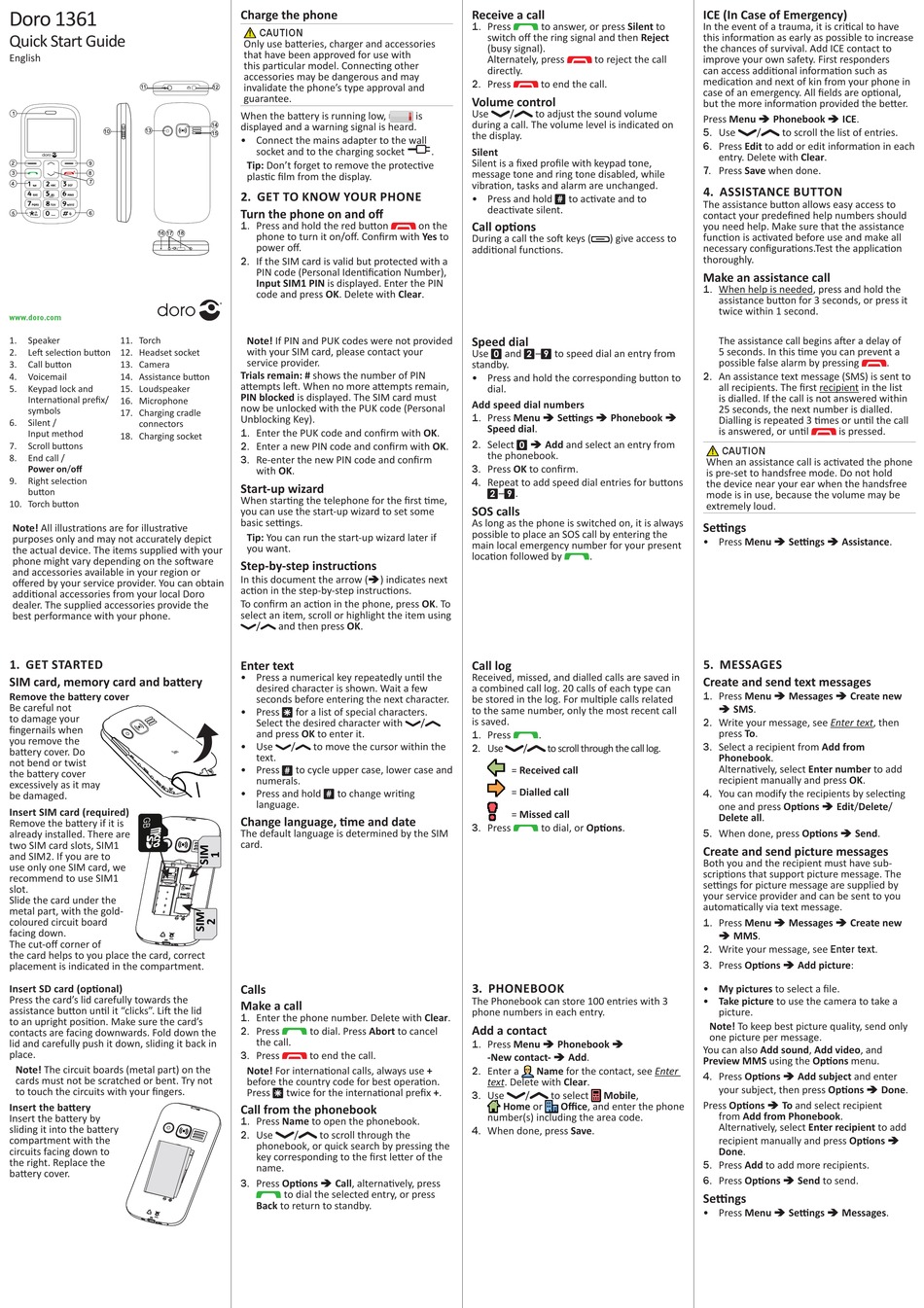

Doro 1361 Quick Start Manual

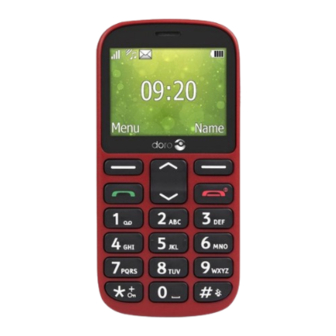

Doro 1361
Quick Start Guide
English
www.doro.com
1. Speaker 11. Torch
2. Left selection button 12. Headset socket
3. Call button 13. Camera
4. Voicemail 14. Assistance button
5. Keypad lock and 15. Loudspeaker
International prefix/
16. Microphone
symbols
17. Charging cradle
6. Silent /
connectors
Input method
18. Charging socket
7. Scroll buttons
8. End call /
Power on/off
9. Right selection
button
10. Torch button
Note! All illustrations are for illustrative
purposes only and may not accurately depict
the actual device. The items supplied with your
phone might vary depending on the software
and accessories available in your region or
offered by your service provider. You can obtain
additional accessories from your local Doro
dealer. The supplied accessories provide the
best performance with your phone.
1. GET STARTED
SIM card, memory card and battery
Remove the battery cover
Be careful not
to damage your
fingernails when
you remove the
battery cover. Do
not bend or twist
the battery cover
excessively as it may
be damaged.
Insert SIM card (required)
Remove the battery if it is
already installed. There are
two SIM card slots, SIM1
and SIM2. If you are to
use only one SIM card, we
recommend to use SIM1
slot.
Slide the card under the
metal part, with the gold-
coloured circuit board
facing down.
The cut-off corner of
the card helps to you place the card, correct
placement is indicated in the compartment.
Insert SD card (optional)
Press the card's lid carefully towards the
assistance button until it "clicks". Lift the lid
to an upright position. Make sure the card's
contacts are facing downwards. Fold down the
lid and carefully push it down, sliding it back in
place.
Note! The circuit boards (metal part) on the
cards must not be scratched or bent. Try not
to touch the circuits with your fingers.
Insert the battery
Insert the battery by
sliding it into the battery
compartment with the
circuits facing down to
the right. Replace the
battery cover.
Charge the phone
CAUTION
Only use batteries, charger and accessories
that have been approved for use with
this particular model. Connecting other
accessories may be dangerous and may
invalidate the phone's type approval and
guarantee.
When the battery is running low, is
displayed and a warning signal is heard.
• Connect the mains adapter to the wall
socket and to the charging socket y .
Tip: Don't forget to remove the protective
plastic film from the display.
2. GET TO KNOW YOUR PHONE
Turn the phone on and off
1. Press and hold the red button
phone to turn it on/off. Confirm with Yes to
power off.
2. If the SIM card is valid but protected with a
PIN code (Personal Identification Number),
Input SIM1 PIN is displayed. Enter the PIN
code and press OK. Delete with Clear.
Note! If PIN and PUK codes were not provided
with your SIM card, please contact your
service provider.
Trials remain: # shows the number of PIN
attempts left. When no more attempts remain,
PIN blocked is displayed. The SIM card must
now be unlocked with the PUK code (Personal
Unblocking Key).
1. Enter the PUK code and confirm with OK.
2. Enter a new PIN code and confirm with OK.
3. Re-enter the new PIN code and confirm
with OK.
Start-up wizard
When starting the telephone for the first time,
you can use the start-up wizard to set some
basic settings.
Tip: You can run the start-up wizard later if
you want.
Step-by-step instructions
In this document the arrow (â) indicates next
action in the step-by-step instructions.
To confirm an action in the phone, press OK. To
select an item, scroll or highlight the item using
/ and then press OK.
Enter text
• Press a numerical key repeatedly until the
desired character is shown. Wait a few
seconds before entering the next character.
• Press for a list of special characters.
*
Select the desired character with
and press OK to enter it.
• Use / to move the cursor within the
text.
• Press to cycle upper case, lower case and
#
numerals.
• Press and hold to change writing
#
language.
Change language, time and date
The default language is determined by the SIM
card.
Calls
Make a call
1. Enter the phone number. Delete with Clear.
2. Press to dial. Press Abort to cancel
the call.
3. Press to end the call.
Note! For international calls, always use +
before the country code for best operation.
twice for the international prefix +.
Press
*
Call from the phonebook
1. Press Name to open the phonebook.
2. Use / to scroll through the
phonebook, or quick search by pressing the
key corresponding to the first letter of the
name.
3. Press Options â Call, alternatively, press
to dial the selected entry, or press
Back to return to standby.
Receive a call
1. Press to answer, or press Silent to
switch off the ring signal and then Reject
(busy signal).
Alternately, press
directly.
2. Press to end the call.
Volume control
Use / to adjust the sound volume
during a call. The volume level is indicated on
the display.
Silent
Silent is a fixed profile with keypad tone,
message tone and ring tone disabled, while
vibration, tasks and alarm are unchanged.
• Press and hold to activate and to
#
deactivate silent.
on the Call options
During a call the soft keys (
additional functions.
Speed dial
Use and – to speed dial an entry from
0 2 9
standby.
• Press and hold the corresponding button to
dial.
Add speed dial numbers
1. Press Menu â Settings â Phonebook â
Speed dial.
2. Select â Add and select an entry from
0
the phonebook.
3. Press OK to confirm.
4. Repeat to add speed dial entries for buttons
– .
2 9
SOS calls
As long as the phone is switched on, it is always
possible to place an SOS call by entering the
main local emergency number for your present
location followed by .
Call log
Received, missed, and dialled calls are saved in
a combined call log. 20 calls of each type can
be stored in the log. For multiple calls related
to the same number, only the most recent call
is saved.
/
1. Press .
2. Use / to scroll through the call log.
= Received call
= Dialled call
= Missed call
to dial, or Options.
3. Press
3. PHONEBOOK
The Phonebook can store 100 entries with 3
phone numbers in each entry.
Add a contact
1. Press Menu â Phonebook â
-New contact- â Add.
2. Enter a Name for the contact, see Enter
text. Delete with Clear.
3. Use / to select
Home or Office, and enter the phone
number(s) including the area code.
4. When done, press Save.
ICE (In Case of Emergency)
In the event of a trauma, it is critical to have
this information as early as possible to increase
the chances of survival. Add ICE contact to
to reject the call improve your own safety. First responders
can access additional information such as
medication and next of kin from your phone in
case of an emergency. All fields are optional,
but the more information provided the better.
Press Menu â Phonebook â ICE.
5. Use /
6. Press Edit to add or edit information in each
entry. Delete with Clear.
7. Press Save when done.
4. ASSISTANCE BUTTON
The assistance button allows easy access to
contact your predefined help numbers should
you need help. Make sure that the assistance
function is activated before use and make all
) give access to
necessary configurations.Test the application
thoroughly.
Make an assistance call
1. When help is needed, press and hold the
assistance button for 3 seconds, or press it
twice within 1 second.
The assistance call begins after a delay of
5 seconds. In this time you can prevent a
possible false alarm by pressing
2. An assistance text message (SMS) is sent to
all recipients. The first recipient in the list
is dialled. If the call is not answered within
25 seconds, the next number is dialled.
Dialling is repeated 3 times or until the call
is answered, or until
CAUTION
When an assistance call is activated the phone
is pre-set to handsfree mode. Do not hold
the device near your ear when the handsfree
mode is in use, because the volume may be
extremely loud.
Settings
• Press Menu â Settings â Assistance.
5. MESSAGES
Create and send text messages
1. Press Menu â Messages â Create new
â SMS.
2. Write your message, see Enter text, then
press To.
3. Select a recipient from Add from
Phonebook.
Alternatively, select Enter number to add
recipient manually and press OK.
4. You can modify the recipients by selecting
one and press Options â Edit/Delete/
Delete all.
5. When done, press Options â Send.
Create and send picture messages
Both you and the recipient must have sub-
scriptions that support picture message. The
settings for picture message are supplied by
your service provider and can be sent to you
automatically via text message.
1. Press Menu â Messages â Create new
â MMS.
2. Write your message, see Enter text.
3. Press Options â Add picture:
• My pictures to select a file.
• Take picture to use the camera to take a
picture.
Note! To keep best picture quality, send only
one picture per message.
You can also Add sound, Add video, and
Preview MMS using the Options menu.
4. Press Options â Add subject and enter
your subject, then press Options â Done.
Mobile,
Press Options â To and select recipient
from Add from Phonebook.
Alternatively, select Enter recipient to add
recipient manually and press Options â
Done.
5. Press Add to add more recipients.
6. Press Options â Send to send.
Settings
• Press Menu â Settings â Messages.
to scroll the list of entries.
.
is pressed.
