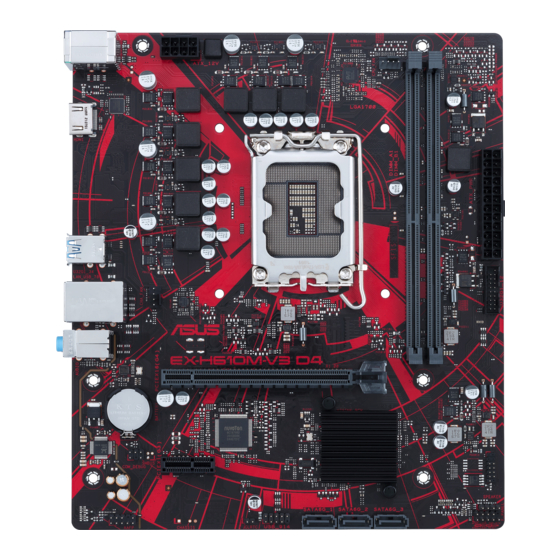

Asus EX-H610M-V3 D4 Manual

Hide thumbs Also See for EX-H610M-V3 D4:
Table of Contents

Advertisement

Quick Links

Download this manual
EX-H610M-V3 D4

Advertisement

Table of Contents
loading

Related Manuals for Asus EX-H610M-V3 D4

Summary of Contents for Asus EX-H610M-V3 D4

  • Page 1 EX-H610M-V3 D4...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Safety information ...................... iv About this guide ......................v Package contents ....................... vi EX-H610M-V3 D4 specifications summary .............. vi Chapter 1 Product Introduction Before you proceed ..................1-1 Motherboard overview ................. 1-1 Central Processing Unit (CPU) ..............1-6 System memory .................... 1-8...

  • Page 4: Safety Information

    Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

  • Page 5: About This Guide

    Refer to the following sources for additional information and for product and software updates. ASUS website The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer.

  • Page 6: Package Contents

    Supports Intel Extreme Memory Profile (XMP) ® * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. 1 x HDMI port** ® * Graphics specifications may vary between CPU types. Please refer to www.
  • Page 7 EX-H610M-V3 D4 specifications summary Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback Audio Features Audio - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • Page 8 11 64-bit, Windows 10 64-bit ® ® mATX Form Factor Form Factor 9.2 inch x 8.0 inch (23.4 cm x 20.3 cm) Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications. viii...

  • Page 9: Chapter 1 Product Introduction

    Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components. The pin definitions in this chapter are for reference only. The pin names depend on the location of the header/jumper/connector. ASUS EX-H610M-V3 D4...
  • Page 10 1.2.1 Layout contents 1. CPU socket The motherboard comes with a LGA1700 Socket designed for 12 Gen Intel Core™, ® Pentium Gold and Celeron Processors. ® ® For more details, refer to Central Processing Unit (CPU). 2. DDR4 DIMM slots The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4 (Double Data Rate 4) memory modules.
  • Page 11 BIOS Setup to [HD Audio]. By default, this header is set to [HD pin definition Audio]. 11. Speaker header The 4-pin header is for the chassis-mounted system warning speaker. The SPEAKER speaker allows you to hear system beeps and warnings. PIN 1 ASUS EX-H610M-V3 D4...
  • Page 12 12. 10-1 pin System Panel header F_PANEL This header supports several chassis-mounted functions. +PWR_LED- PWR_BTN • System power LED (2-pin +PWR_LED-) This 2-pin header is for the system power LED. Connect the chassis power LED cable to this header. The system power LED lights up when you turn on the system power, and blinks when the system is PIN 1 in sleep mode.
  • Page 13 Lime (front panel) jack will support headphone, and Pink (front panel) jack will support Side Speaker Out. To configure a 7.1-channel audio output: Use a chassis with HD audio module in the front panel to support a 7.1-channel audio output. ASUS EX-H610M-V3 D4...

  • Page 14: Central Processing Unit (Cpu)

    CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on the LGA1700 socket. • ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user. Installing the CPU...
  • Page 15 ASUS EX-H610M-V3 D4...

  • Page 16: System Memory

    Check with the retailer to get the correct memory modules. • Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Recommended memory configurations DIMM_A1...
  • Page 17 Installing a DIMM To remove a DIMM ASUS EX-H610M-V3 D4...
  • Page 18 1-10 Chapter 1: Product Introduction...

  • Page 19: Chapter 2 Bios Information

    The BIOS Setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. Visit the ASUS website at www.asus.com to download the latest BIOS file for this • motherboard.

  • Page 20: I-Cafe

    I-Cafe The items in this menu allows you to configure some quick settings for the I-Cafe feature. Realtek PXE Option ROM This item allows you to enable or disable the PXE OptionRom of the Realtek LAN controller. POST Delay Time This item appears only when you set Boot Logo Display to [Auto] and [Full Screen].

  • Page 21: Main Menu

    Enable the item to speed up BIOS boot time. ASUS EZ Flash 3 Utility Allows you to run ASUS EZ Flash 3. Press <Enter> to launch the ASUS EZ Flash 3 screen. VMD setup menu The subitems in this menu allow you to set the VMD related features.

  • Page 22: Advanced Menu

    System Time [xx:xx:xx] Allows you to set the system time. Security The Security menu items allow you to change the system security settings. • If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC) RAM to clear the BIOS password. See section Motherboard Overview for information on how to erase the RTC RAM.
  • Page 23 The items in this menu allow you to configure the advanced power management settings. Onboard Devices Configuration The items in this menu allow you to configure the onboard devices. Intel(R) Rapid Storage Technology The item allows you to manage RAID volumes on the Intel(R) RAID Controller. ASUS EX-H610M-V3 D4...

  • Page 24: Monitor Menu

    Monitor menu The Monitor menu displays the system temperature/power status, and allows you to change the fan settings. Temperature Monitor The onboard hardware monitor automatically detects and displays the CPU, CPU package and motherboard temperatures. Select [Ignore] if you do not wish to display the detected temperatures.

  • Page 25: Boot Menu

    OS in Safe Mode, press <F8> after POST (Windows 8 not supported). • To select the boot device during system startup, press <F8> when ASUS Logo appears. Boot Override These items display the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

  • Page 26: Exit Menu

    Exit menu The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. Load Optimized Defaults This option allows you to load the default values for each of the parameters on the Setup menus.

  • Page 27: Appendix

    Appendix Notices FCC Compliance Information Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA Phone / Fax No: (510)739-3777 / (510)608-4555 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 28 Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 29 ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/TT-BCT. Các sản phẩm ASUS bán tại Việt Nam, vào ngày 23 tháng 9 năm2011 trở về sau, đều phải đáp ứng các yêu cầu của Thông tư 30/2011/TT-BCT của Việt Nam.
  • Page 30 ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials.
  • Page 31 Директив. Повний текст декларації відповідності стандартам ЄС доступний на: www.asus.com/support Cijeli tekst EU izjave o sukladnosti dostupan je na: www.asus.com/support Čeština Společnost ASUSTeK Computer Inc. tímto prohlašuje, že Türkçe AsusTek Computer Inc., bu aygıtın temel gereksinimlerle ve ilişkili toto zařízení...

  • Page 32: Warranty

    • ASUS offers a voluntary manufacturer’s Commercial Guarantee. • ASUS dragovoljno nudi komercijalno proizvođačko jamstvo. • ASUS reserves the right to interpret the provisions of the ASUS • ASUS zadržava prava na tumačenje odredbi ASUS komercijalnog Commercial Guarantee. jamstva. •...
  • Page 33 • ASUS tilbyr som produsent en frivillig kommersiell garanti. • Bảo hành thương mại này của ASUS được cung cấp độc lập và ngoài • ASUS forbeholder seg retten til å tolke bestemmelsene i ASUS sin Bảo đảm pháp lý theo luật định và không có cách nào ảnh hưởng đến kommersielle garanti.

  • Page 34: Asus Contact Information

    Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan ASUS COMPUTER INTERNATIONAL (America) Address: 48720 Kato Rd., Fremont, CA 94538, USA ASUS COMPUTER GmbH (Germany and Austria) Address: Harkortstrasse 21-23, 40880 Ratingen, Germany ASUSTeK (UK) LIMITED Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL,...
