TSAT 3500 User Manual

Hub station and remote terminal

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Product: U3510A Revision: 02P

TSAT - Telemetry and data transfer via SATellite

TSAT 3500 User Guide

HUB Station and Remote Terminal

Installation, Operation and Maintenance

Guide

September 2020

Table of Contents

Need help?

Do you have a question about the 3500 and is the answer not in the manual?

Questions and answers

Summary of Contents for TSAT 3500

Page 1 Product: U3510A Revision: 02P TSAT - Telemetry and data transfer via SATellite TSAT 3500 User Guide HUB Station and Remote Terminal Installation, Operation and Maintenance Guide September 2020...
Page 2 +47 66 77 44 40 TSAT AS makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. TSAT AS assumes no responsibility for any errors that may appear in this document.
Page 3 TSAT 3500 - Telemetry and data transfer via SATellite Documentation Comment Form TSAT AS encourages you to comment on the documentation supplied with our products. This information helps us to provide quality products to meet your needs. Edition Date: September 2020...
Page 4 TSAT 3500 - Telemetry and data transfer via SATellite Protective Grounding M4 SCREW: PROTECTIVE GROUNDING Protective grounding – here shown for rack-mount version. Installation, Operation and Maintenance Guide, September 2020 Page 4 of 40...
Page 5: Table Of Contents
TSAT 3500 - Telemetry and data transfer via SATellite Table of Contents INTRODUCTION ............................7 ................................7 COPE TSAT 3500 S ......................7 YSTEM NTRODUCTION HUB STATION AND REMOTE TERMINAL SITE REQUIREMENTS ..........9 ............................9 NTRODUCTION ........................9 NTENNA ITE REQUIREMENTS 2.2.1...
Page 6 TSAT 3500 - Telemetry and data transfer via SATellite REMOTE TERMINAL OPERATION ..................... 26 ............................26 NTRODUCTION ....................... 26 EMOTE ERMINAL ONFIGURATION ......................... 26 EMOTE ERMINAL POWER ......................... 27 PPLICATION PORT OPERATION 6.4.1 Async. ports ............................27 6.4.2 LAN ports ............................. 27 INTERFACE SPECIFICATIONS ......................
Page 7: Introduction

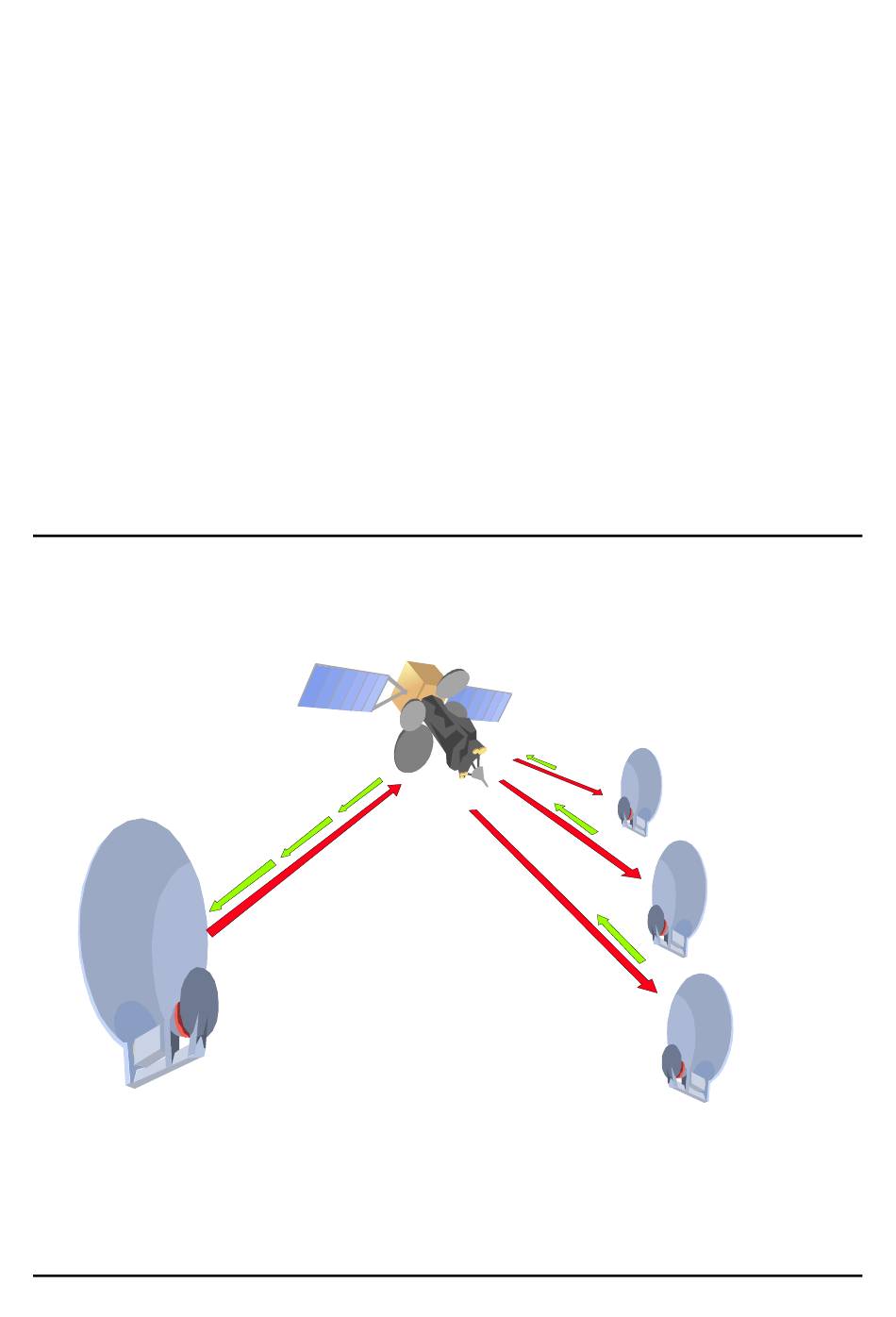

The Remote Terminals are controlled by one common HUB Station in a full duplex closed star network configuration, see Figure 1-1. The unique design of TSAT 3500 introduces low-cost solutions to traditional problem areas in low data rate satellite communication, such as frequency stability, phase noise, and interference requirements.
Page 8 TSAT 3500 - Telemetry and data transfer via SATellite The TSAT 3500 design allows a complete HUB station comparable in size and complexity to traditional VSAT’s (Very Small Aperture Terminals). Because of the extremely low-cost HUB station, TSAT 3500 requires low investments in earth station equipment. The efficient utilisation of satellite power and bandwidth gives low operational costs, enabling cost-effective solutions even for small networks.
Page 9: Hub Station And Remote Terminal Site Requirements
2 HUB Station and Remote Terminal Site Requirements 2.1 Introduction The following sections describe the requirements for the TSAT network sites, including mechanical requirements for the HUB Station and Remote Terminal sites, pointing direction, and wind load. 2.2 Antenna Site requirements 2.2.1 Site elevation and azimuth angles...
Page 10: Antenna Mount Requirements
TSAT 3500 - Telemetry and data transfer via SATellite 1 deg. 2 deg. Antenna diameter 5 m for 0.55 m dia. 10 m for 0.9 m dia. 10 m for 1.2 m dia. < 100 m > 100 m Figure 2-1 Transmit signal path envelope 2.3 Antenna Mount requirements...
Page 11: Cable Requirements
The BUC and the LNB are connected to the Main Unit with two 50ohm coaxial cables (cable harness kit CKA 3500). The cable specifications depend on the distance between the Main Unit and the BUC/LNB. The cable loss must be <20dB on the TX L-band signal (950-1700MHz) and <20dB on the Rx L-band signal (950-2150MHz).
Page 12: Hub Station Installation
This section describes the installation procedure for assembling and mounting all TSAT 3500 HUB Station modules, including the procedure for pointing the antenna towards the satellite. The TSAT 3500 HUB Station normally consists of the following modules, shown in fig 3-1: 1. Antenna 2.
Page 13: Antenna Unit Assembly
The antenna will then be at the correct position also for the TSAT 3500 carriers. It is also necessary to adjust the rotational angle of the RF Front End to adjust the cross polar interference level to the specified level. The ETSI specifications state that the polarisation angle should be aligned with an accuracy better than ...
Page 14: Antenna Pointing Procedure
TSAT 3500 - Telemetry and data transfer via SATellite The recommended equipment for pointing the antenna is: • Satellite finder, e.g. Promax Sat Hunter • Compass with accuracy better than 1 degree. Recommendation Suunto type: KB-14 360R. • Knowledge of true north to magnetic north angle •...
Page 15: Rf Front End Mounting
TSAT 3500 - Telemetry and data transfer via SATellite 3.3.2.2 Satellite acquisition Mount the TV reception LNB to the antenna horn. Connect the LNB to the satellite finder instrument and adjust the satellite finder to monitor an available TV carrier at the satellite position. (Please refer to the manual for the LNB and satellite finder instrument for detailed operating instructions).
Page 16: Rf Front End Rotation Adjustment
TSAT 3500 - Telemetry and data transfer via SATellite 3.4.2 RF Front End rotation adjustment The satellite transponder operates with linear polarisation, either horizontal (H) or vertical (V). The polarisation must therefore be known when installing the RF Front End. The orientation of the BUC in vertical polarisation for TX is shown in figure 3-4.
Page 17 TSAT 3500 - Telemetry and data transfer via SATellite RF Front End Tilt 80,0 70,0 60,0 Earth st. lattitude (deg) 10 50,0 Earth st. lattitude (deg) 20 Earth st. lattitude (deg) 30 40,0 Earth st. lattitude (deg) 40 30,0 Earth st. lattitude (deg) 50 Earth st.
Page 18 TSAT 3500 - Telemetry and data transfer via SATellite If satellite position is east of earth station longitude: "Turn right" If satellite position is west of earth station longitude: "Turn left" Ea rth st. la ttitude (deg) 2 11,2 4 21,6 14,6 10,8...
Page 19: Main Unit Mounting
TSAT 3500 - Telemetry and data transfer via SATellite 3.5 Main Unit Mounting The Main Unit can be mounted in several different ways. Without any brackets it can be placed on a table-top. Optionally, the Main Unit can be equipped with brackets for 19” rack mount, or wall mount.
Page 20: Hub Station Modules Interconnection On Tsat 3500
TSAT 3500 - Telemetry and data transfer via SATellite 3.8 HUB Station Modules Interconnection on TSAT 3500 The interconnection between the RF Front End assembly (BUC and LNB), Main Unit, Power supply and Supervisory Terminal is shown in fig 3-7. All DSUB connectors should be secured with the connector housing screws.
Page 21: Remote Terminal Installation
This section describes the installation procedure for assembling and mounting all TSAT 3500 Remote Terminal modules, including the procedure for pointing the antenna towards the satellite. The TSAT 3500 Remote Terminal normally consists of the following modules, shown in fig 4-1: 1. Antenna 2.
Page 22: Antenna Unit Assembly
TSAT 3500 - Telemetry and data transfer via SATellite 4.2 Antenna Unit assembly Assemble and mount the antenna according to the description supplied with the antenna. The antenna-mounting pole must satisfy the antenna site requirements discussed in section 2. 4.3 Antenna pointing The antenna pointing instructions are identical to the instructions given for the HUB antenna.
Page 23: Remote Terminal Modules Interconnection Tsat 3500
TSAT 3500 - Telemetry and data transfer via SATellite 4.6 Remote Terminal modules interconnection TSAT 3500 The modules are connected with cables as indicated in fig 4.3 The cable requirements are described in section 2, and the connector pinning is described in section 7. All DSUB connectors should be secured with the connector housing screws.
Page 24: Hub Station Operation
TSAT 3500 - Telemetry and data transfer via SATellite 5 HUB Station Operation 5.1 Pre-operational requirements Before starting up the HUB Station, the procedure described in section 3 must be completed, including interconnecting all the modules as described. It is important that the satellite control centre is contacted for line-up test, in some cases separate test frequencies can be supplied.
Page 25: Circuit-Switched Protocol Operation
The daily routines for the log file management strongly depend on the user requirements and the property of the application, i.e. if the application itself gives a warning if an error occurs in the TSAT network. It is therefore difficult to give general guidelines in this matter. A suggested procedure may be to open a log file once a week and store the log files for some months.
Page 26: Remote Terminal Operation
TSAT 3500 - Telemetry and data transfer via SATellite 6 Remote terminal operation 6.1 Introduction Before being set into operation, the procedure given in section 4 must be completed, the power supply must be installed, and the Remote Terminal must be correctly configured in agreement with the application equipment configuration.
Page 27: Application Port Operation
If problems arise in operating the application ports, please refer to the section "Trouble-shooting". As described in section Feil! Fant ikke referansekilden., the Remote Terminal operation can also be confirmed from a PC with TSAT diagnostics software, independent of any application equipment. Installation, Operation and Maintenance Guide, September 2020...
Page 28: Interface Specifications
10 MHz Reference frequency (out) 24V (BUC) / 18V (LNB) power supply (out) POWER 2.5mm barrel 24VDC Voltage input Table 7.1 Main Unit connector pinning TSAT 3500, desktop version Installation, Operation and Maintenance Guide, September 2020 Page 28 of 40...
Page 29 (in) POWER Phoenix 2.5 24VDC/48VDC Voltage input Left (view from rear) Middle Not used Right Max cable length: 3m Table 7.1Main Unit connector pinning TSAT 3500, rack mount version Installation, Operation and Maintenance Guide, September 2020 Page 29 of 40...
Page 30 L-band 950 – 2 150 MHz IF (out) 10 MHz Reference frequency (in) 18 VDC power supply (in) Table 7.3 RF Front End (Out-door unit) connector description TSAT 3500 Installation, Operation and Maintenance Guide, September 2020 Page 30 of 40...
Page 31: Hub Station And Remote Terminal Maintenance
All software and firmware modules (Linux OS, FPGA FW, terminal SW) can be upgraded, both through a PC locally connected to the unit, and also across the TSAT network via the satellite link (normally from the HUB to any or all of the RTs).
Page 32: Troubleshooting
TSAT 3500 - Telemetry and data transfer via SATellite 9 Troubleshooting 9.1 Supervisory Terminal Normal operation When the network is operating normally, the "TSAT Network Configuration" window shall indicate the actual status of all defined links: • Green icon and "Link is UP" if the RT is on-line •...
Page 33: Hardware Problems
TSAT 3500 - Telemetry and data transfer via SATellite 9.2 Hardware problems 1. Antenna correctly pointed? 2. No obstruction in front of antenna? 3. All cables without damage and correctly mounted? 4. N connectors tightened? 5. SMA connectors tightened with correct momentum? 6.
Page 34: Check Lists Tsat 3500
TSAT 3500 - Telemetry and data transfer via SATellite 10 Check lists TSAT 3500 Remote Terminal Installation Check List Date Site no./name Installed by Site location RF Front End BUC TX14__4 s. no. Rev. LNB RX14__0 s. no. Rev. Main Unit: MUA353__A s.
Page 35 TSAT 3500 - Telemetry and data transfer via SATellite Remote Terminal Configuration Check List Site: Date: Configured by: Configuration parameters Item Parameters Comments HUB Tx frequency, kHz Entered in kHz format, i.e. 14 080 530 RT Tx frequency, kHz Entered in kHz format, i.e. 14 080 545...
Page 36 TSAT 3500 - Telemetry and data transfer via SATellite HUB Station Installation Check List Date Site name Installed by Site location RF Front End BUC TX14__4 s. no. Rev. LNB RX14__0 s. no. Rev. Main Unit MUA3542A s. no. Rev.
Page 37 TSAT 3500 - Telemetry and data transfer via SATellite HUB Station Configuration Check List Site: Date: Configured by: Configuration parameters Item Parameters Comments HUB Tx frequency, kHz Entered in kHz format, i.e. 14 080 530 RT Tx frequency, kHz Entered in kHz format, i.e. 14 080 545...
Page 38 TSAT 3500 - Telemetry and data transfer via SATellite Satellite Link Test Site: Date: Configured by: HUB side Result Comment Verify normal HUB start-up: RX Attenuator RX RF Level TX RF Level TX Gain HUB receive HUB carrier Eb/No RT side...
Page 39 TSAT 3500 - Telemetry and data transfer via SATellite Application Test for serial communication if applicable Connection to Application Equipment Confirm that application data are transmitted: from Application equipment to NMS from NMS to HUB Main Unit from HUB to RT Main Unit...
Page 40: Appendix
TSAT 3500 - Telemetry and data transfer via SATellite 11 Appendix: 11.1 Technical specifications 11.2 HUB antenna Assembly manual if applicable 11.3 RT antenna Assembly manual if applicable Installation, Operation and Maintenance Guide, September 2020 Page 40 of 40...
