Hussey Seating Metro Assembly Instructions Manual

Seating system
Hide thumbs

Advertisement

Quick Links

Download this manual

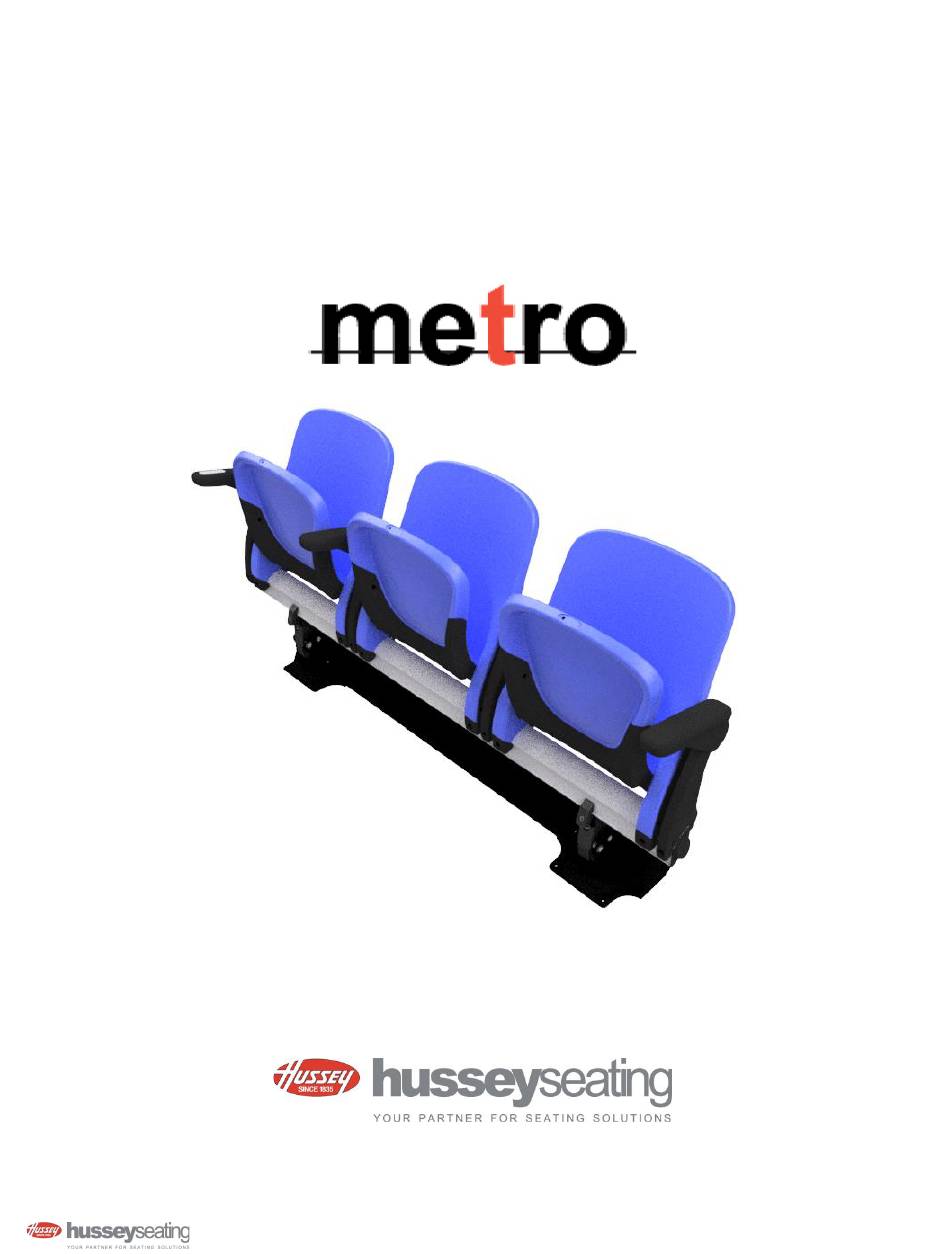

Metro™ Seating System – Assembly Instructions
Assembly Instructions
Revision R, August 2021
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Metro and is the answer not in the manual?

Questions and answers

Related Manuals for Hussey Seating Metro

Summary of Contents for Hussey Seating Metro

  • Page 1 Metro™ Seating System – Assembly Instructions Assembly Instructions Revision R, August 2021...
  • Page 2 (meshing, reinforcing bar, etc.) Mechanism Layout NOTE: Unlock Bar Layout (Manual operation) Warranty is null and void if Hussey Seating product is installed on floors or risers not meeting the minimum structural requirements Unlock Bar Layout (Lift-Assist & Auto-Fold operations) stated above.
  • Page 3 • 5mm Hex Key (Allen Head style) NOTE: • 8mm Hex Key (Allen Head style) Warranty is null and void if Hussey Seating product is installed on • 16mm Open End Wrench floors or risers not meeting the minimum structural requirements stated above.
  • Page 4 Metro™ Seating System – Assembly Instructions Beam Quantity & Length Beam BEAM LAYOUT 1. Lay out the correct sized beams on deck using job package drawings. This is just a rough layout at this point. FLOOR MOUNT LAYOUT FLOOR MOUNT LAYOUT...
  • Page 5 Mechanisms Metro™ Seating System – Assembly Instructions Gas Strut Identification Label with Gas Strut Force value Lift-Assist/Auto-Fold Manual Mechanisms Dimension between Mechanisms MECHANISM LAYOUT 1. Lay out the fold down mechanisms in position loosely on the deck, using the job package drawings.
  • Page 6 Metro™ Seating System – Assembly Instructions Unlock Bar - Refer to chart for sizes Center to Center Length of Unlocking Spacing of Mechanisms 16" 18 11/16" 22" 24 5/8" 34" 36 7/16" 44" 47 1/4" 57" 60 1/16" 70" 72 13/16"...
  • Page 7 Metro™ Seating System – Assembly Instructions 2145339 - COUPLER|FLD DN MECH|UNLK BAR|GEN2 Unlock Bar Coupler Unlock Bar Unlock Bar Unlock Bar Coupler must be in this orientation to avoid interference with the Dust Cover. UNLOCK BAR LAYOUT (Lift-Assist & Auto-Fold operation) Unlock bars for Lift-Assist and Auto-Fold Operation will arrive on site with a majority at 60”...
  • Page 8 Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and potential injury.
  • Page 9 Metro™ Seating System – Assembly Instructions 2150097 - DRILL TEMPLATE|FLD 2150096 - DRILL TEMPLATE|FLD DN MECH|AUTO-FOLD|MAXAM DN MECH|AUTO-FOLD|MXP If the deck has a riser spacer, the drill template must be spaced off the rear riser the same dimension towards the nosing.
  • Page 10 Hardware Required Wood Deck: Metro™ Seating System – Assembly Instructions 2101714 - SCREW|HEX WSHR HD|#14|1.000 L|BO|TA|SLFT (2) per mechanism Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked Aluminum Deck: periodically after assembly.
  • Page 11 Hardware Required Metro™ Seating System – Assembly Instructions Wood Deck: 2101714 - SCREW|HEX WSHR HD|#14|1.000 L|BO|TA|SLFT (2) per mechanism Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly.
  • Page 12 Metro™ Seating System – Assembly Instructions 2141425 - UNLOCK LEVER|FLD DN MECH|MNL|GEN2|ASSY|BLACK Exploded View Assembled View Unlock Bar Actuator (Manual operation) Once the mechanisms have been attached to the deck and riser, the unlock bar actuators need to be installed.
  • Page 13 Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. 2147529 - CLAMP|HOSE|WORM DRIVE|CRES STRAP|21MM-44MM Failure to assemble properly, or to secure parts RANGE|12MM W may result in assembly failure and potential injury.
  • Page 14 Metro™ Seating System – Assembly Instructions MAXAM Nose Attachment: (2) 1000665 - MACHINE SCREW|HEX HD|3/8-16|1.000 MXP Nose Attachment: (2) 1000665 - MACHINE SCREW|HEX HD|3/8-16|1.000 (2) 1000781 - WASHER|SPLT LK|3/8|ZP|G2 (2) 1000781 - WASHER|SPLT LK|3/8|ZP|G2 (2) 2077817 - NUT|WELD|3/8-16|ZP|T|S1 (2) 2084798 - NUT|CHAN|3/8-16|ZP...
  • Page 15 Metro™ Seating System – Assembly Instructions Rear Riser: 2101713 - SCREW|HEX WSHR HD|1/4-14|.813 L|BO|G2|SLFD (2) per deflector 11 5/8R – P/N 2165390 16R – P/N 2165401 Trip Assembly Deflector Trip Assembly Deflector (Auto-Fold operation) The trip mechanisms, in most cases, will be actuated by either the riser on the lower tier or the riser filler. Custom rises that do not require riser fillers, will need to have a trip mechanism deflector installed.
  • Page 16 Metro™ Seating System – Assembly Instructions 2147529 - CLAMP|HOSE|WORM DRIVE|CRES STRAP|21MM-44MM RANGE|12MM W 2146478 - ACTUATOR|FLD DN SAE No. 20 Hose Clamp MECH|UNLK|AUTO-FOLD|WLD Unlock Bar Actuator (Auto-Fold operation) Now that the Trip Assemblies have been attached to the nosing, the Unlock Bar Actuators can be assembled to the Unlock Bars.

  • Page 17: Armrest Installation

    Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and potential injury.
  • Page 18 Metro™ Seating System – Assembly Instructions Hardware Required End Cap: 2101713 - SCREW|HEX WSHR HD|1/4-14|.813 L|BO|G2|SLFD - (1) per end cap (Riser) 2101713 - SCREW|HEX WSHR HD|1/4-14|.813 L|BO|G2|SLFD - (1) per end cap (Aluminum Deck) 2101714 - SCREW|HEX WSHR HD|#14|1.000 L|BO|TA|SLFT – (1) per end cap (Wood Deck) Dust Cover: 2101713 - SCREW|HEX WSHR HD|1/4-14|.813 L|BO|G2|SLFD –...
  • Page 19 Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may 2098240 - CAP SCREW|SCKT HD|M6 X 1.0|20MM result in instability. All screws, nuts and bolts must L|ZP be tightened securely and must be checked periodically after assembly.
  • Page 20 Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and potential injury.
  • Page 21 Metro™ Seating System – Assembly Instructions MAXAM Nose Attachment: (2) 1000665 - MACHINE SCREW|HEX HD|3/8-16|1.000 MXP Nose Attachment: (2) 1000665 - MACHINE SCREW|HEX HD|3/8-16|1.000 (2) 1000781 - WASHER|SPLT LK|3/8|ZP|G2 (2) 1000781 - WASHER|SPLT LK|3/8|ZP|G2 (2) 2077817 - NUT|WELD|3/8-16|ZP|T|S1 (2) 2084798 - NUT|CHAN|3/8-16|ZP...
  • Page 22 Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and potential injury.
  • Page 23 Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and potential injury.
  • Page 24 FLOOR MOUNT LAYOUT FLOOR MOUNT LAYOUT The front-to-back motion for Metro chairs should be less than 1/2”. There is an adjustment screw in the mechanism to adjust this free motion. Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must...
  • Page 25 Metro™ Seating System – Assembly Instructions End caps are not installed at this location between adjacent beams. End caps are not installed at this location BEAM END CAP INSTALLATION between adjacent beams. The end caps are installed in the end of aluminum beams with the use of a soft blow hammer to tap the end caps into position.
  • Page 26 Metro™ Seating System – Assembly Instructions Q000925 - RIVET|QUATTRO|2.4MM BODY DIA|5.7MM L|4.8MM FLG DIA|ALM/ALM Q000936 - RIVET|QUATTRO|2.4MM BODY DIA|5.7MM L|4.8MM FLG DIA|ALM/ALM|BRASS CLR Nickel or Brass Brad Q000929 - PIN|QUATTRO|ESCTCHN|14GA|15.88MM L|2MM DIA|NK Q000924 - PIN|QUATTRO|ESCTCHN|14GA|15.88MM L|2MM DIA|BRASS Nickel or Brass Brad...
  • Page 27 All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. ANCHOR LAYOUTS – FLOOR MOUNT (Fixed Metro) Failure to assemble properly, or to secure parts may result in assembly failure and potential injury.
  • Page 28 ANCHOR LAYOUTS – RISER MOUNT (Fixed Metro) Failure to assemble properly, or to secure parts Review the job package drawings. If the installation has predefined aisle locations steps 2,3,4 and 5 are not required.
  • Page 29 Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and potential injury.
  • Page 30 Metro™ Seating System – Assembly Instructions Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and potential injury.
  • Page 31 Assemble units as described. To do otherwise may result in instability. All screws, nuts and bolts must FLOOR MOUNT LAYOUT 3. Dispense adhesive into the hole per manufacturers instructions and Hussey Seating Company’s Adhesive Anchor Installation Procedure. be tightened securely and must be checked periodically after assembly.
  • Page 32 BEAM INSTALLATION (Fixed Metro) When installing a fixed Metro job, the job site dimensions can vary from the original job package drawings. Many factors can cause the dimensional differences; incorrect pre-cast sizes or locations and in some cases changes happen during the concrete pouring by FLOOR MOUNT LAYOUT the general contractor.
  • Page 33 ADA COMPLIANT ARMRESTS (Fixed Metro) Armrest assemblies for fixed Metro chairs do not rotate and are pinned in position when shipped to the job. In some instances, Easy Access armrests are required by local building codes for ADA compliance to aid in a patron’s egress to and from their seat.
  • Page 34 Metro™ Seating System – Assembly Instructions Hussey Seating Company 38 Dyer Street Extension North Berwick, Maine 03906 USA Tel: 1-800-341-0401 (USA) +1-207-676-2271 Fax: +1-207-676-2222 www.husseyseating.com Revision R, August 2021...
