MOUNT-BRACKET
Package
MOUNT-BRACKET
SCREW-SPECIAL
ANCHOR
Product Overview

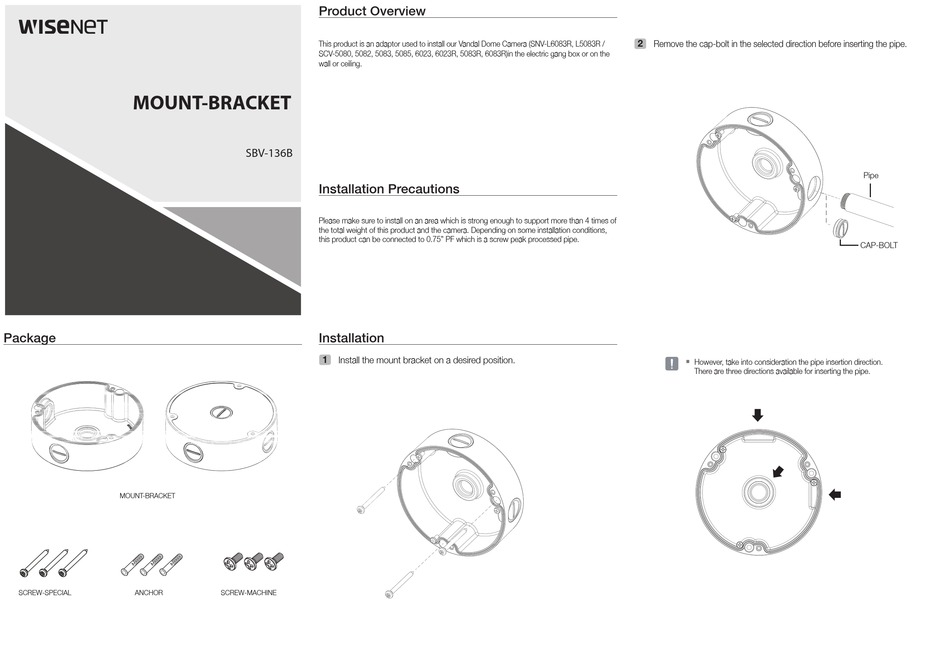

This product is an adaptor used to install our Vandal Dome Camera (SNV-L6083R, L5083R /
SCV-5080, 5082, 5083, 5085, 6023, 6023R, 5083R, 6083R)in the electric gang box or on the
wall or ceiling.
SBV-136B
Installation Precautions
Please make sure to install on an area which is strong enough to support more than 4 times of
the total weight of this product and the camera. Depending on some installation conditions,
this product can be connected to 0.75" PF which is a screw peak processed pipe.
Installation
1
Install the mount bracket on a desired position.
SCREW-MACHINE
2
Remove the cap-bolt in the selected direction before inserting the pipe.
J
`
However, take into consideration the pipe insertion direction.
There are three directions available for inserting the pipe.
Pipe
CAP-BOLT
Advertisement
Table of Contents
Related Manuals for Wisenet SBV-136B
Summary of Contents for Wisenet SBV-136B
- Page 1 SCV-5080, 5082, 5083, 5085, 6023, 6023R, 5083R, 6083R)in the electric gang box or on the wall or ceiling. MOUNT-BRACKET SBV-136B Pipe Installation Precautions Please make sure to install on an area which is strong enough to support more than 4 times of the total weight of this product and the camera.
- Page 2 Product Outline MEMO Attach the case-bottom to the mount bracket. Product Specifications 345g Weight Material Aluminum Operating -50°C~60°C Temperature Operating 0~100% Humidity PT01-004460A...
