Audix ADS48 Manual

ADS48

OVERVIEW

The Audix ADS48 is a wide range UHF antenna distribution system that combines up to
four wireless systems to be able to run off a single pair of antennas and power supply.
The ADS48 has an internal switching power supply which eliminates the need for the
individual DC power supplies normally needed for each receiver. RF signals are internally
amplified in order to compensate for any loss that may result from splitting the signal.

SUPPLIED ACCESSORIES

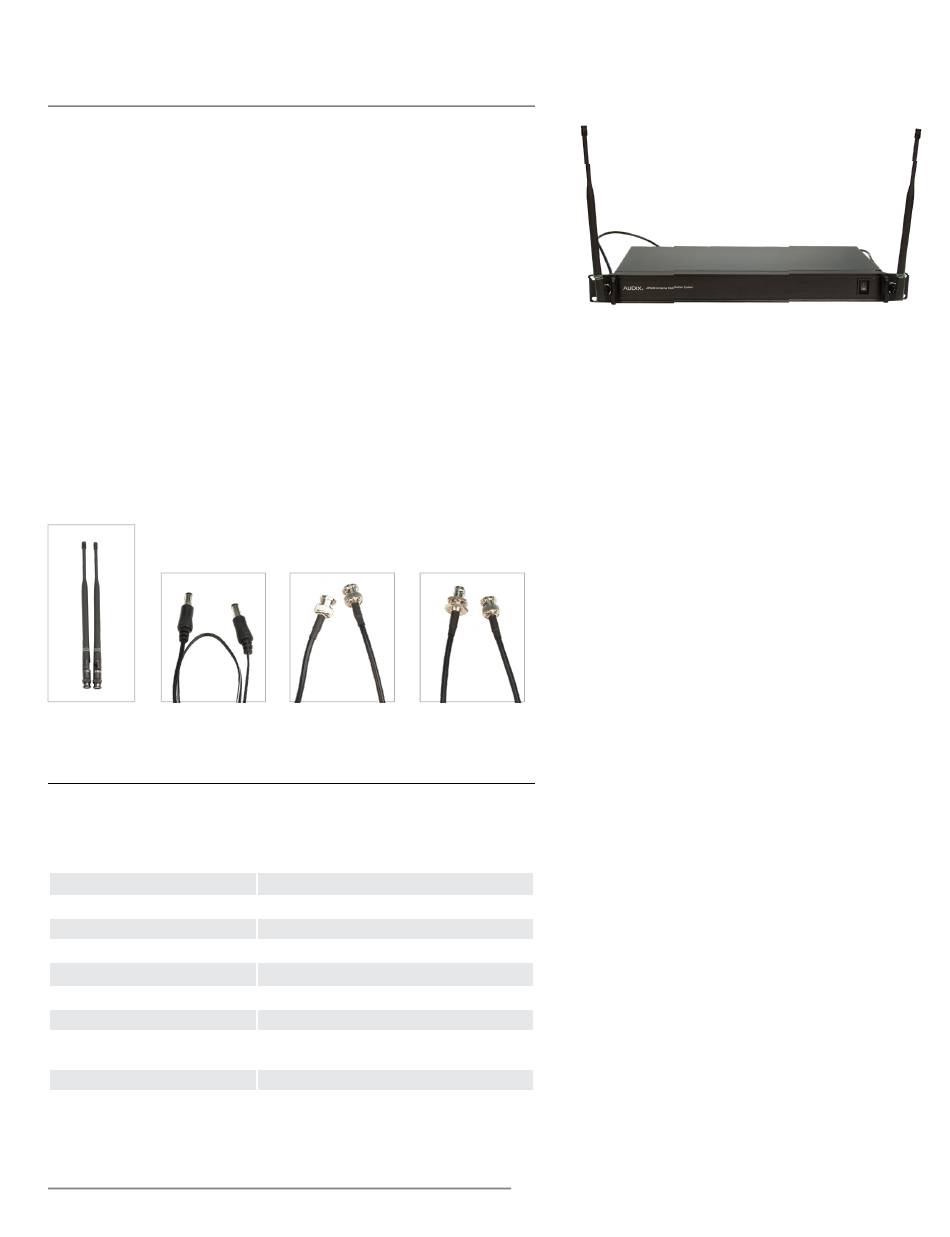

1 x ADS48 Antenna Distribution Unit with rack mount
2 x Antennas - (see photo A below)
1 x IEC power cable
4 x Power Jumper Cables to provide power to individual receivers - (see photo B below)
8 x BNC-to-BNC Coaxial Cables for pass through connection for up to
4 additional receivers (single or dual) - (see photo C below)
2 x Coaxial cables for front mounting antennas - (see photo D below)
A B

SPECIFICATIONS

Frequency Range
RF Output Level (Gain)
Input Impedance
Output Impedance
Power Voltage
Output DC Voltage
Antenna Input DC Voltage
Dimensions
Net Weight
UHF Antenna
Distribution System
C
470 - 900 MHz
0 dB d + or – 3 dB
50 Ohm
50 Ohm
100 – 240 V AC 50 / 60 Hz
+12 V DC, 800 mA maximum
8 V, 150 mA maximum
19" (W) x 2" (H) x 10" (D)
480 mm (W) x 45 mm (H) x 250 mm (D)
16 oz / 2.15 kg
D
ADS48
