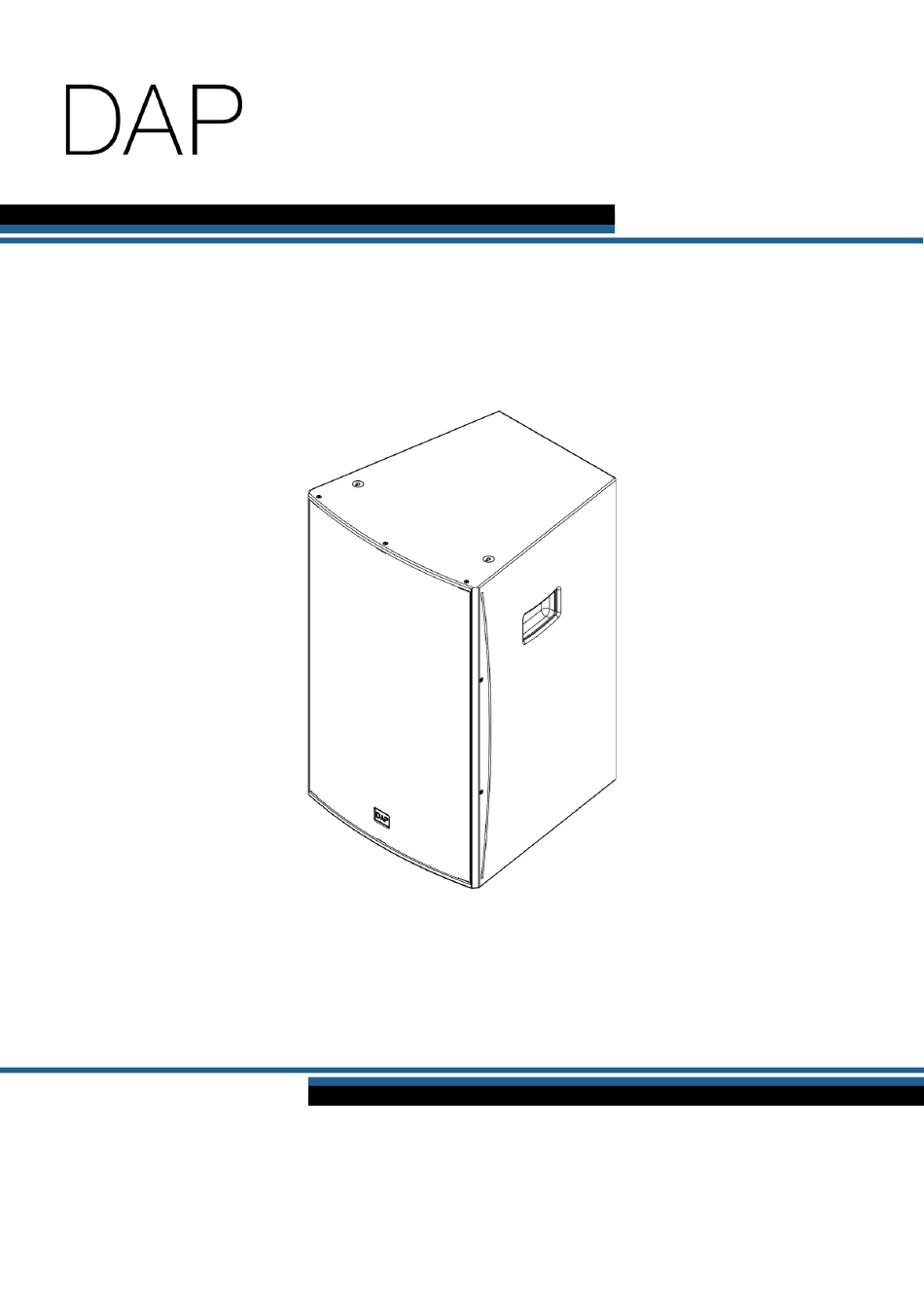

- Page 1 USER MANUAL ENGLISH NRG-15 Product code: D3626 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Highlite International and its authorized service providers are not liable for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or reliance on the information contained in this document.
-
Page 3: Table Of Contents
NRG-15 Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety ..................................5 Warnings and Safety Instructions ........................5 Requirements for the User .......................... -
Page 4: Introduction
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. After unpacking, examine the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ●... -
Page 5: Symbols And Signal Words
NRG-15 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
NRG-15 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children For adult use only. -
Page 7: Requirements For The User
NRG-15 Attention This device shall be used only for the purposes it is designed for. This device is designed to be used as a passive full-range loudspeaker. It is suitable only for indoor use. Any incorrect use may lead to hazardous situations and result in injuries and material damage. ●... -
Page 8: Description Of The Device
NRG-15 Description of the Device The DAP NRG-15 is a passive full-range loudspeaker rated at 550 W peak (150 W continuous RMS). It uses a 15 ” woofer and a 1 ” compression driver. Front View 01) 2 mounting openings (M10) with hex screws... -
Page 9: Back View
NRG-15 Back View 04) Speaker connector IN 05) Speaker connector THRU 06) 4-pin terminal connector (IN and THRU) 07) Mounting opening (M10) with a hex screw Fig. 03 Bottom View 08) Mounting opening 5° (Ø 35 mm) 09) Mounting opening 0° (Ø 35 mm) Fig. -
Page 10: Product Specifications
NRG-15 Product Specifications Model: DAP NRG-15 Physical: Dimensions: 440 x 680 x 460 mm (W x H x D) Weight: 20,2 kg Inputs: RMS input power: 150 W Peak input power: 550 W Audio Specifications: Speaker system: 2-way Speaker sensitivity (1 W/1 m):... -
Page 11: Optional Accessories
NRG-15 Optional Accessories You can additionally purchase the following accessories: ● D8600 Speaker Stand ● D8601 Speaker Stand 35mm Alu ● D8602 Speaker Stand with Baseplate ● D8436 Speaker hanging eye/ring 10mm (Black) ● D8610 Distance Tube 35 mm ● D8611 Distance Tube M20 ●... -
Page 12: Installation
NRG-15 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. ● Make sure that the overhead structure can hold the weight of the device. -
Page 13: Mounting Options
NRG-15 Mounting Options The device can be mounted on a pole, on a speaker tripod, suspended from an overhead structure with cables/chains, or mounted to a truss with a clamp. See 3.5. Optional Accessories on page 10. The device has 2 mounting openings (08)/(09) on the bottom for upright (0°) or inclined installation (5°) on a pole and 3 mounting openings (01)/(07) (on the top and at the back) for suspended installation. -
Page 14: Installation On A Distance Pole
NRG-15 Installation on a Distance Pole You can stack the device on top of a subwoofer with a distance pole. See 3.5. Optional Accessories on page 10. To mount the device on a distance pole: Put the subwoofer on a level stable surface. Insert the distance pole into the threaded mounting opening on the top of the subwoofer. -
Page 15: Overhead Suspension
NRG-15 Overhead Suspension CAUTION Restrict the access under the work area during installation and/or deinstallation. You can suspend the device on an overhead structure from the 3 rigging points with 3 rigging eyes (M10, thread length: min 15 mm, max 30 mm). See 3.5. Optional Accessories on page 10. To suspend the device, follow the steps below: Use a hex key to remove the 3 hex screws from the 3 mounting openings (01) and (07). - Page 16 NRG-15 Make sure that the 3 rigging eyes are fully seated and oriented in the plane of pull. Suspend the device on the overhead structure with suitable suspension cables/chains. Note: If the rigging eyes are removed, reinstall the hex screws in the 3 mounting openings (01) and (07). If the screws are not installed in the 3 mounting openings (01) and (07), air leaks occur in the enclosure.
-
Page 17: Overhead Mounting With A Clamp
NRG-15 Overhead Mounting with a Clamp CAUTION Restrict the access under the work area during installation and/or deinstallation. You can mount the device with 2 clamps to a truss. See 3.5. Optional Accessories on page 10. To mount the device, follow the steps below: Use a hex key to remove the 2 hex screws from the 2 mounting openings (01). -
Page 18: Setup And Operation
NRG-15 Setup and Operation Warnings and Precautions Attention This device must be used only for the purposes it is designed for. This device is designed to be used as a passive full-range loudspeaker. It is suitable only for indoor use. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use. -
Page 19: Stereo Setup
NRG-15 Stereo Setup You can connect 2 full-range passive speakers NRG-15 in a basic stereo setup with an amplifier and an audio mixer. To complete this setup: Connect the speaker connector IN (04) of the 1 full-range passive speaker to the output A of the amplifier. -
Page 20: Setup With Multiple Passive Full-Range Speakers
NRG-15 Setup with Multiple Passive Full-Range Speakers You can use multiple full-range passive speakers NRG-15 as stage monitors and connect them to an amplifier and an audio mixer. To complete this setup: Connect the speaker connector IN (04) of the 1 full-range passive speaker to the output A of the amplifier. -
Page 21: Setup With Passive Subwoofers
NRG-15 Setup with Passive Subwoofers You can stack 2 full-range passive speakers NRG-15 with 2 passive subwoofers from the NRG range (NRG- 15S/NRG-15S/NRG-18S) and connect them to an amplifier and an audio mixer. To complete this setup: Connect the speaker connector IN (04) of the 1 full-range passive speaker to the speaker connector THRU of the 1 passive subwoofer. -
Page 22: Troubleshooting
Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. Refer servicing to instructed or skilled persons. Contact your Highlite International dealer in case the solution is not described in the table. -
Page 23: Maintenance
Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. Product code: D3626... -
Page 24: Deinstallation, Transportation And Storage
For more detailed information about recycling of this product contact the local authorities or the authorized dealer. Approval Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity. Product code: D3626... - Page 25 NRG-15 Product code: D3626...
- Page 26 NRG-15 Product code: D3626...
- Page 27 NRG-15 Product code: D3626...
- Page 28 ©2023 DAP...
