Summary of Contents for tedee BleBox smart
- Page 1 BleBox smart relay module Installation and Tedee integration manual...
-
Page 2: Preparation For Installation

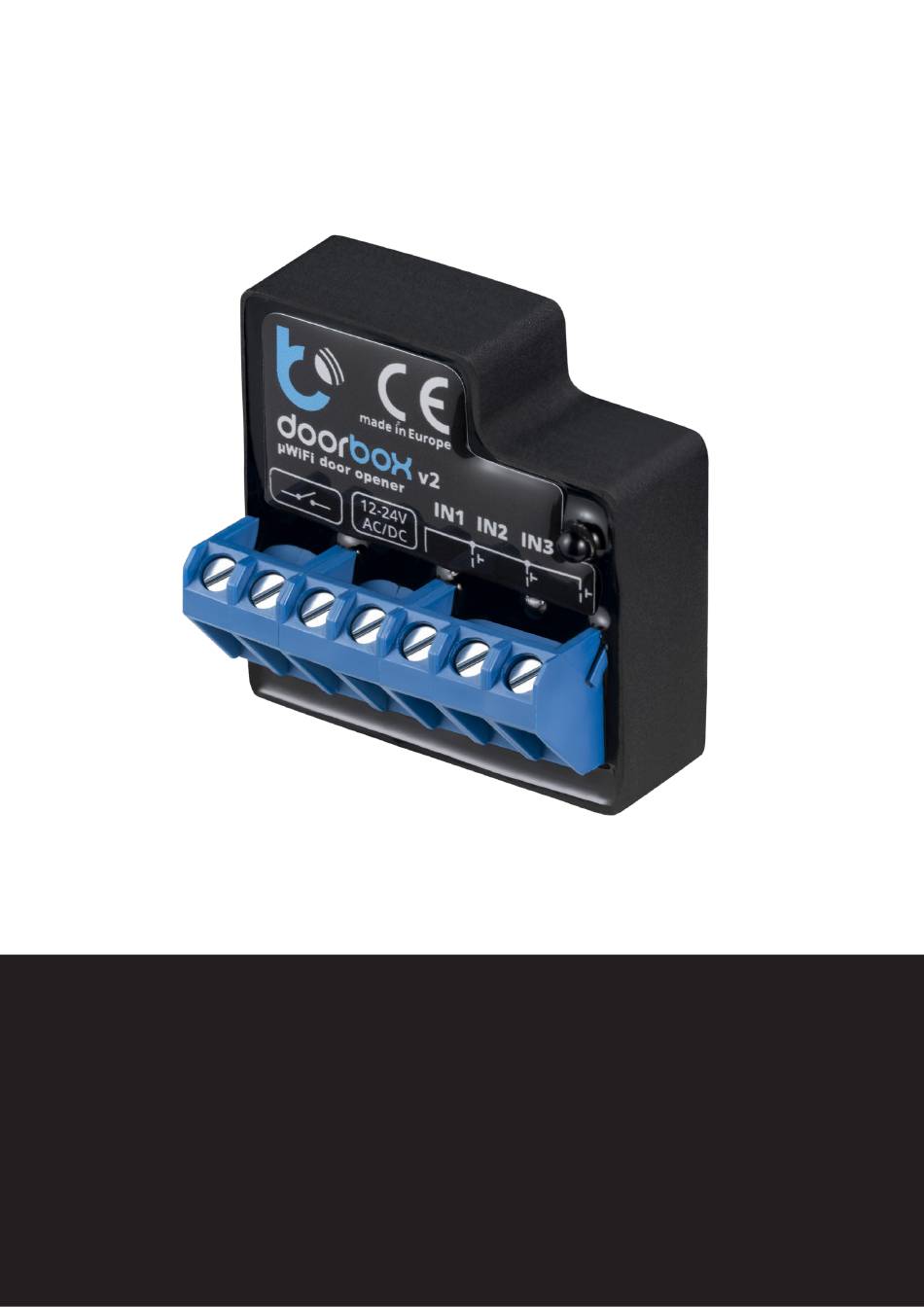

Be aware that this module is not a relay controller; they are two separate devices. BleBox smart relay module is wire-connected to a relay controller. It can also be accessed by a local Wi-Fi network and the internet to integrate with an online cloud platform. This allows you to have a remote and wireless smartphone control for your device –... - Page 3 Installation tutorial The installation process of the BleBox smart relay module involves an electronic connection, to connect it with the online cloud service, and then integrate the systems with the Tedee application. Simply follow the steps below. BleBox smart relay module should be installed by qualified installers or electricians only.
- Page 4 Remember, the metallic elements (wires, housing parts) may negatively influence the wireless connection of the device and its work. It’s recommended that the module is fixed in a steady position. Read the diagrams below, then proceed to install the relay module. Pay particular attention to the designation of the relay module connectors.
-
Page 5: Configuring Device
the same input you connect the controller to, and the sensor output should be connected to the input IN1 – connector (5). To unlock the relay with the optional monostable switch (push-button), connect the switch circuit to the IN2 – connector (6) and COM input of the controller – connector (3). This switch is normally used as an exit button for a building or property. - Page 6 Begin adding a new device Start adding a new device by tapping a “+” icon in the top-right corner of the screen. Select “Add new device.” Choose “Add and set up a new device.” Connect to the relay module Make sure that your relay module is powered. Turn ‘data transfer’...
- Page 7 Add the device to your account Return to your wBox app. Close the integration tutorial window by pressing “X” in the top-left corner. Your app’s home window will show a message stating that you have connected to a new device and can add it to your account.
- Page 8 Any relay module will integrate with the Tedee app. Launch your Tedee app and log in to your Tedee account. If you still need to become a user, create a Tedee account.
- Page 9 At the bottom of the screen, you can go to the “Access sharing”, “Activity logs”, or “Settings” tabs to access additional features. Go to https://tedee.com for more information on how to use smart access features.
-
Page 10: Factory Reset
To prevent the access of unauthorized persons to your relay module, you must set up a password to protect to protect the device’s Wi-Fi network. Return to the wBox app to the device settings page and choose “Service connection (AP)”. Click “Add password protection”... - Page 11 Follow the reset sequence 1. Before turning the power back on, follow the reset sequence and keep track of the buttons you use. Start the sequence no more than 30 seconds after turning the power back on. If you don’t start the sequence in this period, turn the power off and back on again. 2.
